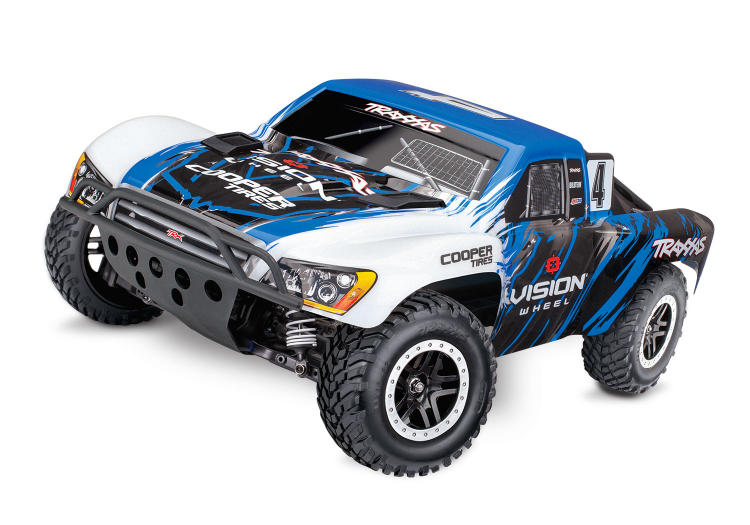

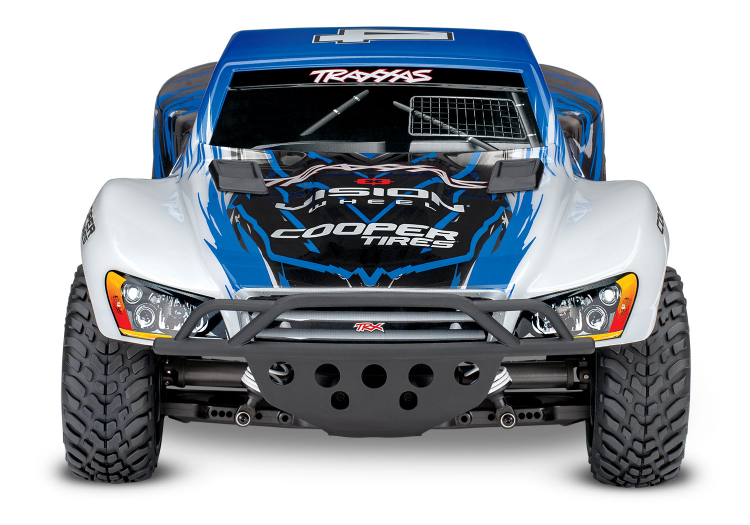

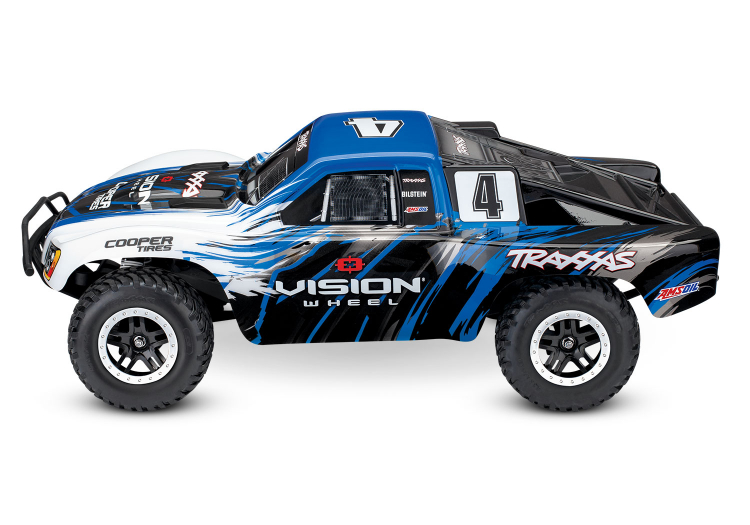

Traxxas 68286-4-VISN - Slash 4X4 VXL Clipless - VISION
Traxxas Slash® 4X4 sets the standard for durability, performance, and technology in the 1/10 scale short course truck segment. Innovative features like Traxxas Stability Management®, modular chassis design, and ultra-efficient shaft drive complement Slash’s track-tested precision and rock-solid durability. Slash 4X4’s extreme Velineon® brushless power provides dirt-roosting torque and screaming 60+ mph speed with a TQi™ radio system to keep everything under precise control. With just one drive you will see why the Traxxas Slash 4X4 elevates short course performance to a whole new level.
FEATURES ON SLASH 4X4 VXL (68286-4)
- NEW Pre-painted ProGraphix® clipless body
- NEW Heavy-duty suspension arms
- NEW Larger heavy-duty driveshafts
- NEW Heavy-duty slipper clutch
- TQi™ 2.4GHz radio system
- Traxxas Link Wireless Module compatible
- Traxxas Stability Management (TSM)®
- Extreme Velineon brushless horsepower
- Top speed: 96+kph!*
- Waterproof electronics for all-weather fun
- Rugged modular composite frame
- Sealed front and rear differentials with steel gears
- Battery and charger sold separately
Clipless Body Mounting
Slash's innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift up to access the chassis in just seconds.
Class-Leading Brushless Power
Slash 4X4's Traxxas Velineon Brushless Power system defines a whole new generation of outrageous electric power. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precise throttle control. For the uninitiated, prepare yourself... the sheer brutal power combined with the Slash 4X4's four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s components work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. It delivers the ultimate in efficiency, speed, and run-time along with refined control. It's brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required!
SLASH 4X4 (#68086-4) SPECS:
- Length: 568 mm
- Front Track: 296 mm
- Rear Track: 296 mm
- Center Ground Clearance: 72 mm
- Weight: 2.64 kg
- Height (overall): 193 mm
- Wheelbase: 324 mm
- Shock Length: Long (front), XXLong (rear)
- Tires: Traxxas 2.2 inch pre-glued with foam inserts
- Tire Diameter: 4.31 inches (109.5 mm) (front and rear)
- Wheels (front/rear): 2.2 inch Split-Spoke, black or red beadlock
- Wheel Diameter: 2.2 inches (56 mm) outer / 3.0 inches (76 mm) inner
- Speed Control Type: VXL-3s™ Electronic Speed Control
- Motor (electric): Velineon® 3500 brushless
- Overall Drive Ratio: 11.82 (stock, out-of-box)
- Differential Type: Hardened steel bevel, sealed, limited slip
- Gear Pitch: 32

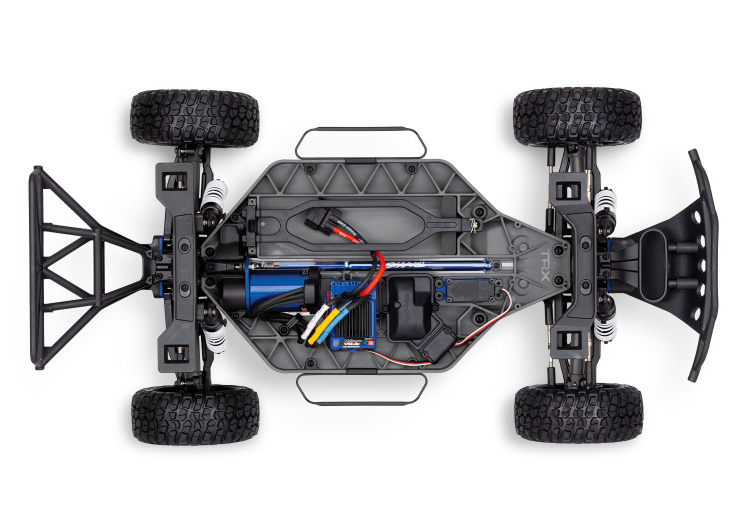

- Chassis Structure/Material: Molded tub / Nylon composite
- Drive System: Shaft-driven, direct drive 4WD
- Steering: Dual-bellcrank with integrated servo saver
- Radio System (transmitter) TQi™ 2.4GHz (2-channel)
- Radio System (receiver) Traxxas Stability Management™ (6533)
- Top Speed: 96+kph*
- Skill Level: 1
- Battery Tray Dimensions:** 165 x 49.5 x 23/25 mm
- Required Items: NiMH or LiPo battery, charger, 4 "AA" batteries (for transmitter)
**Battery expansion kit available
VXL-3s WATERPROOF ESC SPECIFICATIONS
- Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
- LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
- Case Size: 39 x 55 x 33 mm
- Weight: 90 gr
- Motor Limit (Brushless): No motor limit
- On Resistance Forward: 0.00075 Ohms
- On Resistance Reverse: 0.00075 Ohms
- BEC Voltage: 6.0 V
- BEC Current: 2.5A
- Power Wire: 12-Gauge Maxx® Cable
- Input Harness Wire: 26 Gauge / 100 mm
- Low Voltage Detection: 2-stage indicators, switchable (on or off)
- Thermal Protection: 2-stage thermal shutdown
- Single-Button Setup: Yes, Traxxas EZ-Set®
- Battery Input Connector : Traxxas High-Current Connector
- Motor Types : Brushless
- Ports: RX input, auxiliary fan
- Sport Mode: 100% FWD, 100% BRAKES, 100% REV
- Race Mode: 100% FWD, 100% BRAKES, NO REV
- Training Mode:* 50% FWD, 100% BRAKES, 50% REV
