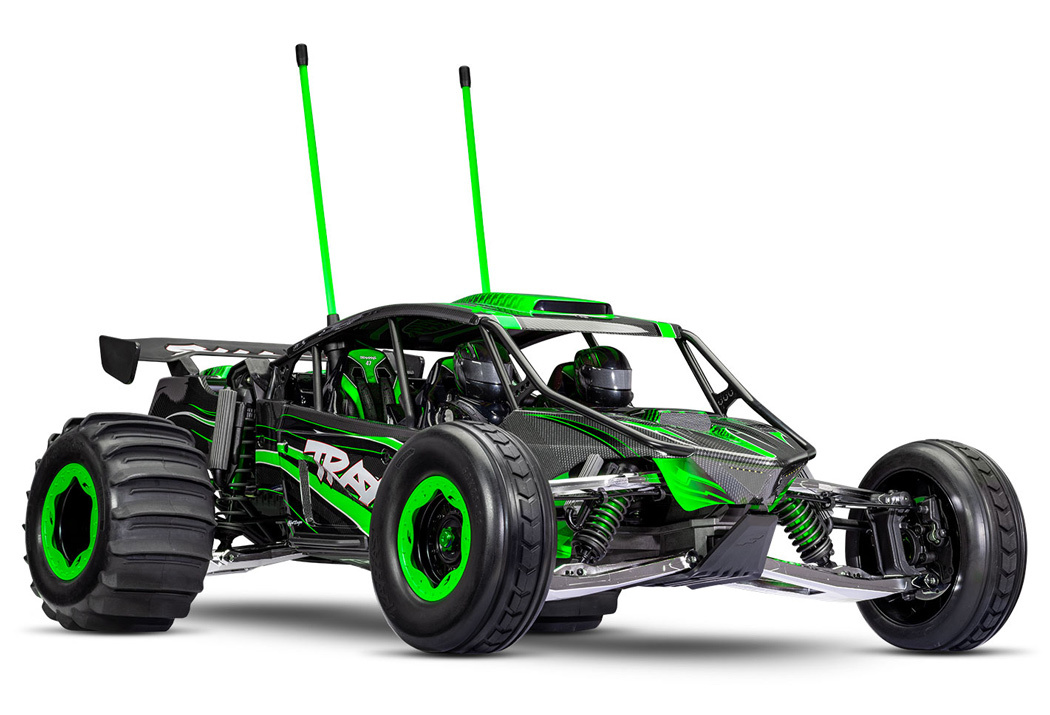

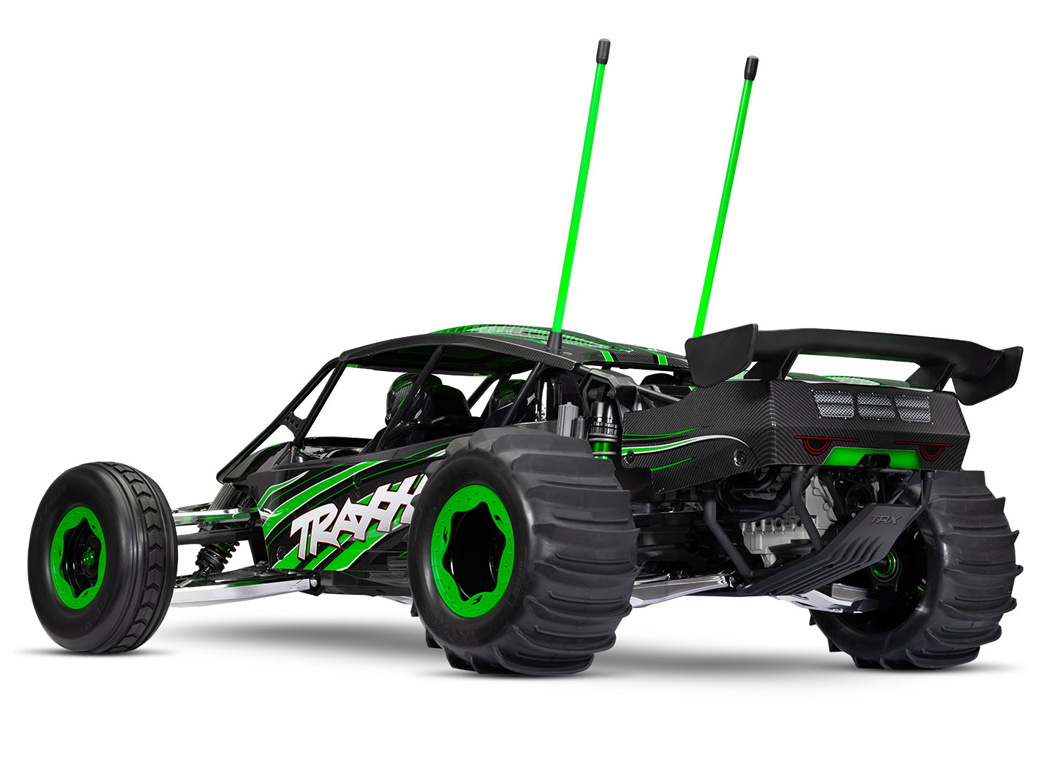

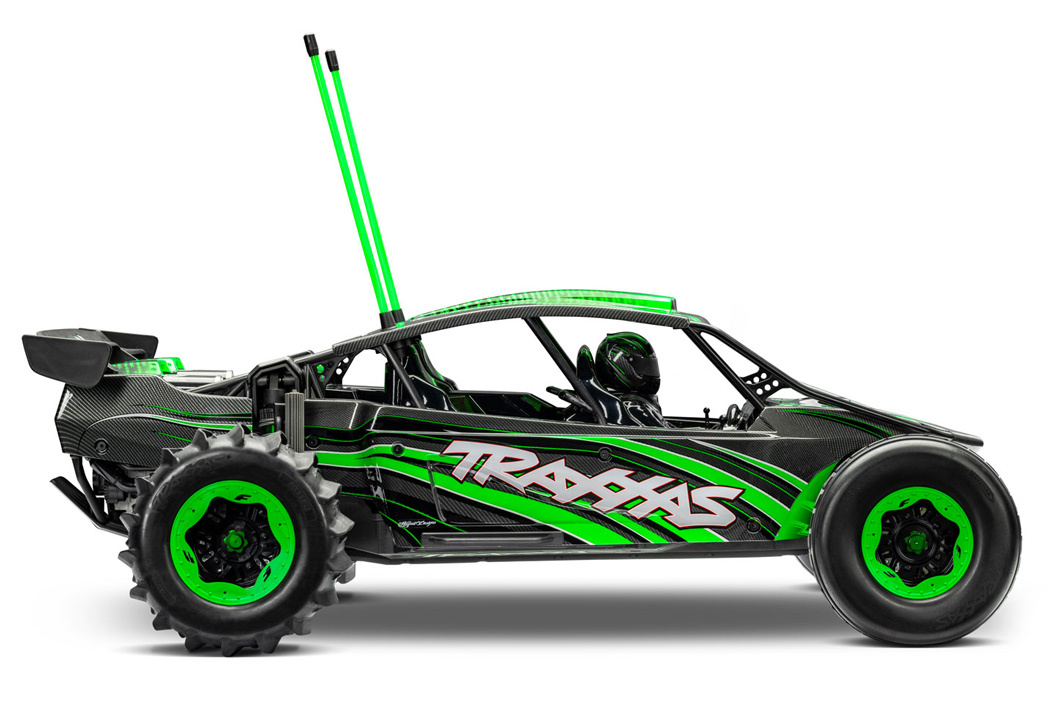

Traxxas TRX109076-4-GRN - Funco Pro-Scale Sand Car 8s GREEN
King of the Dunes

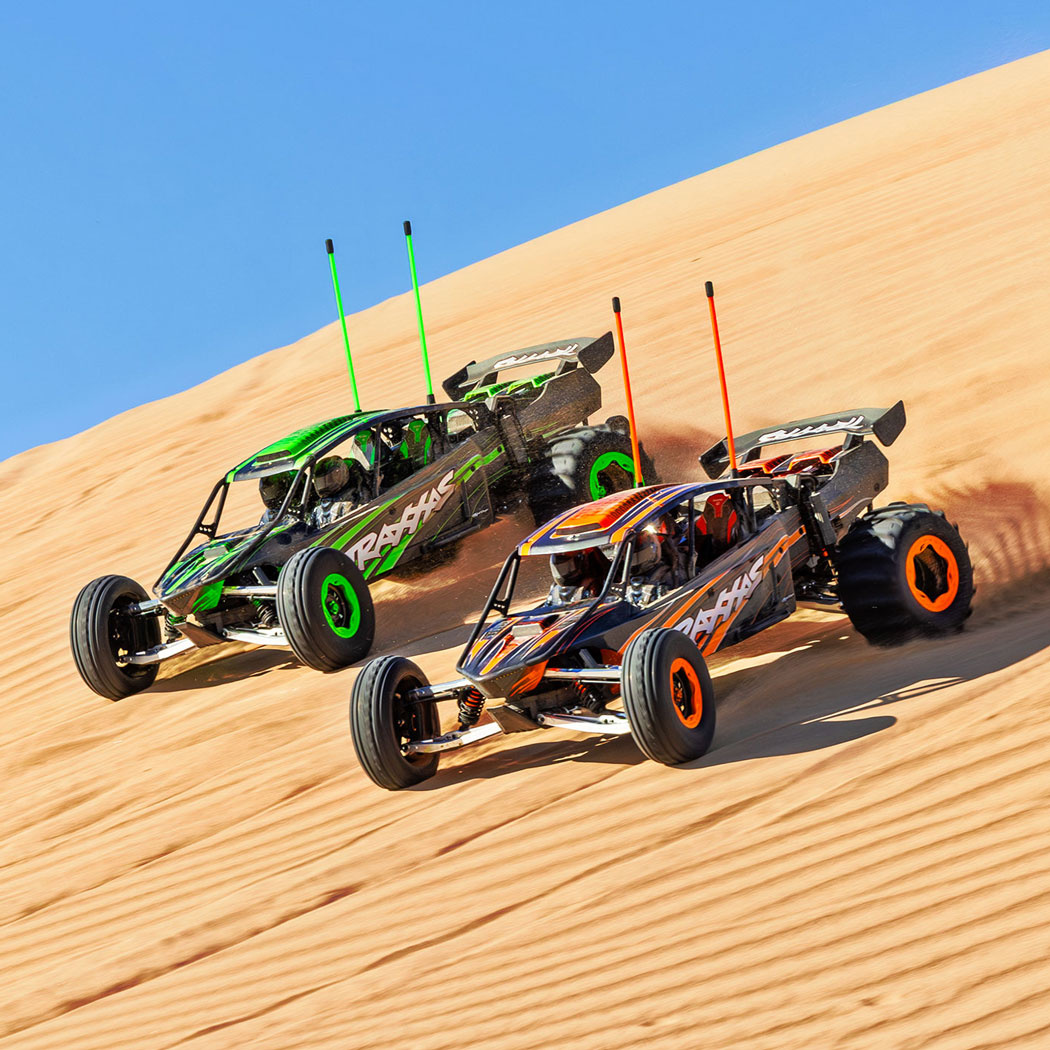

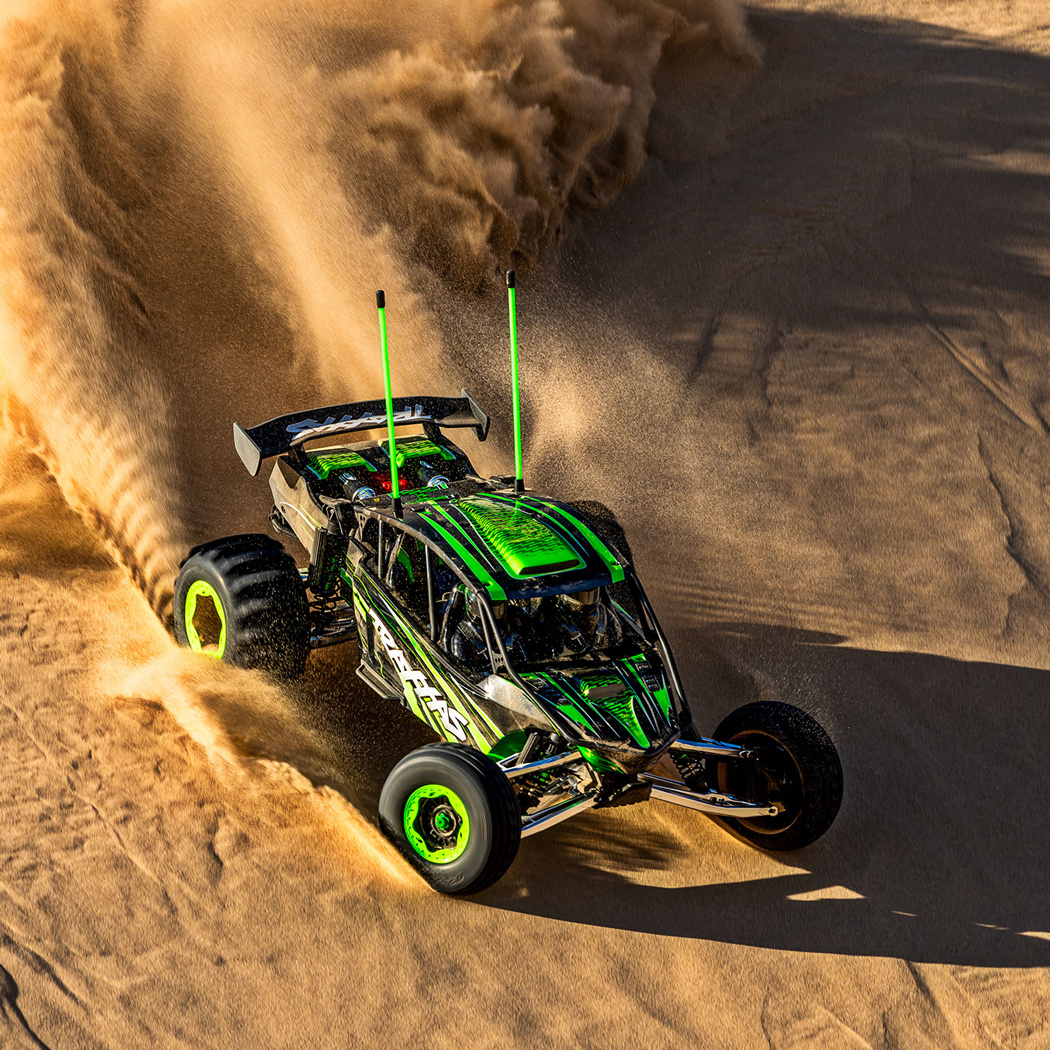

Driving a sand car is an adrenaline-fueled thrill ride like nothing else on Earth. Outfitted with 1000+ horsepower engines and trick long-travel suspension systems, sand cars can top 240 kph and wheelie with just a blip of the throttle. The new Traxxas Pro Scale® Sand Car is a 88+ kph replica purpose-built to deliver the same raw excitement and thrill of driving the full-size Funco Motorsports car in dramatic X-Series™ scale.
Funco Features:
- Pro Scale® Replica of the 1000+ hp Funco Motorsports Sand Car
- Velineon® VXL-8s™ Brushless Power System
- 88+ kph Top Speed with Included High Speed Gearing
- New Sand Car Addition to the X-Series™ Lineup
- High-Speed Belted Sand Paddle Tires for Maximum Forward Bite
- All-new Rear-Wheel-Drive System with Ultra-HD Steel Gears
- Powerful Front Disc Brakes Combined with Rear Motor Braking
- Metal-Gear 2085XL Servo with 25% More Torque
- Color-Matched Whip Lights with Flex-Tech™ Mounts
- Ultra-Realistic Scale Body and Precision Details
- Traxxas Stability Management® for Pro-Level Driving Control
- Extended-Length Aluminum GT-Maxx® Shocks with Threaded Bodies

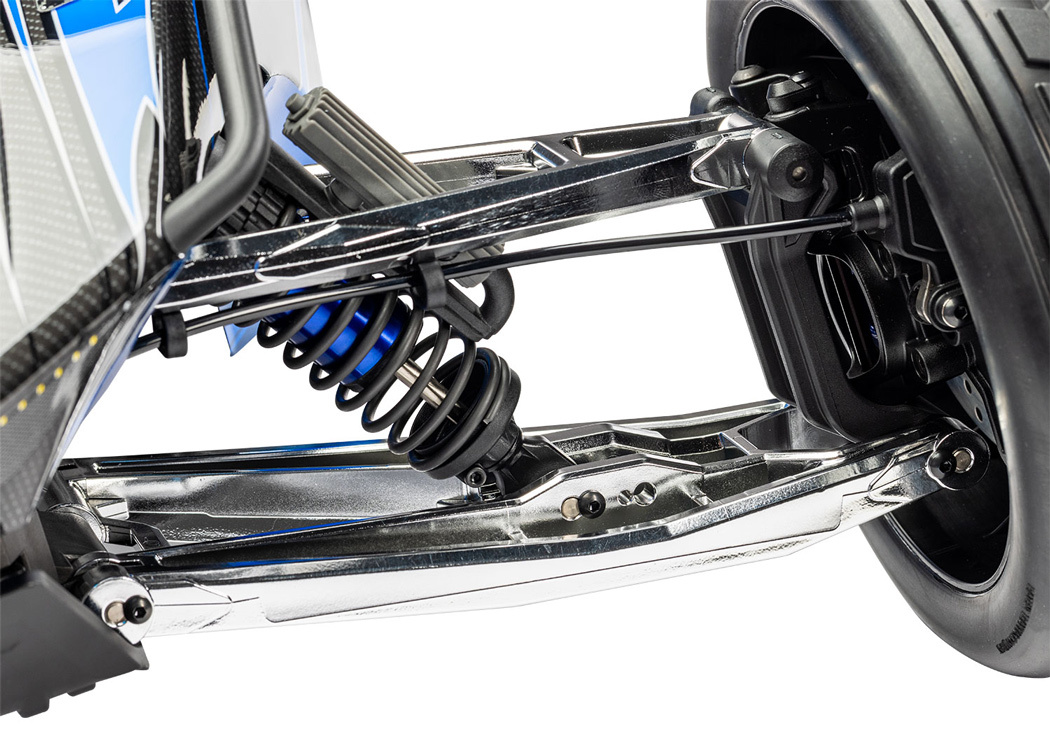

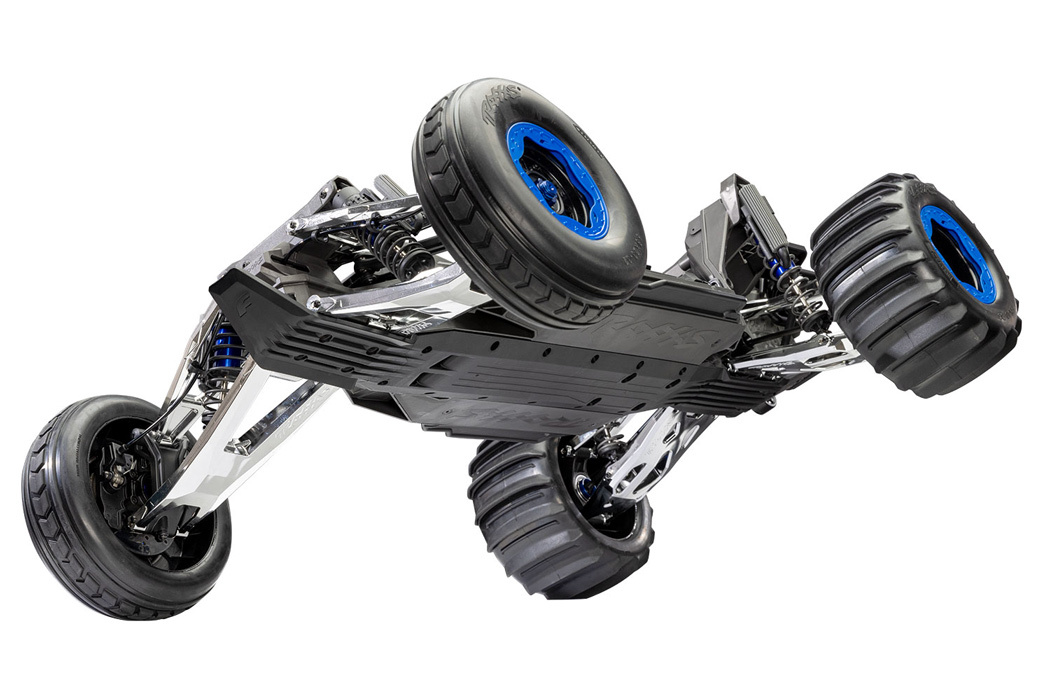

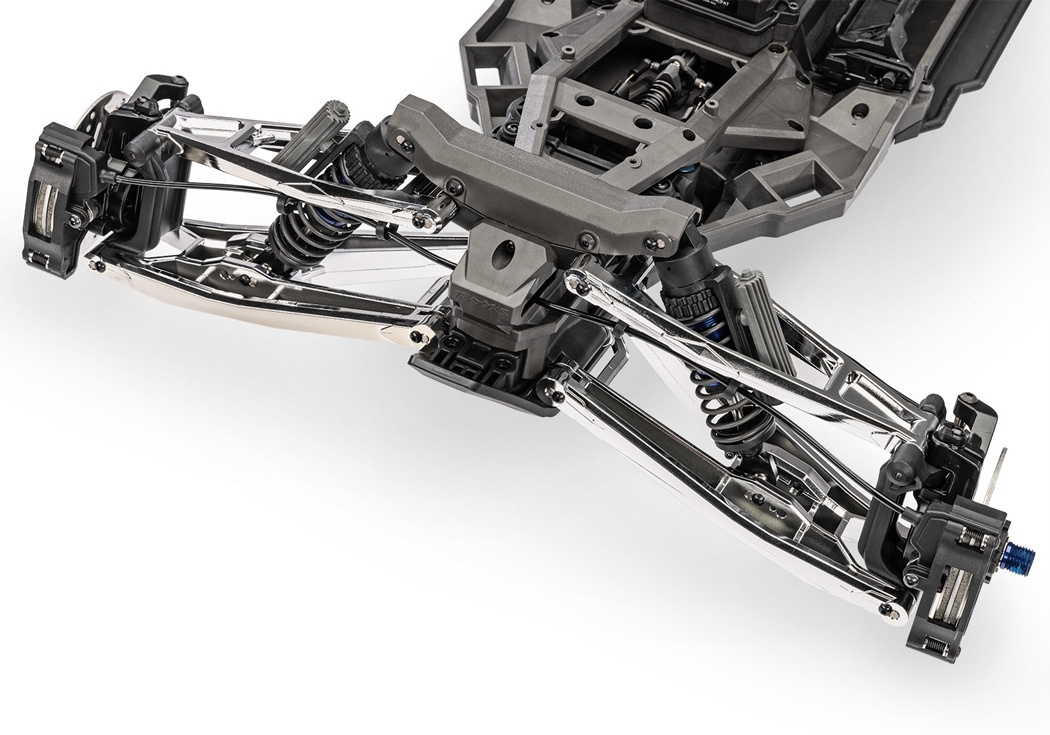

- Long-Travel, Independent Suspension with Polished Aluminum-Finish Arms
X-Series Size

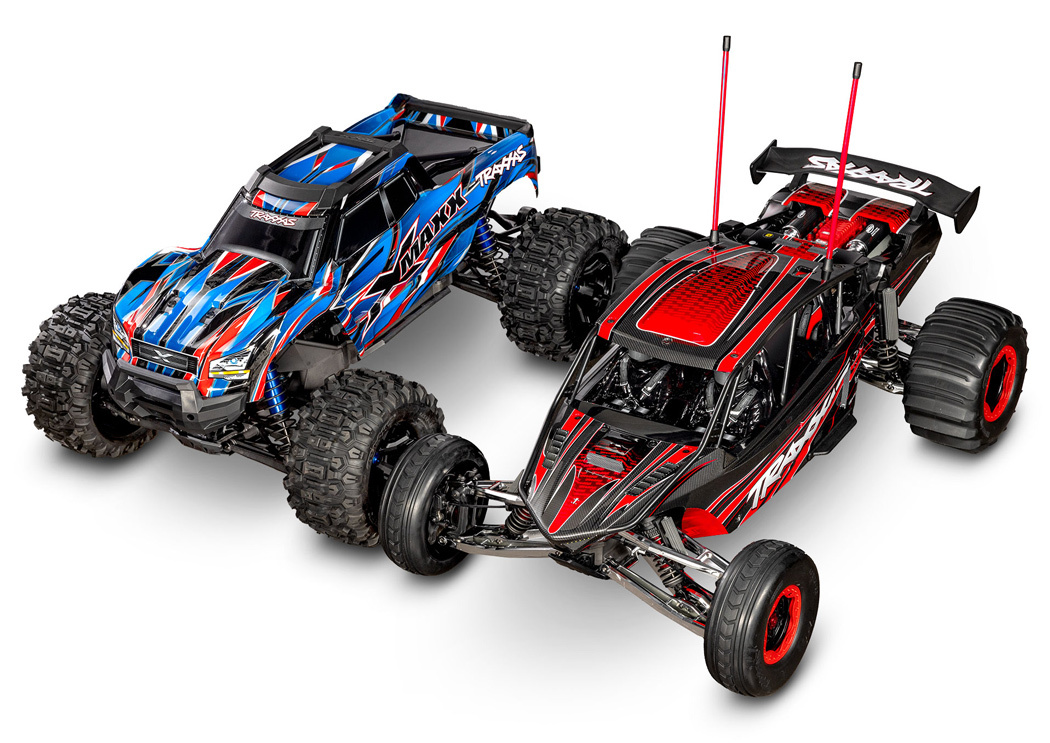

Both longer and wider than the legendary X-Maxx®, the Pro Scale Sand Car is the largest member of the X-Series family. This immense size gives the Sand Car incredible scale detail, authentic driving dynamics, and an imposing presence. The Sand Car’s huge footprint provides extra stability to blast down desert trails and fly over dunes with ease.

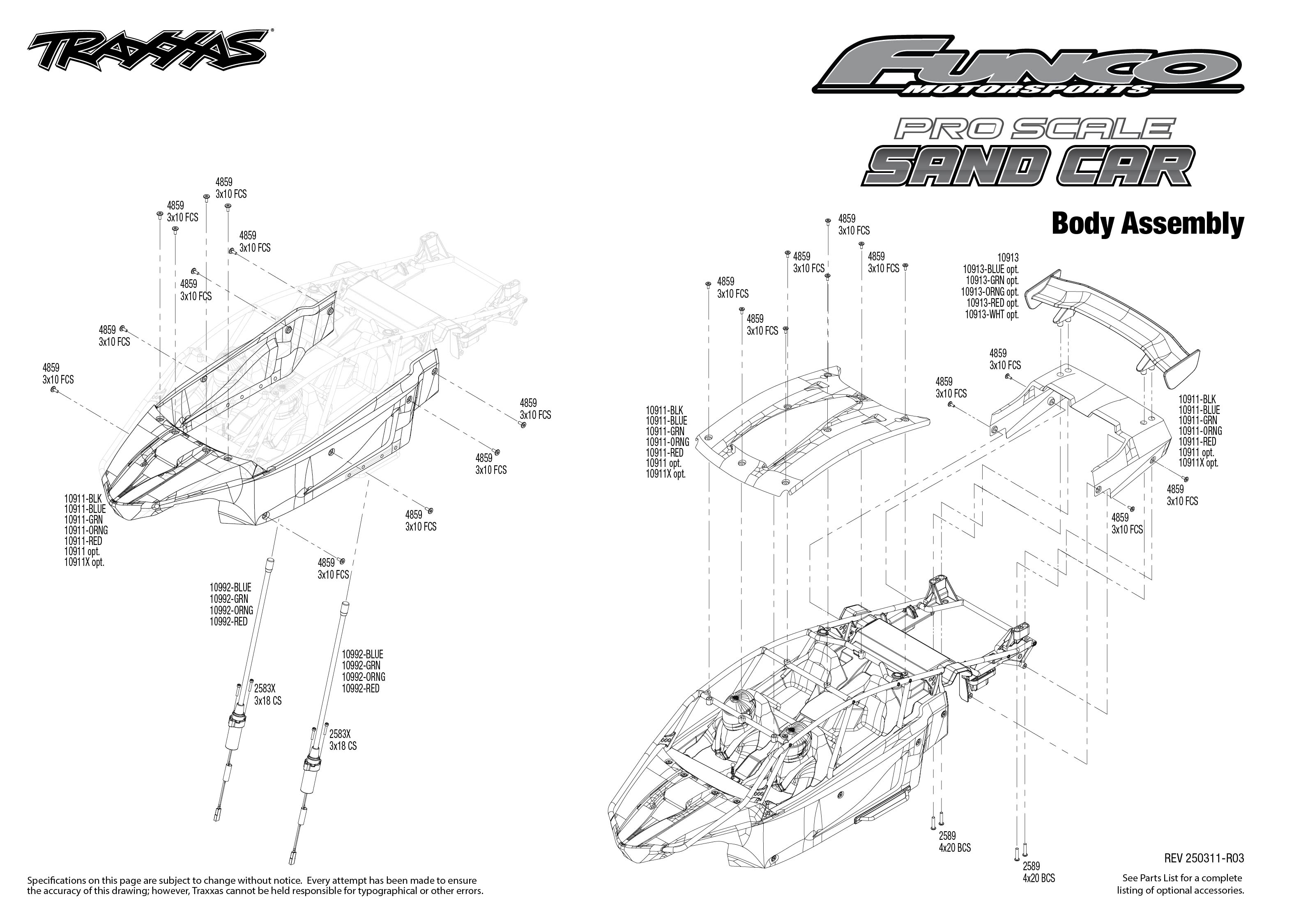

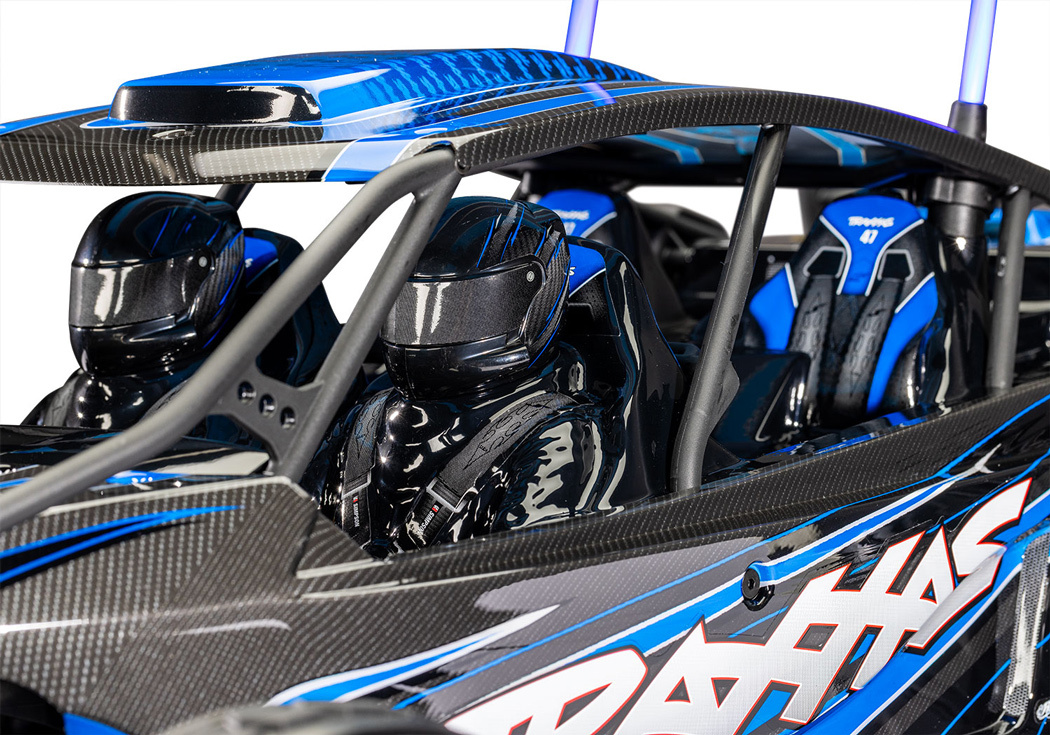

Scale Details

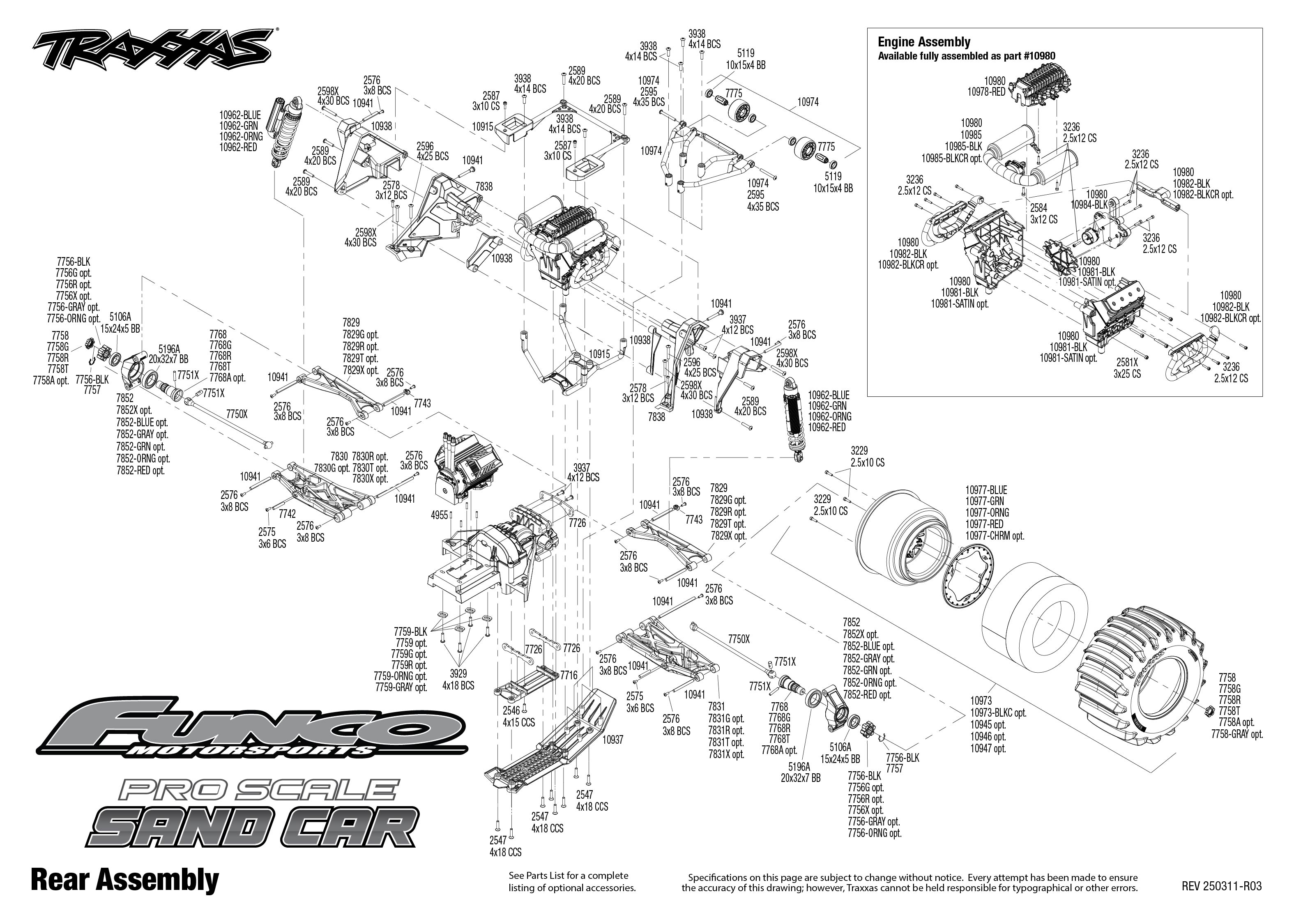

Traxxas pulled out all the stops to replicate the full-size Funco GTU Sand Car in exact detail. The Pro Scale Sand Car features a full interior with dashboard and driver figures and replica remote-reservoir 3.5" shocks. The engine is a work of art, comprised of 9 different pieces, including licensed R2C air filters and a Whipple supercharger.

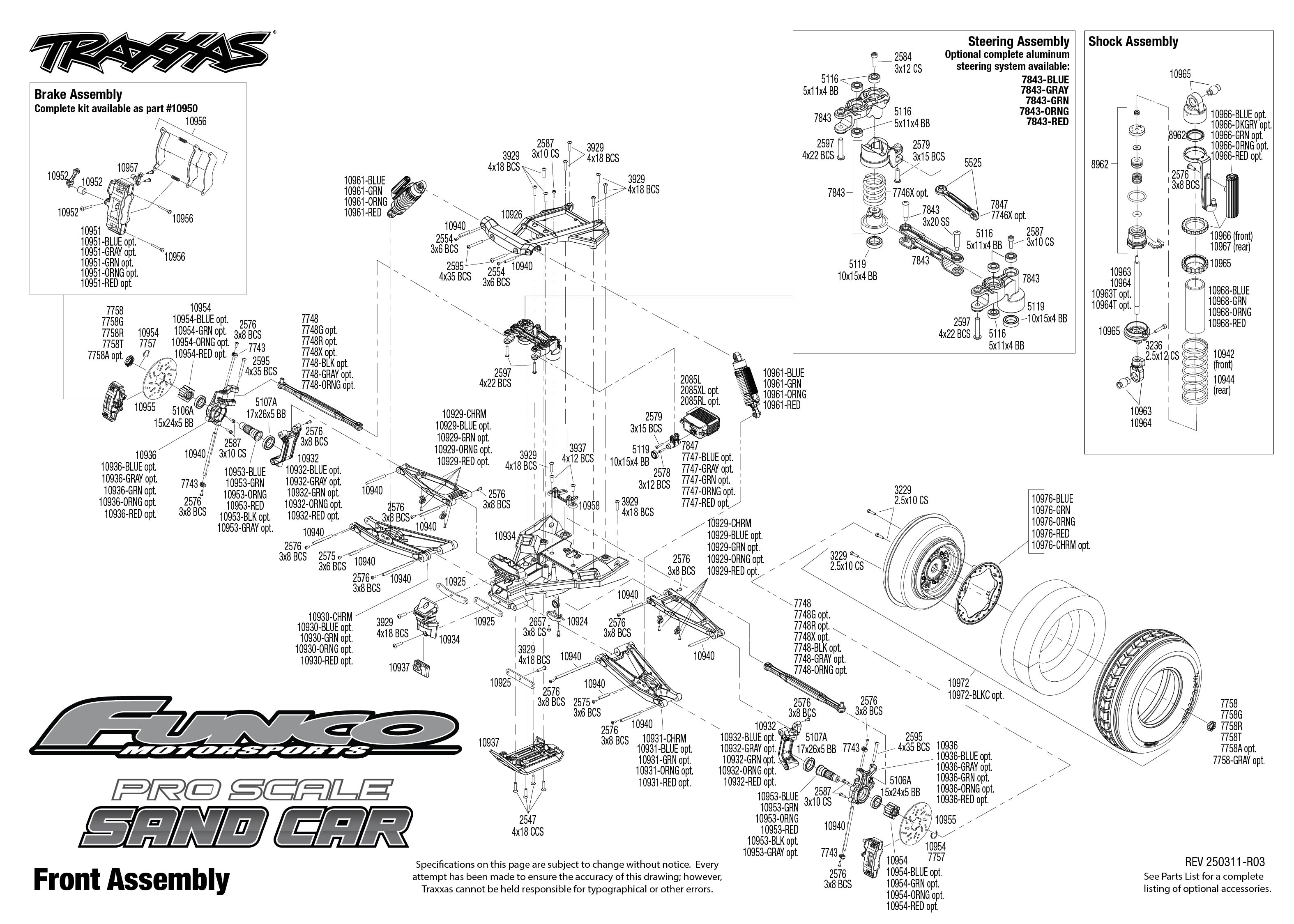

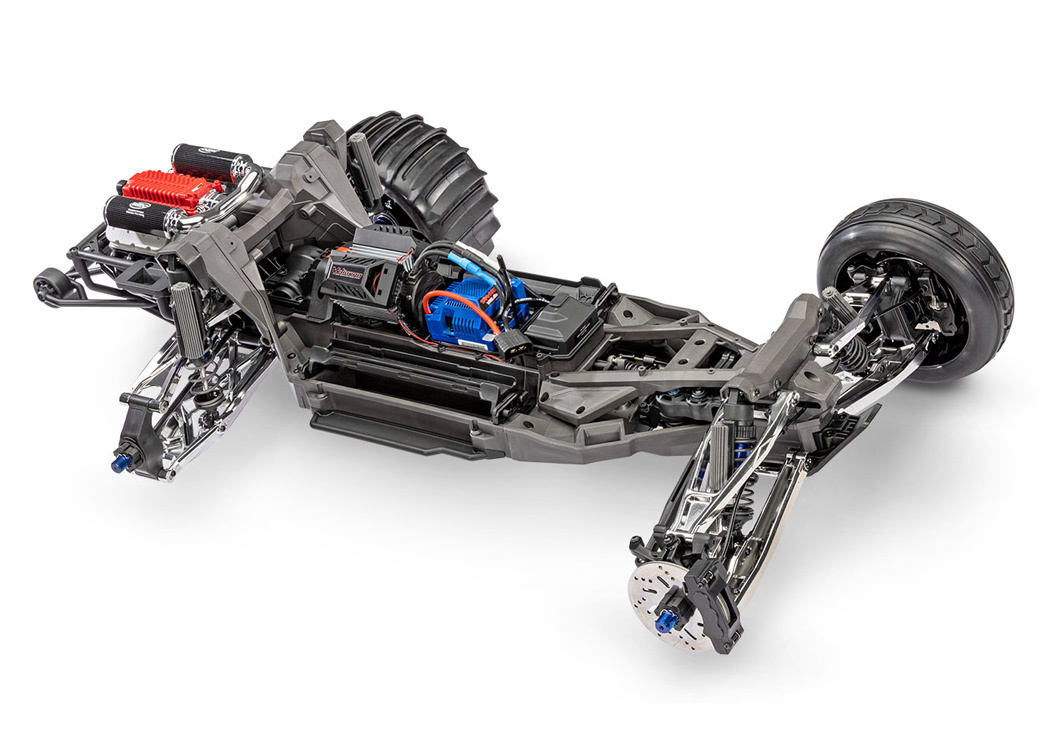

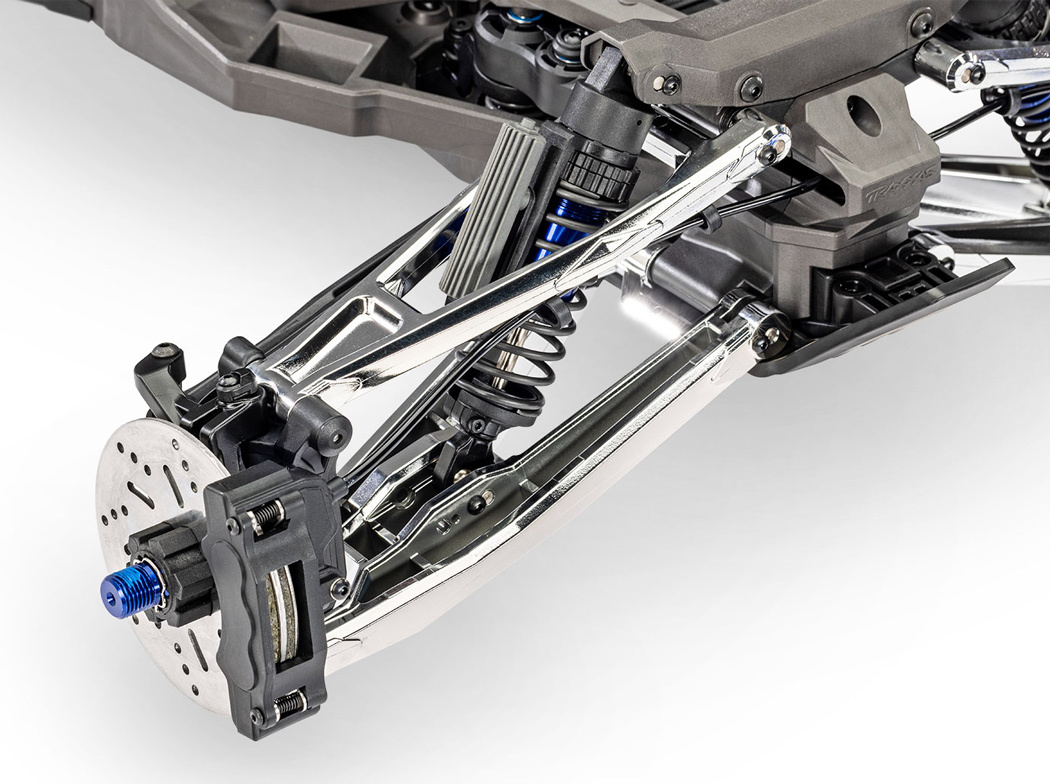

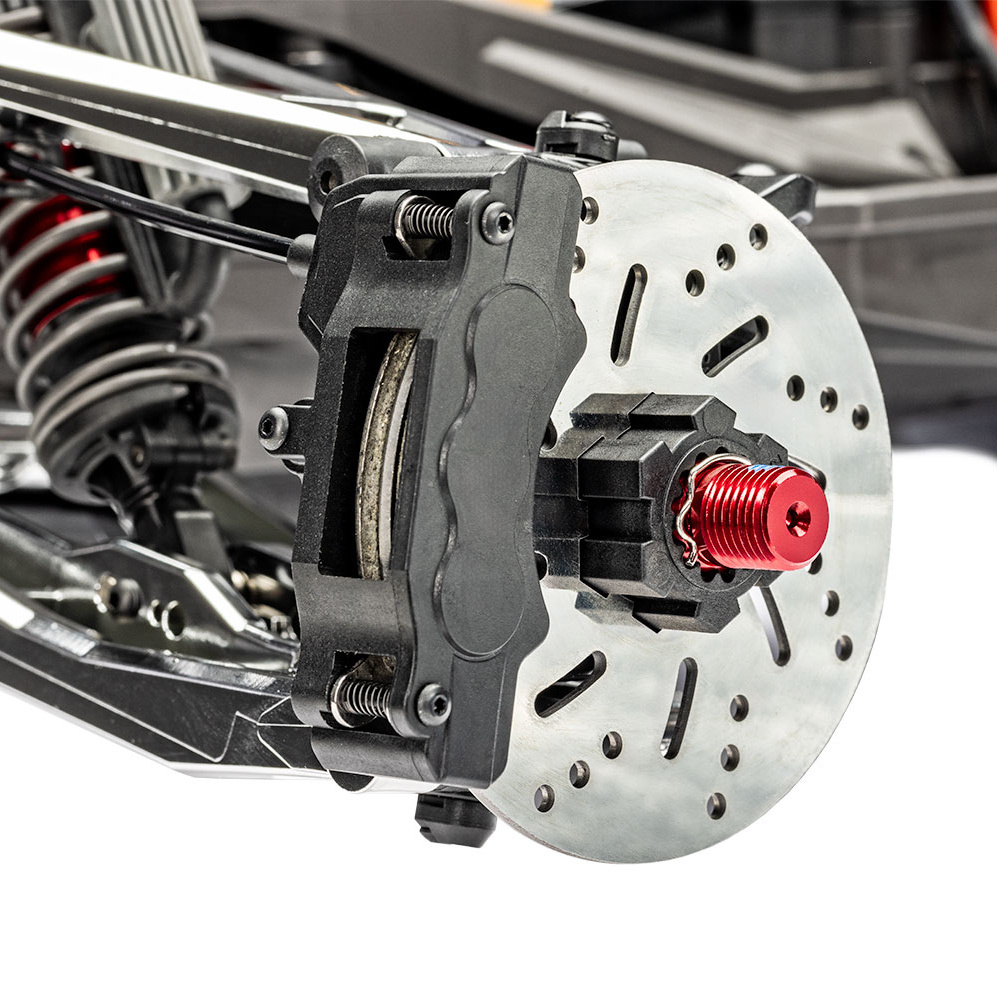

Front Disc Brakes
Powerful front disc brakes work in tandem with the rear motor braking for powerful and controlled 4-wheel stopping power. Sheathed cables clamp the calipers down on drilled stainless steel rotors for scale authenticity. A digital 2075 servo actuates the brakes through an adjustable linkage for greater braking precision and control.
Belted Paddle Tires
The Pro Scale Sand Car’s aggressive paddle tires feature twice the traditional number of ribs for extreme traction off the line. A belted carcass prevents the paddles from distorting for maximum forward bite in the sand and powerful acceleration.

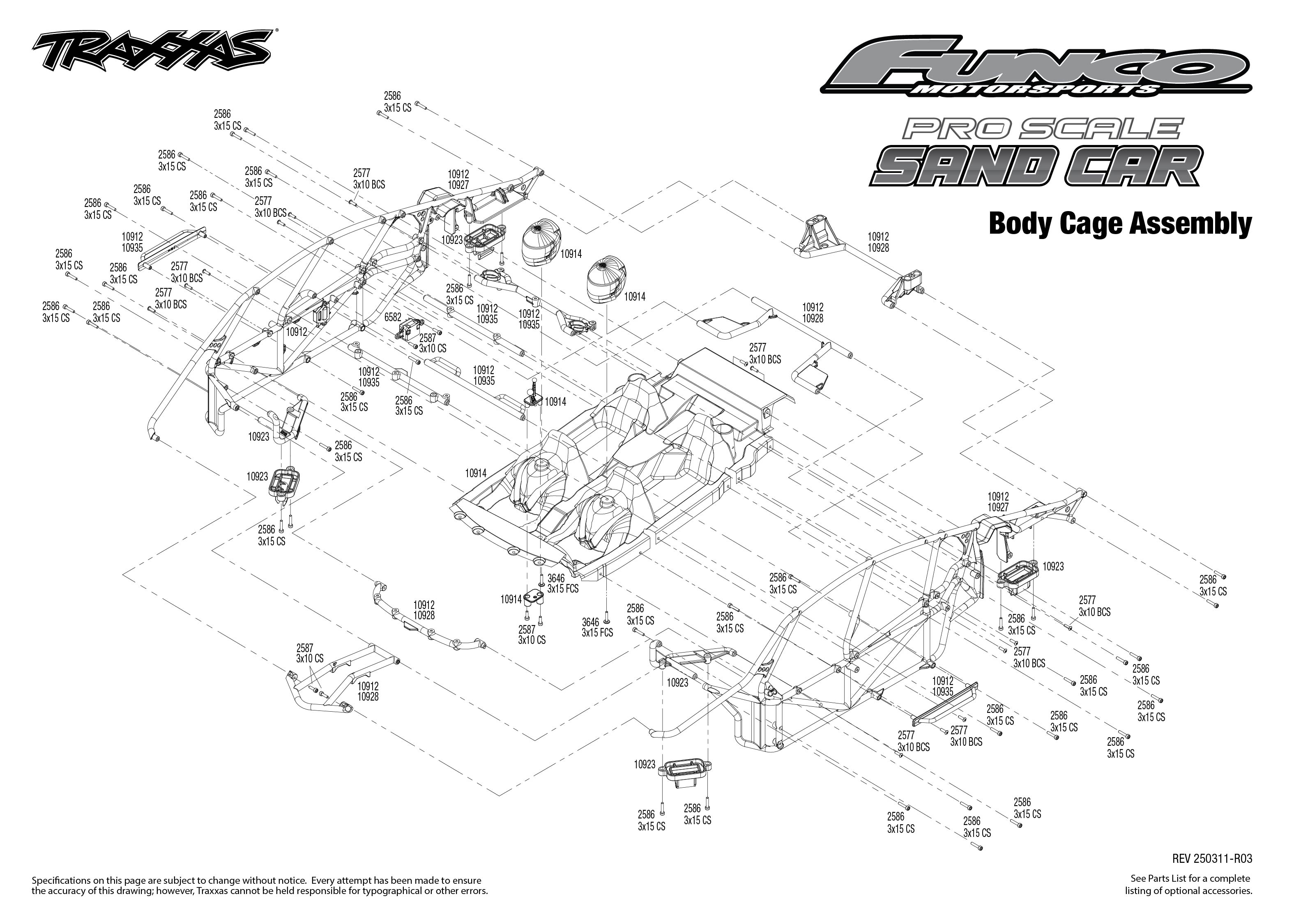

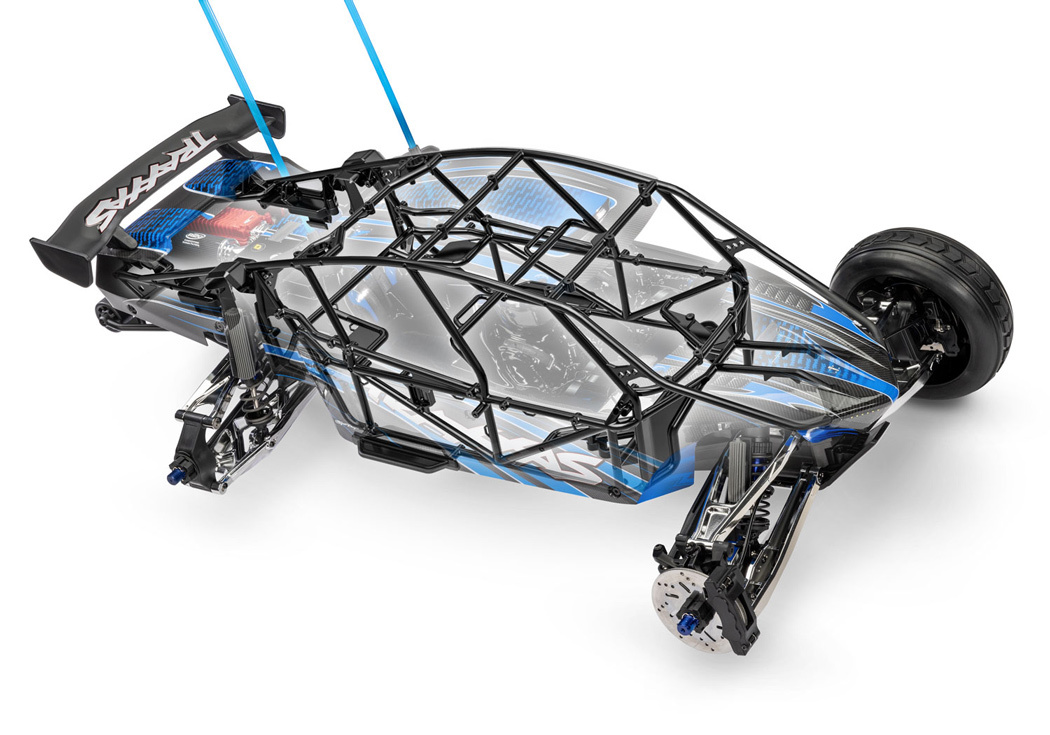

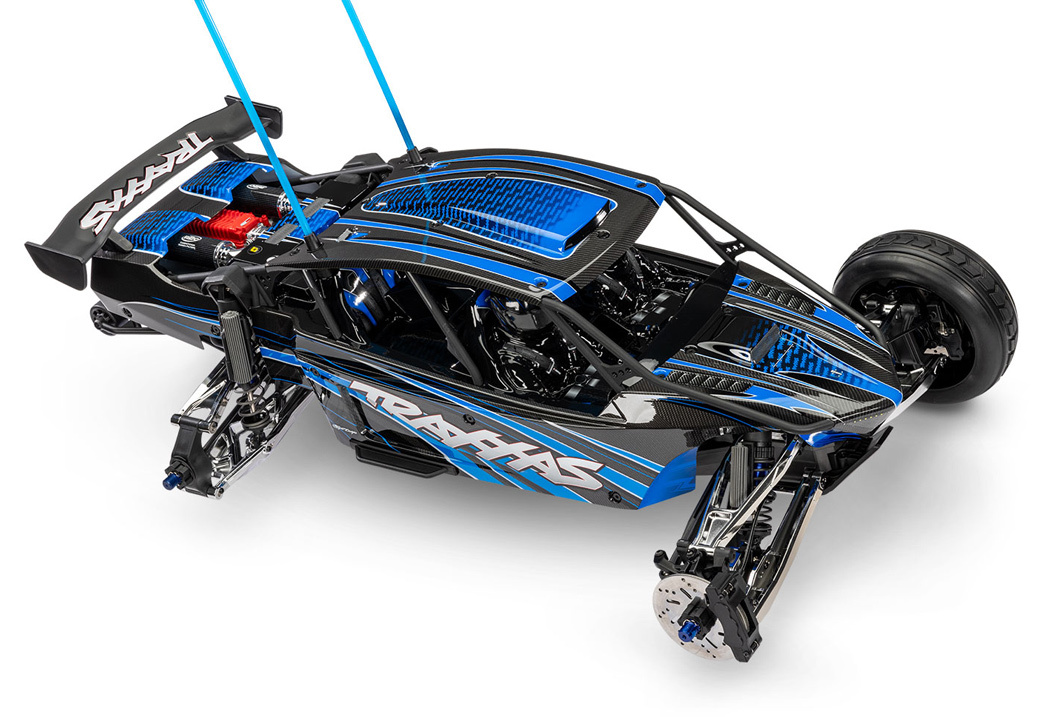

Internal Tube Frame
A rugged tube frame supports the entire Pro Scale Sand Car body from end to end. The heavily reinforced structure protects the car in case of rollovers and provides a rigid mounting point for the wing and clipless mounts. When it’s time to release the body, simply pull on the self-energizing latches and the entire structure lifts off in seconds.

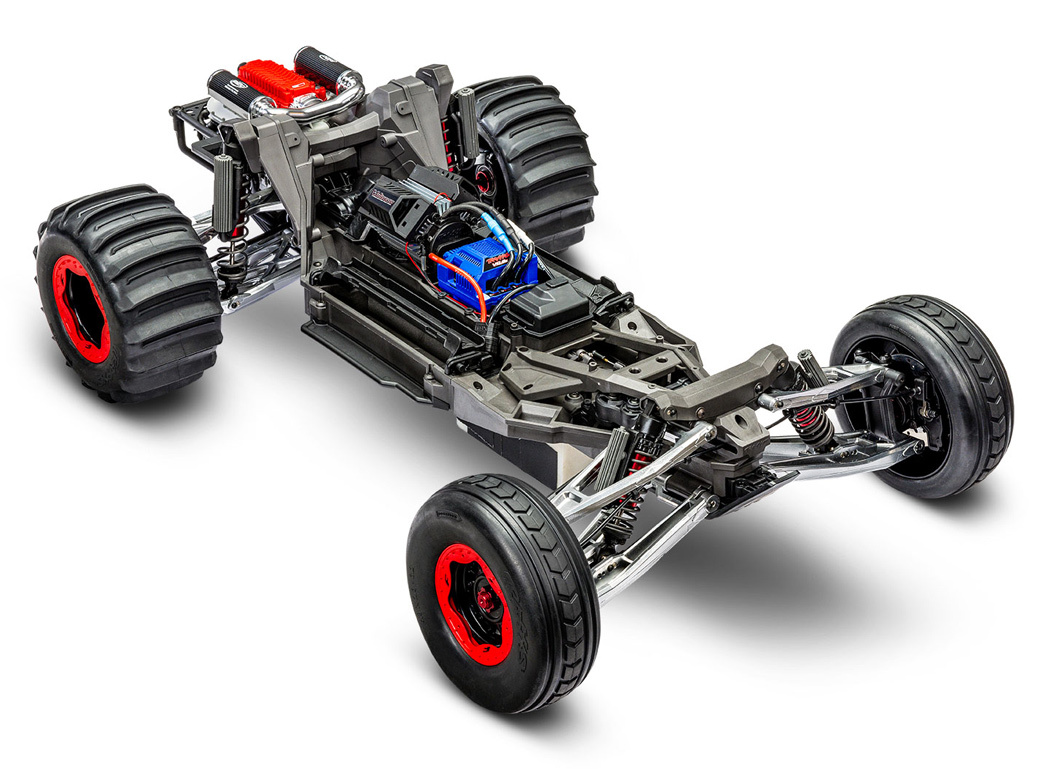

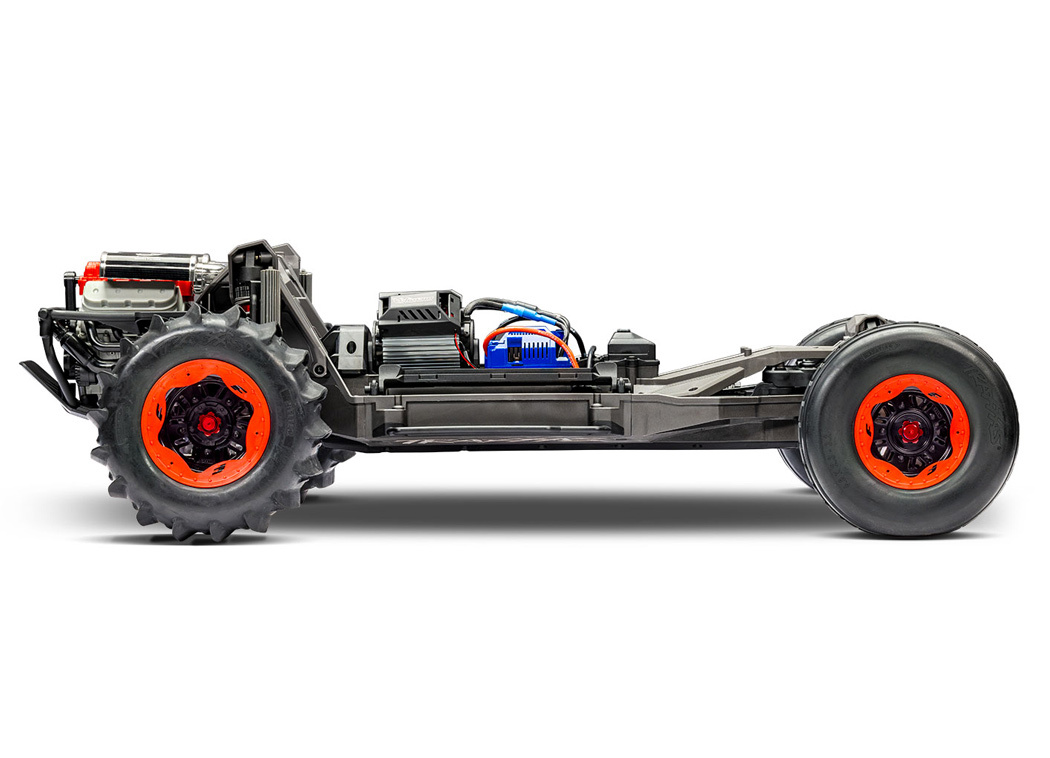

VXL-8s Power System
The Pro Scale Sand Car features Traxxas’ most powerful brushless system, the Velineon® VXL-8s™ speed control and 1200XL motor. The high-performance VXL-8s maximizes power output across the entire rpm range. Bury the throttle at any speed and the Sand Car instantly wheelies until you back off…or run out of desert.

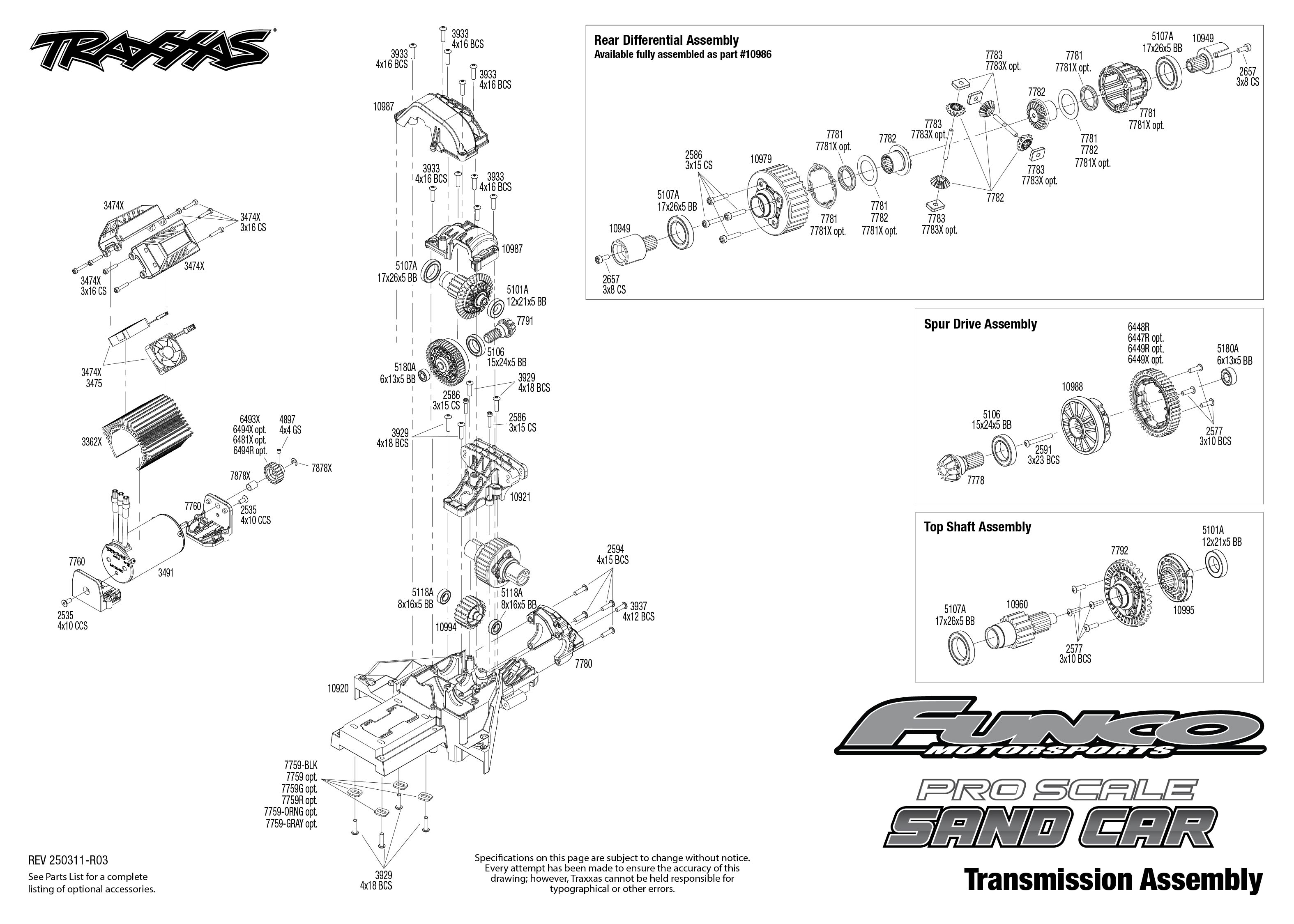

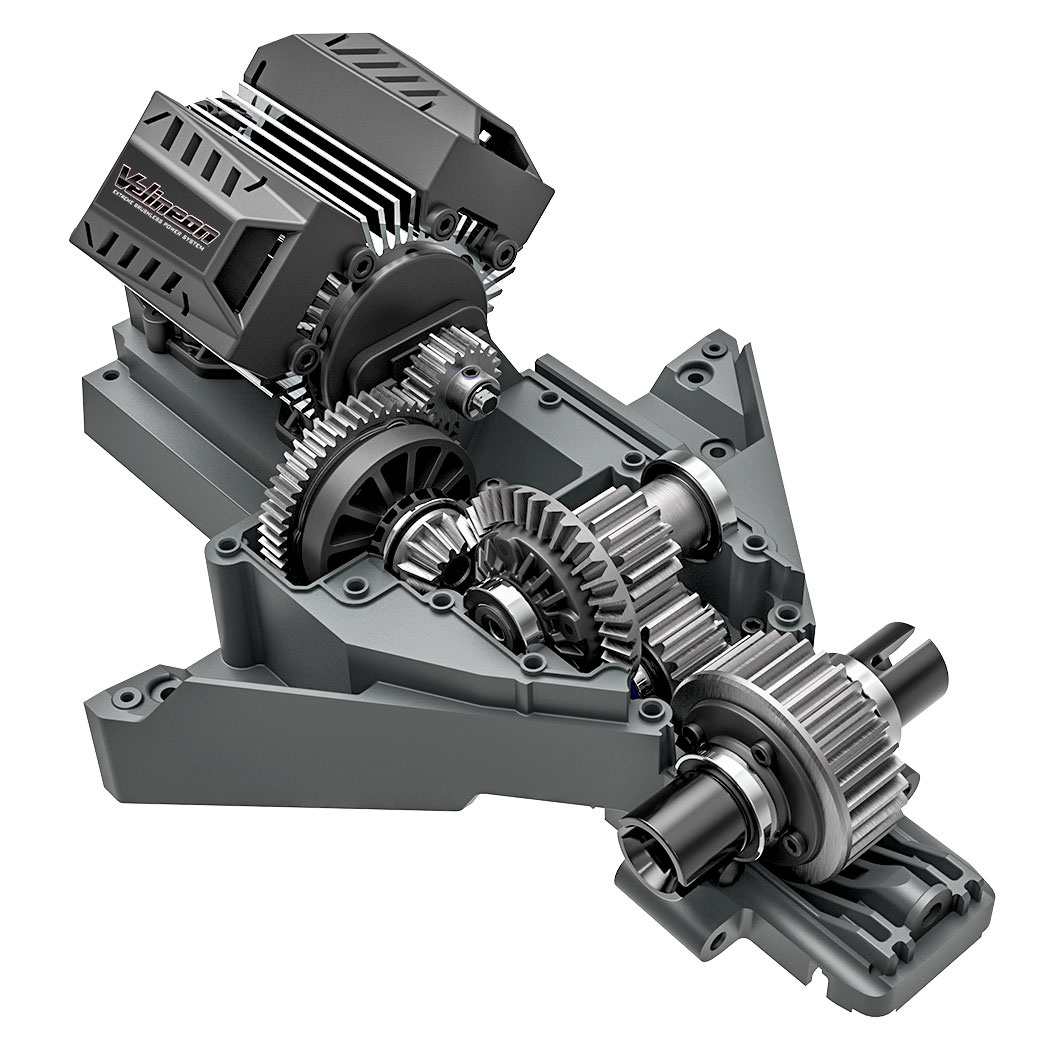

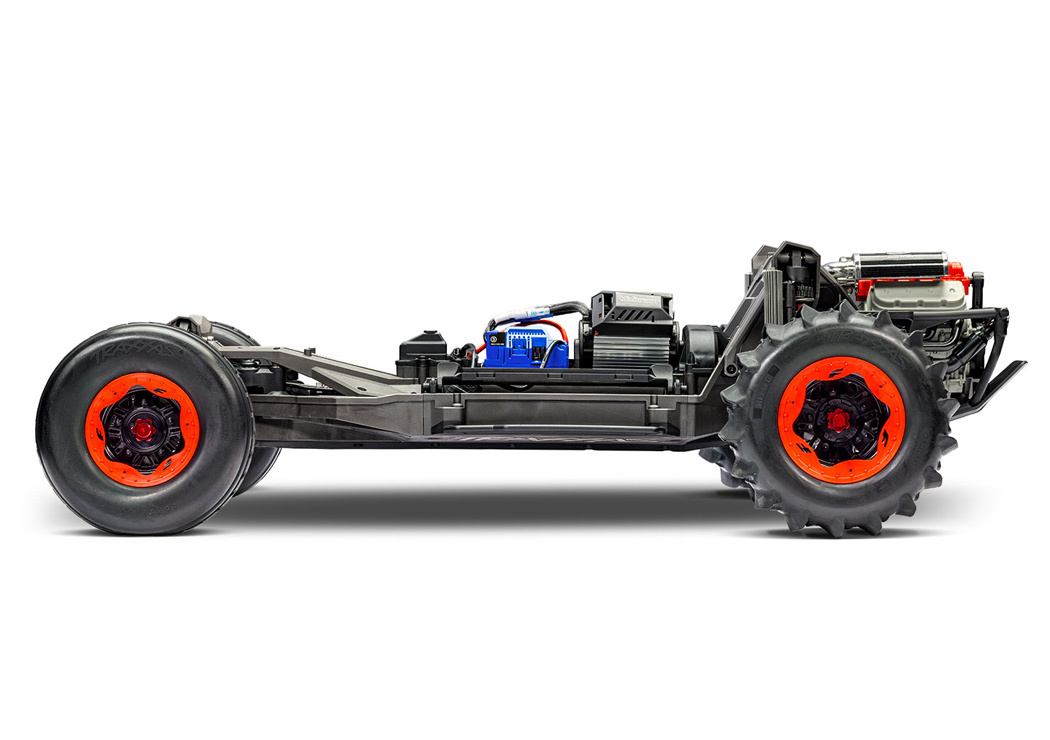

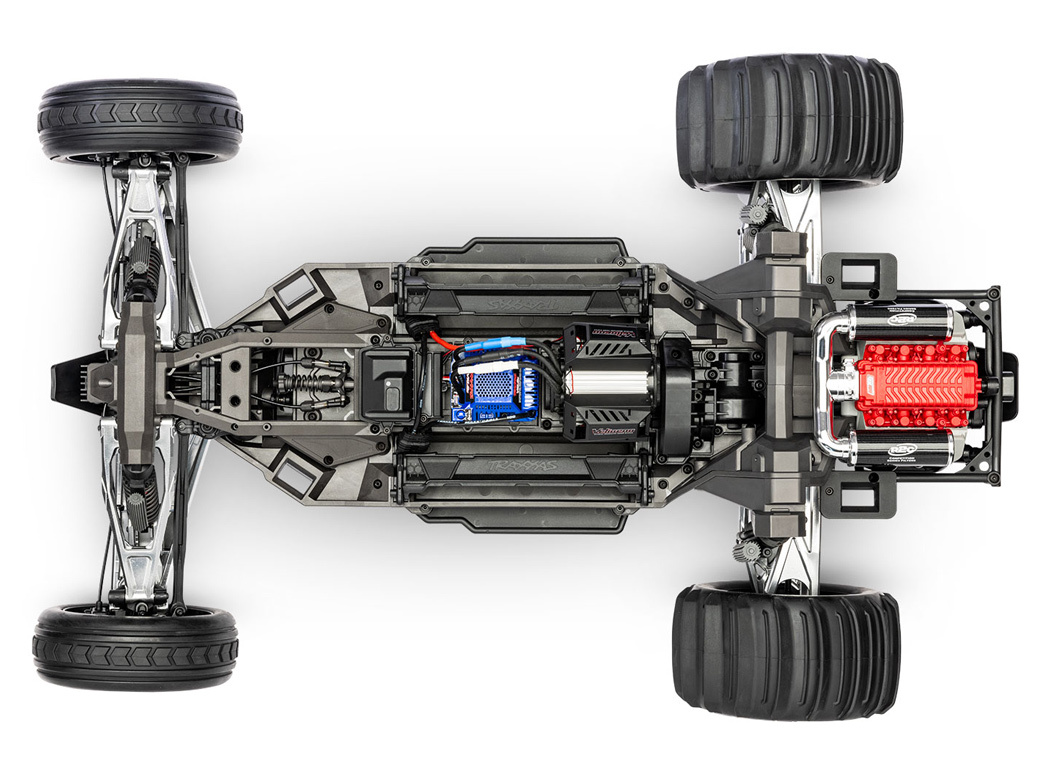

Precision Driveline

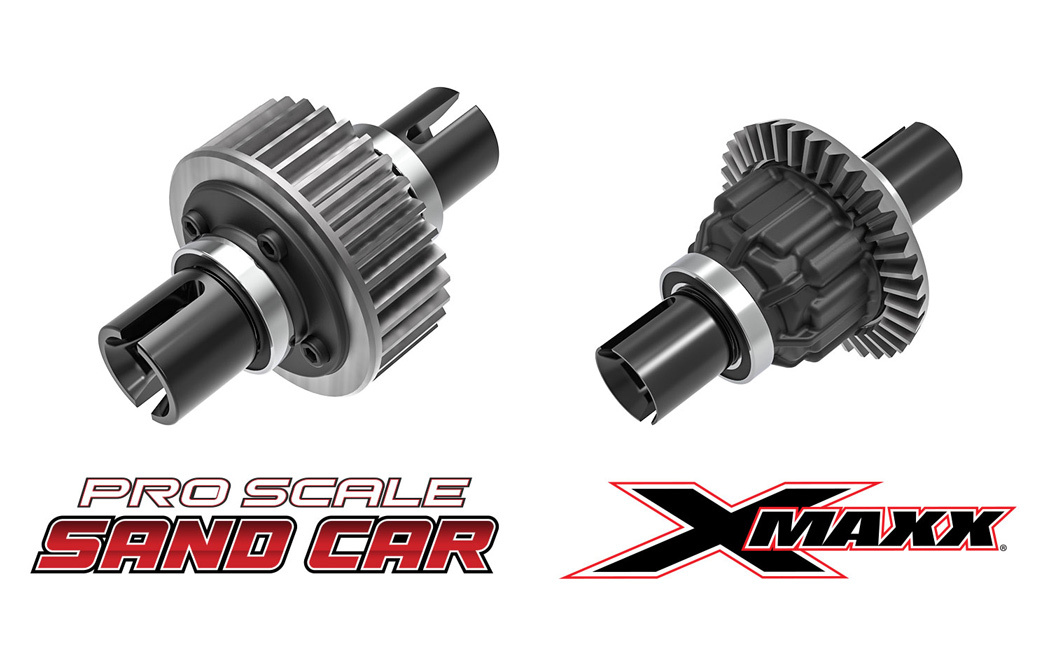

With 30+ volts of brushless power going only to the rear wheels, the Pro Scale Sand Car needs a radically strong driveline. Inside the massively reinforced case, huge module 1.5 wide-face transmission gears feed uninterrupted power to the wheels. A beefed-up X-Maxx differential with larger output cups engages steel driveshafts to form the toughest driveline ever outfitted to a Traxxas vehicle.

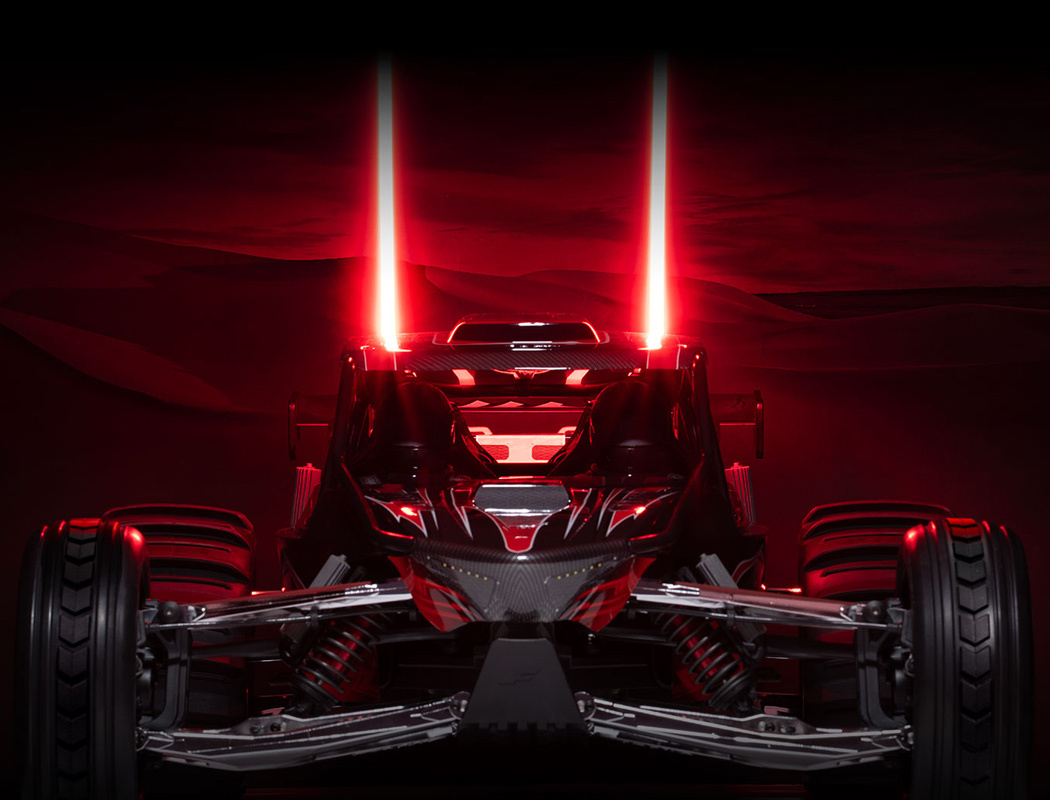

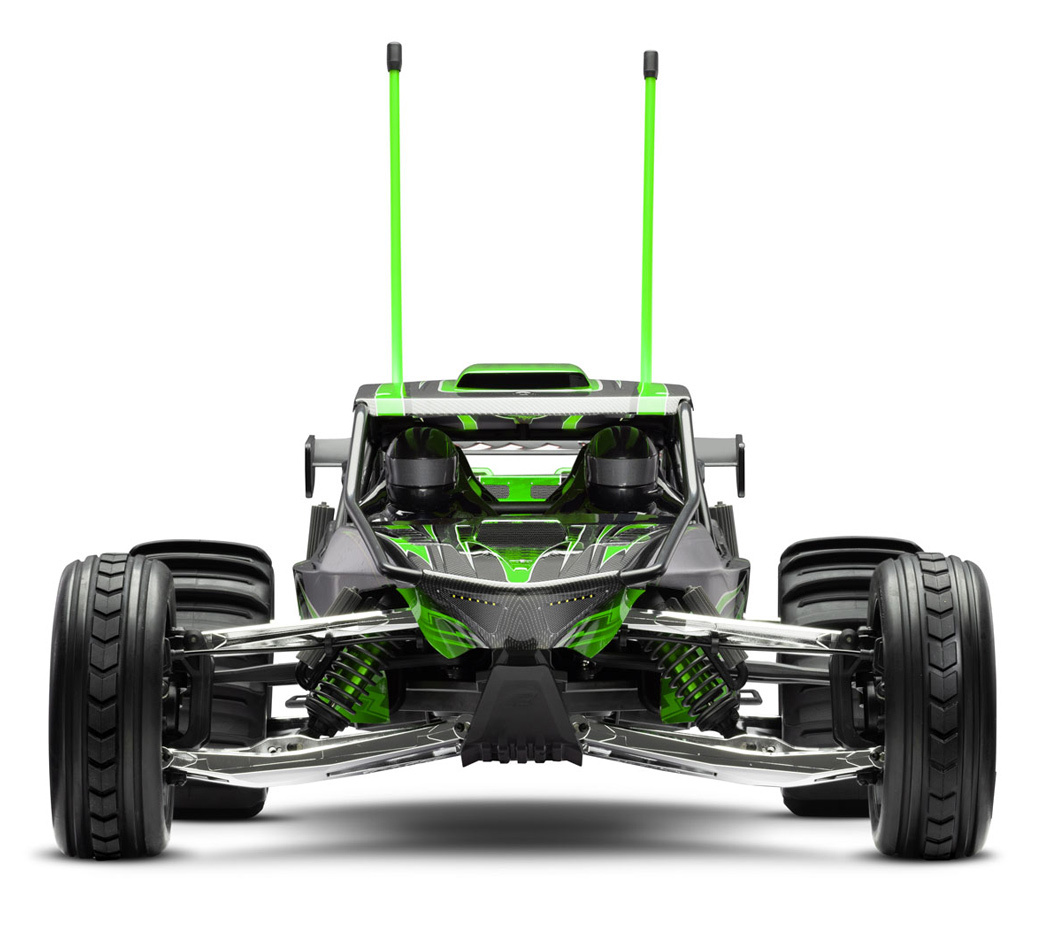

High-Visibility Whip Lights

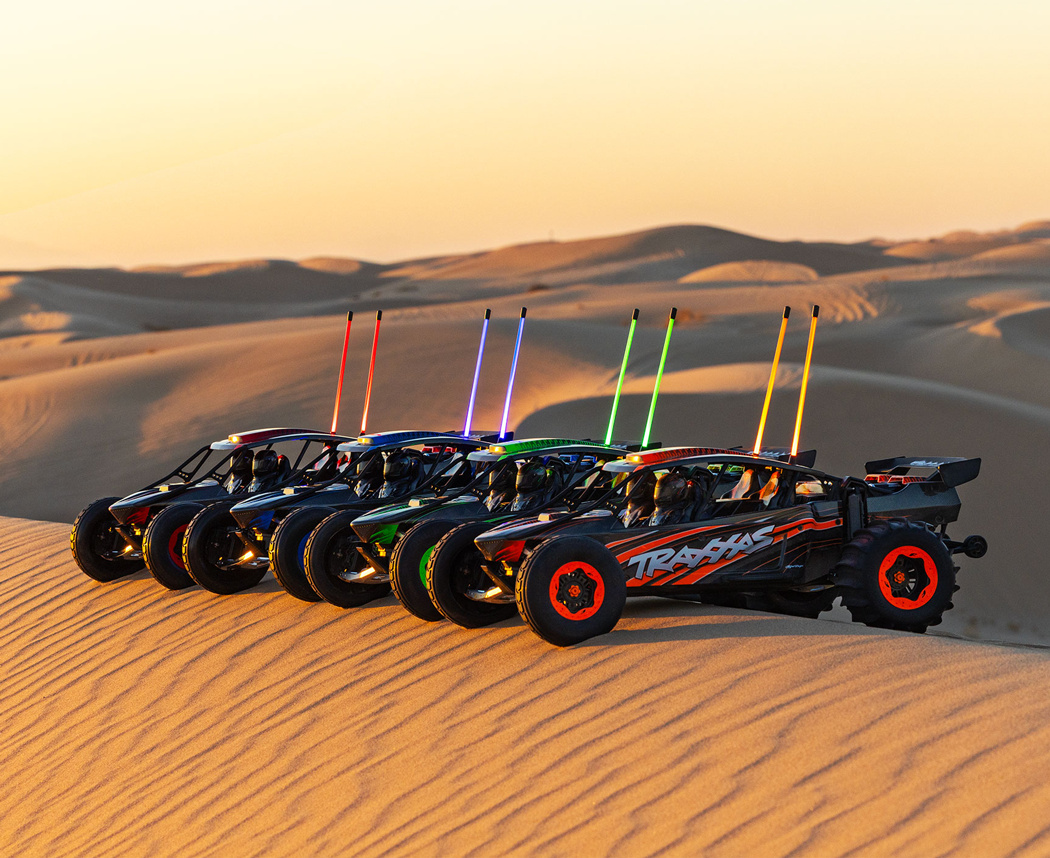

Colorful whip lights rise over 10 inches above the body to provide a clear and bright visibility marker when storming dunes at 88+ kph. The lights are color-matched to the body to give the car a dramatic look. New Flex-Tech™ spring-loaded mounts allow the whip lights to bend without breaking in case of rollovers.
Specs:
- Length: 812 mm
- Width: 551 mm
- Ground Clearance: 50 mm
- Weight: 10 kg
- Height: 283 mm - body / 498 mm - with whip lights
- Wheelbase: 21.4" (543 mm)
- Shock Length: 5.08" (129 mm) (front) / 7.13" (181 mm) (rear)
- Tires (Arrow Pattern, Front): 6.8" x 2.3" (173 mm x 58 mm)
- Tires (Paddle, Rear): 7.5" x 4.0" (191 mm x 102 mm)
- Wheels (Front): 3.2" (82 mm, inner) x 4.9" (125 mm, outer)
- Wheels (Rear): 3.6" (91 mm, inner) x 4.7" (120 mm, outer)
- Speed Control: Velineon® VXL-8s
- Motor (electric): Velineon® 1200XL Brushless with heat sink and dual fan shrouds
- Overall Drive Ratio: 16.4:1 (21/50 motor pinion and spur gear)
- Differential Type: Sealed, four-gear, limited-slip
- Gear Pitch: Module 1.5 (transmission) / Module 1.0 (pinion & spur)

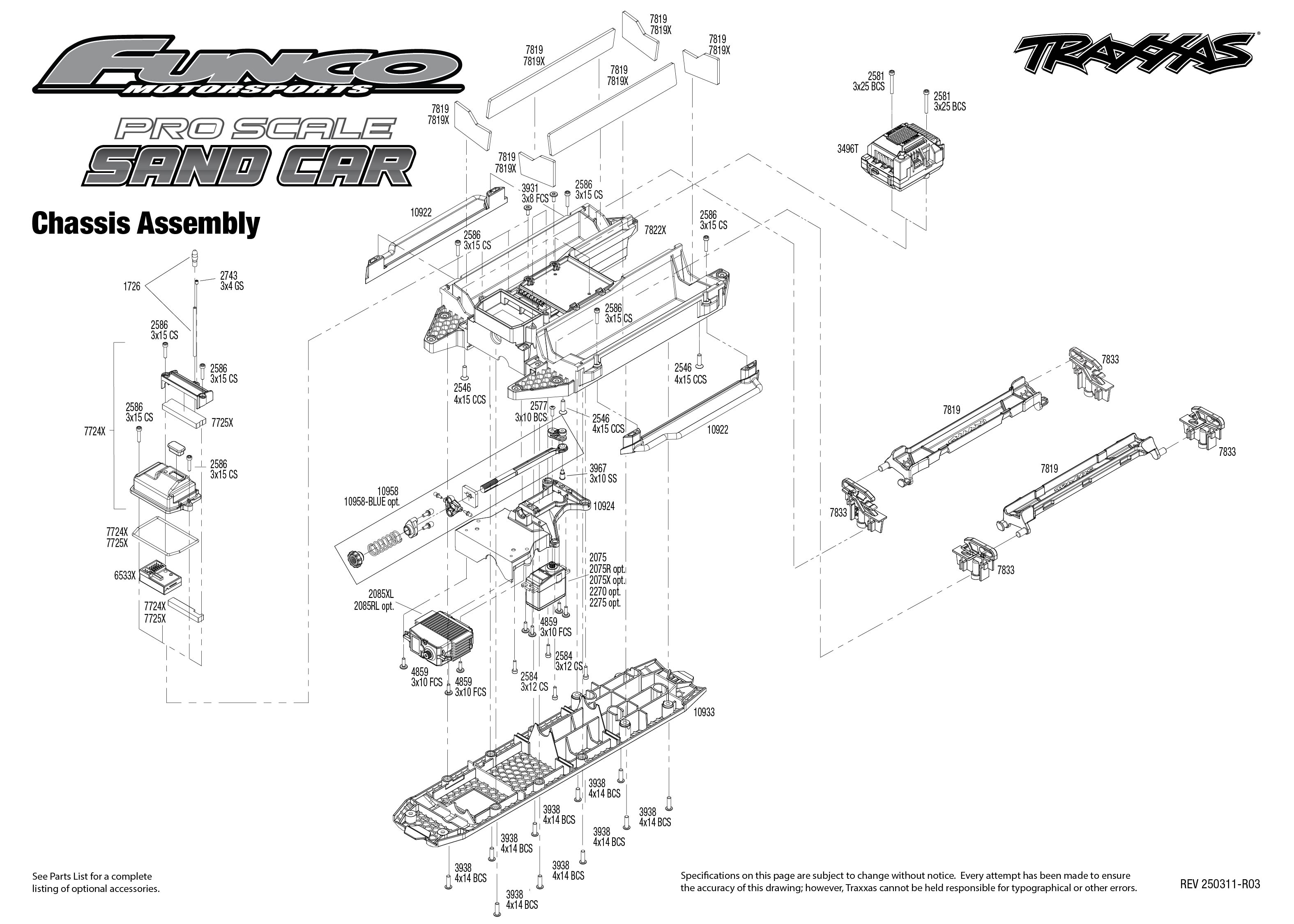

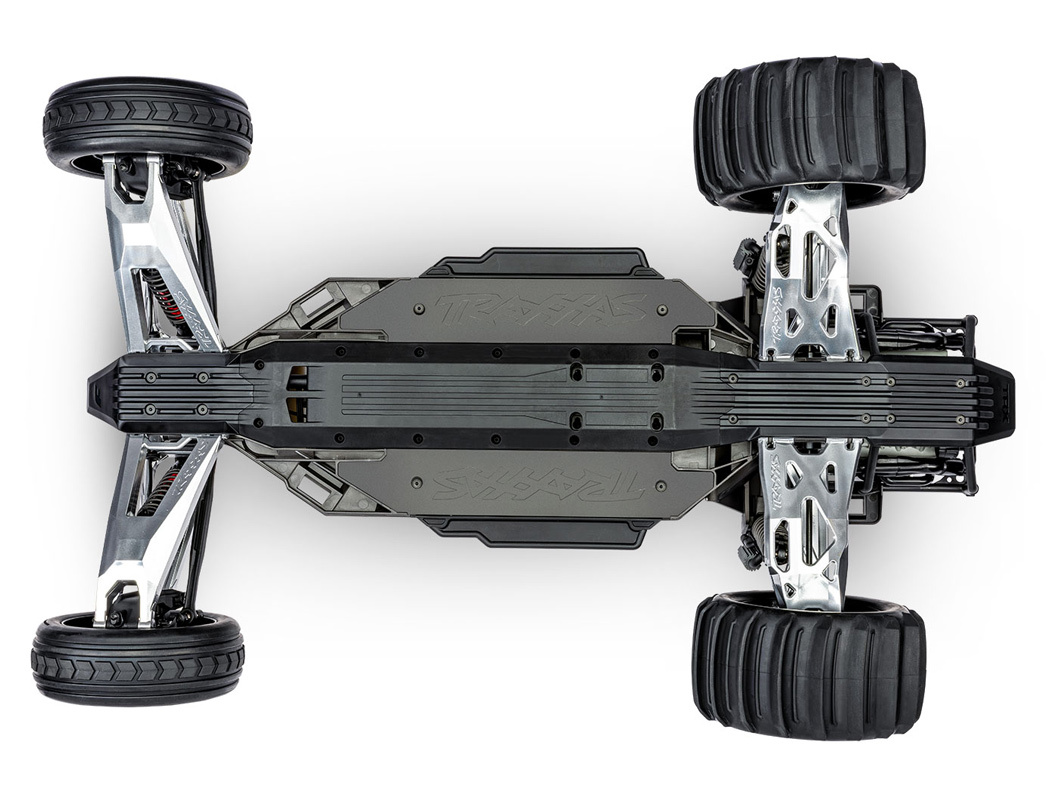

- Chassis Structure/Material: Reinforced Nylon Tub
- Brake Type: Electronic (rear) / Dual slotted & drilled discs (front)
- Drive System: Direct-drive, RWD
- Steering: Bellcrank
- Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
- Steering Servo: 2085XL metal gear (450 oz-in.)
- Top Speed: 88+ kph with two 4s LiPo batteries and included speed gearing
- Svårighetsnivå: 5
- Battery Tray: 186x51x44 mm
- Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery with iD® (x2)
What’s In The Box:
- Funco Pro Scale Sand Car Ready-To-Race® model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4 GHz radio system
- High visibility whip lights
- Wheelie bar
- Speed gearing
- High quality maintenance tools
What You’ll Need:
- LiPo Batteries: Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (Part 2997).
- LiPo Balance Charger with iD®: Traxxas EZ-Peak® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
*88+ kph with Two 4s LiPo Batteries and Included Speed Gears
