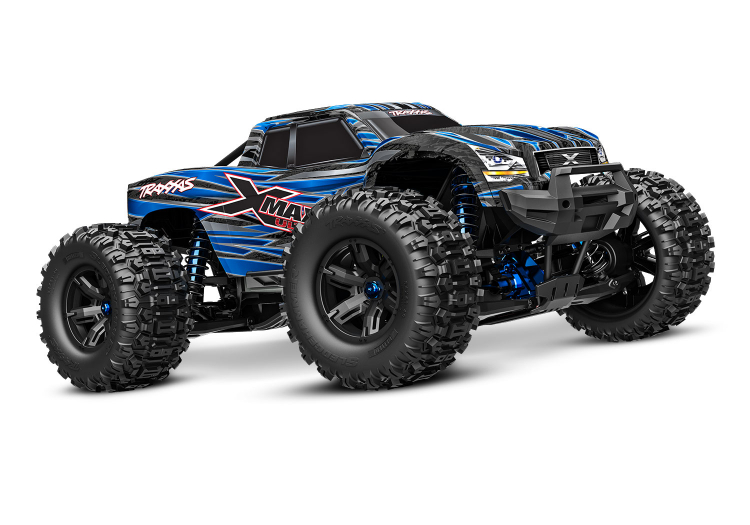

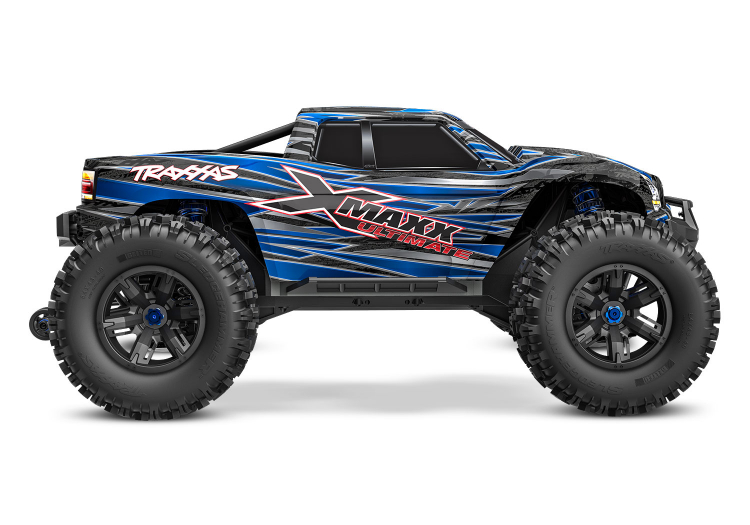

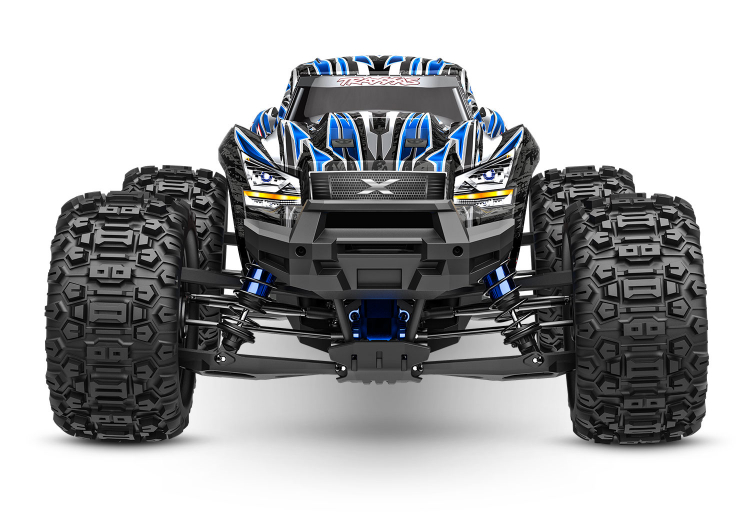

Traxxas 77097-4-BLUE - X-MAXX ULTIMATE 4x4 Brushless 2024 Limited Edition - BLUE
X-Maxx® is the truck that defines Traxxas Tough. The new 2024 Limited Edition X-Maxx Ultimate comes outfitted with over $1,000 in high-strength aluminum and performance upgrades, along with all-new belted Sledgehammer® tires. Don't miss your chance to own the Ultimate X-Maxx - reserve at your dealer now!
Ultimate Durability

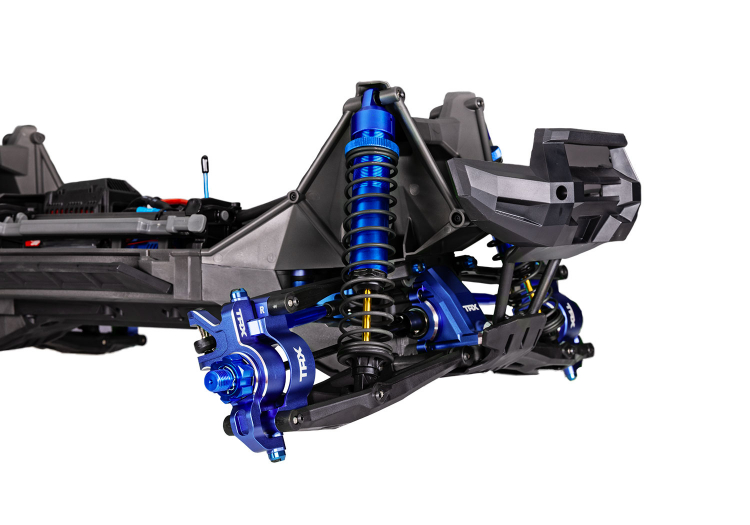

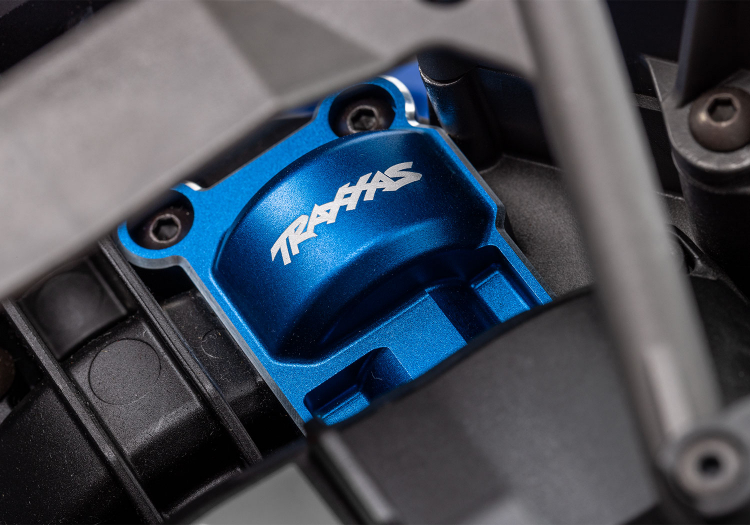

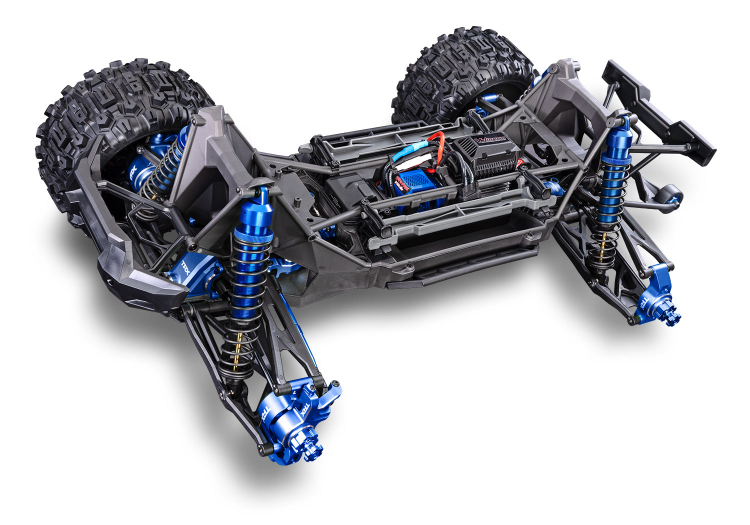

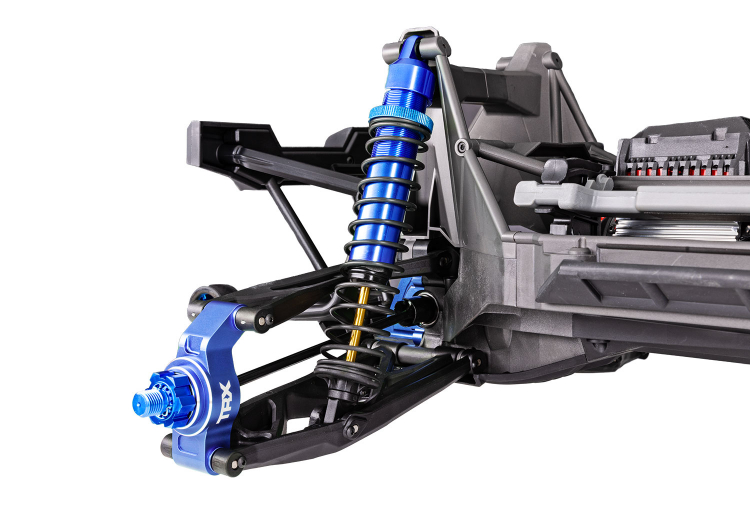

How do you improve the toughest truck ever to wear the Traxxas name? You add aluminum—lots of aluminum! X-Maxx receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of strength and durability.
Included Wireless Module
A Traxxas Link™ Wireless Module comes standard on X-Maxx Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.
Belted Tires
X-Maxx Ultimate’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.
Specs:
- Length: 779 mm
- Width: 540 mm
- Ground Clearance: 107 mm
- Weight: 9.5 kg / 11.39 kg with two 4s 6700 mAh LiPo batteries
- Height (ride): 355 mm
- Wheelbase: 480 mm

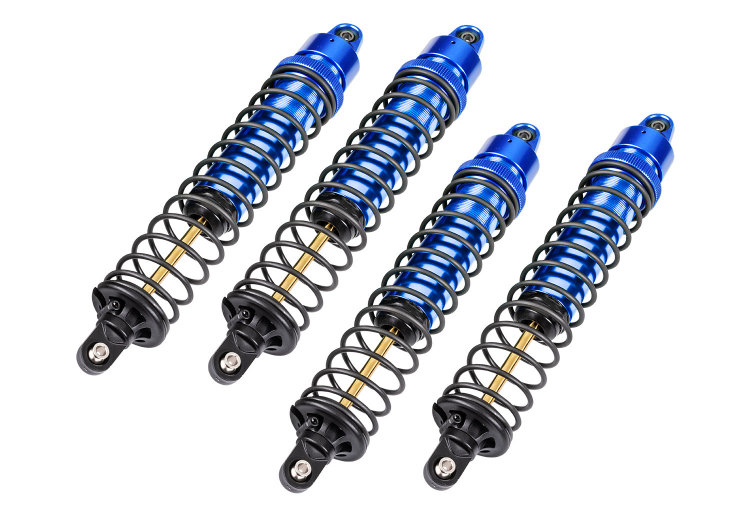

- Shock Length: 187 mm
- Tires (pre-glued): Belted Sledgehammer® 8.4″ x 4.0″ (203 mm)
- Wheels: 4.3″ x 5.7″ (110x145 mm)
- Wheel Hex Size: 24 mm splined hex
- Speed Control: Velineon® VXL-8s™
- Motor (electric): Velineon 1200XL
- Transmission: Single-speed
- Overall Drive Ratio: 8.11 (stock, out-of-box)
- Differential Type: Sealed, hardened steel bevel, limited slip
- Gear Pitch: Module 1.0
- Chassis Structure/Material: Composite nylon tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD

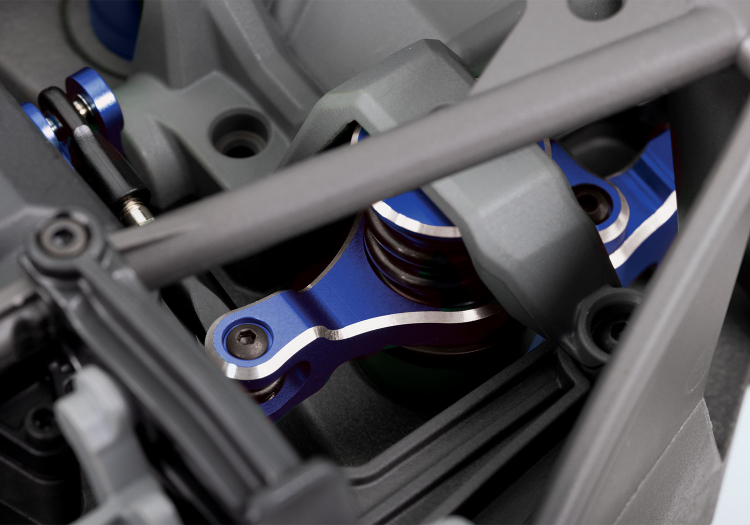

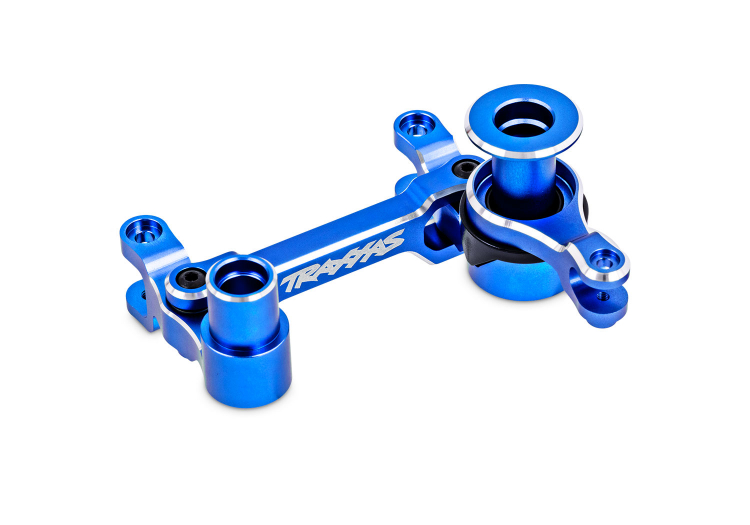

- Steering: Aluminum bellcrank
- Radio System: TQi™ 2.4 GHz transmitter with factory-installed wireless module
- Servo: Torque: 450 oz-in speed: 0.17 sec/ 60 degrees (6.0 volts)
- Top Speed: 80+ kph with two 4s LiPo batteries and optional gearing (sold separately)
- Svårighetsnivå: 6
- Battery Tray: 197 x 52 x 44 mm
- Required Batteries: 4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)
Motor Specs:
- Type: 1275 kV sensorless brushless
- Weight: 665 g
- Length: 110 mm
- Diameter: 48 mm
- Connector Type: Traxxas 6.5 mm bullet connectors
ESC Specs:
- Input Voltage: 8s LiPo (max 33.6 volts)
- Case Size: 58 x 72 x 46 mm
- Weight: 215.5 g
- BEC Voltage: 6.0 volts
- BEC Current Continuous: 10 amps
- BEC Current Peak: 20 amps
- Motor Connectors: Traxxas 6.5 mm bullet connectors
- Battery Connectors: Traxxas High-Current Connectors
- Power Wire: 10-gauge Maxx Cable
- Ports: RX Input, auxiliary fan, accessory port
What’s In The Box:
- X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system with factory-installed wireless module
- High quality maintenance tools
What You’ll Need:
- Batteries: IMPORTANT: X-Maxx Ultimate requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh or greater, Power Cell LiPo batteries with iD are recommended (part 2890X).
- LiPo Balance Charger with iD®: Traxxas EZ-Peak® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
