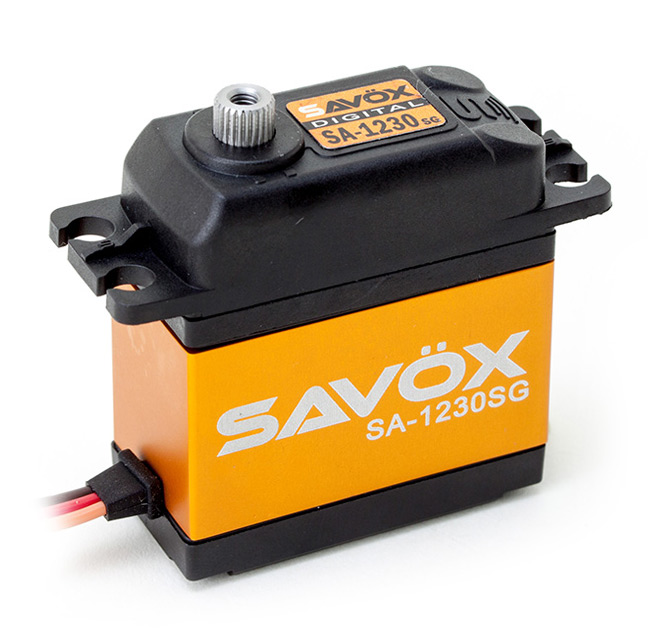

SAVÖX SA-1230SG - High-Torq Coreless Servo med Ståldrev
The Savox SA-1230SG Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.Features:

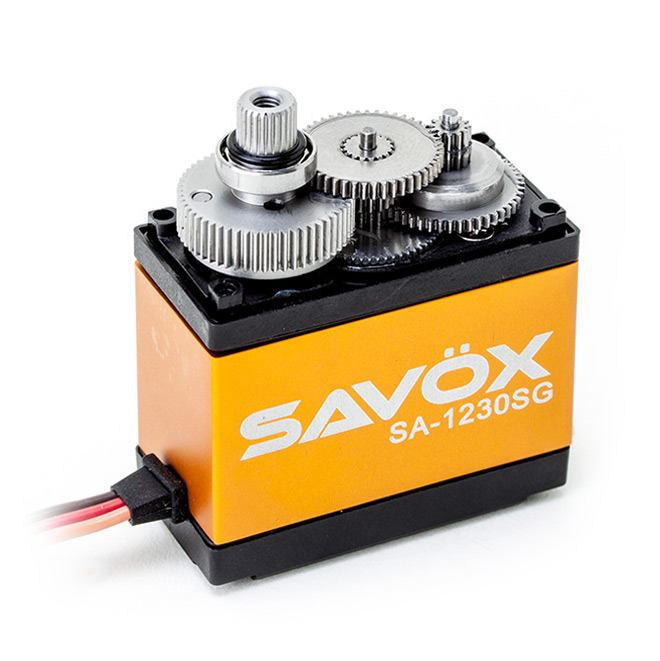

- Extremely strong unique steel gears ensure long-life and durability
- Ideal for steering on rock crawlers, monster trucks, and large scale aircraft
- Slightly taller case design
Specifications:
- Torque @ 4.8V: 30.0kg
- Torque @ 6V: 36.0kg
- Speed @ 4.8V: 0.20 sec/60 deg
- Speed @ 6V: 0.16 sec/60 deg

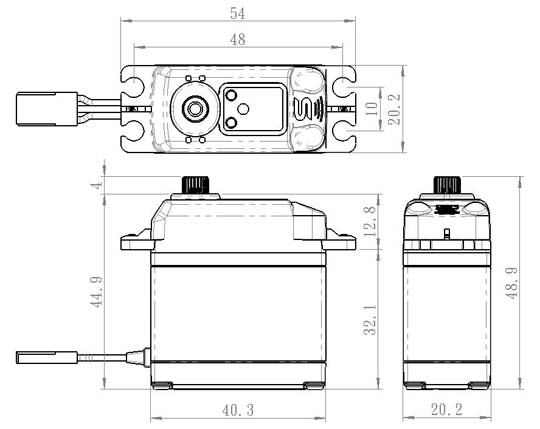

- Dimensions L x W x H: 40.3 x 20.2 x 44.9mm
- Weight: 79g
Technical Details:
- Operating Temperature: -10° - 50°C
- Running Current (no load): 180mA @4.8V, 250mA @6.0V
- Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
