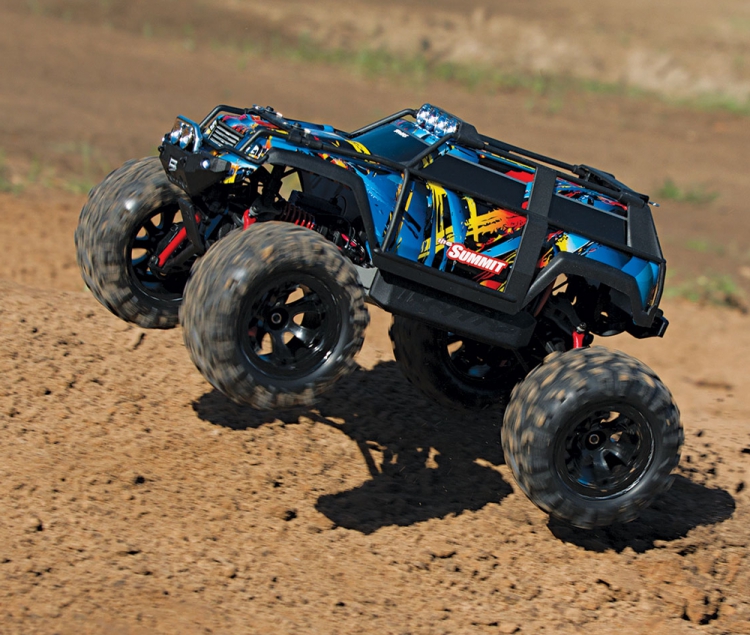

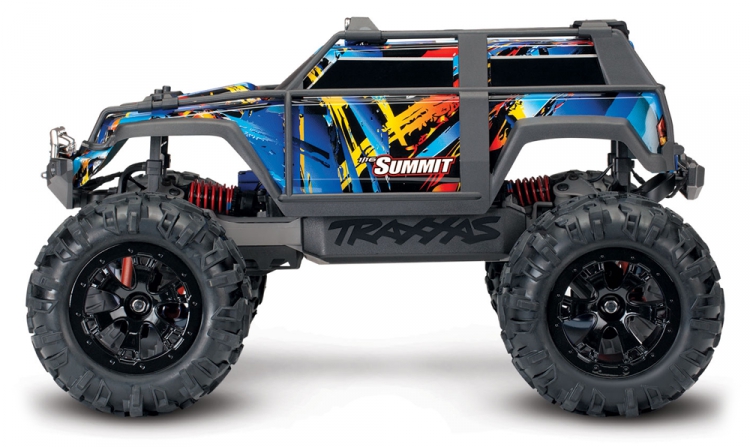

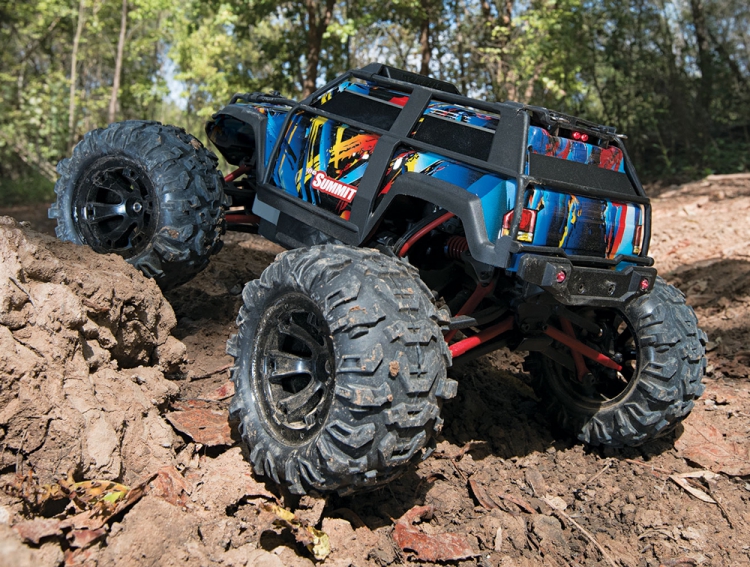

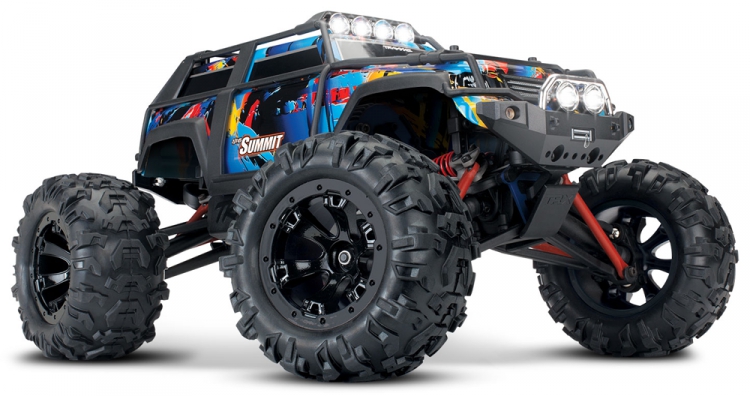

Traxxas 72054-1 - 1/16 Summit 4WD 2.4G, RTR

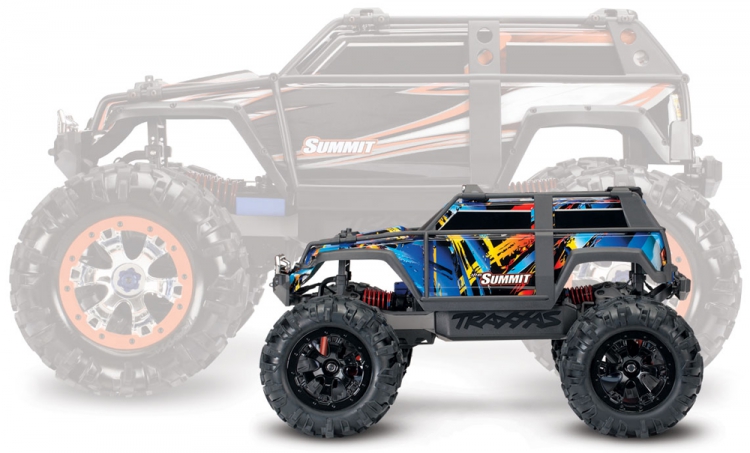

Enjoy Big Summit Fun in a More Convenient 1/16 Scale Size!

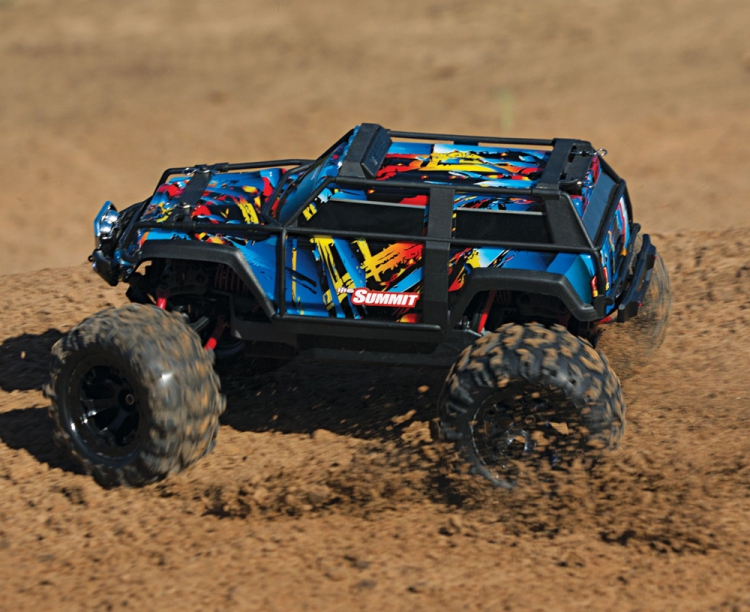

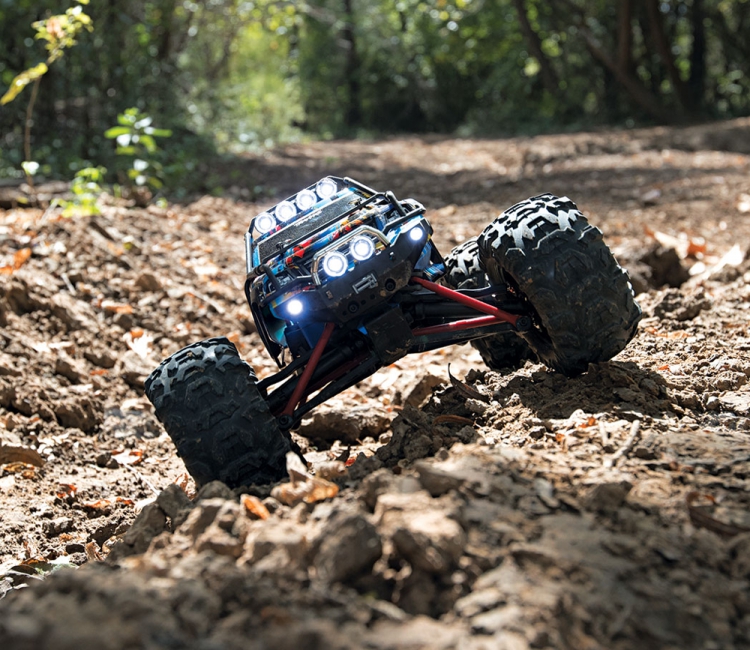

Leave it to Traxxas to stuff a 1/10 scale motor into a 1/16 scale truck! Summit’s mighty Titan® 12T 550 motor delivers nearly limitless torque for tire-scorching acceleration and all-terrain capability. With massive suspension travel, extreme Titan power, and 4-wheel drive traction, Summit tackles impossible terrain. Traxxas engineers combined all the big Summit's go-anywhere versatility with waterproof electronics to make even your wildest adventures possible. Summit’s bright LED lights blaze a trail, making night runs more exciting than ever. The 1/16 Summit's just-right size lets you enjoy hours of off-road fun anytime, anywhere!
QUICK FEATURES ON 1/16 SUMMIT (#72054-1)

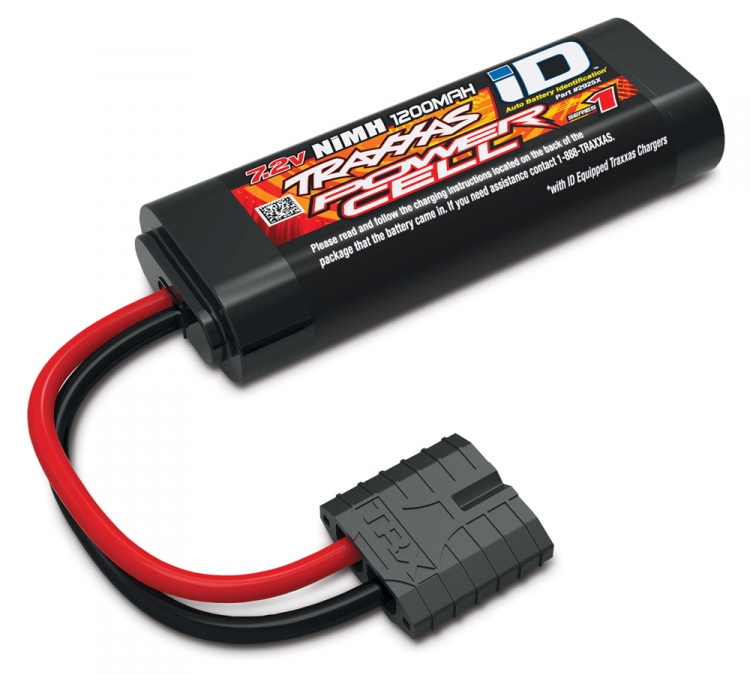

- 6-cell NiMH Power Cell Battery with iD
- Ready-To-Race® with Included Power Cell™ NiMH Battery and DC Charger

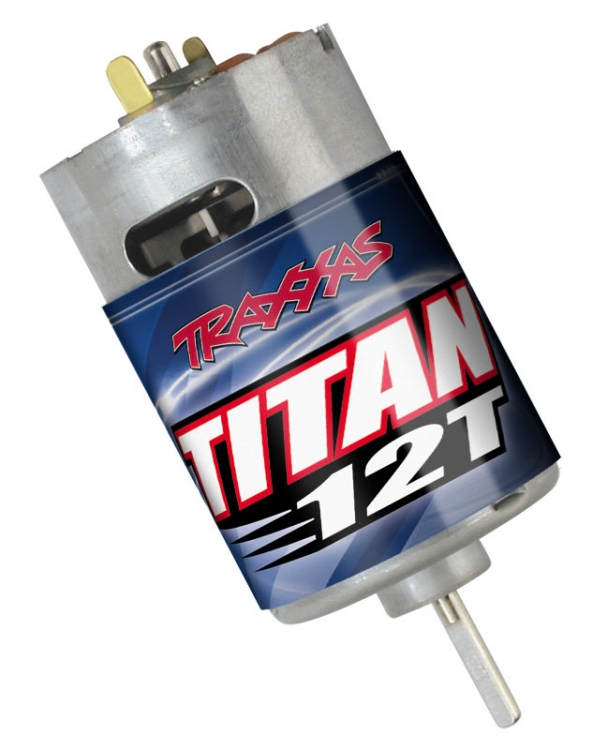

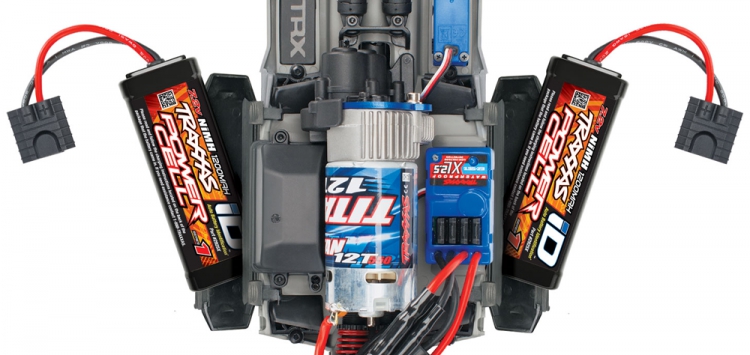

- Powerful Titan® 12T 550 Motor—Largest in Class

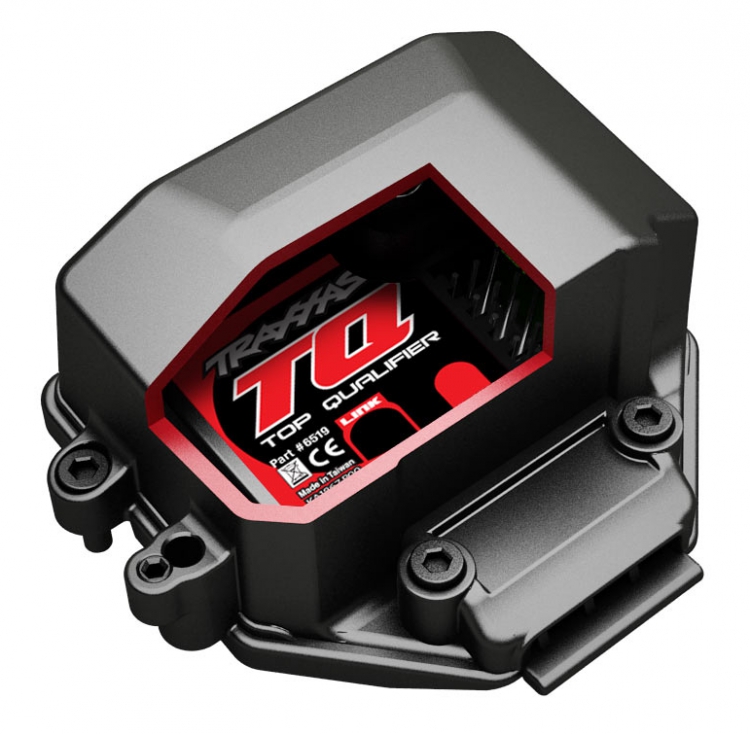

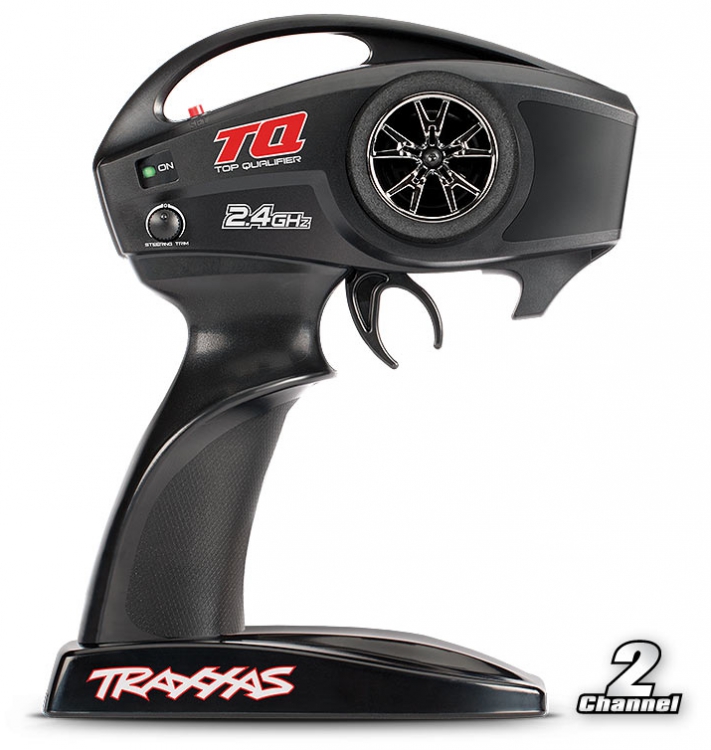

- TQ™ 2.4GHz Transmitter and Receiver
- Full-Time 4WD

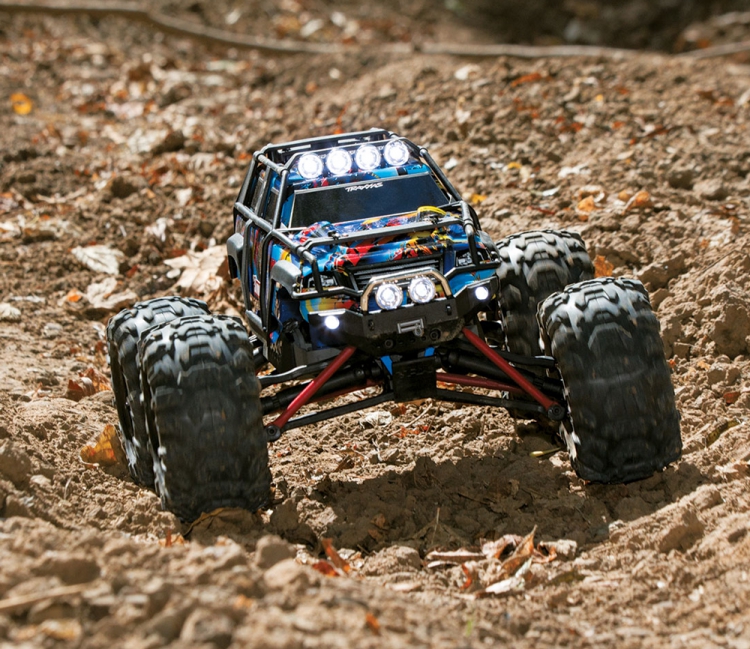

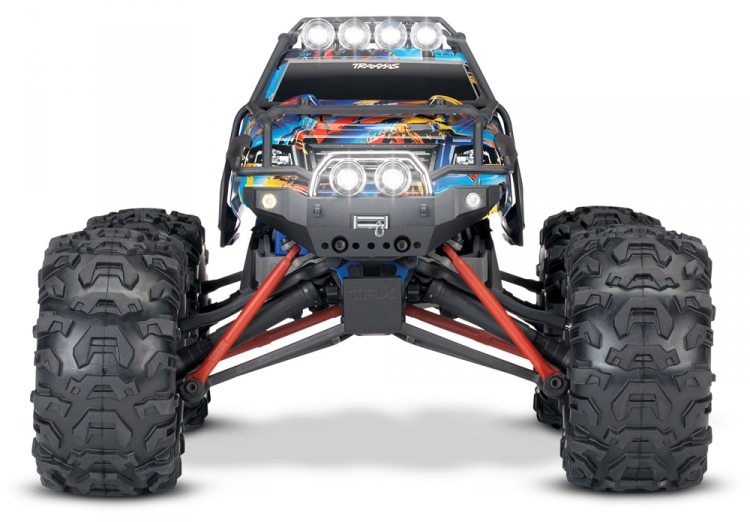

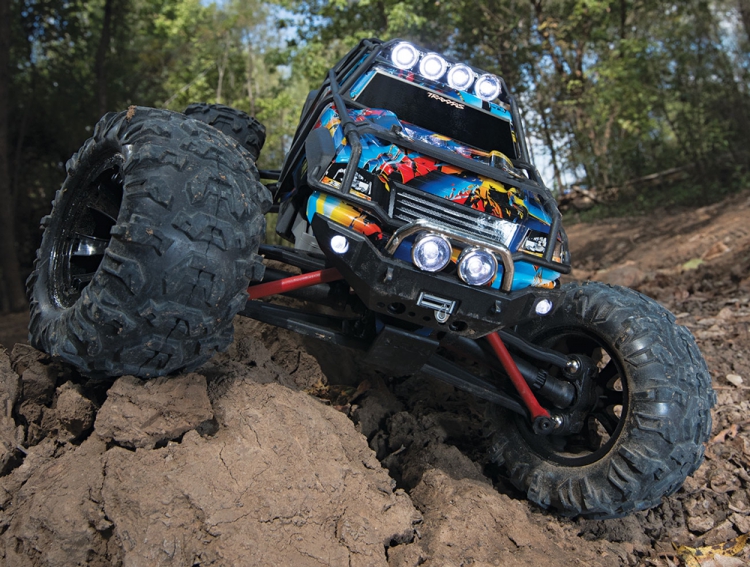

- Bright LED Lights Front and Rear to Illuminate the Trail
- Waterproof Electronics for all-Weather Adventures
- Torque-Control™ Adjustable Slipper Clutch
- Sealed Differentials
- Realistic all-Terrain Tires with Foam Inserts
Proven Traxxas Innovation

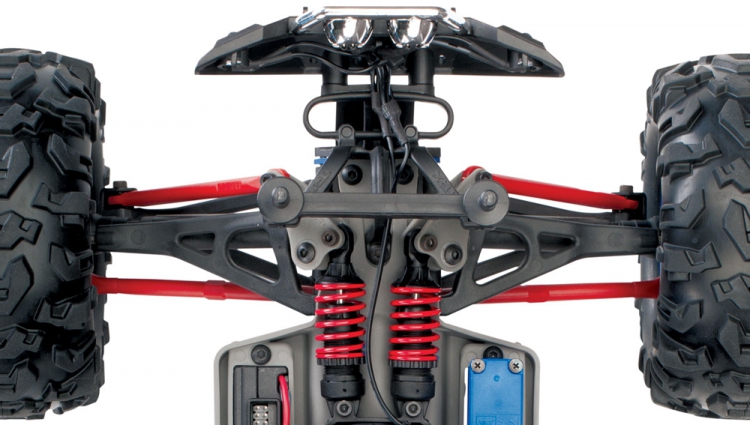

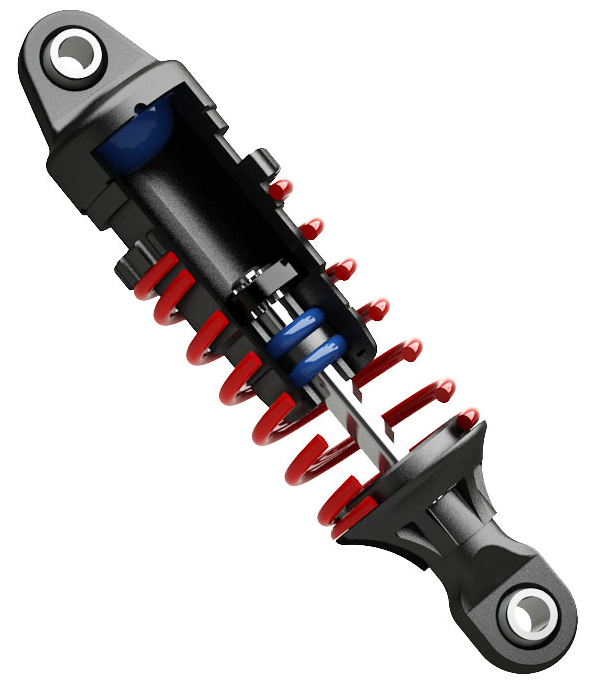

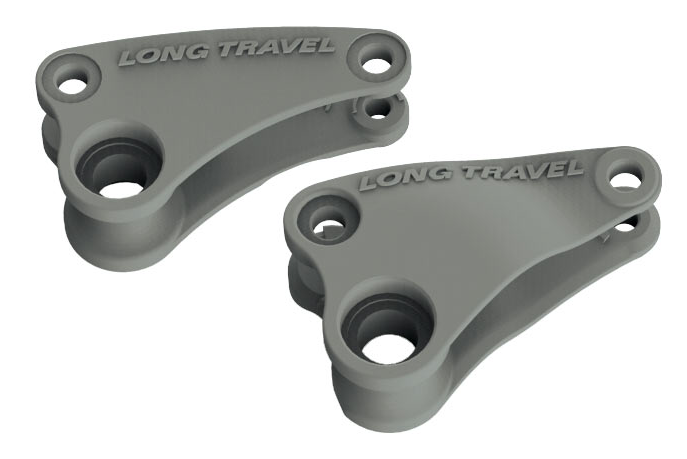

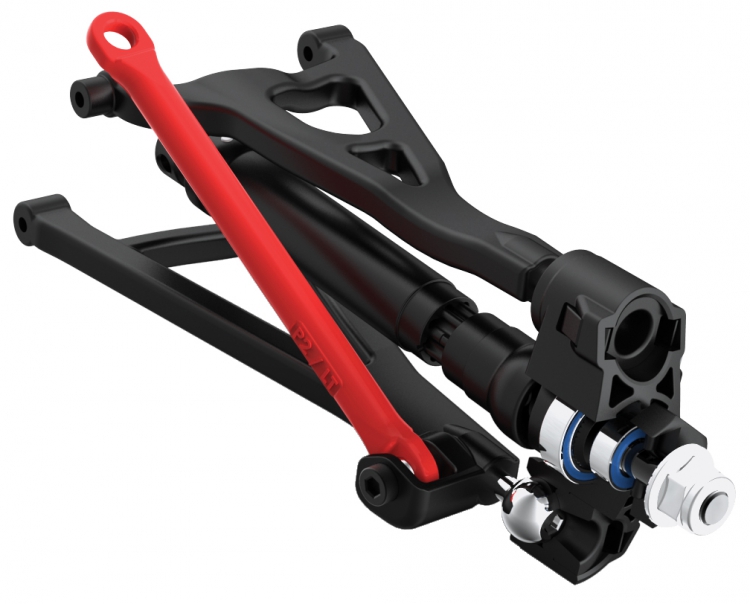

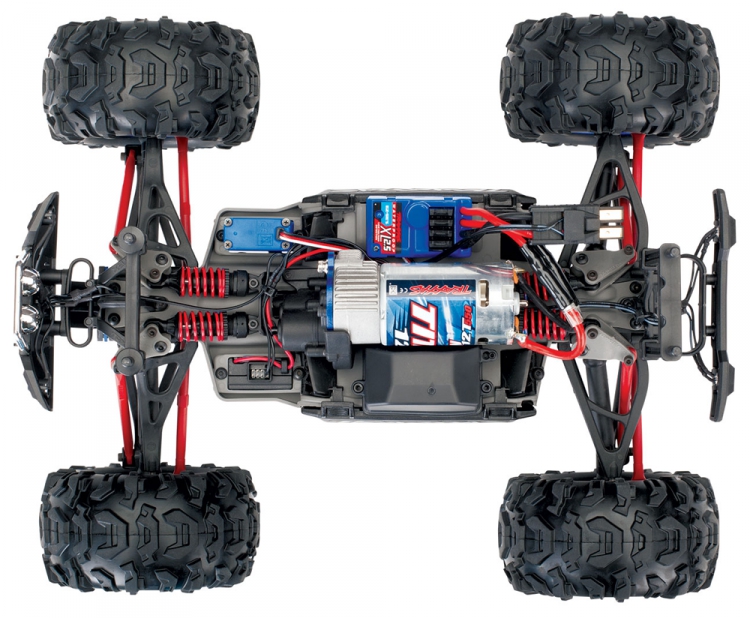

Traxxas packed all the capability, durability, and excitement of our award-winning models into 1/16 scale for fast, affordable RC fun. The Summit’s rocker-actuated suspension is adapted expertly to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. The suspension and electronics integrate fully into a radically innovative monocoque chassis design. Intricately molded as a single piece, the chassis balances strength and weight with function and performance to surpass the standards of the ""mini"" category. In 1/16 scale, it is an even more impressive achievement of performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.
100% Ready-To-Race®
The 1/16 Summit comes fully assembled with TQ 2.4GHz radio system, Titan 12-T power, pre-painted body, pre-glued tires, detailed instructions and a Traxxas NiMH battery and DC charger. Only Traxxas could pack this level of performance, innovation, and value into a Ready-To-Race package with the quality you expect. Traxxas backs the Summit and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows the Summit to be serviced with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is easy and fun (and fast!).
1/16 SUMMIT (#72054-1) SPECS
- Length: 320 mm
- Front Track: 265 mm
- Rear Track: 270 mm
- Weight: 1.31 kg
- Height (Overall): 190 mm

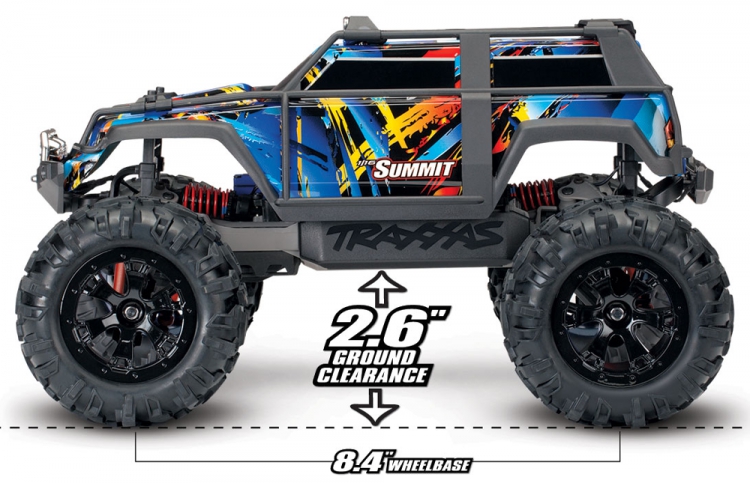

- Wheelbase: 214 mm
- Wheel Diameter: 2.2"" (56mm)
- Shock Length (Front / Rear): 48mm / 48mm
- Front/Rear Tires (Glued): Canyon AT
- Front/Rear Wheels: Geode™
- Electronic Speed Control: Waterproof XL-2.5 ESC
- Motor (Electric): Titan® 12T 550

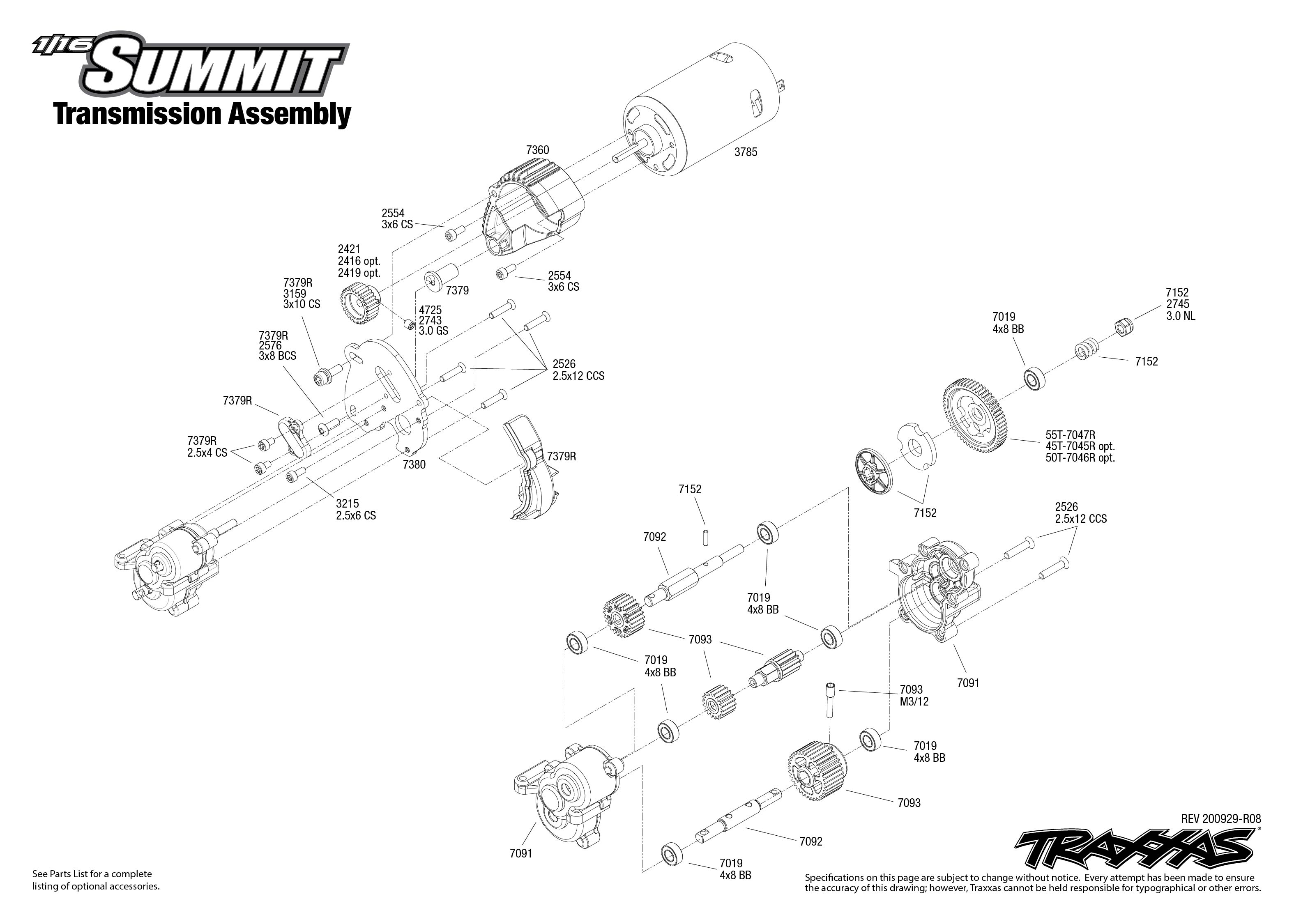

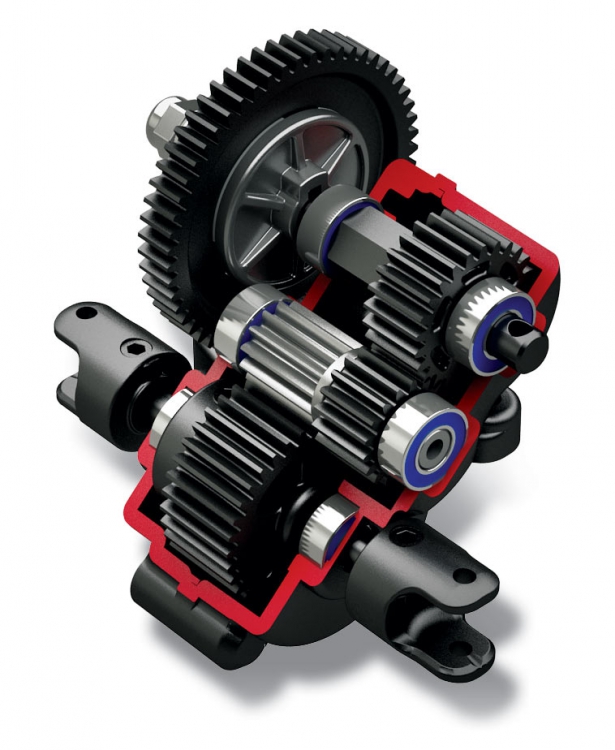

- Transmission: Heavy-Duty Single Speed
- Gear Ratio (Internal): 5.04:1, (Reversed Input: 9.72:1)
- Overall Drive Ratio: 15.75:1 (stock)

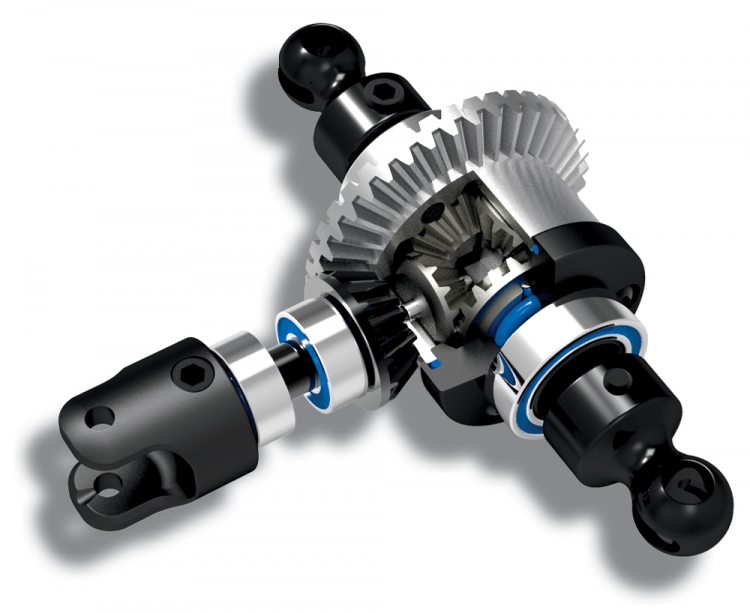

- Differential Type: Hardened Steel Bevel, Sealed
- Gear Pitch: 48P

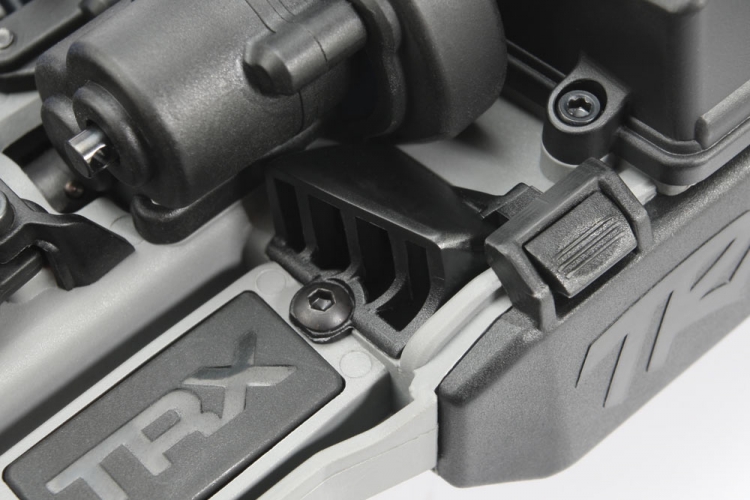

- Chassis Structure/Material: Molded Composite Nylon Monocoque
- Brake Type: Electronic

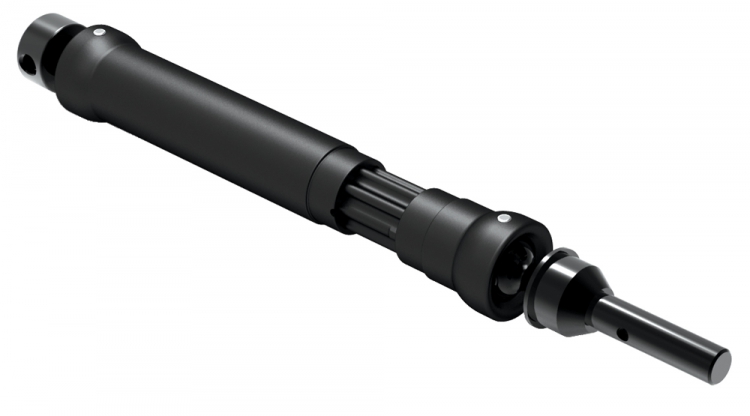

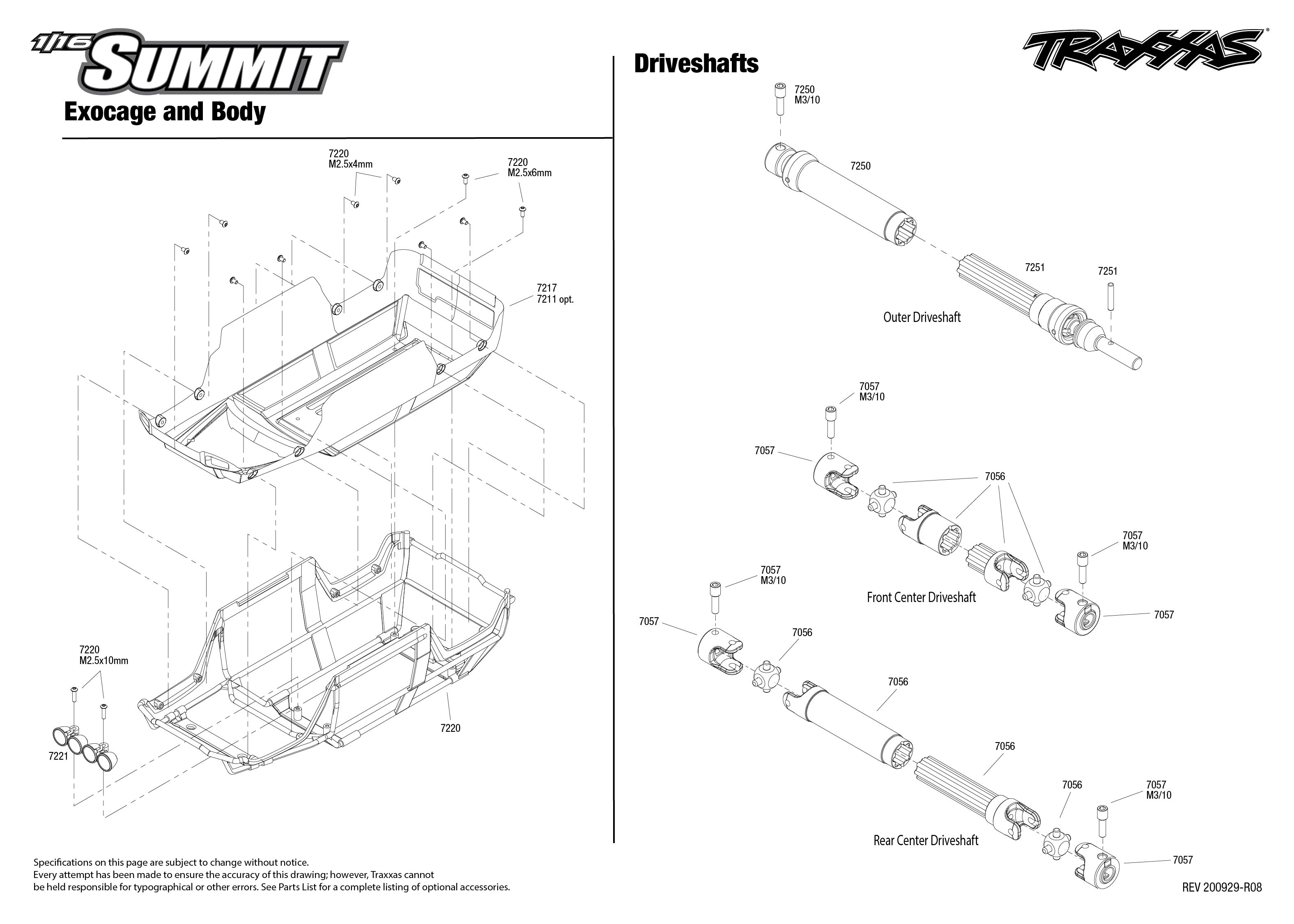

- Drive System: Shaft-Driven 4WD
- Steering: Bellcrank
- Radio System: Traxxas TQ™ 2.4GHz (2-Channel)

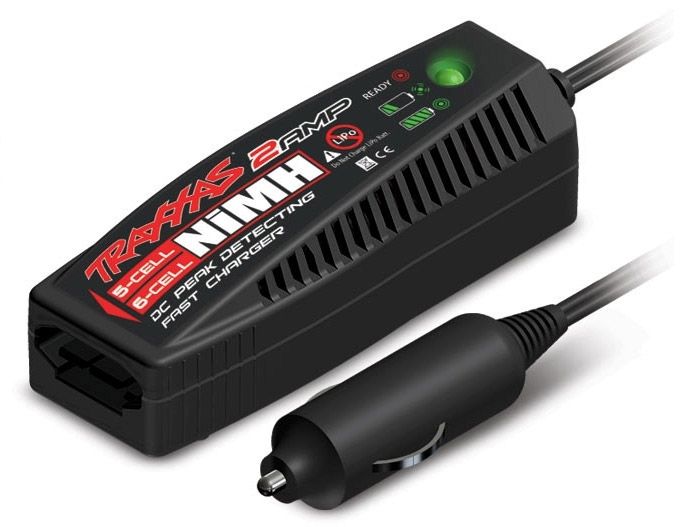

- Included Charger: 2A DC Charger

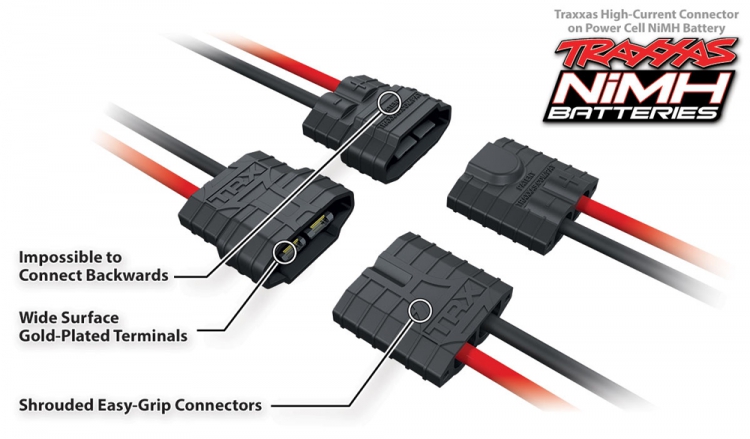

- Included Batteries: 6-cell NiMH with iD Connector
- Required Batteries: 4 ""AA"" (Transmitter)
- Difficult Level: 1

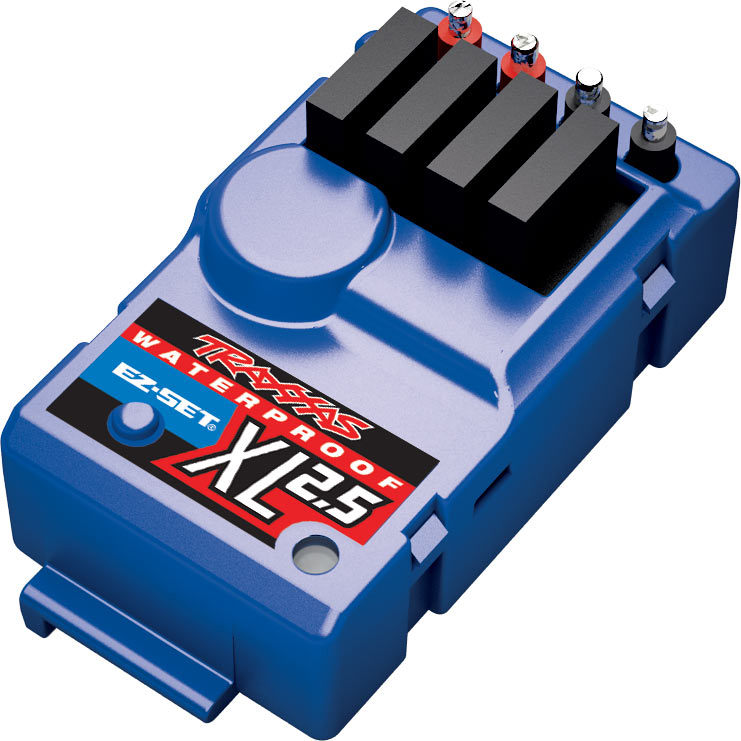

XL-2.5 WATERPROOF ESC SPECIFICATIONS
- Input Voltage: 4-7 Cells NiMH, 2 Cells (2S) LiPo
- Case Size: W26.5 x D46.5 x H22 mm
- Weight: 33 gr
- Motor Limit: 10-Turns*
- On Resistance (@Trans): 0.008 Ohms
- Reverse Delay: None
- BEC Voltage: 6.0V DC
- Power Wire: 16 Gauge / 40 mm
- Input Harness Wire: 26 Gauge / 130 mm
- Motor Wires: 26 Gauge / 130 mm
- Transistor Type: MOSFET
- Low Voltage Detection: 2-Stage Indicators, Switchable (On and Off)
- PWM Frequency: 2300 Hz
- Thermal Protection: Thermal Shutdown
- Single-Button Setup: Yes, Traxxas EZ-Set®
Profile Selection:
- Sport Mode: 100% Fwd, 100% Brakes, 100% Rev
- Race Mode: 100% Fwd, 100% Brakes, no Rev
- Training Mode:** 50% Fwd, 100% Brakes, 50% Rev
*Properly geared
**Patented
