PRODUKT INFO:
Charging should not be a chore!With the two-tone body design and playful color options, Adds a touch of fun to your routine charging session. Stand out in the racing field with a pop of color and impress other players with your unique personality. Choose from bold and bright or classic and subdued color schemes that perfectly match your style.
- arm Cortex-M4 MCU
- DC/PD Dual Input
- Digital Power Supply(1)
- Max 300W Charge power(2)
- Max 15A Charge Current(3)
- Reverse Discharge(6)
- Light & Compact
- Smart Fan Control
- Intuitive Interface
Be Legendary: Innovation Evolved, Smaller than Credit Card

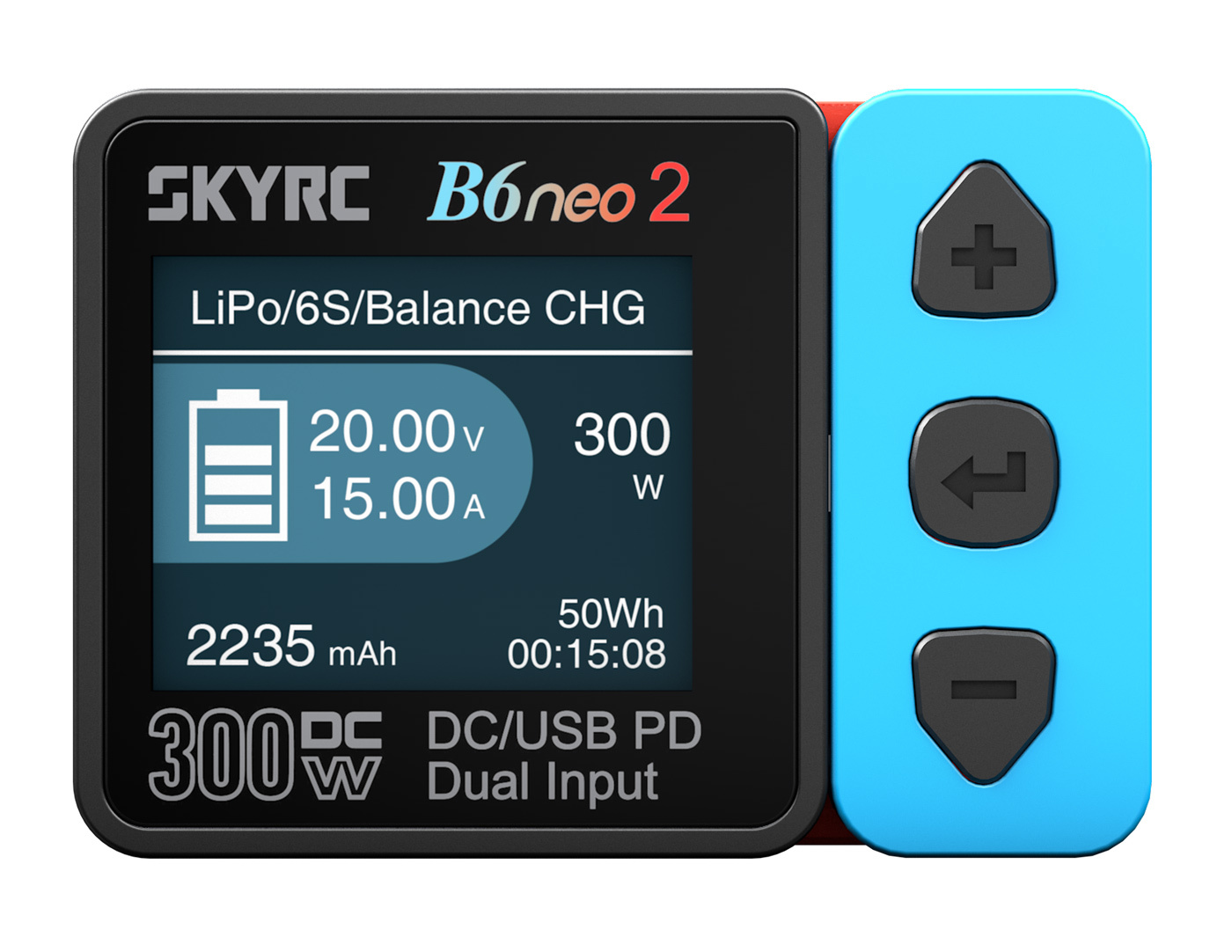

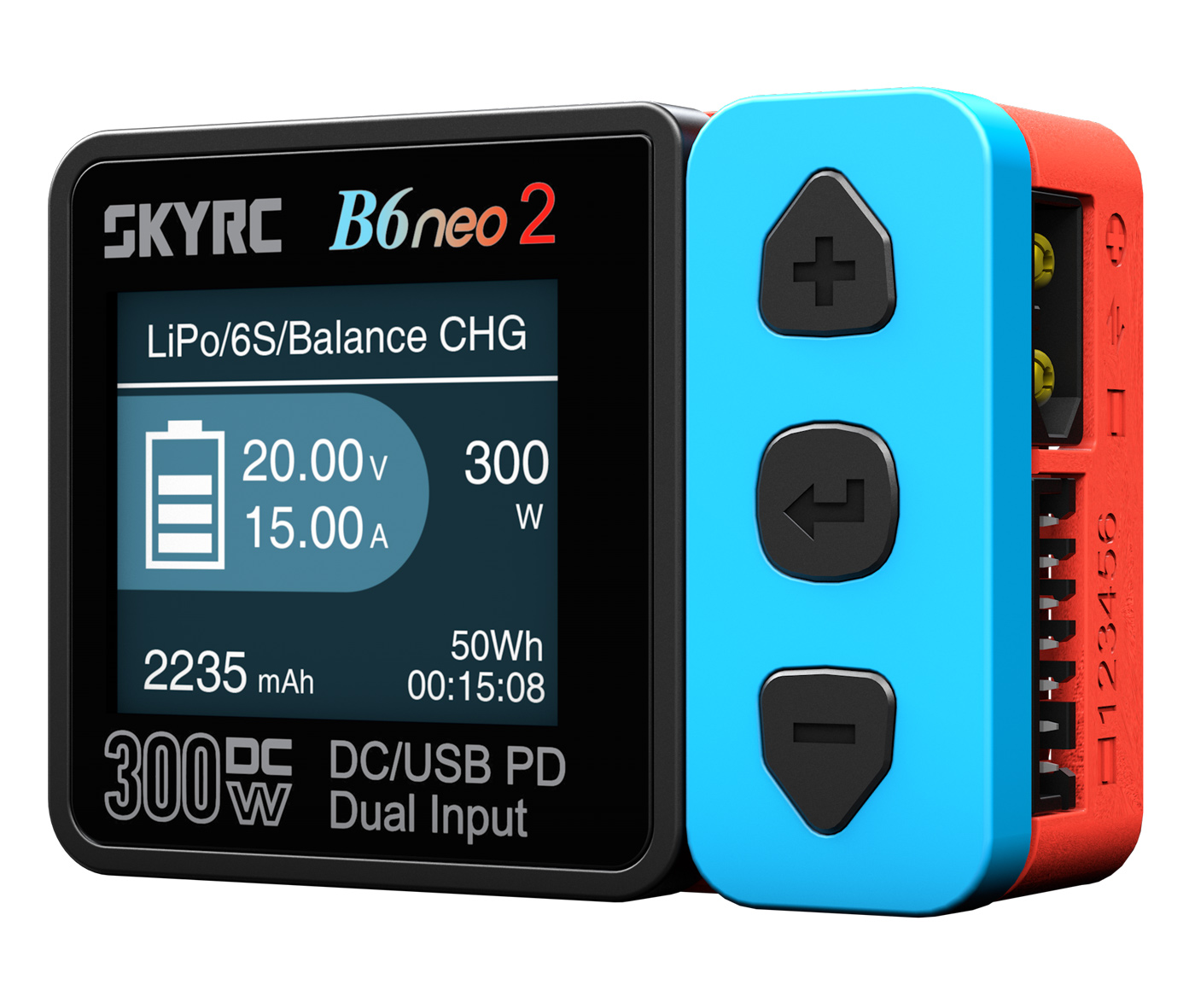

B6neo series reimagines the iconic iMax B6—now in a footprint smaller than a credit card. Nearly 1/4 the size of the original, B6neo, B6neo+, and B6neo 2 pack serious power into sleek, colorful plastic shells. While the classic B6 maxed out at 50W DC, the new B6neo series delivers up to 300W on DC and 80W via USB PD, bringing modern performance to your pit bench. With PD input now essential for everyday convenience, the B6neo series leads the way once again.
Tiny & Shiny
With Amazing Power up to 300W Don't be fooled by the compact size—the B6neo Series packs a serious punch. When powered by DC, these pocket-sized chargers deliver up to 300W(2) at 15A(3). Even via USB-C PD, they provide a solid 126W(5) with ease. Sharing the same ultra-compact footprint, the B6neo Series redefines what’s possible in portable charging. Power, portability, and style—what more could you ask for?
XT60 & Trendy PD input
SkyRC B6neo Series feature an XT60 interface as its DC input and a de-facto trendy Type-C PD(7) input interface, ensuring greater flexibility and convenience in charging your RC batteries.
Discharging Multiplied by Balance Port
The built-in balance port enables B6neo Series chargers to discharge faster, allowing it to discharge at up to 29.5W(6) when used in conjunction with the main port.
So. Pro. So is Digital Power(1)
B6neo and B6neo 2 are not only professional in charging but also versatile digital power supplies. With just a few taps on the menu, they’re ready for your application—offering optimal voltage output from 5V to 27V in 0.1V increments.
- B6neo delivers adjustable current from 1A to 10A
- B6neo 2 pushes further with 1A to 15A output capacity
Experience the strength of our revolutionary PD Reverse Discharging!(6)
This groundbreaking feature enables up to 100W of discharging power—allowing you to charge devices like MacBooks and smartphones directly from your battery via PD 3.0. Whether you’re at the track or on the move, this turns your charger into a portable power hub. Best of all, this method reduces energy waste, supporting a more sustainable future.
Versatile 2-in-1: Check Batteries Easily
When the balance port is connected, B6neo Series is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell's voltage of will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing. It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.
Specs:
- Case material: PC-ABS V0
- Size: 70s50s31mm
- Weight: 82g
- Display Type: TN
- Display Size: 1.77 inch
- Display Panel Active Area: 28.03x35.04mm
- Display Resolution: 128x160 Pixel
- Display Number of Colors: 262K
- Power：DC: 7-28.0V - PD3.0/QC: 12-20V
- Charge power: DC:300W / PD: Max. 80W
- Discharge power: Max. 24W based on 6S(4.2V/S)
- Battery Types/Cells: LiPo/LiFe/LiIon/LiHV: 1-6cells – NiMH/NiCd: 1-15cells – Pb: 3S/6S
- Charge current: 0.2-15.0A
- Discharge current: 0.1-2.0A
- Balance current: Max: 550mA
Operation:
- LiPo/LiFe/LiIon/LiHV: Balance charge, Charge, Discharge, Storage, Reverse Discharge(6)
- NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge, Reverse Discharge(6)
- Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge, Reverse Discharge(6)
Notes:
- B6neo+ does not support digital power supplies;
- SkyRC Lab Test: Maximum output power via DC input is 300W. Please refer to the specifications for details on different models.
- SkyRC Lab Test: Maximum charging current is 15A. Please refer to the specifications for details on different models.
- SkyRC Lab Test: B6neo+ supports PD 3.1 protocol, while B6neo and B6neo 2 support PD 3.0. Please refer to the specifications for details on different models.
- SkyRC Lab Test: Maximum discharge power is 29.5W. Please refer to the specifications for details on different models.
- Reverse charging is supported only by B6neo+
- SkyRC Lab Test: Maximum output power via PD input is 126W. Please refer to the specifications for details on different models.
- 48 decibels (dB) is considered relatively quiet in daily life. According to the CDC website, sounds at 48 dB typically do not cause any hearing damage.
- Warning: Do not connect XT60 and USB simultaneously on the B6neo+.
