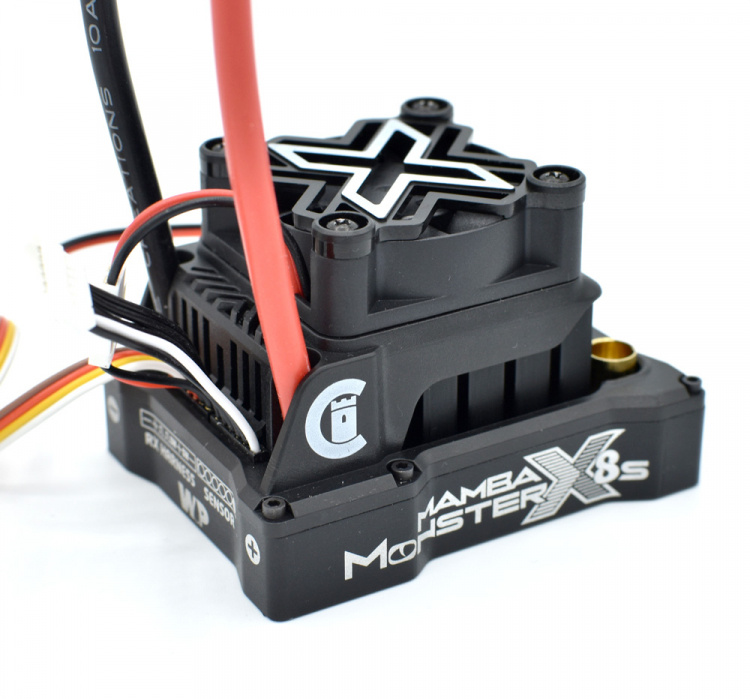

Castle Mamba Monster-X-8S, 33.6V Fartreglage
MORE POWER - COOLER TEMPS - LONGER RUNS
Take your 1:6th scale build or upgrade to the next level with Castle’s legendary brushless power. With the introduction of the MAMBA MONSTER X 8S any R/C vehicle weighing up to 25lbs, and running up to 8S LiPo, is fair game.
- Waterproof : Yes
- Telemetry Capable : Yes
- Data Logging : Yes
- Auxiliary Wire : Yes
- Minimum Input Voltage : 2S
- Maximum Input Voltage : 8S
- Sensored Capable : Yes
- Recon G6 Certified ESC : No
- ROAR Certified ESC : No
- CRYO-DRIVE : Yes
Specs:
- Applications: 1:6th Scale vehicles weighing up to 11kg
- Input Voltage Range: MIN: 2S LiPo, MAX: 8S LiPo 33.6V
- Running Modes: Sensored, Sensorless and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor.
- Brake: Proportional
- Reversible: Yes, but may be disabled for racing.
- On/Off Switch: Yes, waterproof
- Cooling Fan: Yes, factory equipped (40mm), fully removable** (see Product Use Statements below)
- Size (LxWxH): 69.5x54.1x47mm
- Weight (with wires): 163gr
Connectors type:
- 6.5mm female bullets for motor connection
- Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Operating environment:
- Waterproof design for all weather conditions
Programmability:
- Fully programmable Castle feature set using Castle Link USB adapter(coupon for free link included in package) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable:
- Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Product Use Statements:
- Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
- Surge ratings should never be used to determine a pack’s suitability for a brushless application.
- We recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
- Applying voltages higher than 33.6V will cause irreparable damage to ESC; DO NOT RUN HV CELLS (above 4.2v/cell) WHEN RUNNING AT MAX CELL COUNT (8s). This will exceed the 33.6v rating and will damage the ESC and not be covered by the warranty.
- Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
- The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
