Produkt Info:

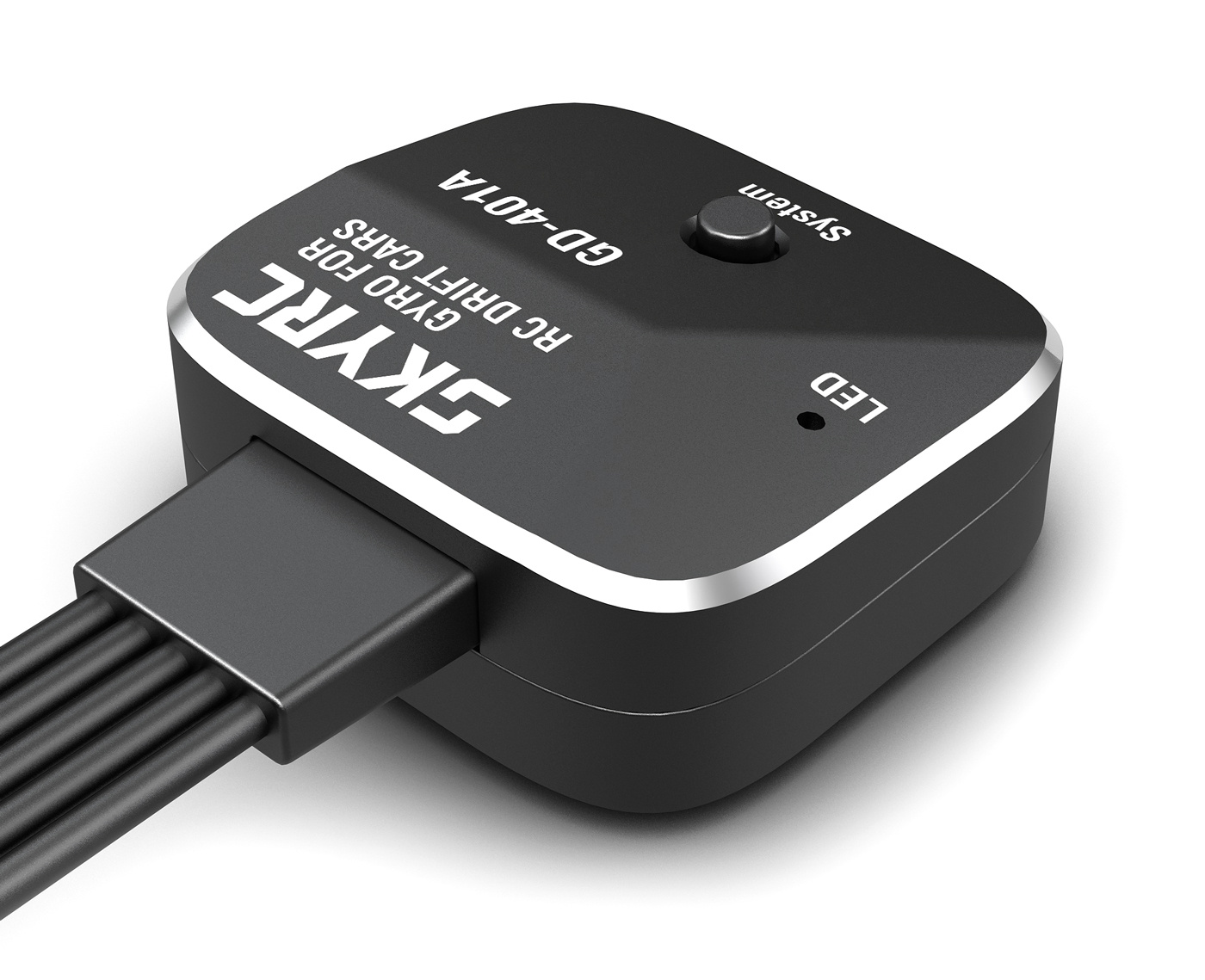

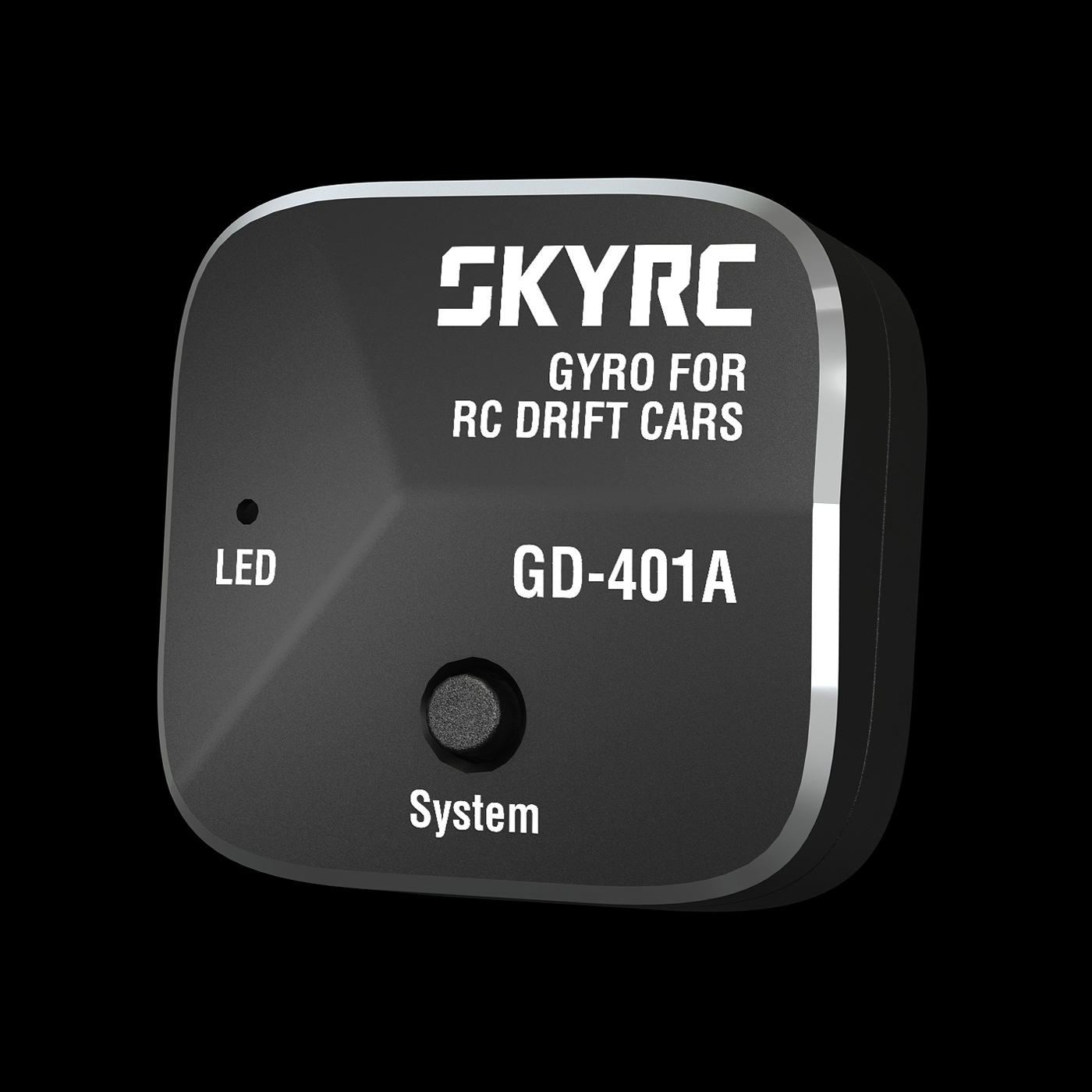

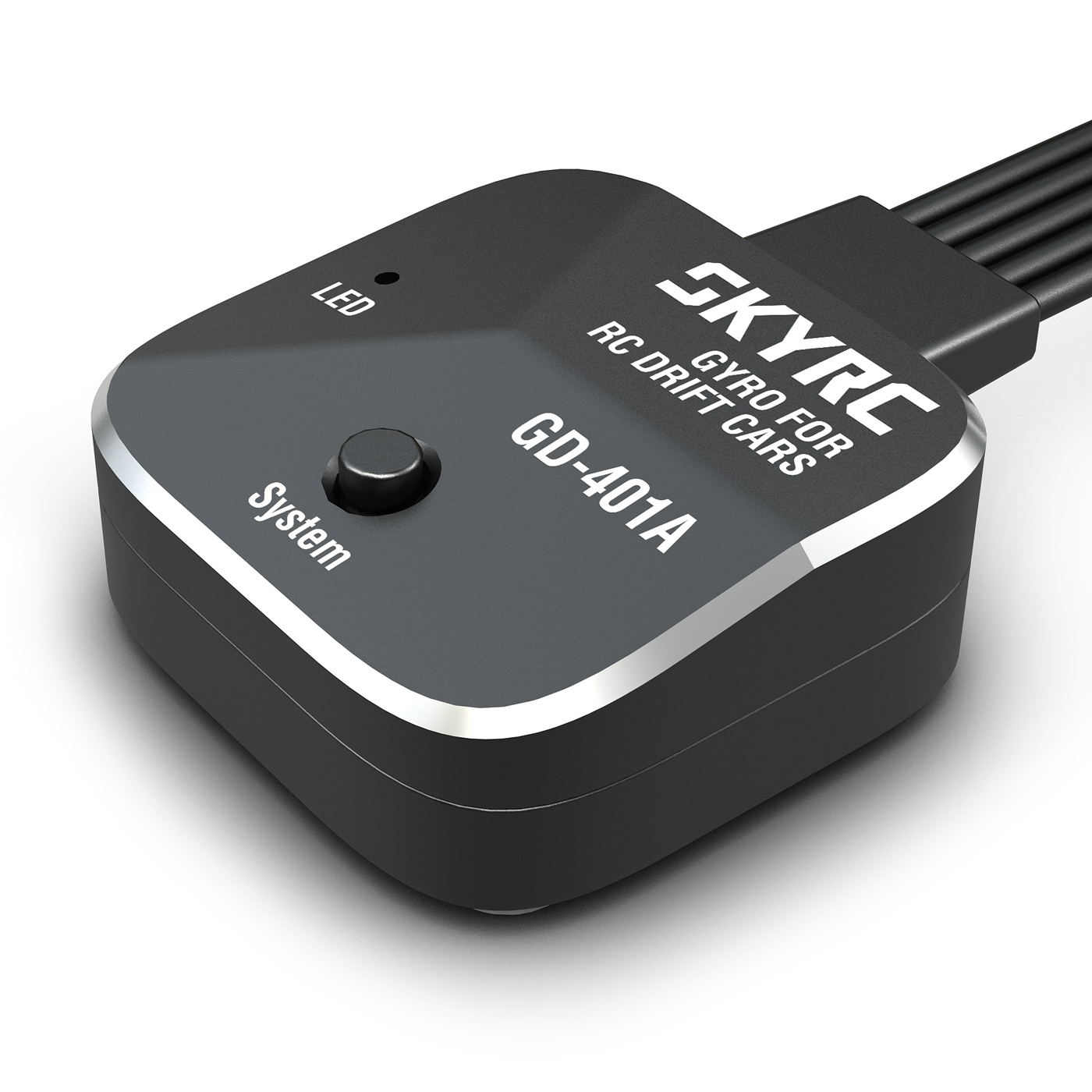

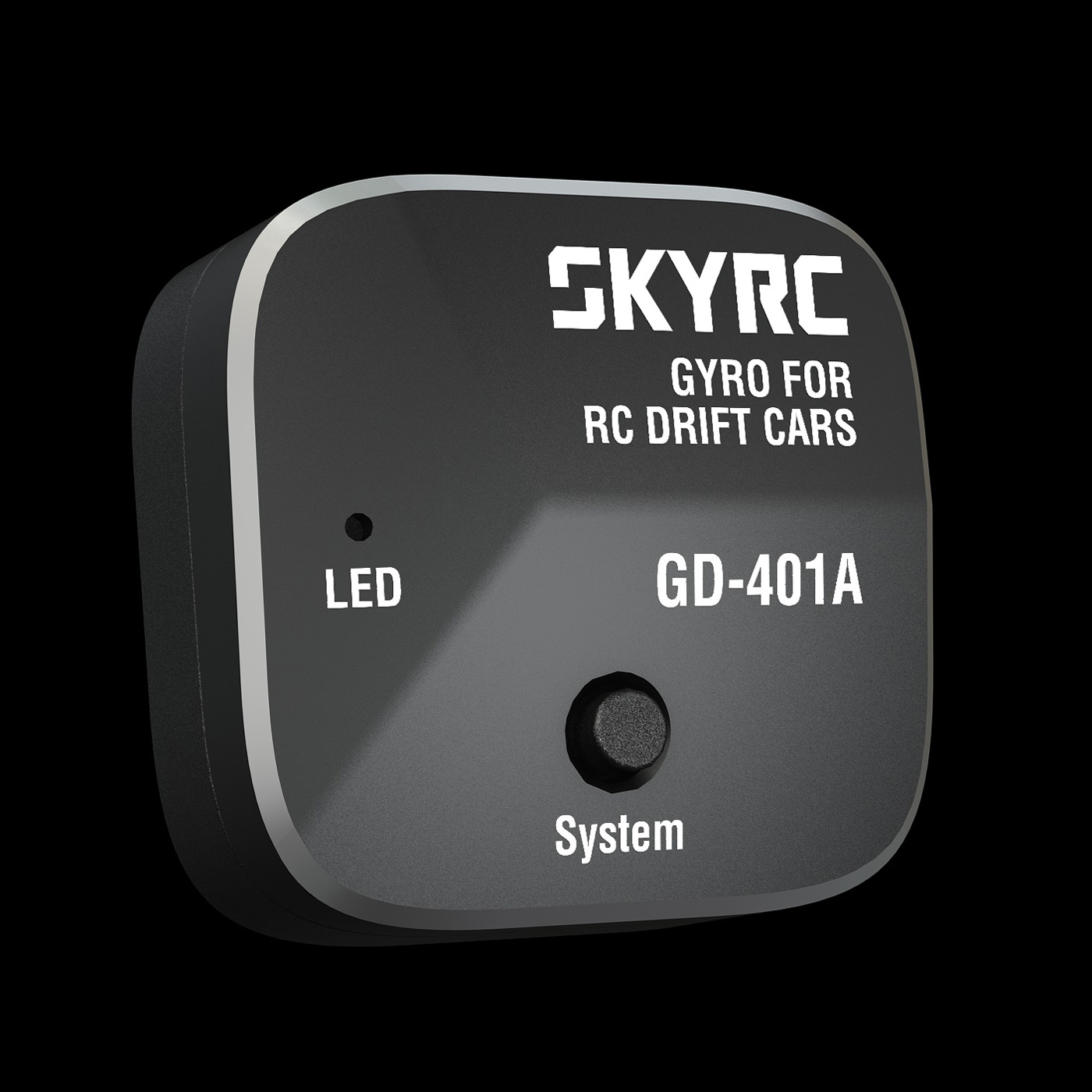

SkyRC SK600154-01 - GD-401A Drift Car GyroEgenskaper:
- CNC aluminum. Tough, elegant, heat-efficient.
- Optimized sensitivity and gain algorithms ensure accurate, responsive control.
- Adjustable servo travel with 180° endpoint setting.
- Integrated cable. One-button setup. Easy install.
- 9 curves for various drift scenarios.
- One-touch reverse setup with 5-second steering direction correction.
From Core to Curve
A 32-bit processor works seamlessly with the high-precision MEMS gyro to calculate and correct every deviation—delivering control that feels natural and fluid.
Tuned for RWD drift cars with 9 preset curves, and compatible with touring, rally, and short course models.
9 Preset Curves. For Every Drift.
From smooth to sharp, GD-401A’s 9 preset curves adapt to your driving style—beginner or pro.
- A single button cycles through modes (1–9).
- At startup, green LED flashes display the selected curve.
- Adapt to every track. Match every drift.
Sense and Stability
This gyro continuously detects and corrects steering deviations, delivering smoother handling and a more focused driving experience.
Dial-In Your Endpoints
Take full control with EPA (End Point Adjustment), fine-tuning servo travel within its 180° range to avoid interference and oversteer.
Precision, simplified. Every turn, just right!
Different Mount, Same Control
Different chassis, different layouts—sometimes your control logic ends up reversed. With one-touch reverse setup, the gyro adapts automatically to your installation. No second-guessing directions—just focus on nailing every corner with precision.
LED Status at a Glance.
- Red LED Flashing: No signal received; transmitter may not be powered on.
- Solid Green LED: Transmitter disconnected.
- Flashing Green LED: Indicates the current curve level. The LED flashes in a loop from 1 to 9 times to show the active curve.
Discreet. Durable. Designed to Fit.
So compact, it virtually disappears into your chassis—lightweight, seamless, and never in the way during assembly or wiring. CNC-machined aluminum provides rigidity and efficient cooling, all wrapped in a premium finish that feels as refined as it looks.
Specifikationer:
- Size: 22x21x9mm
- Weight: Approx. 12g
- Case Material: 6063 Aluminum
- Input Signal: PWM (50–333Hz)
- Operating Voltage: 4.8V–7.4V
- Output Signal to Servo: 1520μs (50–333Hz)
- Operating Current: 20mA @ 6V
- Operating temperature: -10°C-40°C
- Working humidity: 10%–90% RH, non-condensing
- Storage temperature: -10°C–45°C
- Storage humidity: 20%–65% RH, non-condensing
