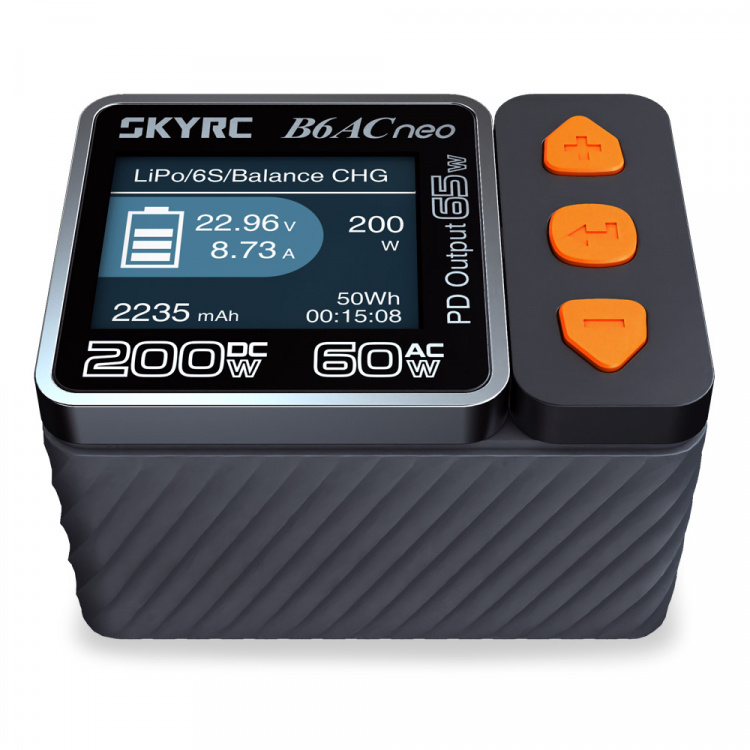

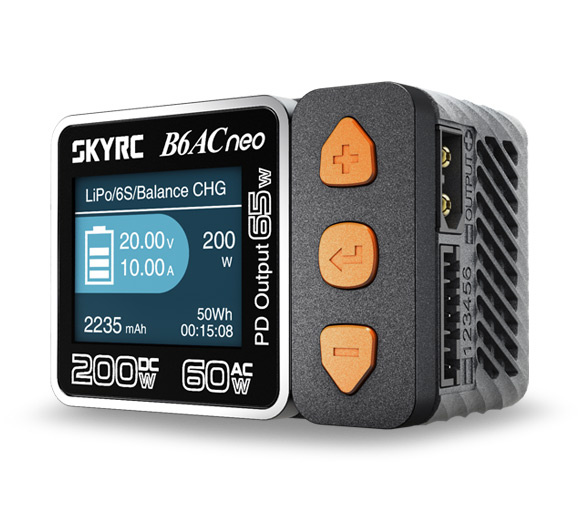

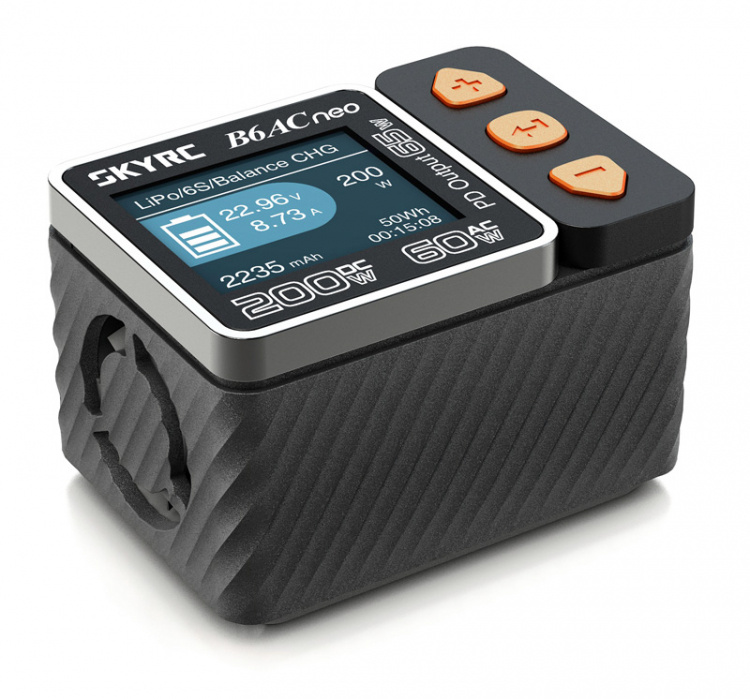

SkyRC SK100200-01 - B6ACneo Charger - AC/DC powered
Tiny & Shiny with Amazing Power of 200WDon't let its downsized footprint deceive you - this charger packs a punch! When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the AC power, it effortlessly fills up to 60W.
With its tiny footprint, the B6ACneo exceeds expectations in every way! Experience the ultimate combination of power and portability with the B6ACneo. What more could you ask for from such a compact powerhouse?
XT60 & Universal AC input
SkyRC B6ACneo features an XT60 interface as its DC input and Universal 100-240V AC input, ensuring greater flexibility and convenience in charging your RC batteries.
Discharging Multiplied by Balance Port
The built-in balance port enables B6ACneo to discharge faster, allowing it to discharge at up to 19W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 5W.
Versatile 2-in-1: Check Batteries Easily
When the balance port is connected, B6ACneo is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell's voltage of will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing.
It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.
So. Pro. So is Digital Power
B6ACneo is not only professional in charging but also can act as a digital power supply. After clicks on the menu, B6ACneo is ready for your application, offering an optimal voltage of 2-27V with 0.1V increment, adjustable 1-10A current. Short circuit, Overload, and Reverse polarity protection are all included!
ColorX: Easy to charge, Easy on the eyes.
Discover a new ColorX interface introduced by B6ACneo based on simple and textured visuals! The tailor-designed light cyan and green color scheme are for RC charging. It helps you focus on the setting. The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones! Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI. Life doesn't have to be boring, and neither does charging!
Charge in your language
ColorX is designed to be easily localized and comfortably engaged! The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
"Hush, easy! I am charging!"
Even under full power load, B6ACneo's cooling fan operates at a maximum of 48 dB*, which is acceptable to most users. You can confidently study, fine-tune your pit work, or relax while charging without disruptions or distractions. We understand the importance of maintaining a peaceful atmosphere, and we have prioritized our charger's quietness. You have every right to focus on what truly matters to you.
Better Over Time: Upgrade Firmware Hassle-Free
Upgrade your charger effortlessly with the complimentary Charger Master App. Stay informed and receive instant prompts whenever a firmware update is available. Updating your charger is as simple as connecting it via the Type-C port. Enjoy a happier charger as each upgrade brings bug fixes and compatibility, improved stability, and enhanced performance.
Specs:
- Case material: PC-ABS V0
- Size: 70.6x50.6x46mm
- Weight: 150g
- Display Type: TN
- Display Size: 1.77 inch
- Panel Active Area: 28.03*35.04mm
- Resolution: 128x160 Pixel
- Number of Colors: 262K
- AC Input Voltage: 100V～240V 50/60Hz
- DC Input Voltage: 10-30.0V
- Charger power: DC：200W / AC：60W
- QC3.0 / PD: 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓3.25A Max. 65W
- Discharge power: 19W based on 6S (4.2V/S)
Battery Types/Cells:
- LiPo/LiFe/LiIon/LiHV: 1-6cells
- NiMH/NiCd: 1-15cells
- Pb: 3S/6S
- LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.2-10.0A
- LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
- LiPo/LiFe/LiIon/LiHV: Max. 500mA
- LiPo/LiFe/LiIon/LiHV: Balance CHG, Charge, Storage, Discharge
- NiMH/NiCd: Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Dishcarge
- Pb: Normal, AGM Charge, Cold Charge, Discharge
- SkyRC B6ACneo Charger
- AC Power Cord
- Quick Start Guide
