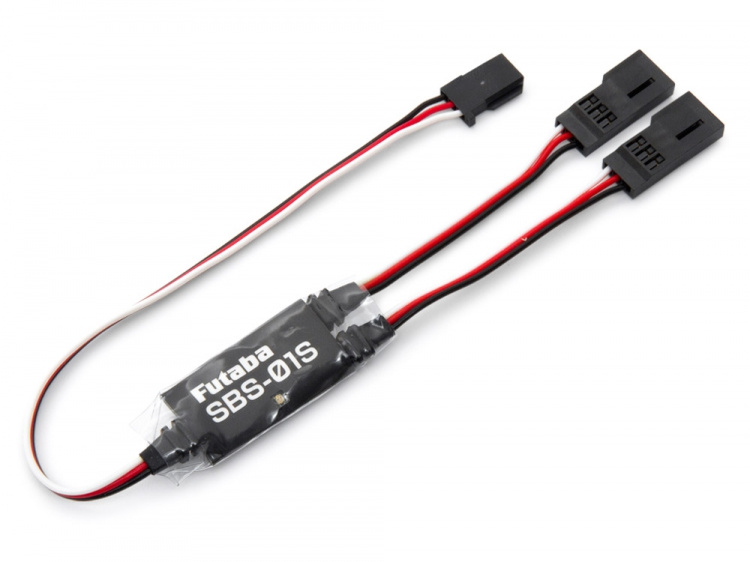

The SBS-01S can monitor and display the in-flight current, operating angle, and internal temperature of up to two S.BUS2 servos.

A log file for each servo, as well as data acquired by the SBS-01S, can be created when the transmitter has a telemetry function. The log file can be converted to a CSV file by using the “Telemetry log converter”. The “Telemetry log converter” must be downloaded from the web.

• Use: Servo telemetry sensor for compatible Futaba transmitters and S.BUS2 receivers
• Detection item: Current ( ～ DC10.0A) Operation Temperature (-10℃～ 115℃）
• Length: 255 mm
• Weight: 6.9 g
• Voltage: DC 3.7V ～ 7.4V
