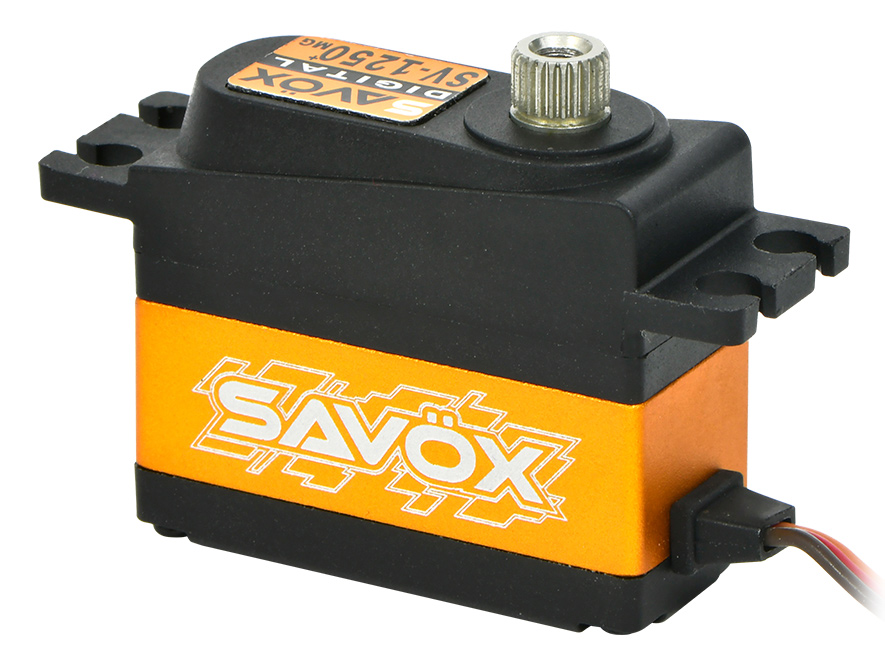

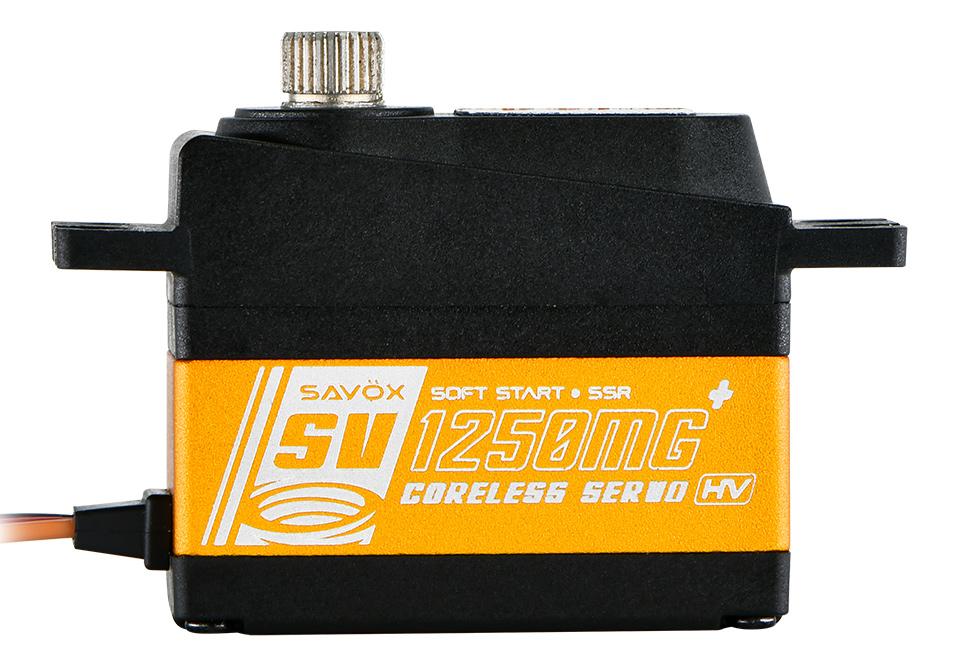

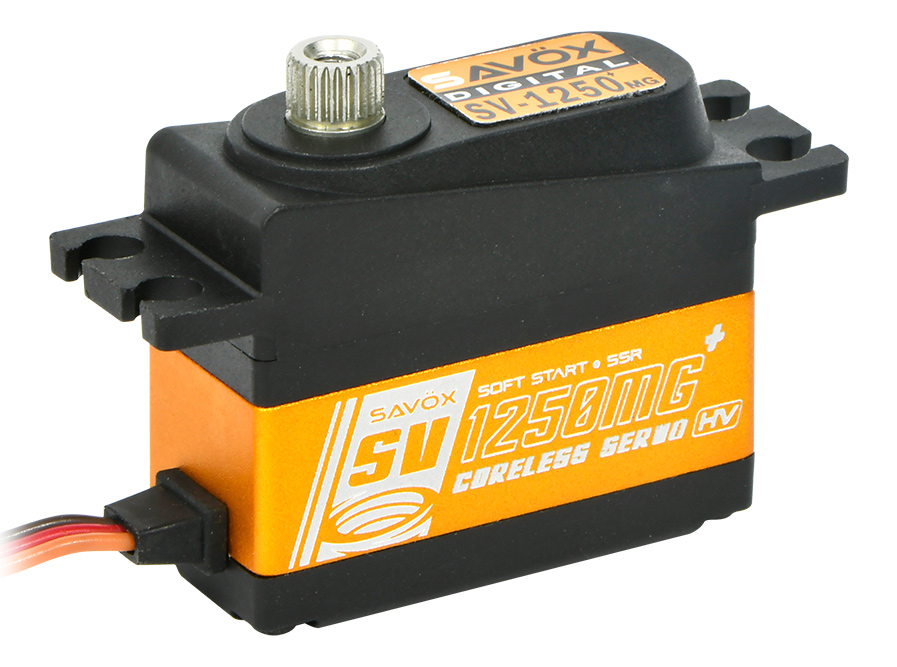

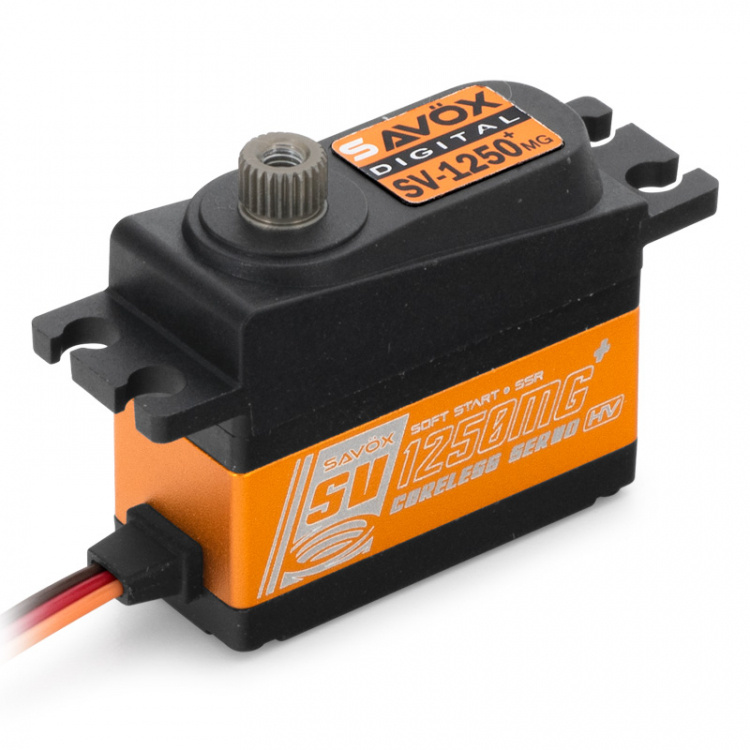

SAVÖX SV-1250MGPLUS - Metal-Geared High Voltage Mini Servo
The SV-1250MG Plus mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.Features:
- New: Soft Start
- High Voltage

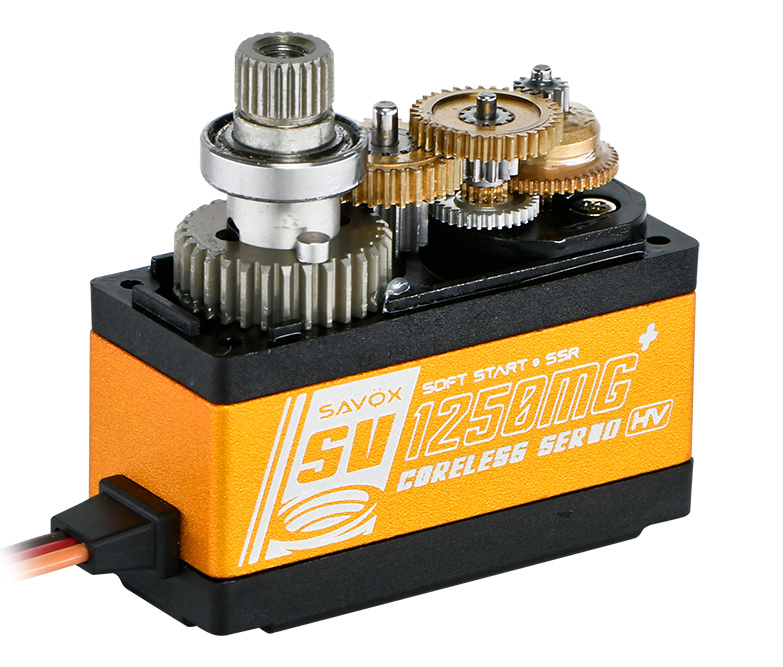

- Metal gear train provide durability against heavy use
- Aluminum middle case allows for cooler operating temperatures
- Ideal where torque is needed in a small mounting space
Specifications:
- Line: ORIGINAL LINE
- Application: CAR/HELI/AIRPLANE
- Servo Size: Mini
- Operating Voltage: 6.0V-8.4V
- Speed @ 6.0V: 0.11 s/60°
- Torque @ 6.0V: 4.6 kg/cm
- Speed @ 7.4V: 0.095 s/60°
- Torque @ 7.4V: 8.0 kg/cm
- Speed @ 8.4V: 0.085 s/60°
- Torque @ 8.4V: 10.0 kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Hybrid (Aluminum/Composite)
- Protection: Water Resistant

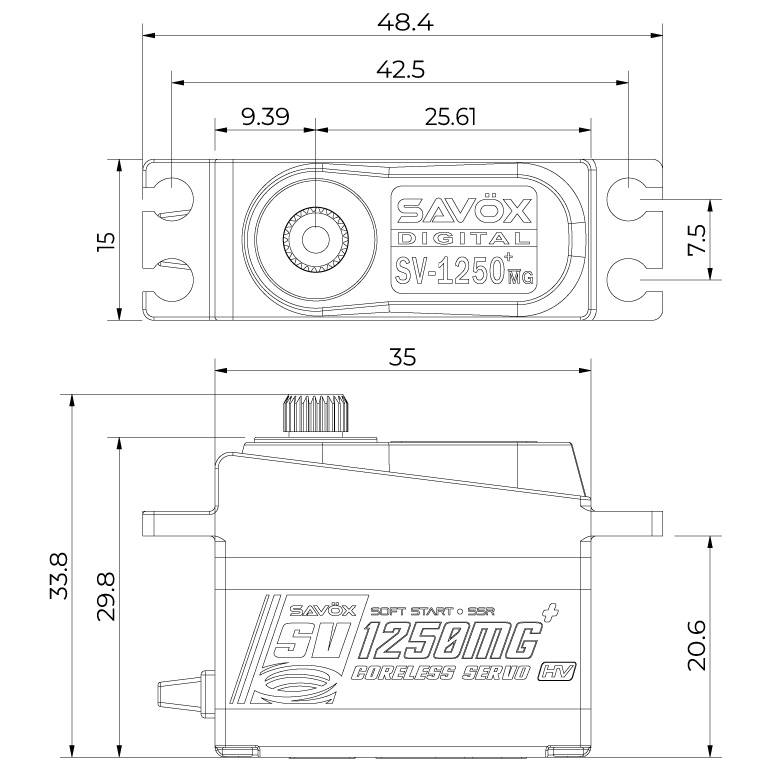

- Dimensions (LxWxH): 35.0 x 15.0 x 29.2 mm
- Weight: 29.6 g
- Gear Type: Heavy-Duty Metal
- Compatibility: Sanwa SSR
- PCB Board: 12bit 4096, Softstart, Lock protection

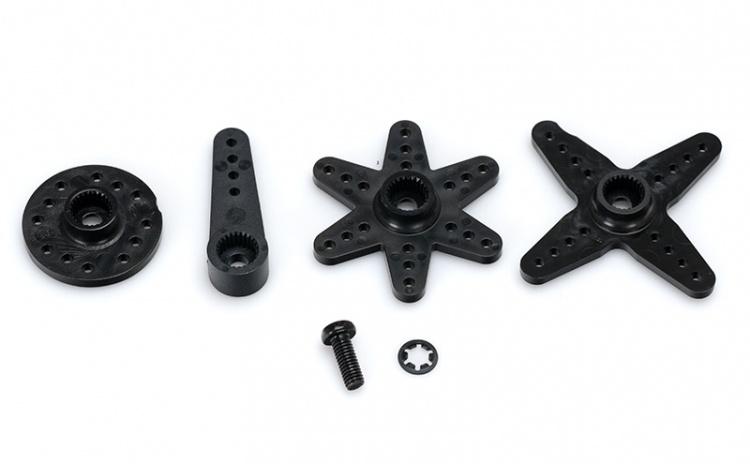

- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000 μsec)
- Max Travel: ~154° (when 800→2200 μsec)
- Operating Travel: 110° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 26 AWG
- Cable Length: 250 ±5 mm
- Connector: JR
- Stall Current @ 6.0V: 1700 mA
- Operating Current @ 6.0V: 100 mA
- Stall Current @ 7.4V: 2000 mA
- Operating Current @ 7.4V: 120 mA
- Stall Current @ 8.4V: 2200 mA
- Operating Current @ 8.4V: 150 mA
- Idle Current: 5 mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360 Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
