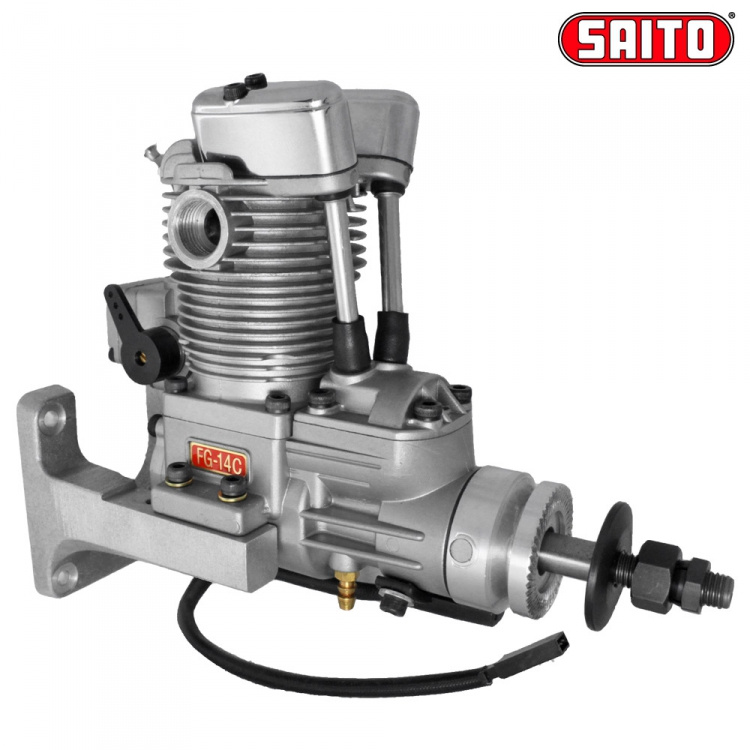

Saito FG-14C - 14cc 4-Stroke Gas Engine

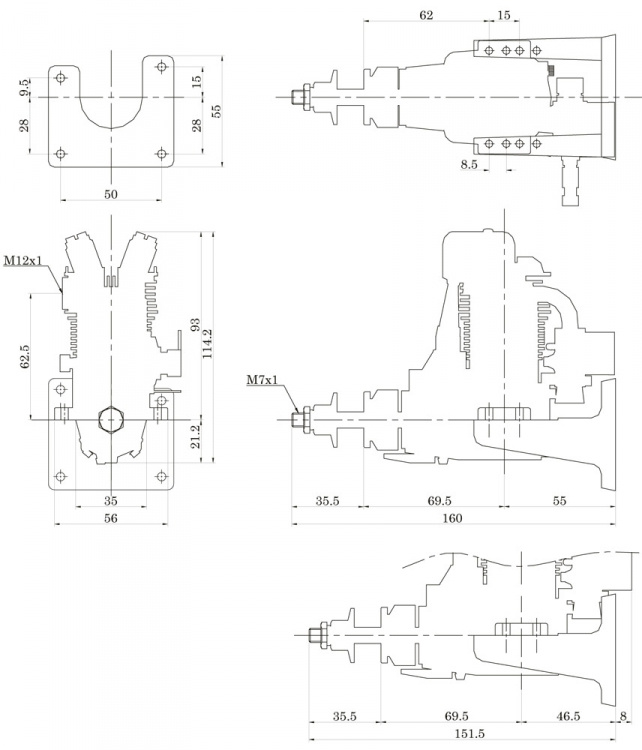

Saito FG-14C is the new model modified from FG-14B with new ignition system and drive flange. The dimensional drawing is just the same as FG-14B. The new ignition system comes with the compact case and sensor compared to the previous type.Specs:
- Displacement: 13.47 cc
- Applications: 4-stroke glow .70 class
- Bore: 29.0 mm
- Stroke: 20.4 mm
- Motor weight: 528 g
- Muffler weight: 57 g
- Ignition system weight: 145 g
- Engine mount weight: 124 g
- Practical RPM: 1900-9500
- Max RPM on Ground (stationary): 9000
- Propeller: 13x8" - 14x6"
- Static thrust: with APC 13x8 = 2.3 kg & APC 14x6" = 3.2 kg
- Fuel: Regular gasoline & oil = 20:1 (volume ratio)
- Fuel consumption: aprox 8 cc/min (@ fulll throttle 9000 rpm)
- Battery for ignition system: 4.8-6V with more than 1Ah is recommended
Recommended gasoline fuel oils:
- Klotz Original TechniPlate®
- Klotz R/C Modelube®
Included:
- Engine
- Motor Mount
- Exhaust
- Ignition System
Thrust info:
- Engine: FG-14C
- Propeller: 14x6
- Static Thrust: 3.3kg
- Max weight for hover capability: 3.3kg
- Rec. Max weight for sportsman flying: 4.7kg
- Max weight for possible take-off: 6.6kg
