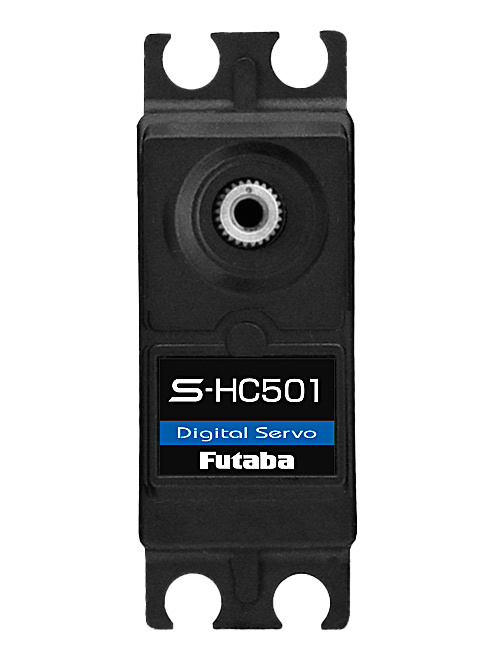

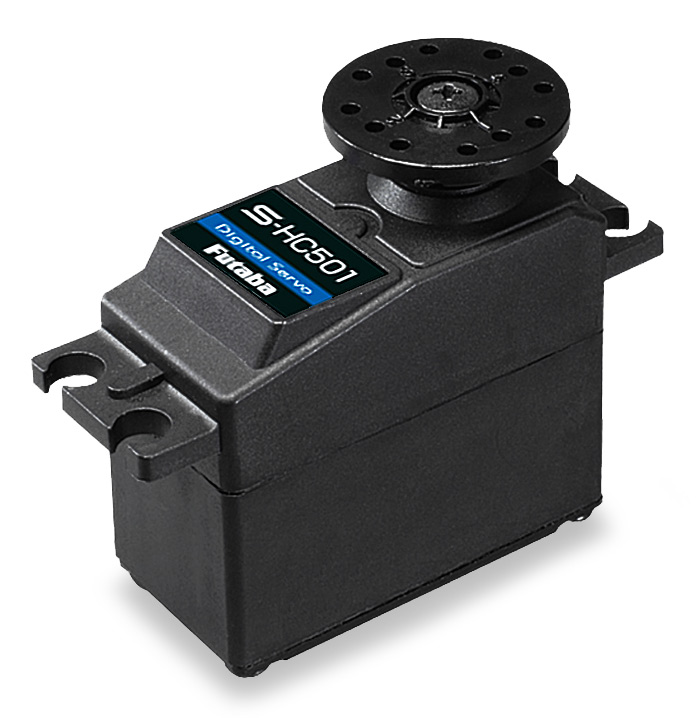

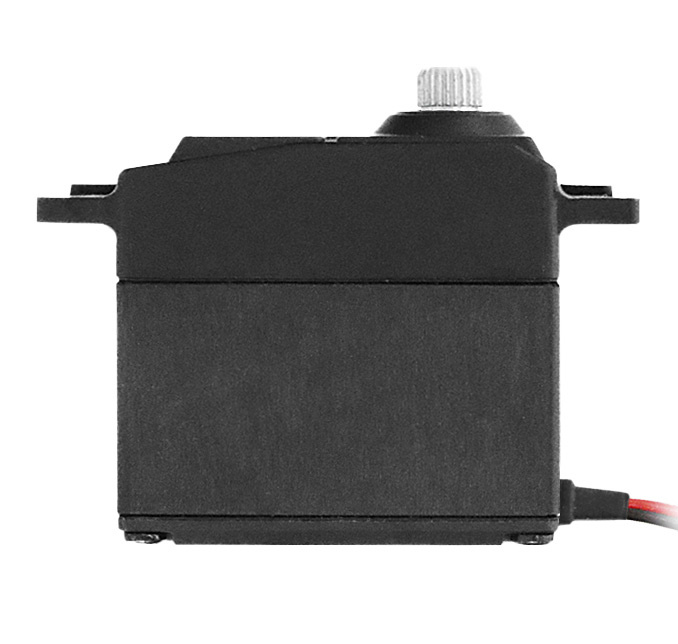

Futaba S-HC501 - Heli Swash Servo 13.8kg/cm 0.09s HV Coreless
A swash drive servo that uses a coreless motor (1.520/760uS compatible)- Replaces S-HC500 (end of life support for the IC in S-HC500)
Specs:
- Coreless motor
- High Voltage
- S.BUS
- 760uS compatible (set to 1,520uS at shipping)
- Metal 2-3 stage gear
- Aluminum final stage gear
- Resin case

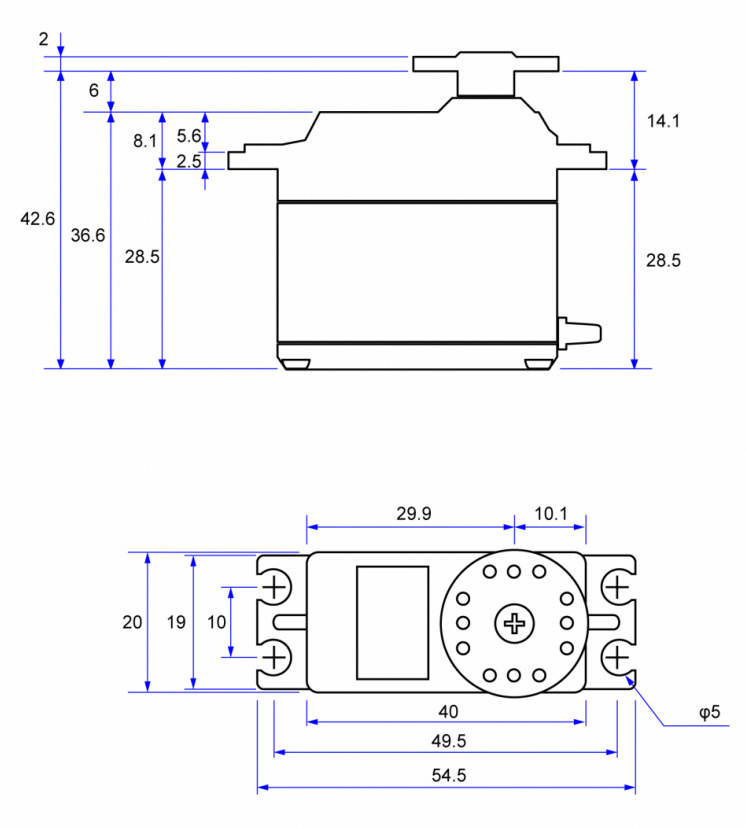

- Size: 40x20x36.6mm
- Weight: 54g
- Speed @ 6.6V: 0.10s/60°
- Torque @ 6.6V: 12.5kg/cm
- Speed @ 7.4V: 0.09s/60°
- Torque @ 7.4V: 13.8kg/cm
- Voltage:
*For combination with CGY770R;
- When using S-HC501 with DG: 1520us, please use the sensor mode of CGY770R's AIL Expert and ELE Expert (FLT Expert in 3D mode) to "Std" or "S1"
