The first 4-pole motor with a built-in chip which helps ESC identify it's a HOBBYWING motor (only when pairing it with the XeRun XR8 series of ESCs) and the XR8 ESC create a power system which is able to work in the "sensored" mode (at all times) and provide users with the better performance and smoother control.
Note: this motor is compatible with other ESCs but unable to work in the "sensored" mode at all times.
Turbo Timing Technology
The Turbo Timing which is widely used (by 2-pole motors) in 1/10 scale on-road racing can be enabled to unleash the utmost power of the motor when pairing the XeRun 3652/3660 G2 with the XeRun XR8 series of ESCs.
Bi-directional Adjustable Timing
The mechanical timing which is adjustable from 20 degrees to 40 degrees (30 degrees by default) meets different power demands of various applications.
(Note: bi-direction means CW/CCW)
Advanced Hall Sensing System
The HOBBYWING-patented "error-free" Hall sensing system adopted by the motor guarantees users the steady operation in the “sensored” mode. A separate high-speed high precision encoder always outputs the clean signals (indicate the position of the rotor) and protects the Hall sensing system from other signal interference.
Low Cogging Torque

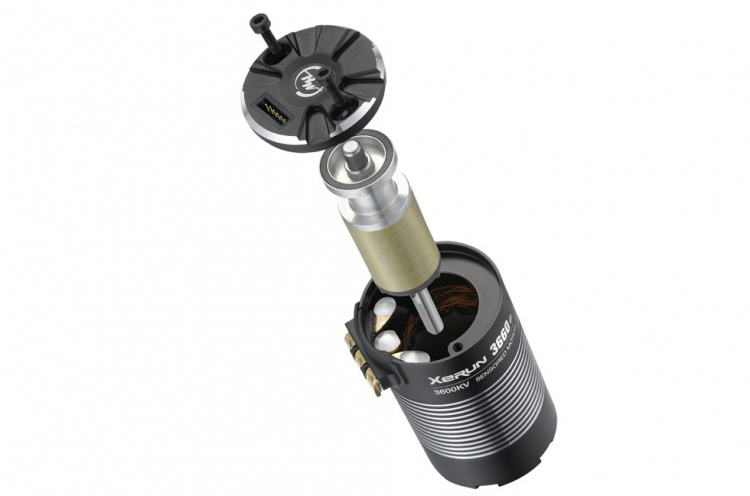

The HOBBYWING-patented 4-pole-8-magnet "staggered pole" rotor with the extremely low cogging effect and torque pulsation greatly improves the driving feel around corners.
Quality Materials & Excellent Design
The use of double insulated windings (200℃ R-leveled), Japanese NMB bearings, super thin silicon steel sheets and the high-intensity adhesive (300℃) guarantees users the outstanding performance and great durability. (With the strength of the motor is guaranteed,) the wheel hub design adopted by front & rear end bells effectively reduces the motor weight.
The turbine design adopted by the rotor actively accelerates internal air circulation, reduces heat and keeps the motor temperature stay at a low level.
Compatible with the XeRun XR8 SCT ESC
When pairing the XeRun 3652/3660 G2 motor with a Hobbywing XeRun XR8 SCT ESC, the excellent match between ESC and motor will give users large torque plus a very smooth and linear power band.
- Scale: 1/10th
- Brushed/Brushless: BL
- Sensored/Sensorless: SD
- Pole Count: 4
- KV Rating: 3600
- LiPo Cells: 2-3S
- No-load Current(A): 4.1
- Resistance(mΩ): 5.6
Size & Weight
- O.D.(mm): 36mm(1.417in)
- Length (mm): 52.5(2.067in)
- Shaft Diameter (mm): 5(0.197in)
- Weight (g): 214(7.55oz)
- Shaft Length(mm): 17(0.669in)
- Timing: 20-40 Degrees (Adjustable)
