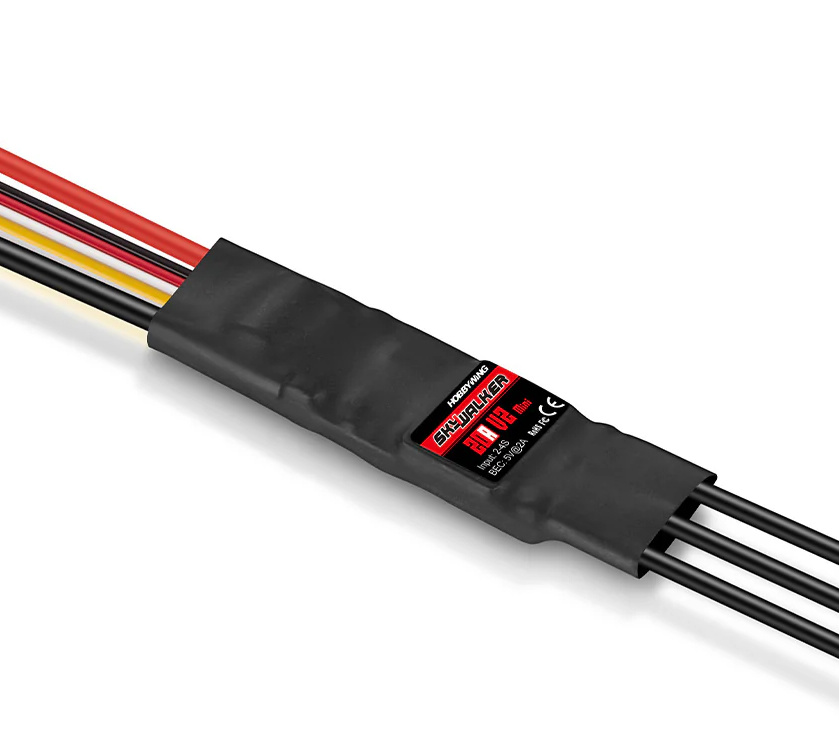

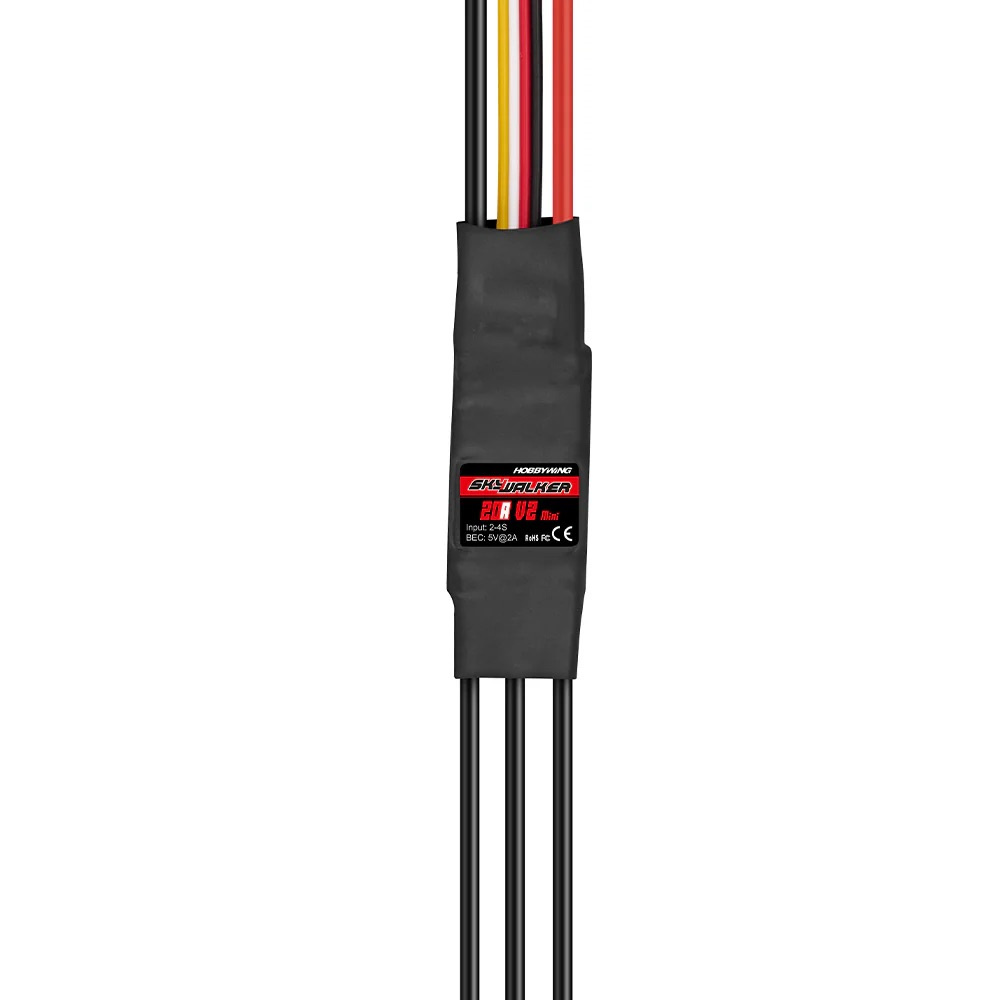

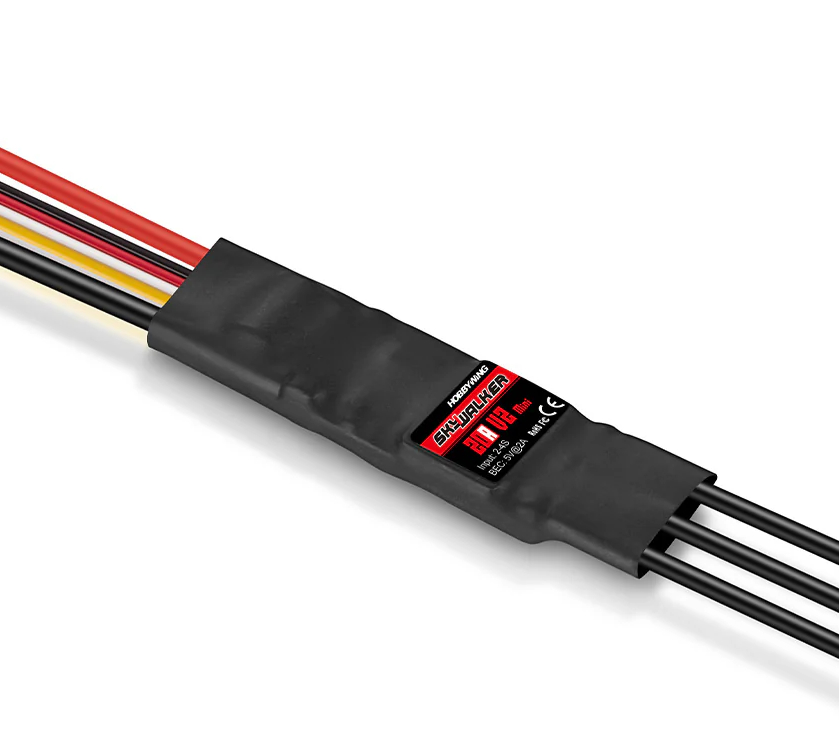

Hobbywing 30205201- Skywalker 20A V2 Mini ESC 2-4S 5V/3A
Features:
- High performance 32-bit microprocessor (Running frequency up to 96MHz) has excellent compatibility with various types of motors.
- DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
- Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
- Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.
- Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.
- Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.
Specs:
- Continuous current: 20 A
- Peak current: 40 A
- Input voltage: 2–3 S LiPo
- BEC output (switch mode): 5 V / 3 A
- Processor: 32-bit ARM M0 (96 MHz)
- Supported motor speed: up to 300 000 RPM (2-pole motor)
- DEO (Driving Efficiency Optimization) technology for smoother throttle response and higher efficiency
- Reverse brake and search mode functions
- Protections: low-voltage cutoff, ESC overheat, signal loss
- Size: 45 × 23 × 8 mm
- Weight: 19 g
