Hobbywing QuicRun Fusion 8IGHT SE 1800kV med Integrerad ESC 60A
Overview

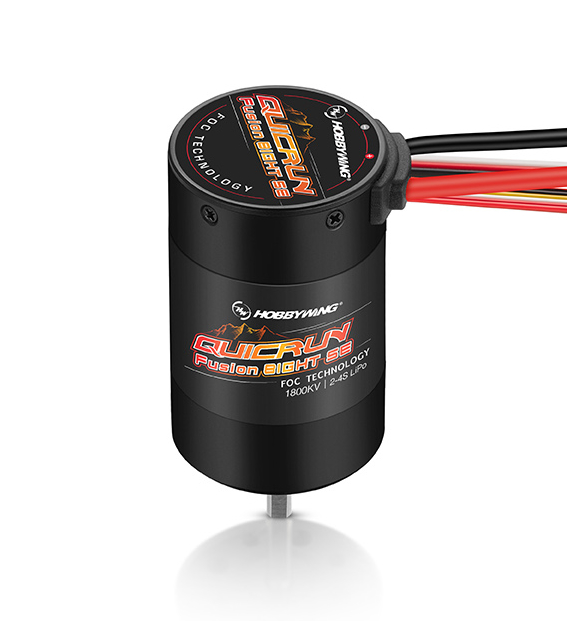

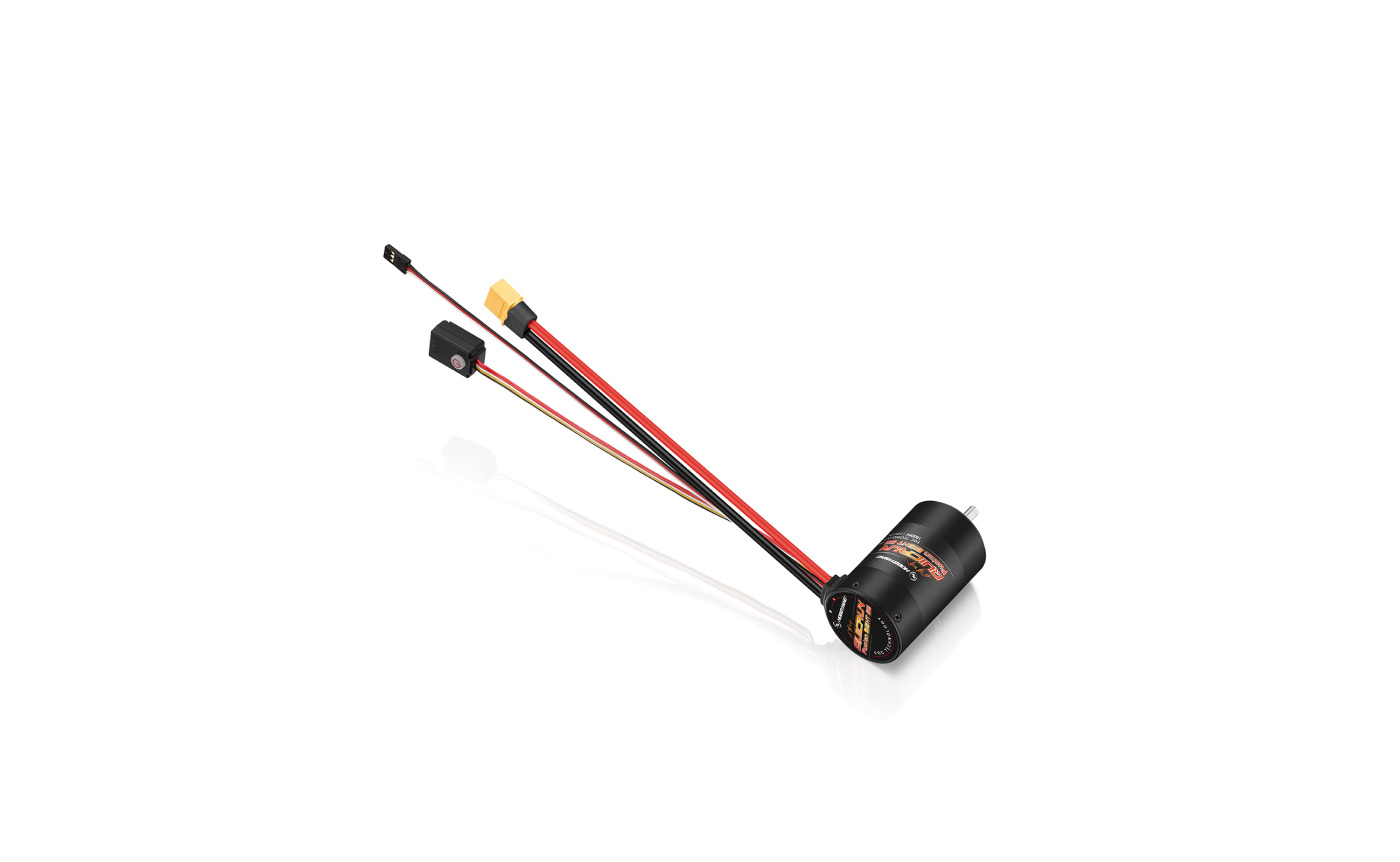

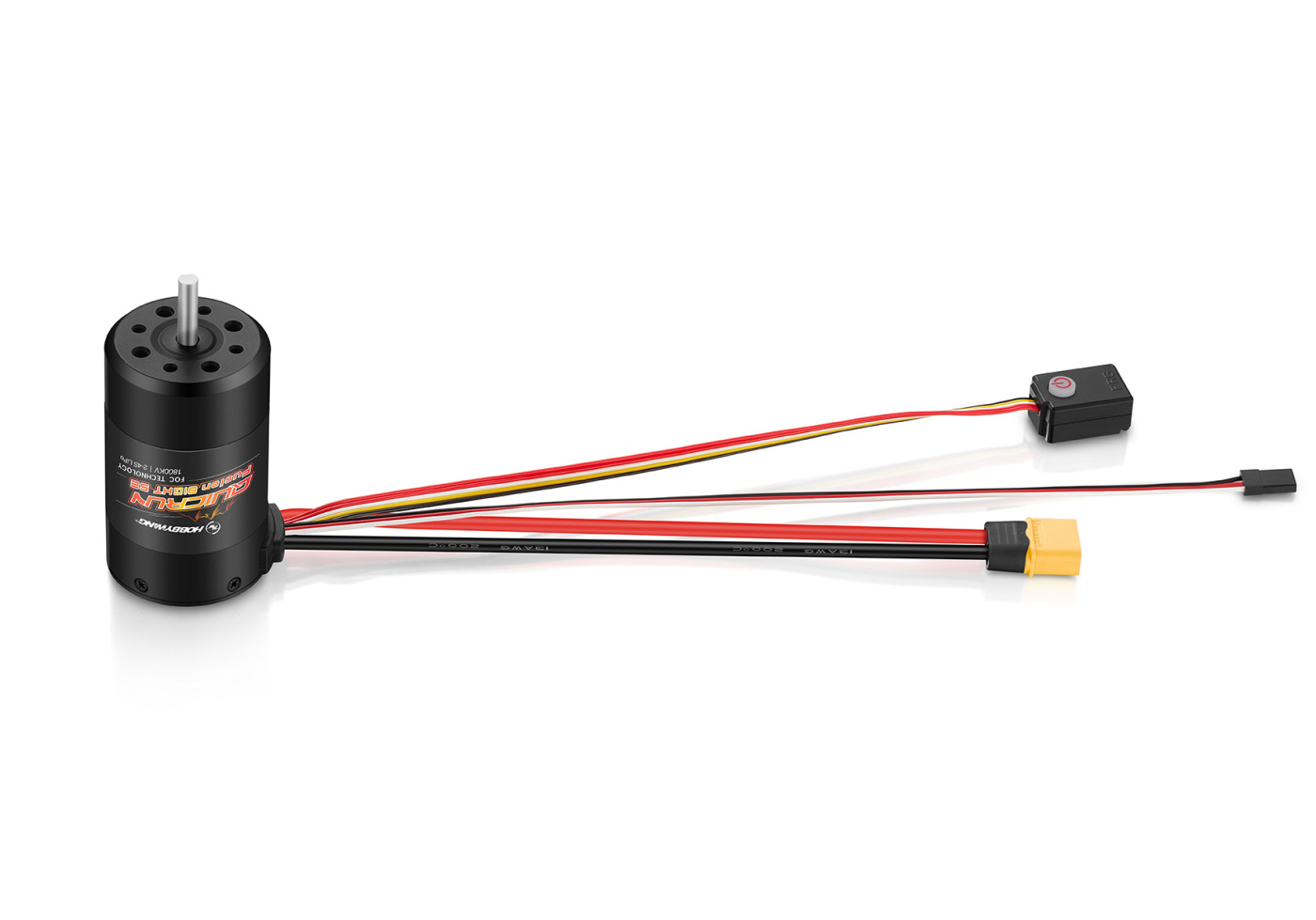

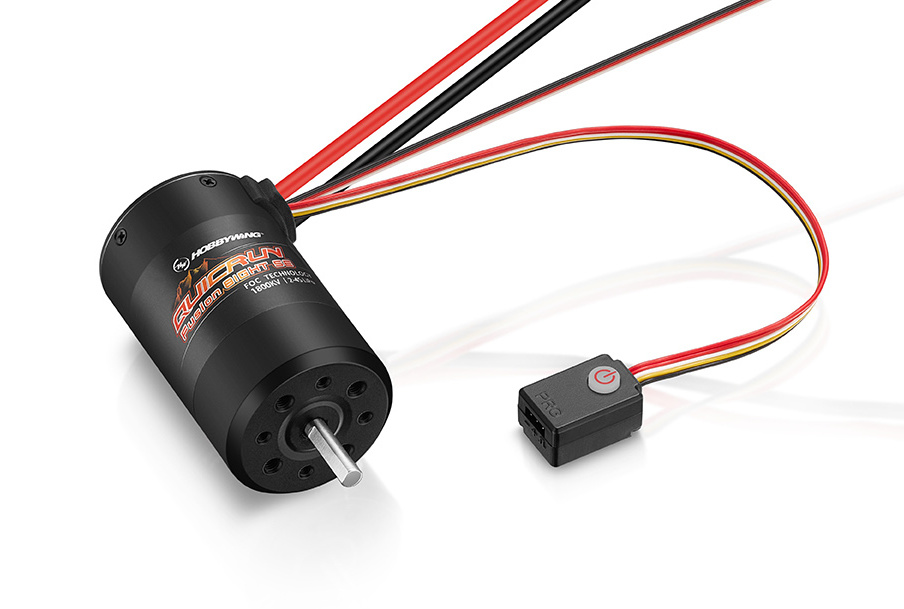

The QuicRun Fusion 8IGHT SE is an integrated brushless power system that combines ESC and motor into one compact unit. Designed specifically for 1/8 scale crawlers, it features advanced FOC (Field Oriented Control) technology for ultra-smooth throttle response, high torque at low speed, and extremely quiet operation. Its integrated design simplifies wiring and installation while improving reliability and space efficiency.
Key Features
Integrated ESC + motor design for easy installation and compact layout.
FOC technology delivers precise control, powerful low-speed torque, and smooth operation.
IP67 waterproof and dustproof rating ensures reliability in all weather and terrain conditions.
Supports 2–4 S LiPo or 6–12 cell NiMH batteries.
Built-in BEC with selectable output voltage (6 V / 7.4 V) and continuous 4 A current.
Three running modes available: Forward / Brake / Reverse, Forward / Reverse, and Forward / Brake.
Programmable via SET button, LED Program Box or LCD Program Box.
Eleven adjustable parameters, including running mode, cutoff voltage, thermal protection, BEC voltage, motor rotation, drag brake force, drag brake rate, max reverse force, and RPM reduction rate.
Technical Specifications
- Continuous current: 60 A
- Peak current: 200 A
- Input voltage: 2–4 S LiPo / 6–12 cells NiMH
- Motor type: Sensored brushless
- Motor KV: 1800 KV
- Motor poles: 4
- Built-in BEC output: 6 V / 7.4 V adjustable, 4 A continuous
- Waterproof rating: IP67
- Size (motor diameter × length): 41 × 69 mm
- Shaft diameter / length: 5 mm / 18.5 mm
- Weight: 326.5 g (including wires and connectors)
- Application: 1/8 scale crawler vehicles
