Produkt Info:

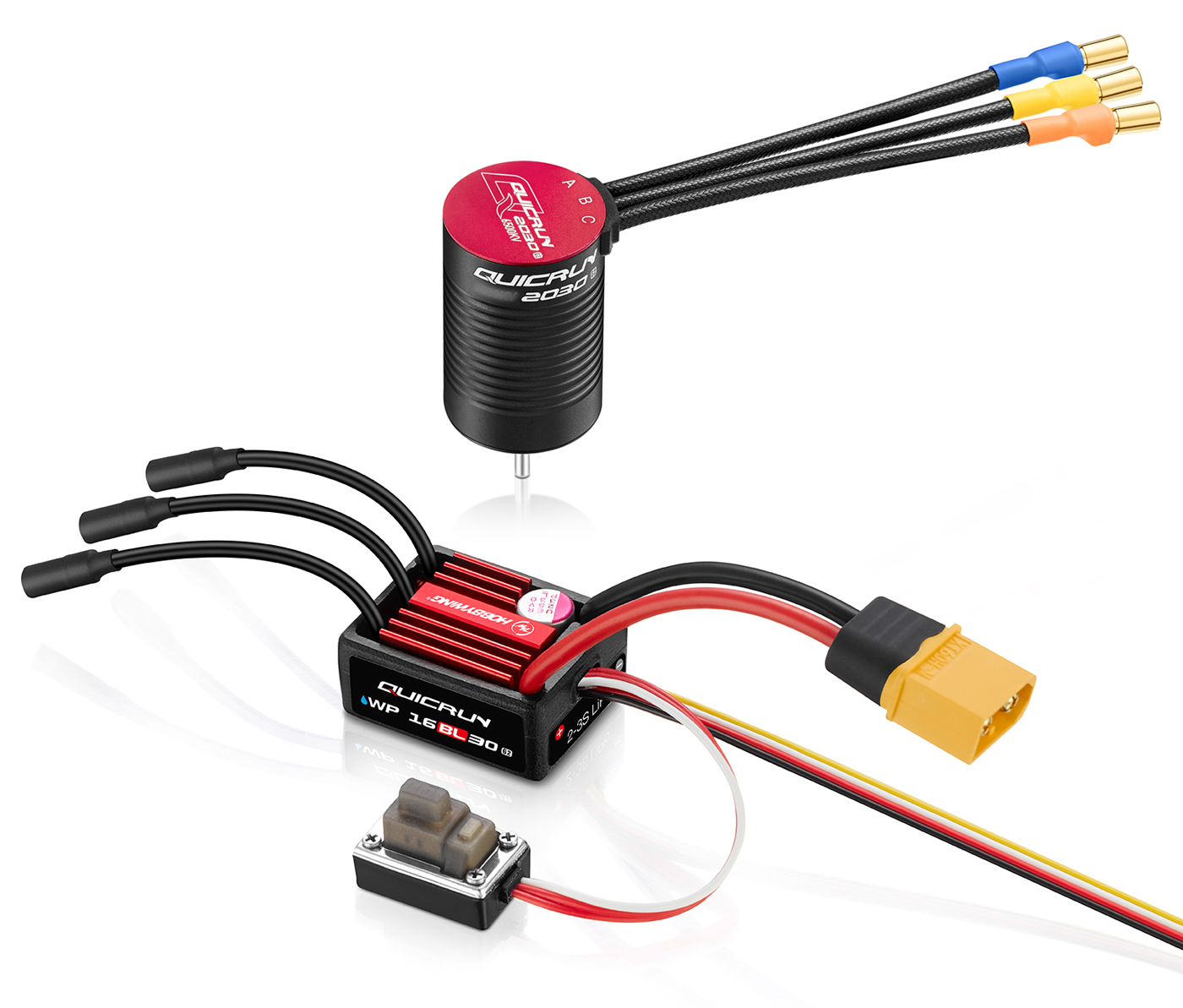

Hobbywing HW38030006 - QuicRun Combo WP 16BL30 G2 - 2030SL 7800kV G2 1/16
Intelligent Freewheeling for Lower Heat and Enhanced PerformanceThe ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.
Compact Size for Easier Installation and Flexible Layout
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.
Upgraded BEC
Compared to the G1 ESC, The BEC’s continuous current has been upgraded from 1A to 2A & a peak current of up to 4A. The output voltage can be switched between 6V and 7.4V.
High Protection Rating
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.
Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.
ESC Specs:
- Name: QuicRun WP 16BL30 G2
- Type: 1/16-1/18, Brushless, Sensorless, Waterproof
- Cont./Peak Current: 30A/100A
- Input Voltage: 2-3S LiPo (2S in this motor combo)
- BEC Output: 6V/7.4V, 2A
- Input Wires: 16AWG-75mm
- Output Wires: 16AWG-60mm
- Input Connectors: XT60
- Output Connectors: 3.5MM Gold (female)
- Size: 33.4x26.8x15.1mm
- Weight: 38.5g (Included wires & connectors)
- Motors: Sensorless Brushless Motor
- Vehicles: 1/16、1/18 On-Road & Off-Road & Short Course Truck & Monster Trucks
- Applicable Motors: QUICRUN 2030 G2 & 2435 G3
- Firmware Upgrade: Not Supported
ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Not Supported
- Program Port: Throttle Wire + yellow signal wire
Motor Specs:
- Name: QuicRun 2030SL G2 7800KV
- Type: Brushless, Sensorless
- Application: 1/18 On-Road & Off-Road & Short Course Truck & Monster Trucks
- KV Rating: 6500KV
- LiPo Cells: 2S
- No-load Current: 1.3A
- O.D.: 20mm
- Length: 31mm
- Shaft Diameter: 2mm
- Connectors: 3.5mm (male)
- Wire: 75mm
- Weight: 43g
- Front Bearing: D8xD3xT4mm
- Rear Bearing: D8xD3xT4mm
- ESC: QUICRUN WP 16BL30
