Produkt Info:

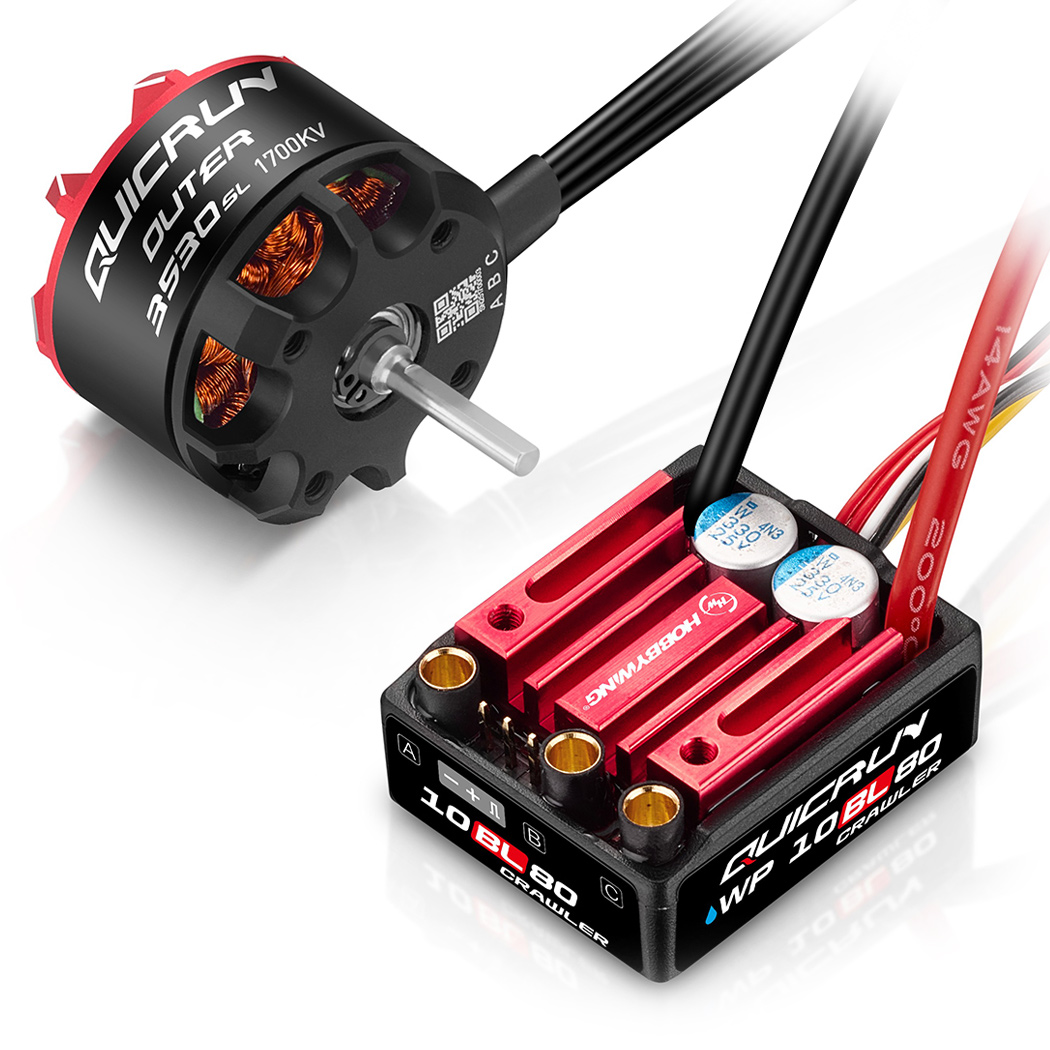

The QuicRun 10BL80 G2 + 3530SL 1700KV Combo is a complete brushless power system engineered for 1/10 scale RC crawlers and trail trucks. It delivers exceptional low-speed control, stable torque output and reliable waterproof performance — ideal for rock crawling, technical obstacles and scale off-road driving.
Egenskaper:
Complete crawler power system: ESC + brushless motor
Waterproof and dust-proof design (IP67)
Ultra-smooth throttle response for precision crawling
Strong low-RPM torque for rock crawling and steep climbs
1700KV outrunner motor optimized for 1/10 crawler setups
Real-time adjustable drag brake (via AUX channel)
Efficient, cool-running electronics for long runtimes
Suitable for trail trucks, scale builds and competition crawlers
ESC Specifications – QuicRun WP 10BL80 G2
Continuous Current: 80A
Peak Current: approx. 240A
Input Voltage: 2–4S LiPo
Switch-mode BEC: 6.0V / 7.4V / 8.4V (up to 11A)
Programmable drag brake and throttle profiles
Waterproof rating: IP67
Dimensions: 36 × 30 × 15.5 mm
Weight: approx. 48 g (with wires)
Motor Specifications – QuicRun 3530SL 1700KV
KV Rating: 1700KV
Input: 2–4S LiPo
Max Output Power: approx. 430W
No-Load Current: approx. 4A
Max Current: approx. 34A
Smooth and efficient outrunner design for high torque
Dimensions: 35 × 30 mm
Shaft Diameter: 3.175 mm
Weight: approx. 102 g
Performance in Crawler Applications
The QuicRun 10BL80 G2 ESC provides powerful drag brake performance, stable torque delivery and consistent control over challenging terrain. Paired with the 3530SL 1700KV motor, the combo offers exceptional low-speed resolution, making it perfect for navigating rocks, tight gates and precision driving.
Whether you're building a scale trail truck or a dedicated rock crawler, this combo offers dependable performance, durability and smooth throttle control in all weather conditions.
Summary
The QuicRun Combo 10BL80 G2 + 3530SL 1700KV is a high-performance brushless system designed to improve torque, control and reliability in 1/10 scale crawlers. Waterproof electronics, smooth low-speed characteristics and strong climbing ability make it an ideal upgrade for any serious crawler build
