Produkt Info:

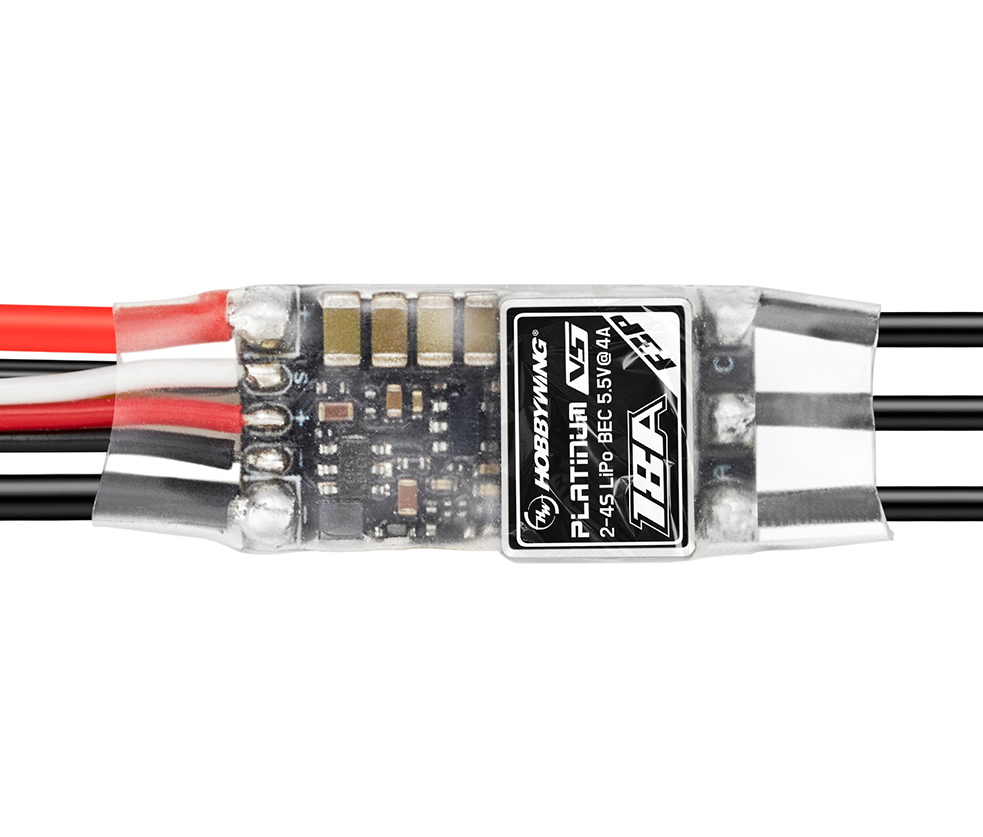

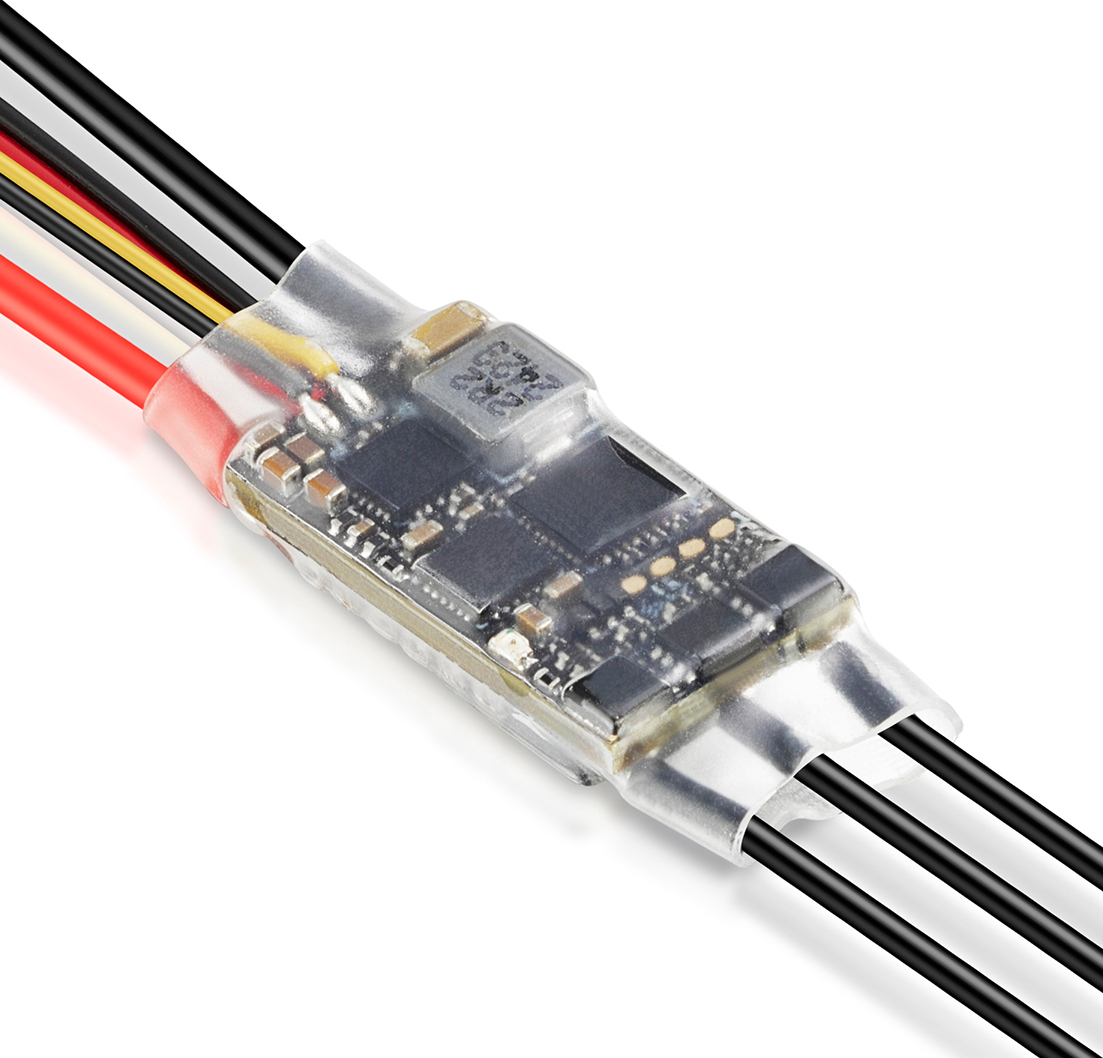

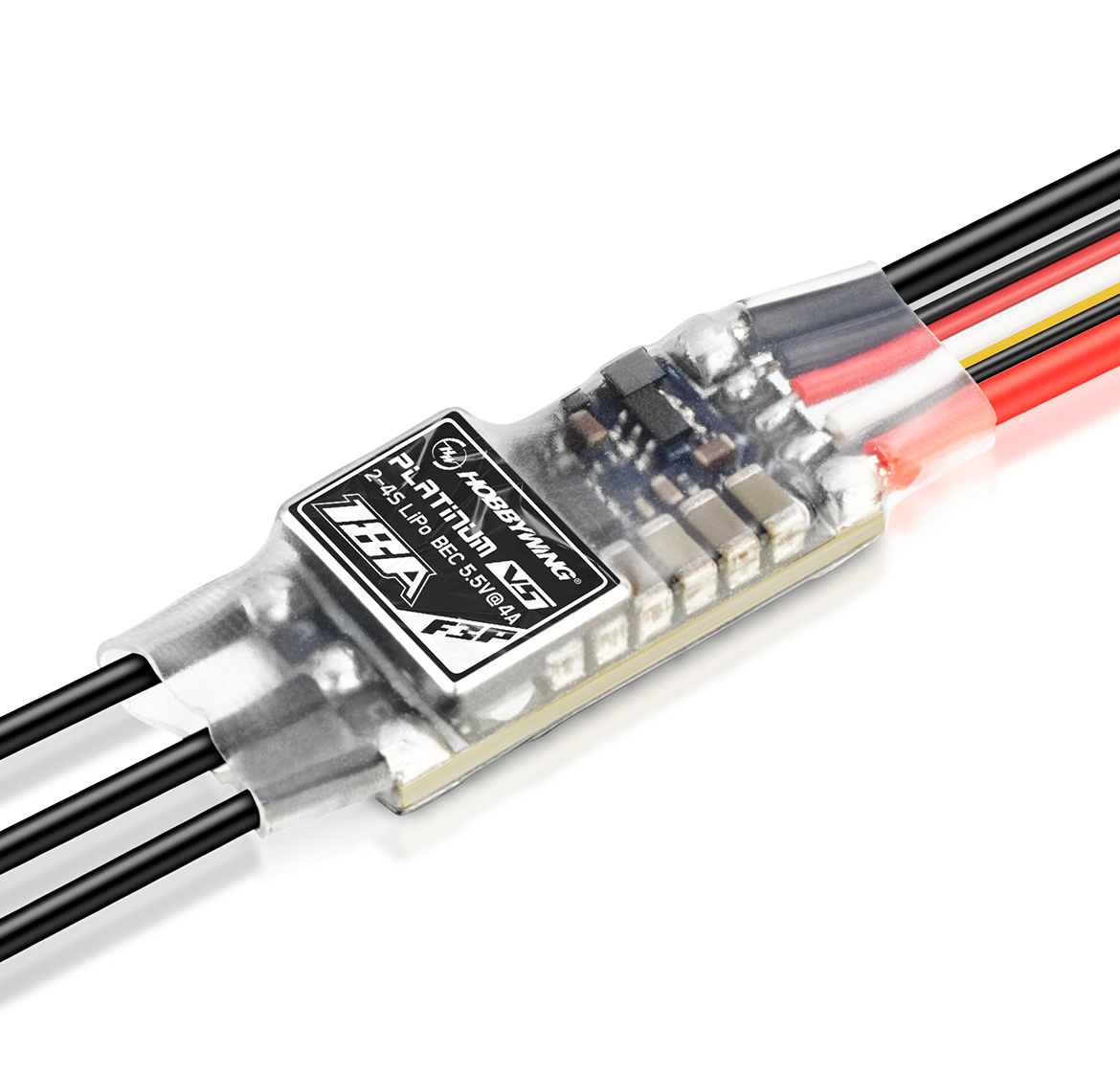

Hobbywing HW30202100 - Platinum 18A Fartreglage 2-4S V5 F3PSpecialized in F3P Indoor Aerobatic
With superior design, the ESC is more compact and lightweight, weighing less than 4g per unit.
Featuring a high-performance 32-bit MCU processor and robust self-developed algorithm, the ESC delivers instantaneous peak current up to 30A.
Ensuring rapid and smooth power output. This enables F3P aircraft to effortlessly achieve high performance with unparalleled agility, flexibility, and responsiveness.
Perfect Match with HOBBYWING Motors Ultimate Solution for F3P Competition - Paired with HOBBYWING Platinum 2603/2604 motor
- Optimized for exceptional power, precise control, and outstanding performance.
- Its mounting position is compatible with the majority of F3P airframes.
- Enabling easy installation, making it the preferred choice for F3P contest.
High-Power BEC Enhanced Output Capacity
- High-power switch-mode BEC
- Peak current 6A
- Guarantee stable and reliable output for high-performance servos
Rapid Throttle Response for 3D/4D Flight
Seamless transition between 3D and 4D modes via transmitter stick programming. Achieving instantaneous responsiveness in either 3D or 4D mode, bringing exceptional control over aerobatics, experiencing enjoyable flight.
Note: During the transition between 3D and 4D modes, the motor will emit beep sound, providing more intuitive feedback.
Multiple Protections for Worry-Free Flight
Incorporating multiple protection functions including abnormal input voltage protection, startup protection, temperature protection, throttle signal loss protection, and low-voltage protection. This effectively extends service life of the ESC and guarantees comprehensive flight safety.
Specs:
- Cont./Peak Current: 18A/30A
- Input Voltage: 2-4S LiPo
- BEC Output: Switch Mode：5.5V & Cont. 4A，Peak 6A
- Input Wires: 18AWG-100mm
- Output Wires: 20AWG-100mm
- Input Connectors: No
- Output Connectors: 2.0mm Gold Connectors (Female)
- Firmware Upgrade: Supported
- Telemetry Functions: Futaba S.Bus2；etc.
- Size: 24.6*12.8*7.5mm
- Weight: 11.9g (including wires)
- Application: 120-320g F3P electric fixed-wing
ESC Programing via:
- Transmitter: Not Supported
- LED Program Card: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Supported
- OTA Programmer: Supported
- Program Port: Separate Program Cable
