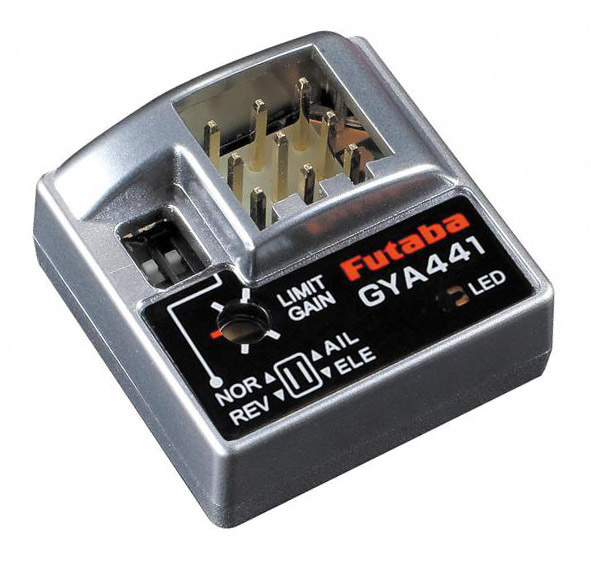

Compact and lightweight, the GYA441 is designed to control the ailerons (roll axis) or elevators (pitch axis). Features include simple set-up and S.BUS/S.BUS2 connectivity.

Dedicated airplane setting

• Stabilizes flight, even with hard-to-control scale models.

Compatible with aileron or elevator control

• The GYA441 can be used even with airplanes with one servo each at the left and right wings. (S.BUS only)

Remote gain function

• The remote gain function allows the sensitivity of the gyro to be adjusted from the transmitter and the mode switching function allows AVCS/NORMAL gyro mode switching. Also the gain can be adjusted by the trimmer on the GYA441.

Integrated type, compact size and light weight

• High-density mounting technology makes the GYA441 compact (20.5 x 20.5 x 11 mm) and light weight (3.7 g).

Easy setup

• Basic settings let you be flight-ready in an instant.

Supporting the S.BUS/S.BUS2 connection

• Only one wire connection to the receiver can operate the GYA441.

GYA441 Ratings:
(Integrated sensor type rate gyro)

• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC4.0V to 8.4V
• Current drain: 30 mA (excluding a servo)
• Operating temperature range: -10ºC to +45ºC
• Dimensions: 20.5 x 20.5 x 11.0 mm (except protrusion)
• Weight: 3.7 g
• Functions: (1) Gyro sensitivity trimmer, (2) Monitor LED, (3) Two servos compatibility, (4) S. BUS/S.BUS2 compatibility, (5) Digital / analog servo function
