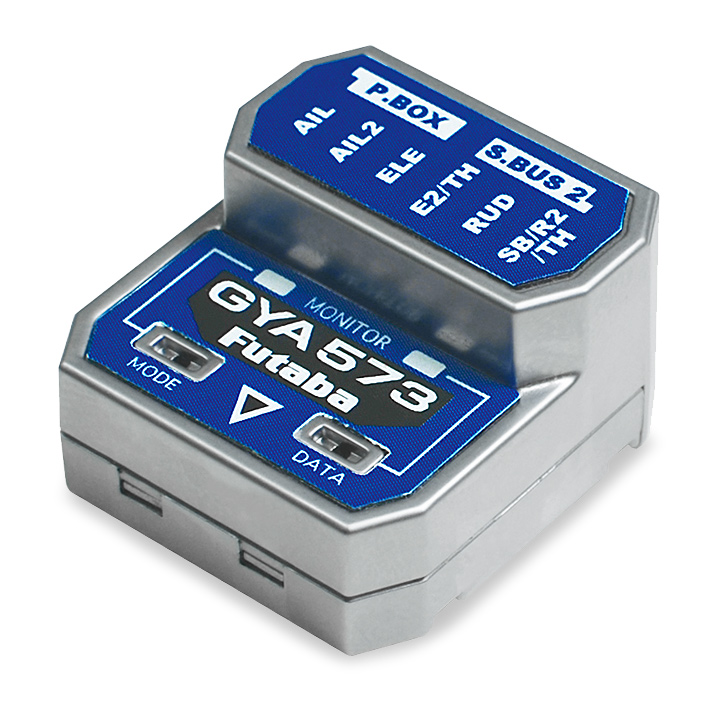

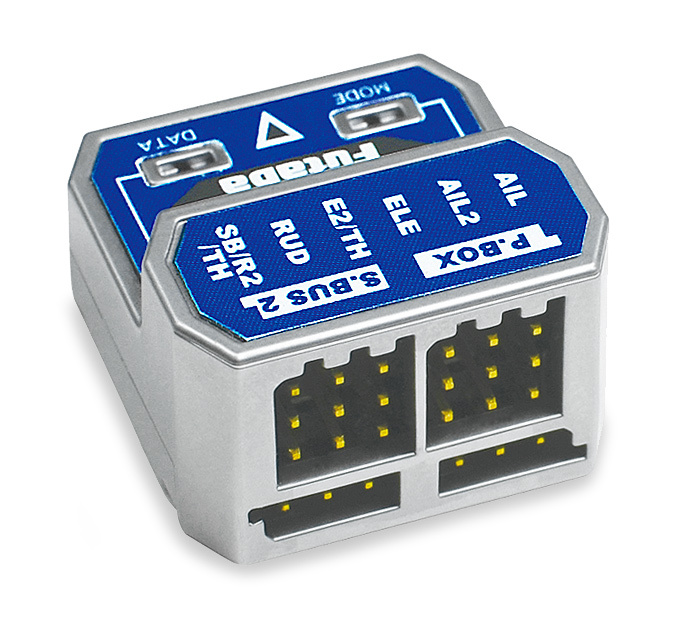

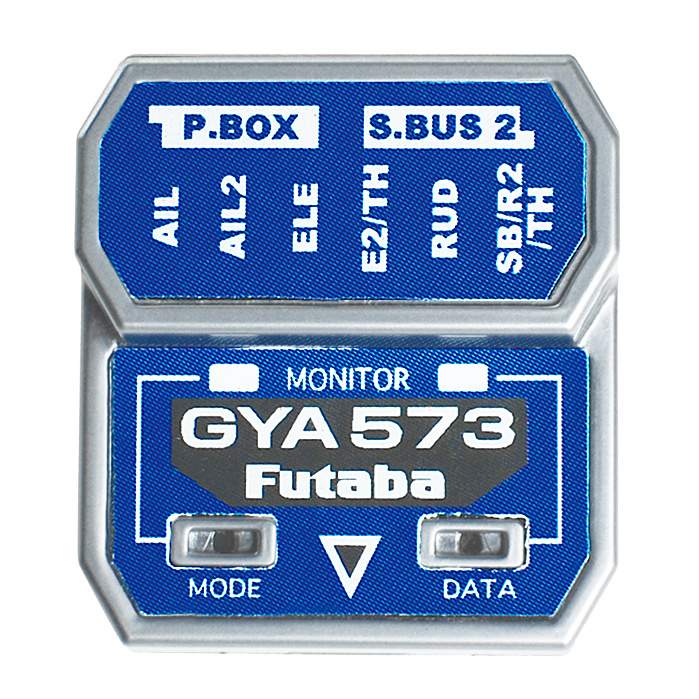

Futaba FP05102757-3 - GYA573 3-axis gyro for EP/GP airplanes
This is the new GYA573 airplane gyro. Compact and lightweight, the GYA573 is a 3-axis controlled gyro device equipped with a 6-axis sensor designed to control the ailerons (roll axis), elevators (pitch axis) and rudders (yaw axis). In addition, the GYA573 is equipped with a recovery mode to avoid danger. Features include simple set-up and S.BUS2 connectivity.GYA573 is a replacement for GYA553.
Features:
- Remote gain function
- 4 flight modes (Auto recovery/Normal/AVCS/Gyro OFF)
- Supports 4 ailerons, 2 eleveters
- Supports FASSTest26CH
- Supports 4D flight
- Supports roll flat
- Air brake mixing
- Camber mixing and 2 rudders types
- Supports a various wing types, including Flying Wing
- Supports Gasoline and EP planes
These functions must be set from a transmitter that supports the GYA573 settings or from the GPB-1:
- Supports FASSTest26CH
- Supports 4D flight
- Supports roll flat
- Air brake mixing
- Camber mixing
*Do not set the fail-safe function of the transmitter to the channel used by the gyro
*GYA573 can only be used in combination with Futaba products
*GYA573 requires a transmitter system of 10 CH or more
*GYA573 requires an S.BUS2 receiver
GYA573 Updates
The GYA573 can be updated from a PC by connecting the separately sold CIU-3/2. Please check the our tab for downloads on the specific minicars.se product page for the latest firmware and update method.
Specs:
(Integrated sensor type rate gyro)
- Gyro sensor: MEMS vibrating structure gyro
- Operating voltage: DC 3.8 V to 8.4 V
- Current drain: 27 mA (excluding a servo)
- Operating temperature range: -10ºC to +45ºC
- Dimensions: 28 x 26 x 16 mm
- Weight: 8.5 g
Set contents:
- GYA573
- 2x Double-sided tape
- Receiver connection cable
