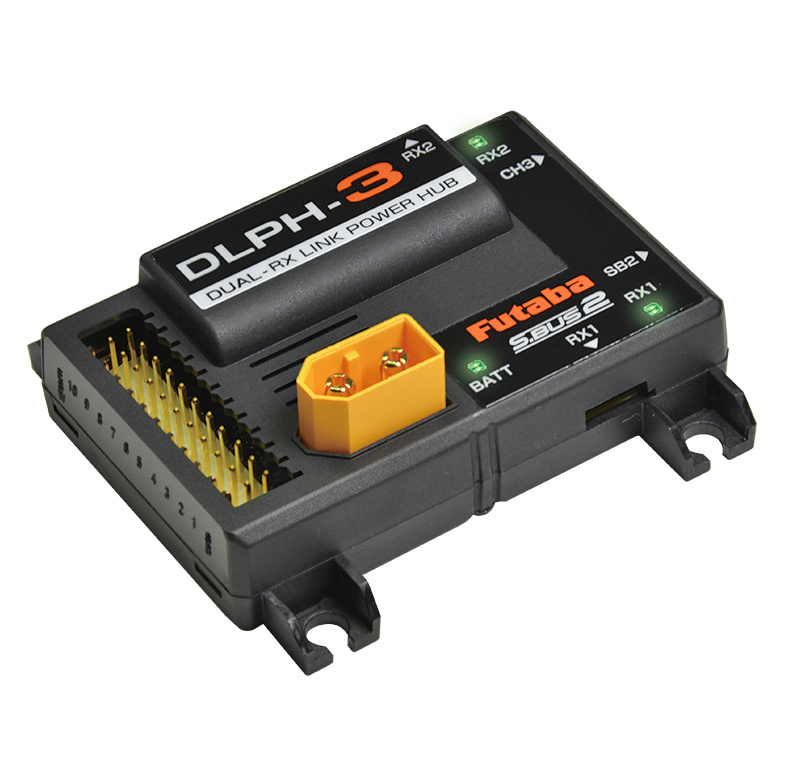

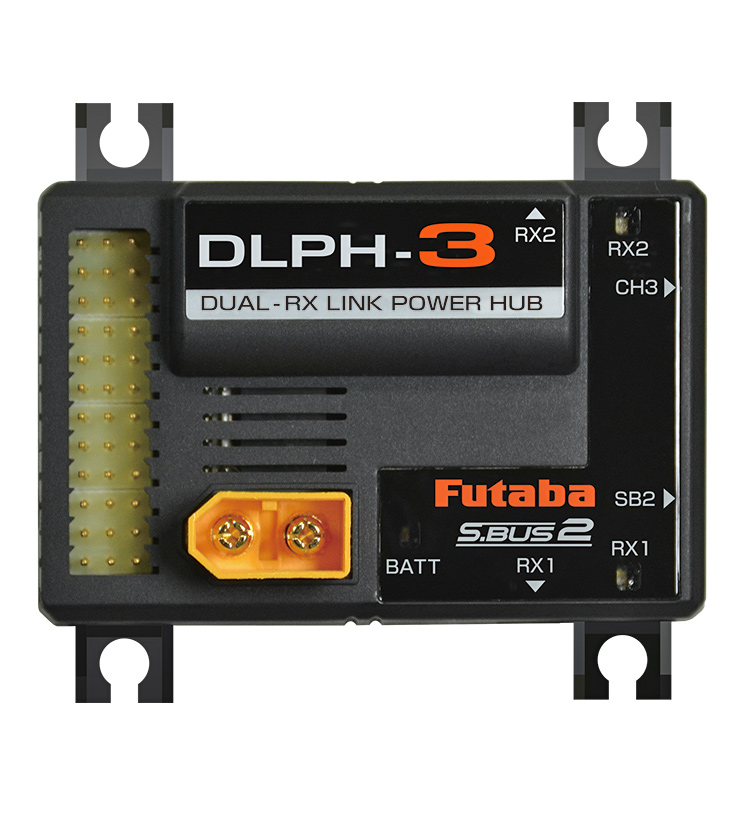

Futaba 05102759-3 - DLPH-3 Dual RX Link Power Hub
MAX60A! 10-Channel Dual RX Link Power HubPerfect for large aircraft with multiple servos! Supports single receiver mode, gyro mode, and FASSTest 26-channel support! The DLPH-3's compact design makes it easy to install in 50-70cc aircraft. Even in larger aircraft, using two units allows for split power supply, providing additional safety redundancy.
Product Features:
- Connects to two receivers and batteries.
- Electronic switch (current controlled by FET circuit).
- Telemetry function displays power supply voltage.
- Compatible with three battery types and includes protection when connecting different types of batteries.
- Includes protection when the battery is low.
DLPH-3 Specifications:
- Application: Dual-Receiver Switching Device (Dual Rx Link System)
- FET (Rating): Continuous 60A
- Dimensions: 43.6 x 66.0 x 19.3 mm
- Weight: 34.6 g
- Operating Voltage: 6.4 to 13.0 V (XT60 Connector)
Included accessories:
- Switch, Receiver connection cables (3), Flange Damper, Eyelets & Wood Screws
