Produkt Information:

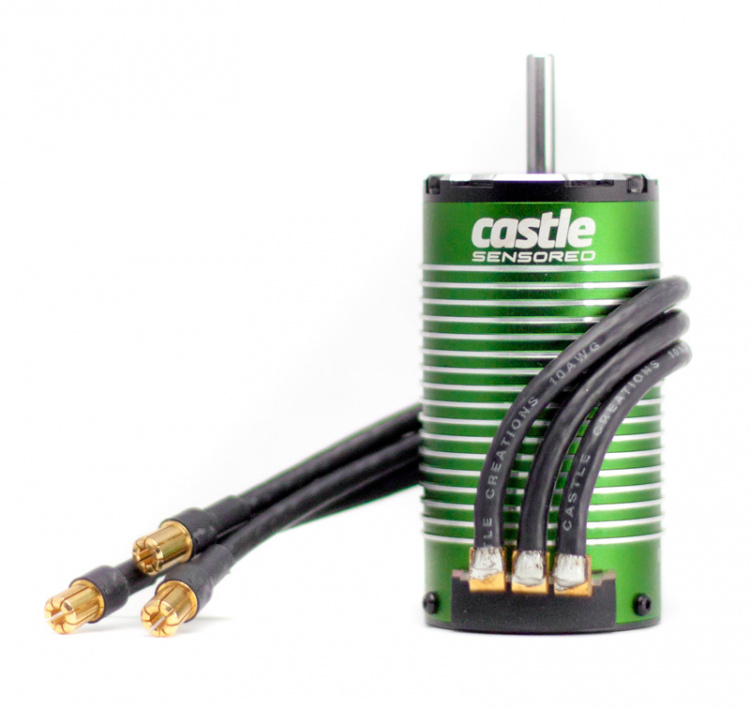

Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!Note: The 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.
Egenskaper:
- Input Voltage range: 2s-6s LiPo
- Redesigned rotor and stator assemblies.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
- Proudly Designed and Supported in Kansas, USA.
Specifikation:
- Input Voltage Range: 2S-6S LiPo
- Kv: 2200
- Max. RPM: 60,000
- Size: Length: 75.4mm
- Diameter: 40mm (41.4mm with fins)
- Weight (w/wires): 426g - 380g without wires
- Shaft Size: Length: 20mm
- Diameter: 5mm
- Mounting Hole Specifications: M3 and M4 @ 25mm
- Cooling Fan: 011-0139-00 (option)
- Connectors: 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.
- Items Needed for Operation: Compatible Electronic Speed Control (ESC)
- Application Guidelines: Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 6.8kg. Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1)
- Recommended ESC(s): Cobra 8, Monster X ESC, Sidewinder 8
Noteringar:
- Running modes: SMARTSENSE™, Sensored (with Sensored capable ESC), Sensorless
- Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
