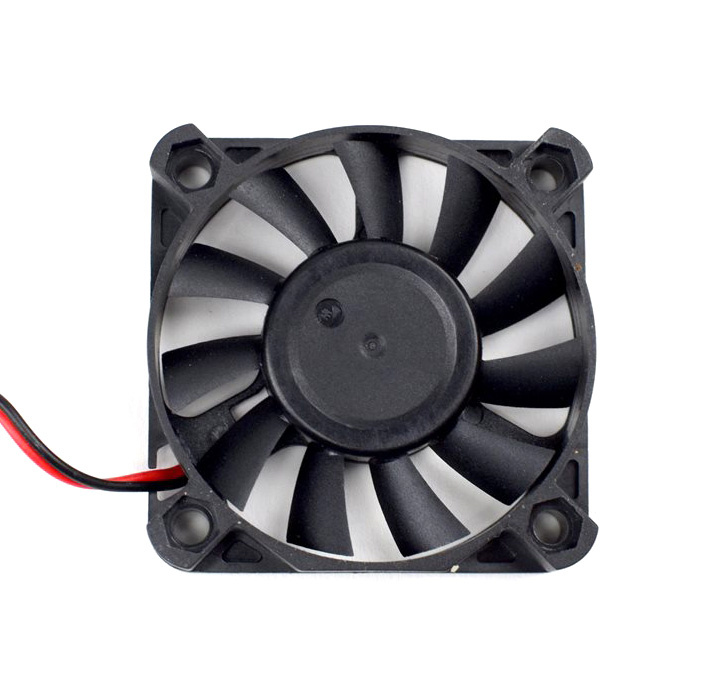

CASTLE ESC Kylfläkt - MAMBA XLX2
This 50mm ESC cooling fan is a direct replacement and fits the Mamba XLX2 ESC.Installation Instructions:
- Unplug the fan from the ESC's receiver harness
- Locate the four screws on top of the ESC
- Remove all four screws with the appropriate driver
- Remove the fan shroud and old fan, replace with the new fan by reversing steps 3 through 1
Specs:
- Input voltage: 7 - 13.8V
- Maximum RPM: 6000RPM
- Waterproof: No, remove before exposing ESC to moisture
