Castle Cobra 5 HV 12S ESC 20A Peak BEC 1/4-1/5

Artnr: CC010-0178-00
4795 kr

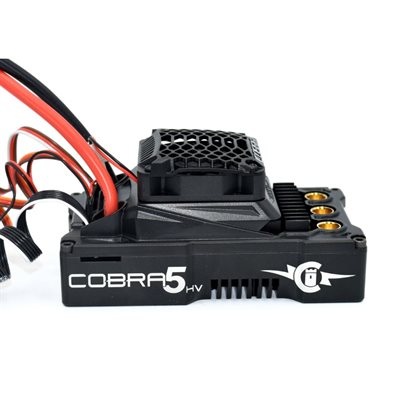

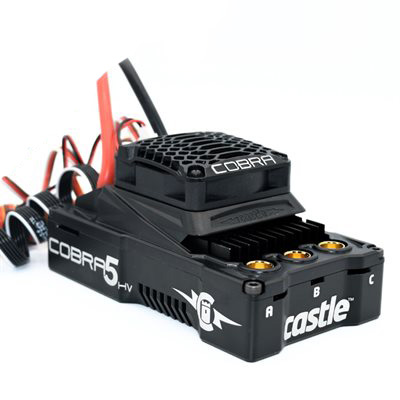

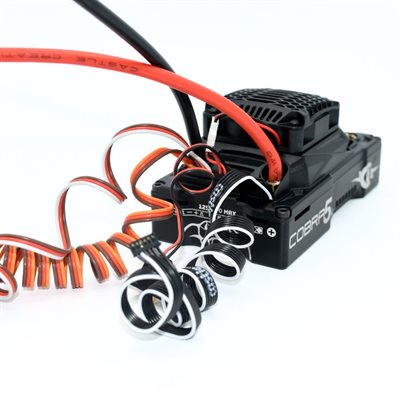

Castle Creations Cobra 5 HV 12S 50.4V ESC with 20A Peak BEC (010-0178-00)

The Castle Creations Cobra 5 HV is a high-voltage electronic speed controller (ESC) designed for large-scale RC vehicles. Supporting up to 12S LiPo (50.4 V), it is built for demanding 1/4 and 1/5 scale models weighing up to 50 lb. With advanced thermal management, powerful data logging, and configurable output, this ESC ensures reliable and efficient performance for professional RC applications.

Key Features

  • High Voltage Support – Operates from 6S to 12S LiPo (up to 50.4 V).

  • 20A Peak BEC – Adjustable from 5.0 V to 8.5 V in 0.1 V steps.

  • CRYO-DRIVE™ Technology – Optimized efficiency and reduced heat.

  • SmartSense™ Mode – Runs sensored brushless motors with seamless transition to sensorless operation.

  • Advanced Data Logging – Higher sampling rate, extended recording time, onboard accelerometer, and looping function.

  • Customizable Control – Adjustable brake and reverse curves, auxiliary wire for transmitter tuning.

  • Durable Construction – CNC aluminum case, waterproof epoxy potting, and a forged heatsink with elliptical fins.

  • Cooling System – Integrated 50 mm temperature-controlled cooling fan.

  • Water Resistant – Designed for harsh environments (not for full submersion).

  • Firmware Upgradable – Includes Castle Link V4 USB adapter for updates and tuning.


Technical Specifications

  • Input Voltage: 6S–12S LiPo (18 V–50.4 V)

  • Continuous Current: High-power design for large-scale vehicles

  • BEC Output: 5.0–8.5 V adjustable, 20 A peak

  • Vehicle Application: 1/4 and 1/5 scale models up to 22.7 kg (50 lb)

  • Reversibility: Yes (can be disabled for racing use)

  • Cooling Fan: 50 mm, temperature controlled

  • Dimensions: 120 × 67 × 58.6 mm

  • Weight: 479 g (with wiring)

  • Motor Connectors: 8.0 mm female bullets (requires matching male connectors)


What’s Included

  • Cobra 5 HV 12S ESC unit

  • 400 mm direct-connect sensor wire

  • Castle Link V4 USB programming adapter

  • Castle decals

  • Quick Start Guide


Important Notes

  • ESC is water resistant, but not submersible. Remove the fan before operation in wet conditions.

  • Use appropriate high-current battery connectors (capable of 150+ A).

  • Mounting template available for installation.

  • Covered by 1-year manufacturer warranty.
