Produkt Info:

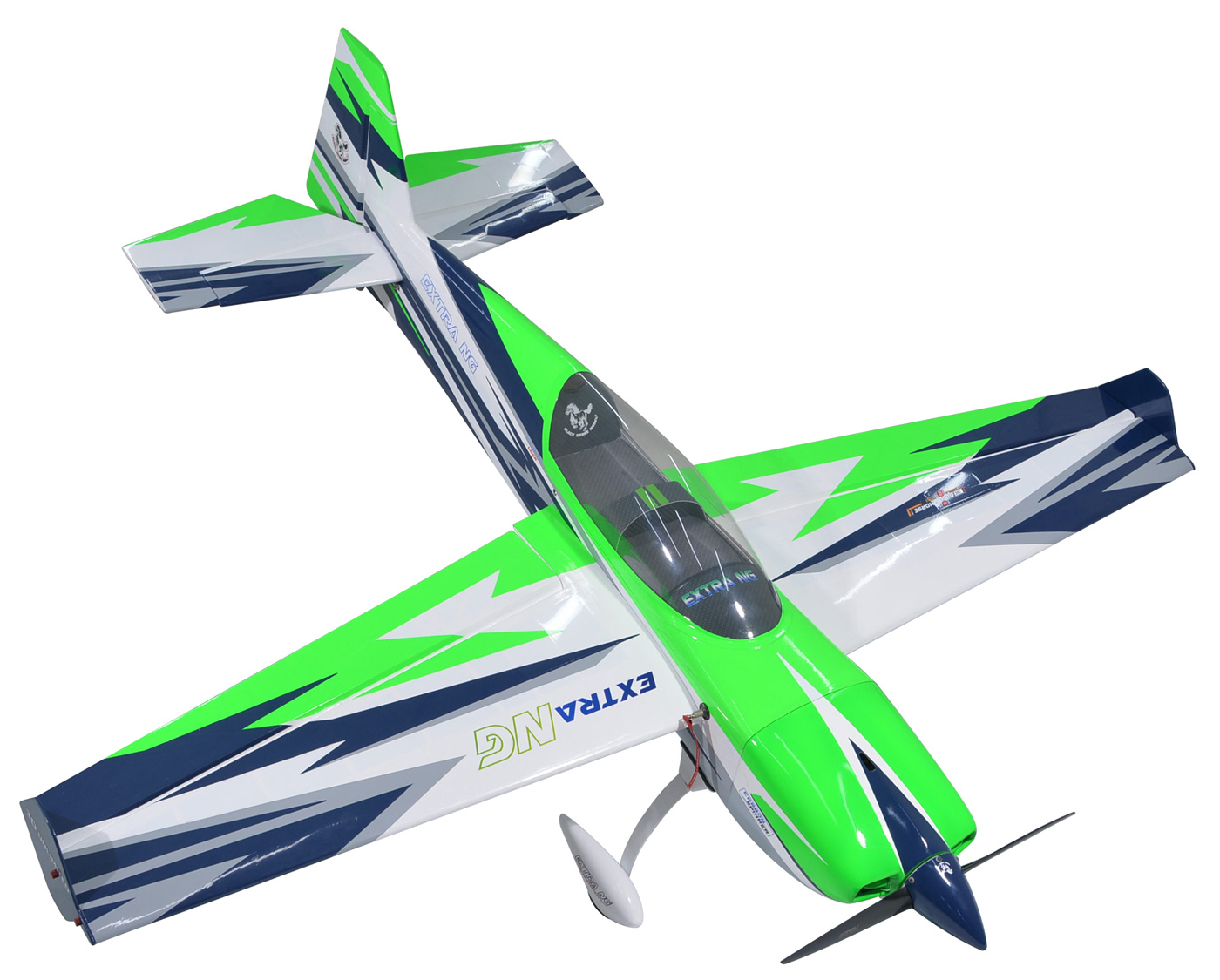

Black Horse BH204 - EXTRA NG 188cm 30-35cc Gas ARFFEATURES:
- Equipped with a patented Smart Lock system, allowing wings and stabilizers to be mounted with speed, accuracy, and reliability.
- Pre-installed Hinges, glued, and pinned for maximum strength and reliability.
- Magnetic Canopy Mount. Quick-release canopy system utilizing precision pin magnets, ensuring both security and ease of use.
- Modular Design. Wings and stabilizers are fully removable for transport and storage convenience.
- Cowling is internally mounted, leaving no visible screws on the exterior, with only two accessible screws underneath for convenient installation.
- Open fuselage design allows for simple and efficient canister installation.
- The fuselage and wings are crafted from high-quality wood combined with advanced composite materials, ensuring exceptional rigidity and strength.
- Durable carbon fiber main landing gear included in the kit.
- Lightweight and robust carbon tail gear included in the kit.
- High-performance carbon spinner with aluminum backplate designed for high-speed operation included in the kit.
- High-gloss fiberglass wheel pants included, combining aesthetics with functionality included in the kit.
- High quality accessories included with the kit.
Specs:
- Wingspan: 1880mm
- Length: 1832mm
- Flying weight: 5600-5800gr
- Wing area: 65.4dm2
- Wing loading: 84g/dm2
- Spinner : 86mm (included)
- Gear type: Carbonfiber main gear (included) and Carbonfiber tail gear (included)
- Covering type: Genuine Oracover
- Parts listing required (not included)
- Rec. Radio: 6 channels minimum
- Rec. Servos: 6 standard hi-torque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
- Servo mount: 21x42mm & 16x36mm
- Engine: 30-35cc Gas
- Experience level: Intermediate
- Plane type: Aerobatic 3D free style
ENGINE AND SERVO RECOMMENDED (NOT INCLUDED WITH THE KIT)
- 30-35cc Gas Engine (x1)
- Servo for Aileron 30-40kg/cm (x2) – Standard size 20x40mm
- Servo for Elevator 16-22kg/cm (x2) – Standard size 16x36mm
- Servo for Rudder 16-22kg/cm (x1) – Standard size 16x36mm
- Servo for Throttle 12kg/cm (x1) – Standard size 20x40mm
