PRODUKT Info:

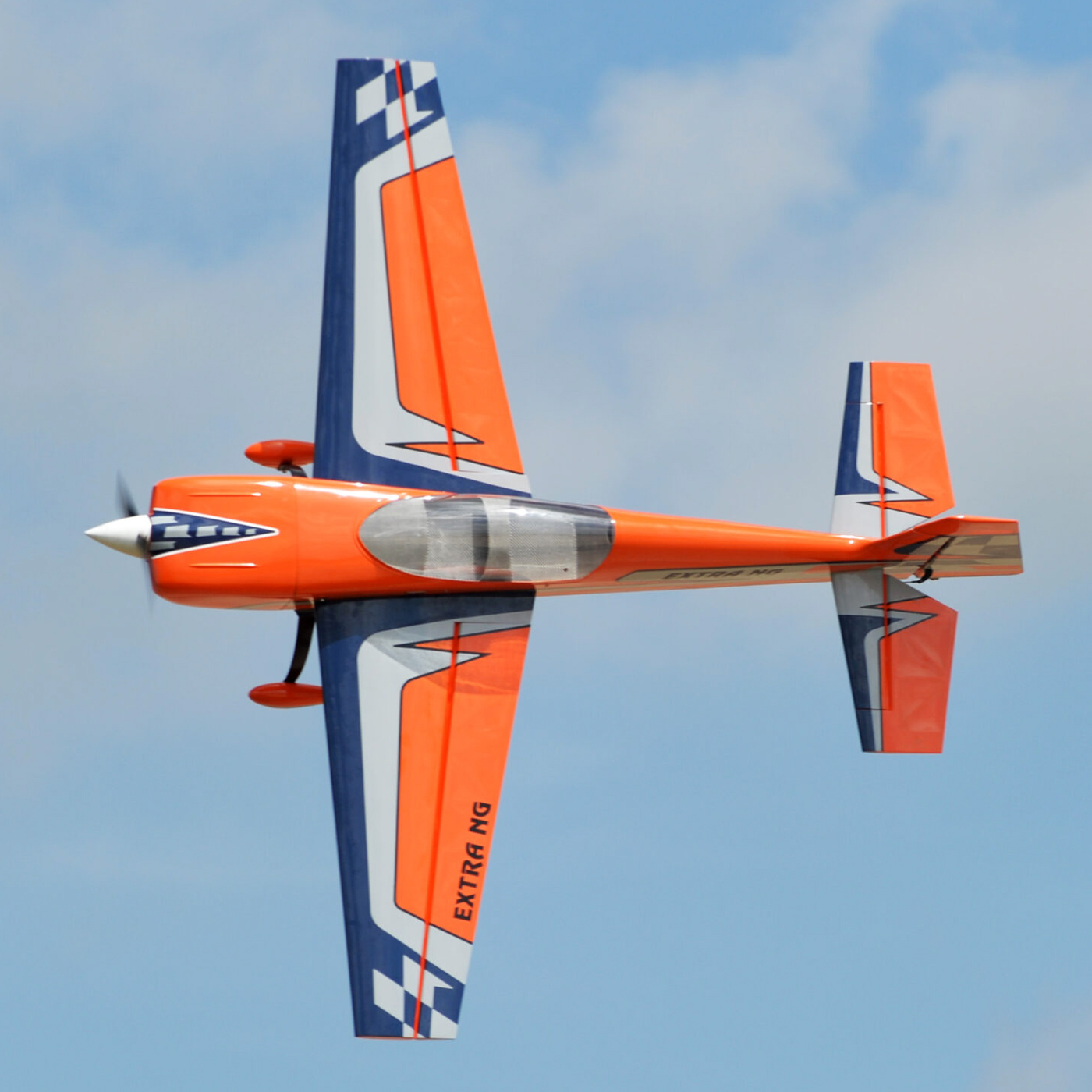

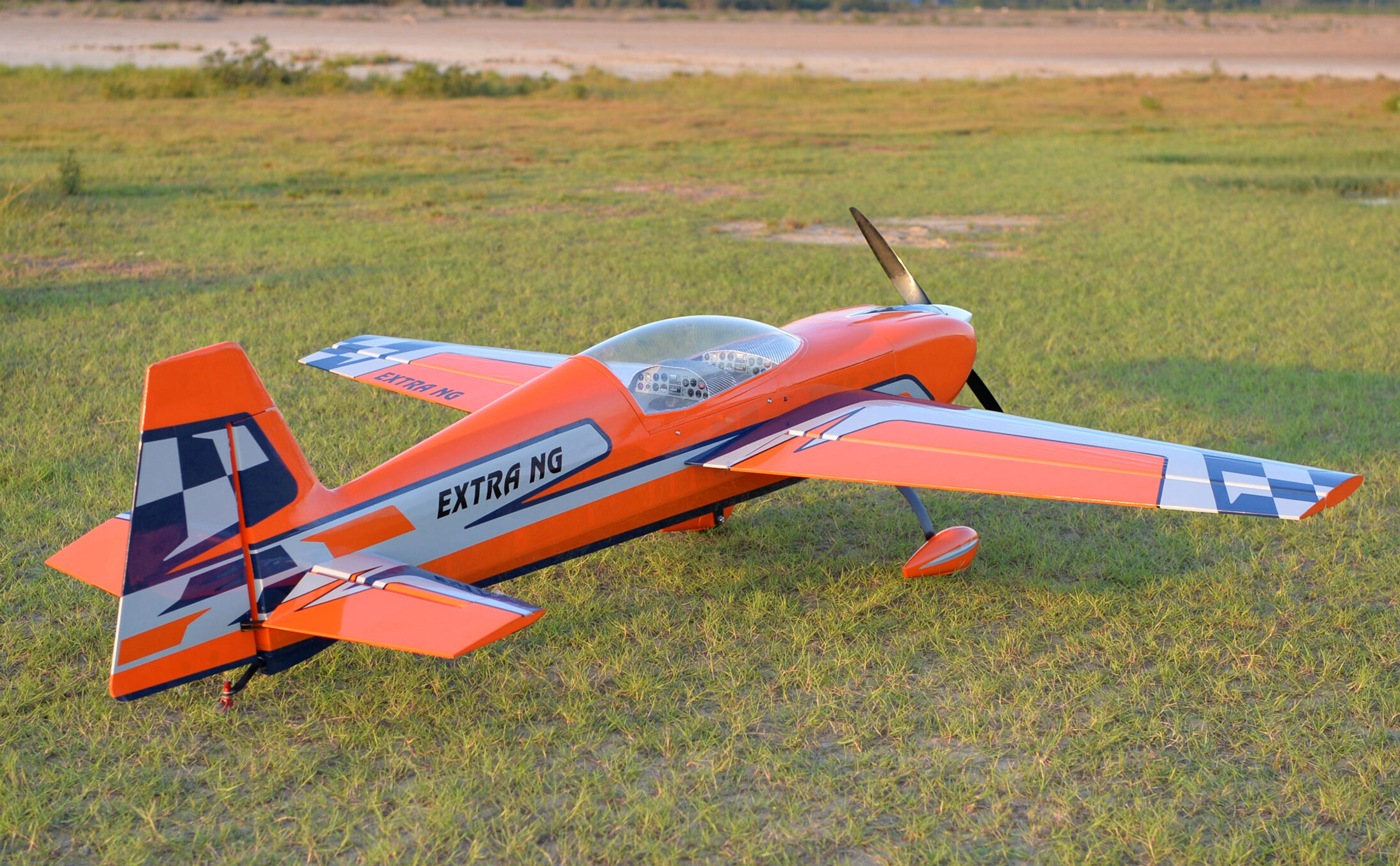

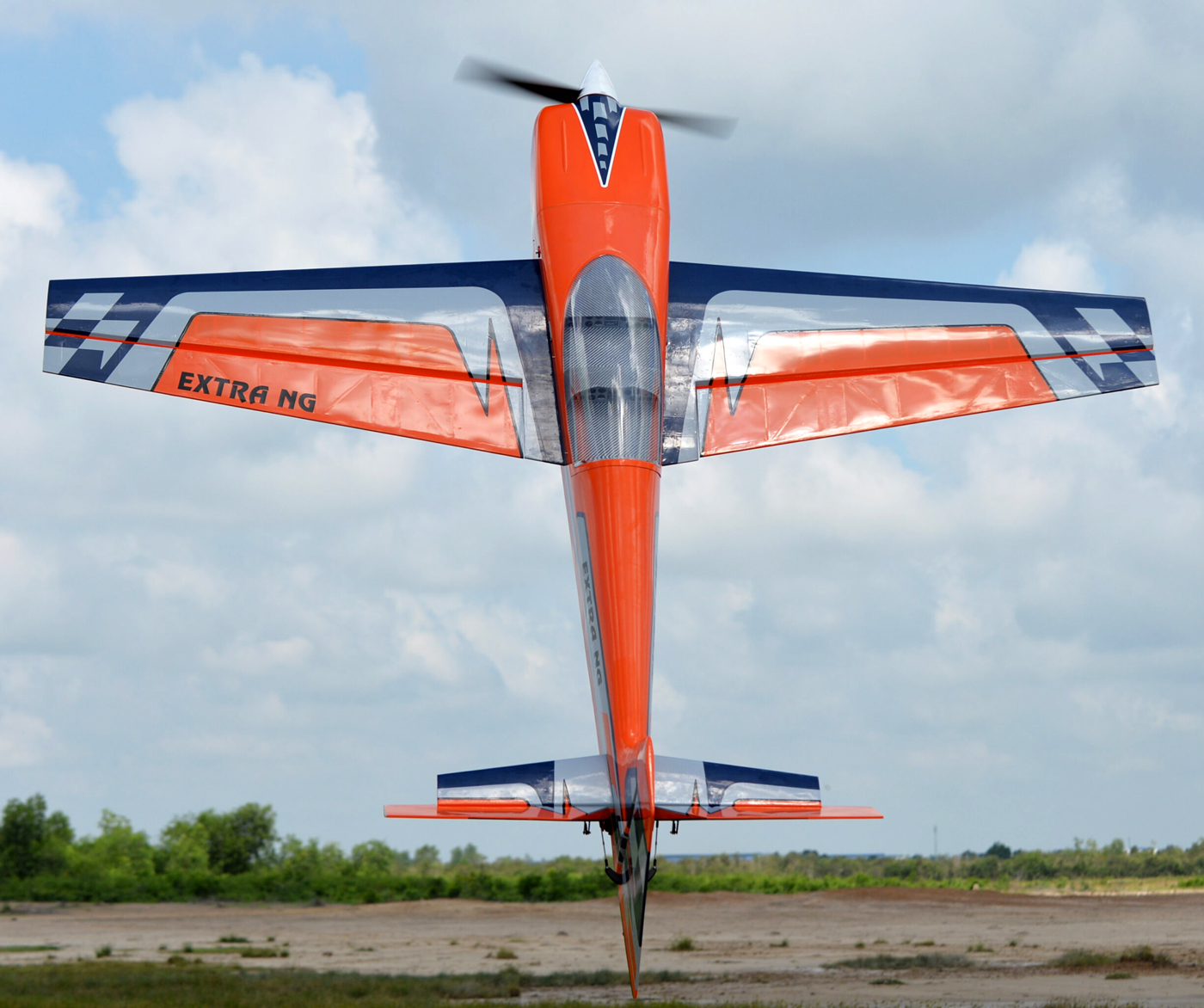

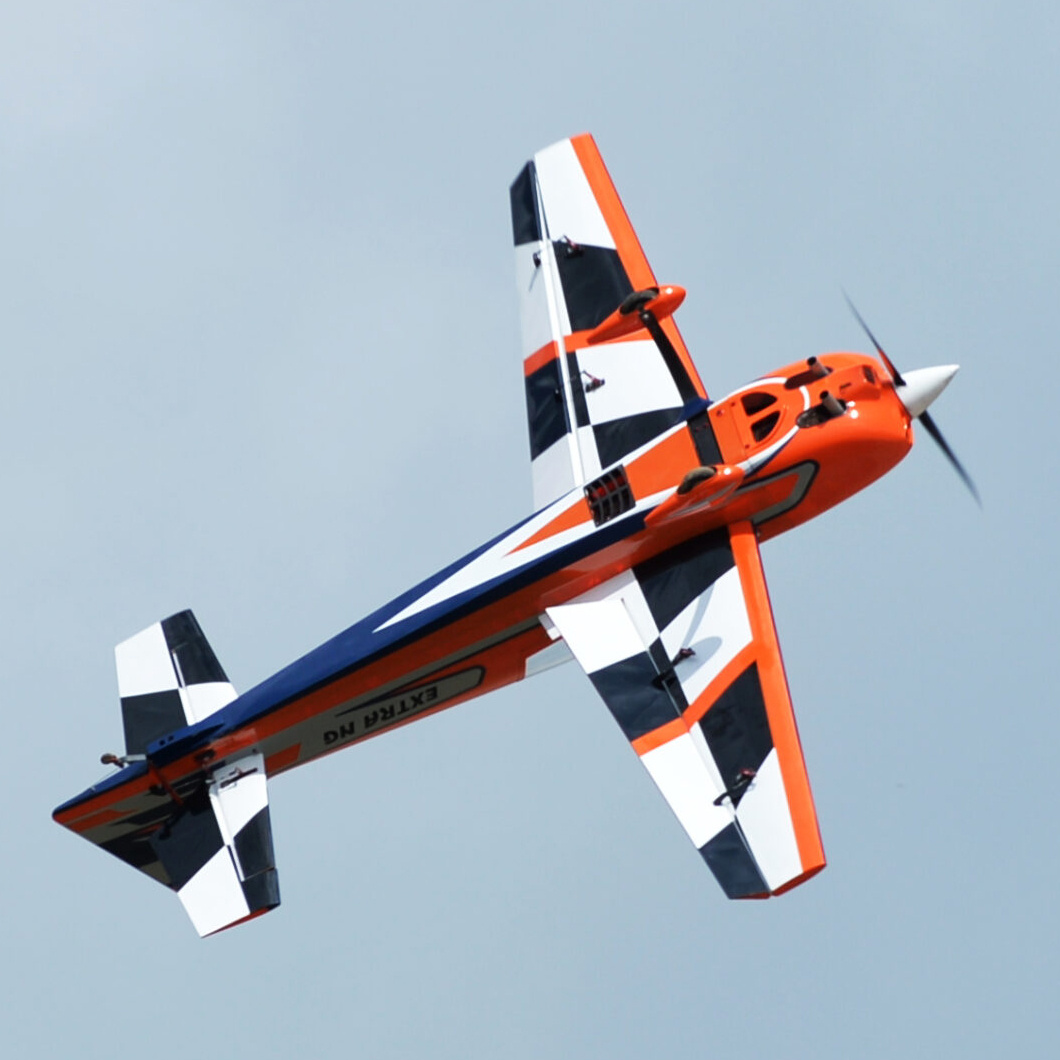

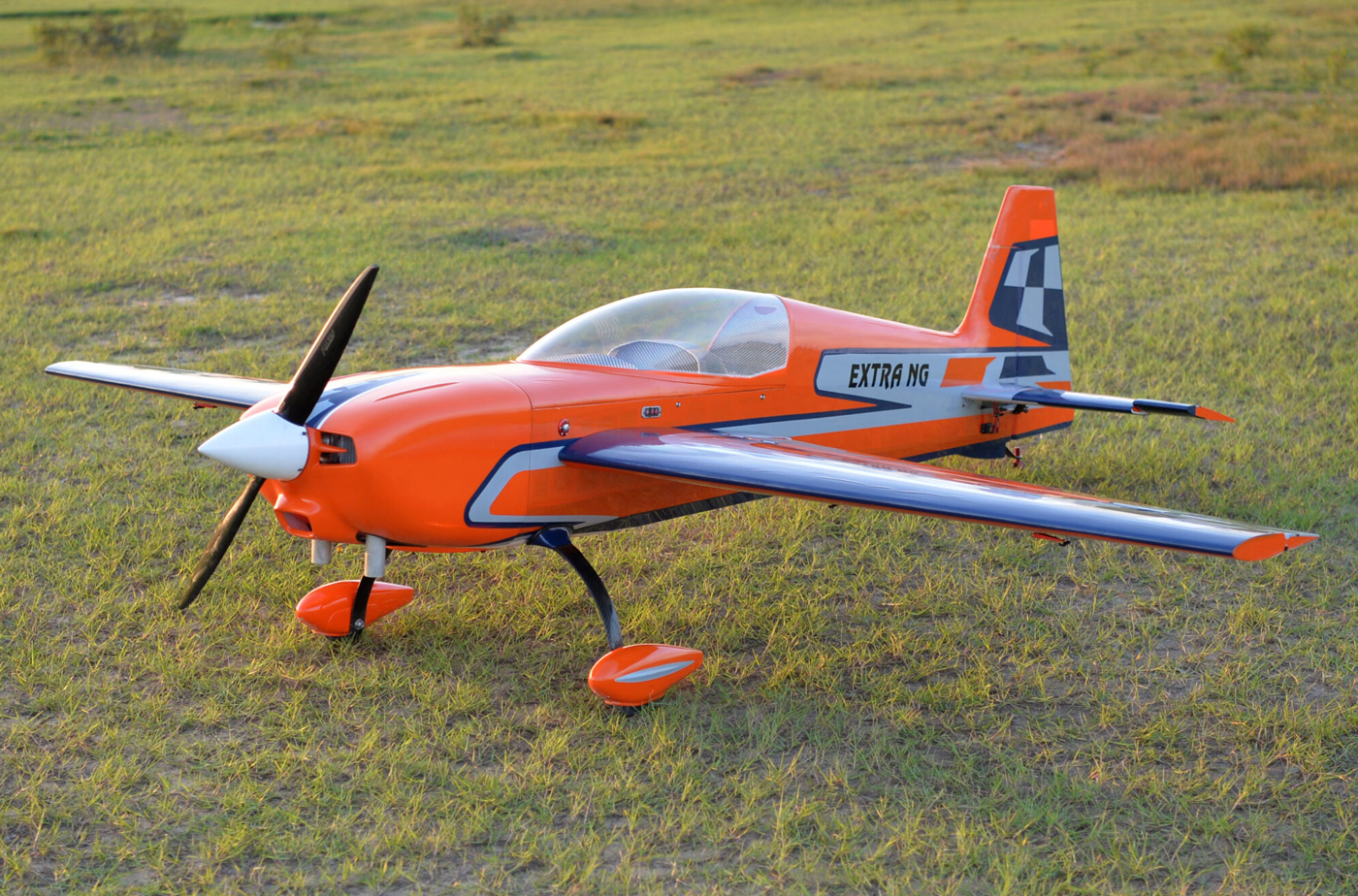

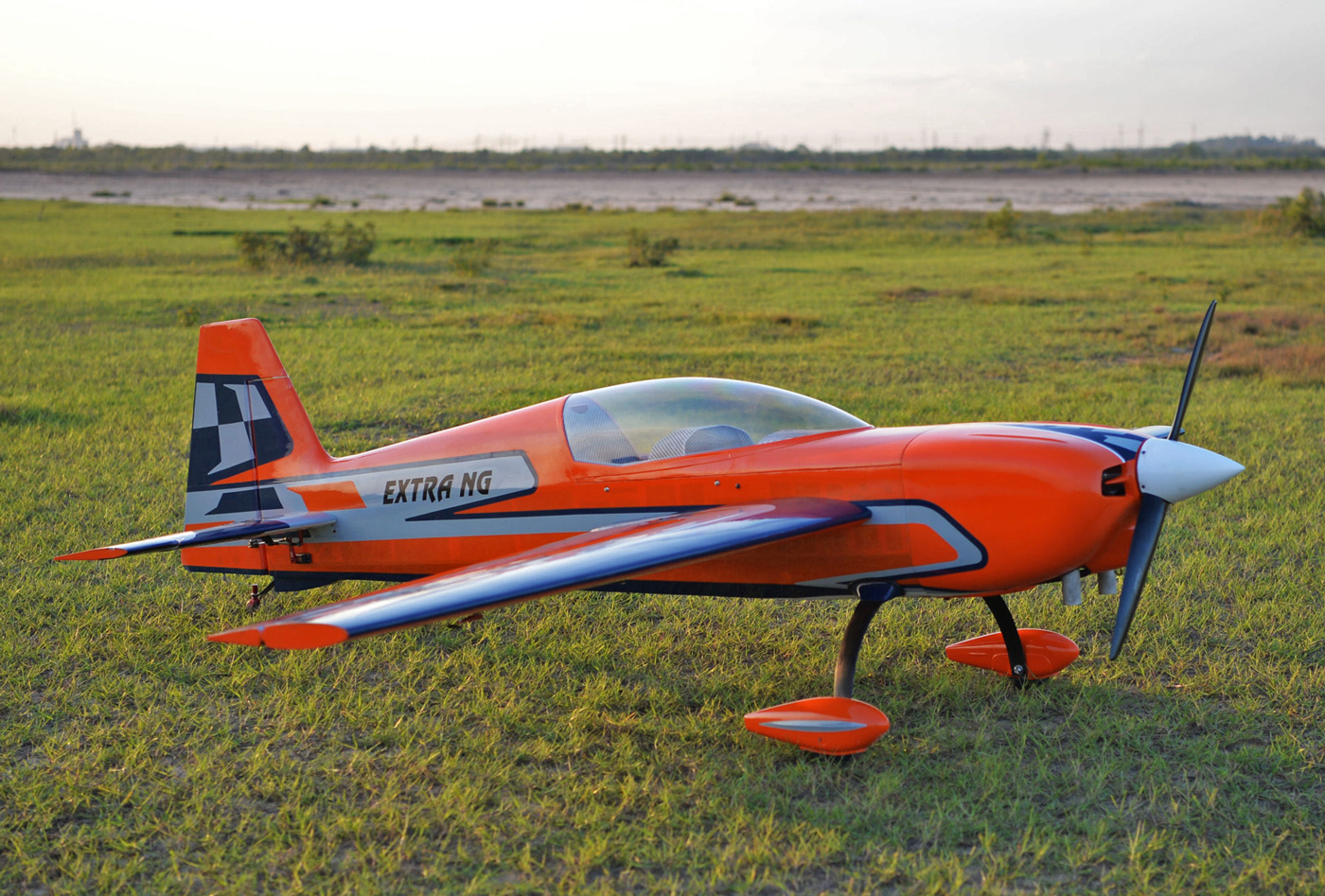

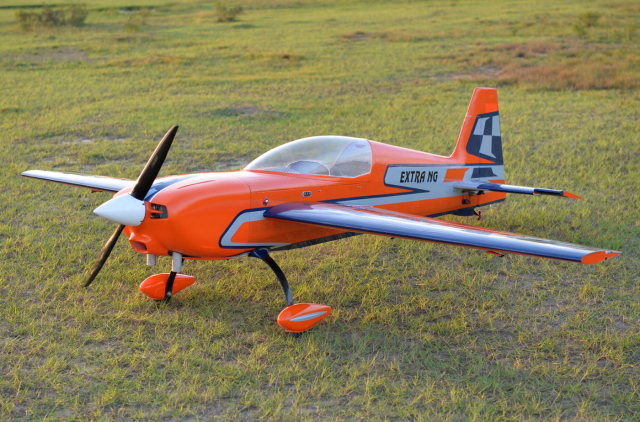

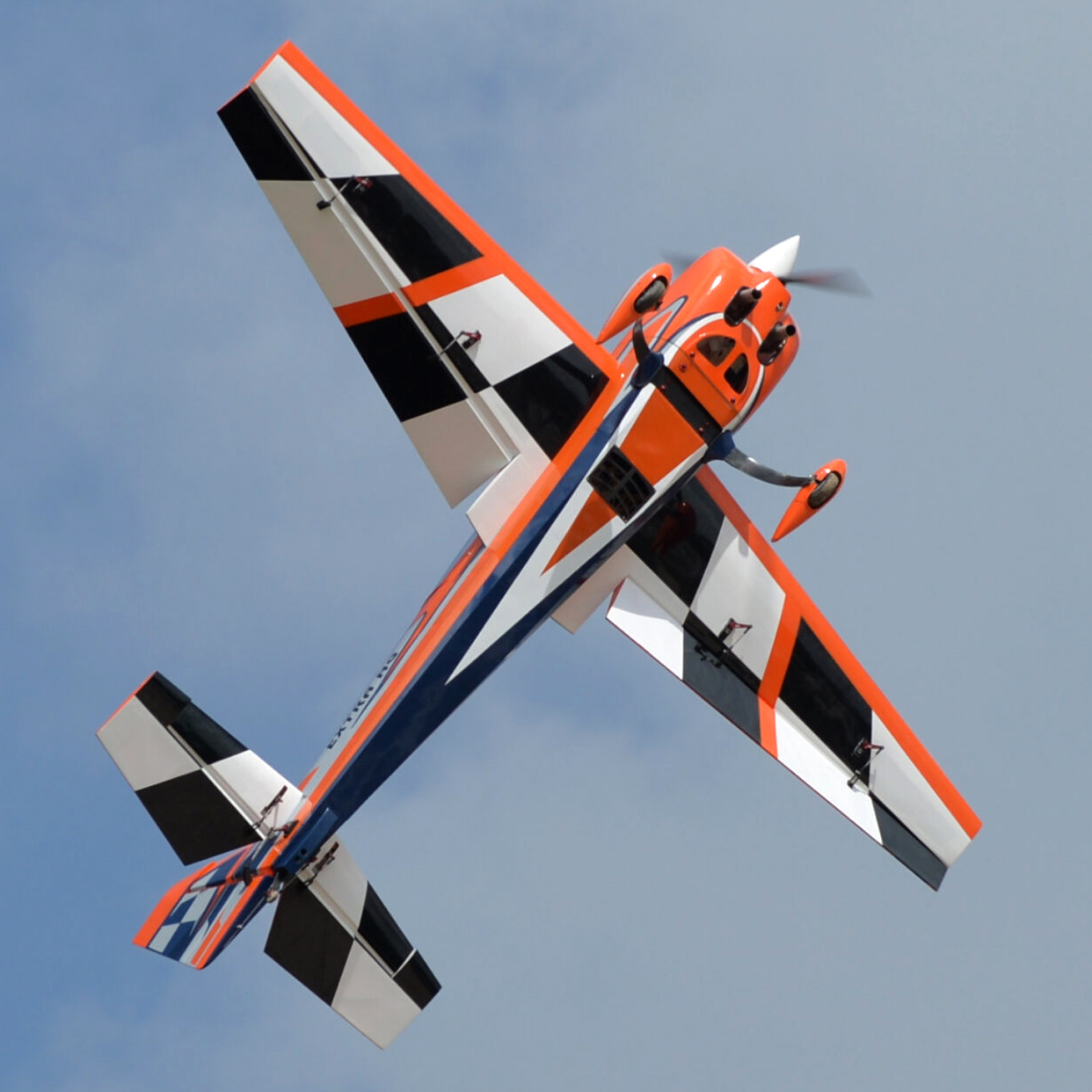

Black Horse BH197 - Extra NG 120cc Gas 2667mm ARFFEATURES:
- Equipped with a patented Smart Lock system, allowing wings and stabilizers to be mounted with speed, accuracy, and reliability.
- Pre-installed Hinges, glued, and pinned for maximum strength and reliability.
- Magnetic Canopy Mount. Quick-release canopy system utilizing precision pin magnets, ensuring both security and ease of use.
- Modular Design. Wings and stabilizers are fully removable for transport and storage convenience.
- Cowling is internally mounted, leaving no visible screws on the exterior, with only two accessible screws underneath for convenient installation.
- Open fuselage design allows for simple and efficient canister installation.
- The fuselage and wings are crafted from high-quality wood combined with advanced composite materials, ensuring exceptional rigidity and strength.
- Durable carbon fiber main landing gear included in the kit.
- Lightweight and robust carbon tail gear included in the kit.

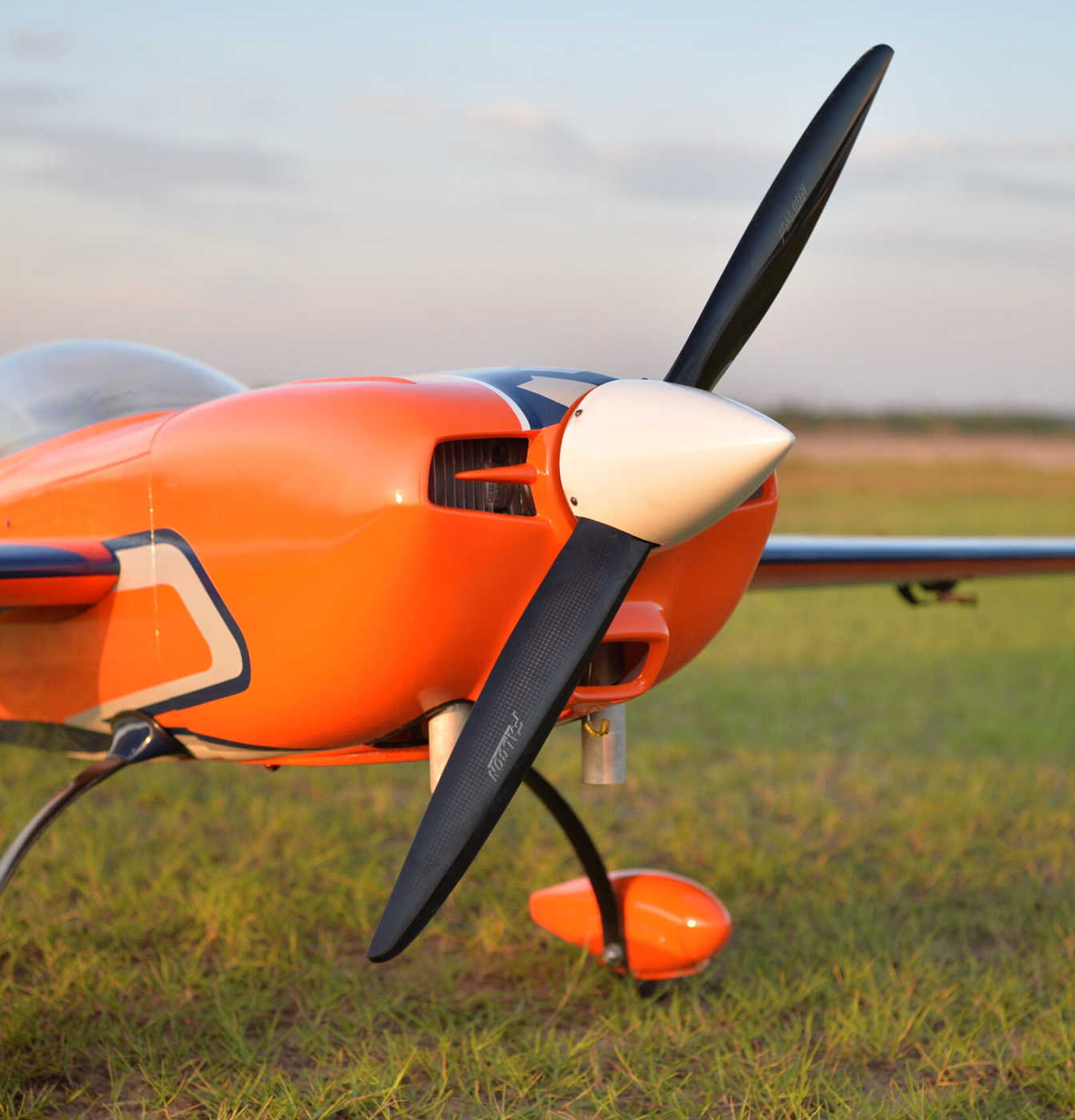

- High-performance carbon spinner with aluminum backplate designed for high-speed operation included in the kit.
- High-gloss fiberglass wheel pants included, combining aesthetics with functionality included in the kit.
- High quality accessories included with the kit.
Specs:
- Wingspan: 2667mm
- Length: 2565mm
- Flying weight: 12kg
- Wing area: 123.6dm2
- Wing loading: 97g/dm2
- Servo mount: 42x21mm
- Wing type: Naca Airfoil
- Spinner: 115mm (included)
- Gear type: Carbonfiber main gear (included) and Carbonfiber tail gear (included)
- Covering type: Genuine Oracover
- Rec. Radio: 9 channels minimum
ENGINE AND SERVO RECOMMENDED (NOT INCLUDED WITH THE KIT)
POWER SYSTEM:
- Engine: 120-125cc Gas
- Propeller: suit with your engine
- Fuel tank: 1000ml
- 4x Aileron: hi-torque 55-60kg/cm (Standard size: 20x40mm)
- 2x Elevator: hi-torque 40-45kg/cm (Standard size: 20x40mm)
- 2x Rudder: hi-torque 40-45kg/cm (Standard size: 20x40mm)
- 1x Throttle: hi-torque 20kg/cm (Standard size: 20x40mm)
