Produkt Info:

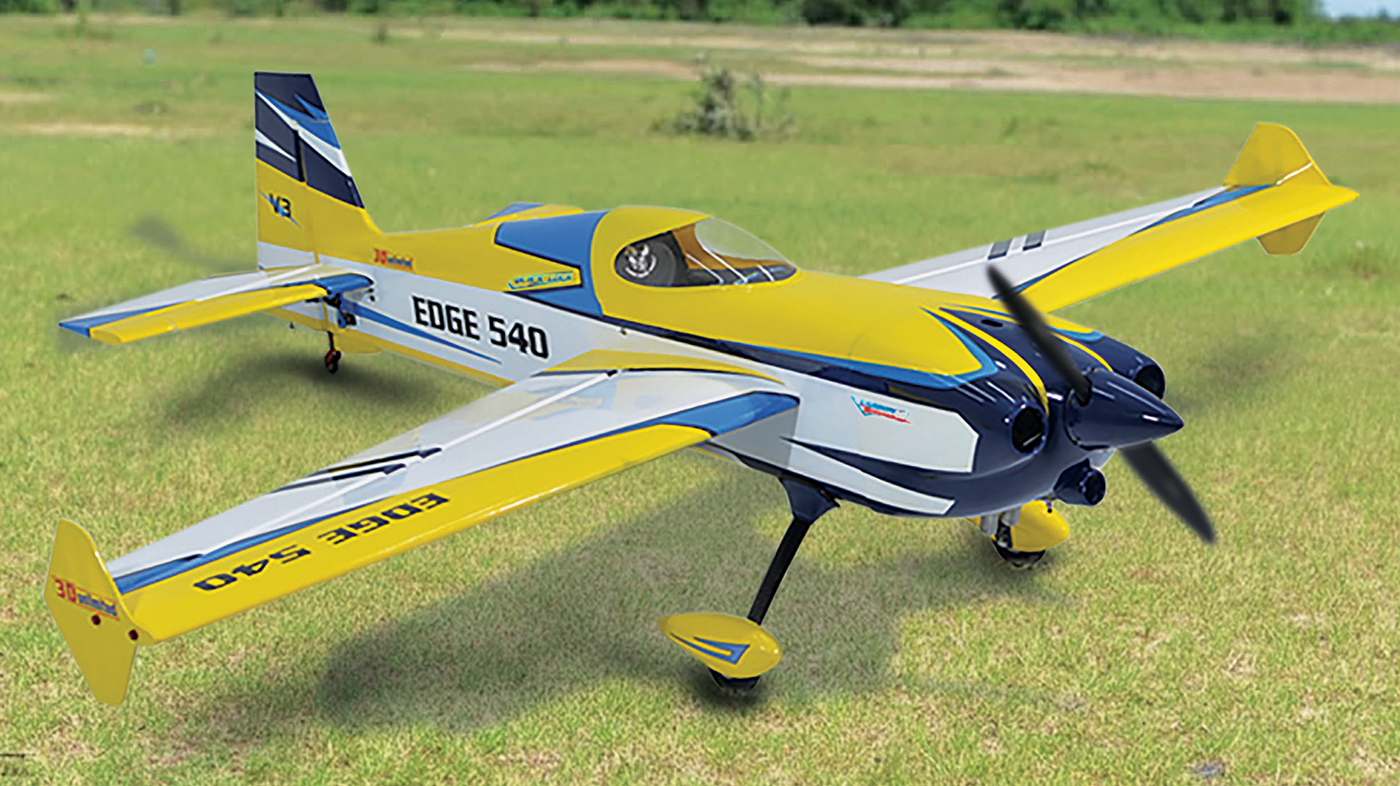

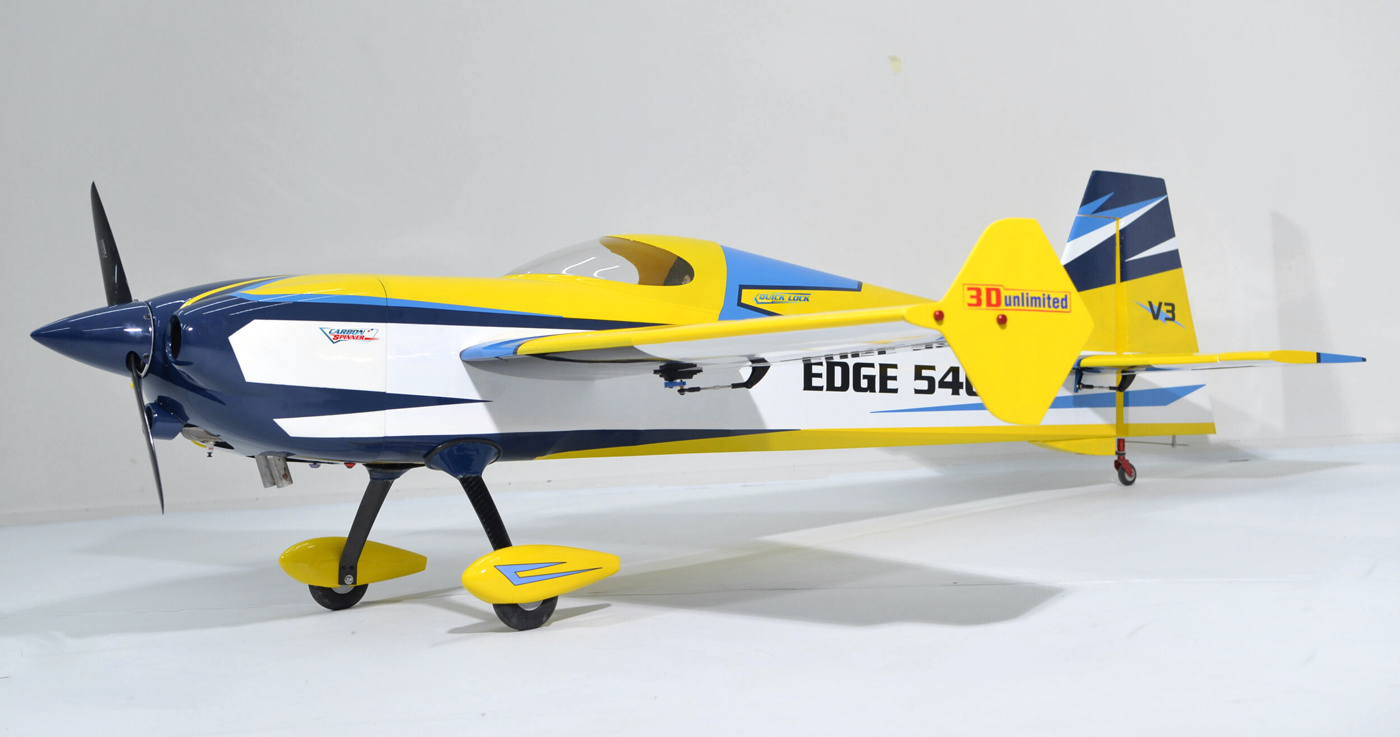

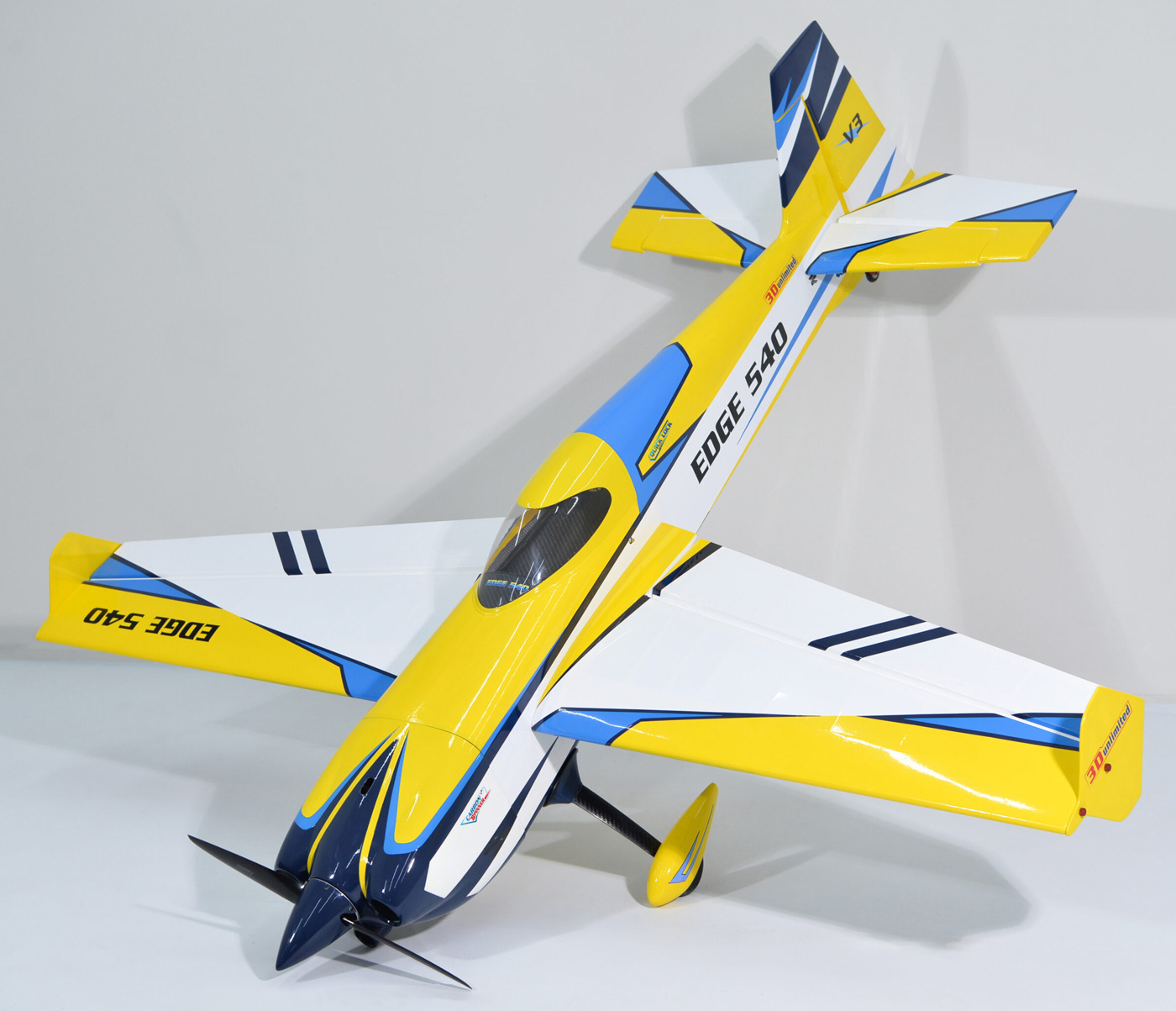

Black Horse BH199 - EDGE 540 V3 188cm 30-35ccFEATURES:
- Equipped with a patented Smart Lock system, allowing wings and stabilizers to be mounted with speed, accuracy, and reliability.
- Pre-installed Hinges, glued, and pinned for maximum strength and reliability.

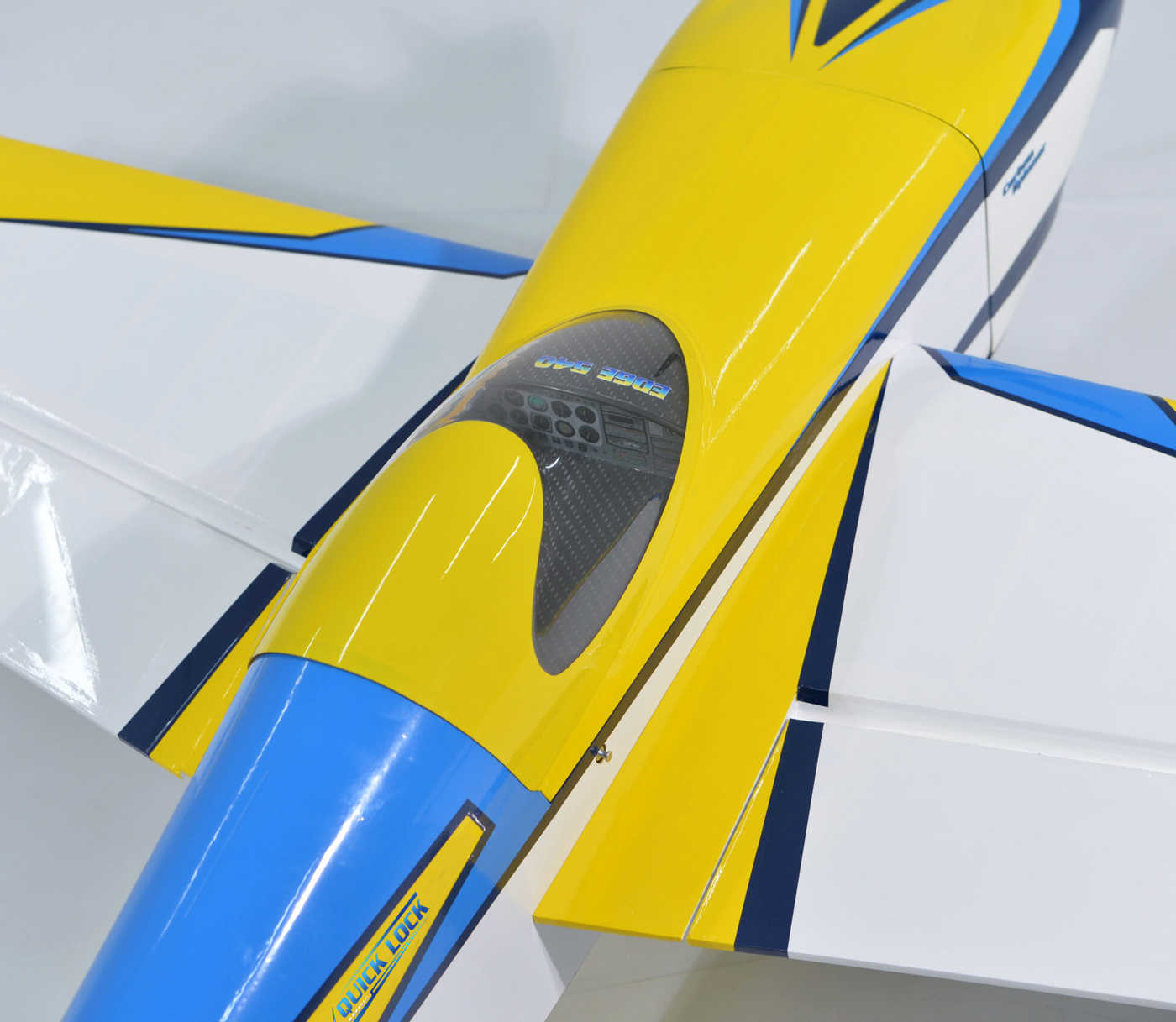

- Magnetic Canopy Mount. Quick-release canopy system utilizing precision pin magnets, ensuring both security and ease of use.
- Modular Design. Wings and stabilizers are fully removable for transport and storage convenience.
- Cowling is internally mounted, leaving no visible screws on the exterior, with only two accessible screws underneath for convenient installation.
- Open fuselage design allows for simple and efficient canister installation.
- The fuselage and wings are crafted from high-quality wood combined with advanced composite materials, ensuring exceptional rigidity and strength.

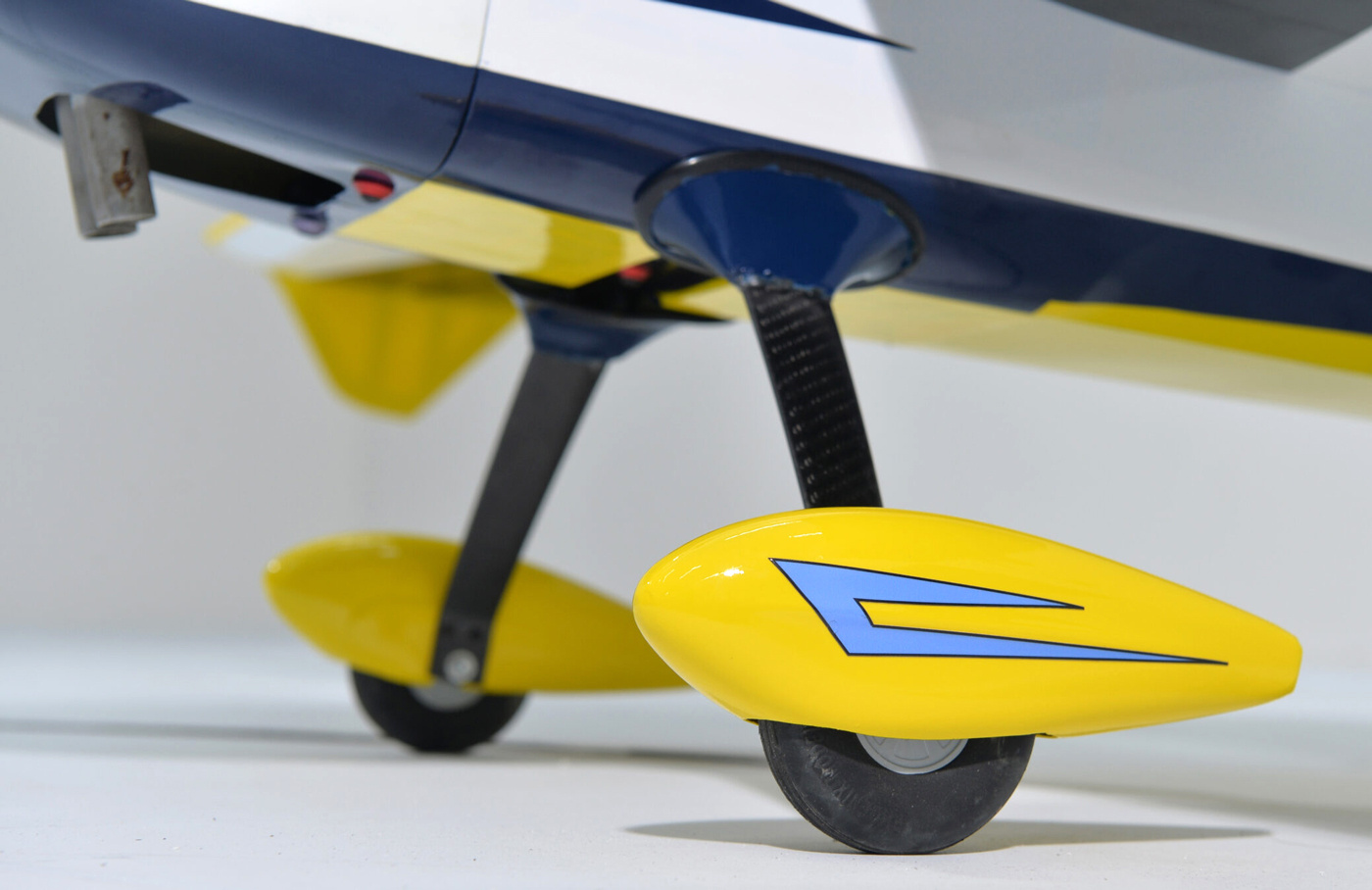

- Durable carbon fiber main landing gear included in the kit.
- Lightweight and robust carbon tail gear included in the kit.
- High-performance carbon spinner with aluminum backplate designed for high-speed operation included in the kit.
- High-gloss fiberglass wheel pants included, combining aesthetics with functionality included in the kit.
- High quality accessories included with the kit.
Specs:
- Wingspan: 1880mm
- Length: 1852mm
- Flying weight: 5600-5800gr
- Wing area: 63.6dm2
- Wing loading: 91.2g/dm2
- Spinner: 86mm (included)
- Gear type: Carbonfiber main gear (included) and Carbonfiber tail gear (included).
- Covering type: Genuine Oracover
- Experience level: Intermediate
- Plane type: Aerobatic 3D free-style
Parts listing required (not included):
- Radio: 6 channels minimum
- Servos: 6 standard hi-torque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
- Servo mount: 21x42mm & 16x36mm
- Engine: 30-35cc Gas
- Motor: Brushless outrunner 2500W, 250KV (not included)
Recommended Engine and Servos:
- 30-35cc Gas Engine (x1)
- Servo for Aileron 30-40 kg (x2) – Standard size 20x40mm
- Servo for Elevator 16-22 kg (x2) – Standard size 16x36mm
- Servo for Rudder 16-22 kg (x1) – Standard size 16x36mm
- Servo for Throttle 12 kg (x1) – Standard size 20x40mm
