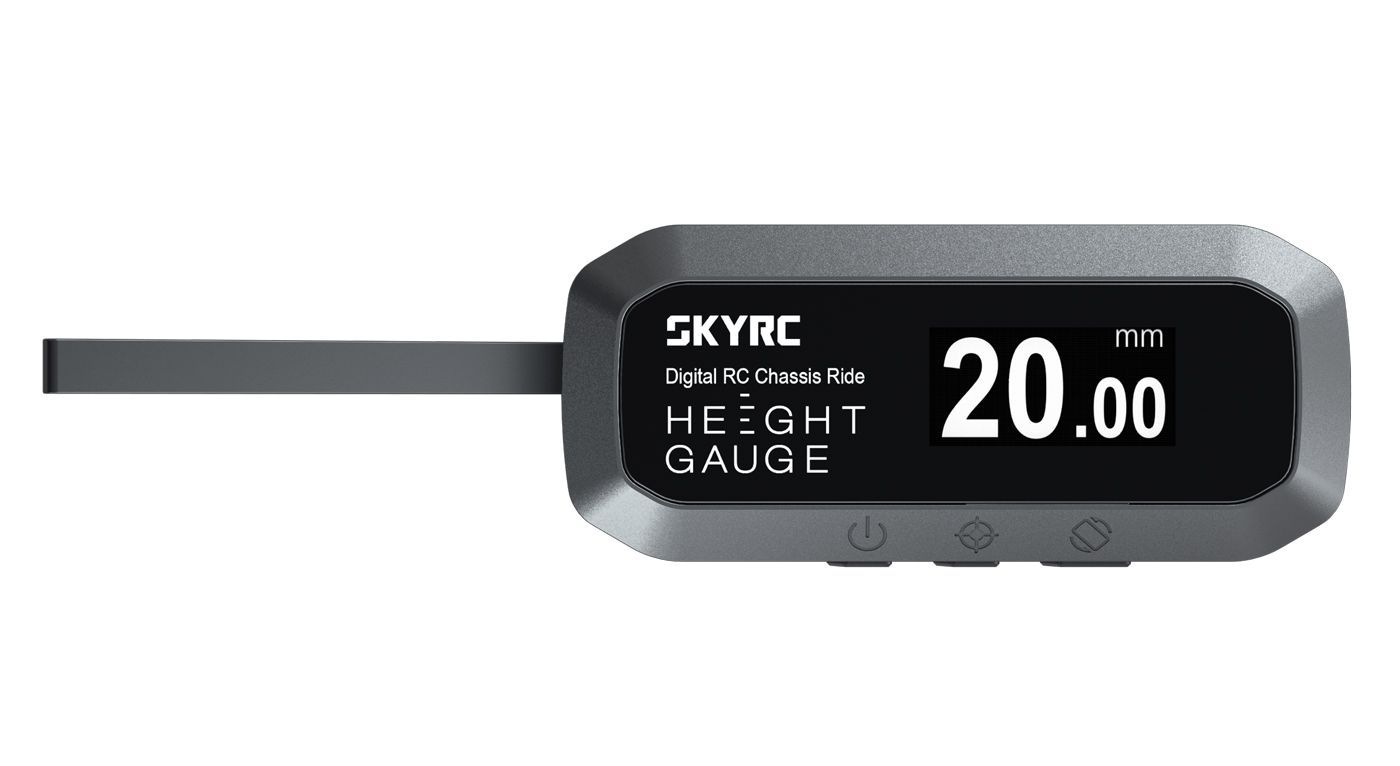

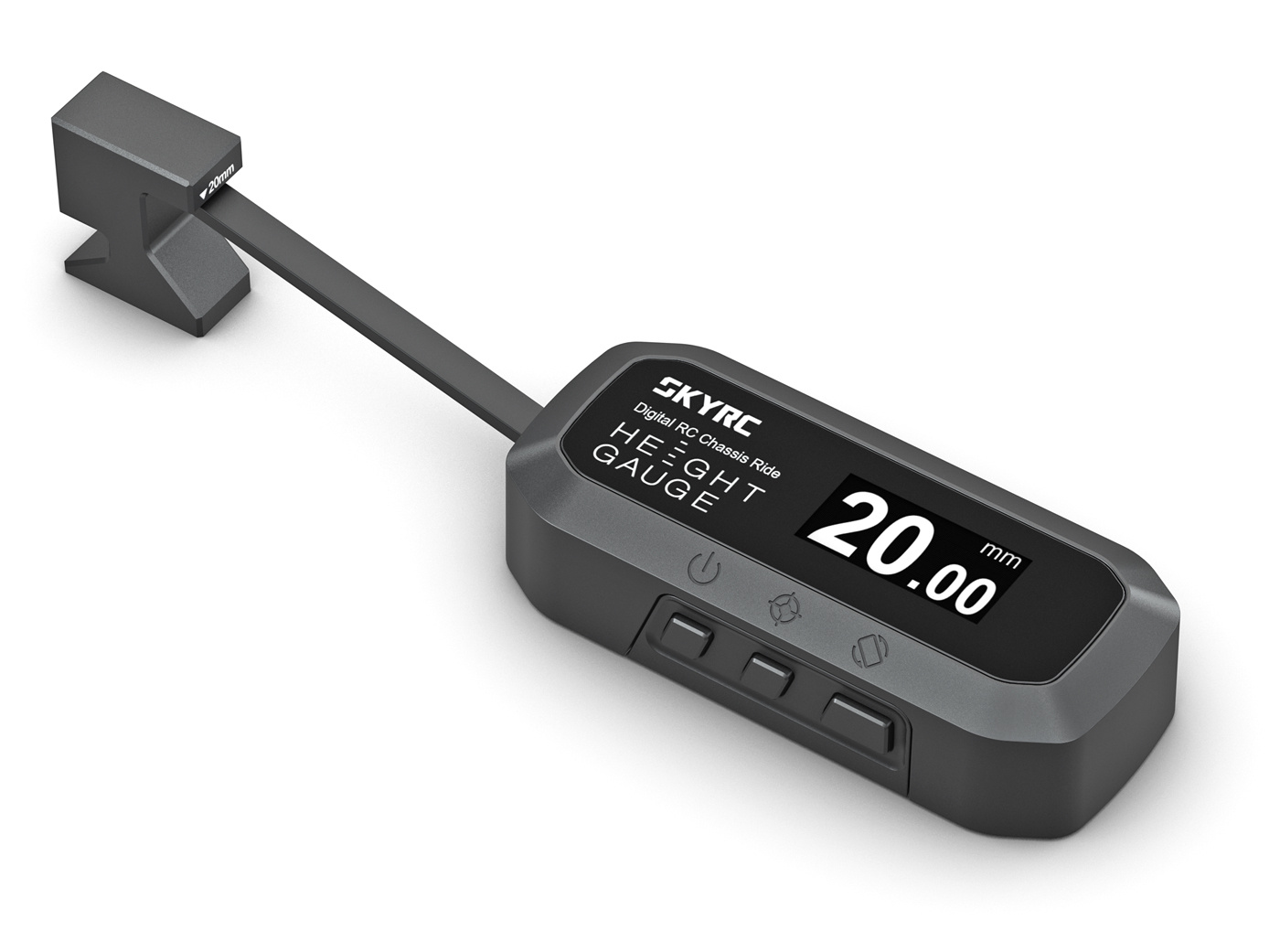

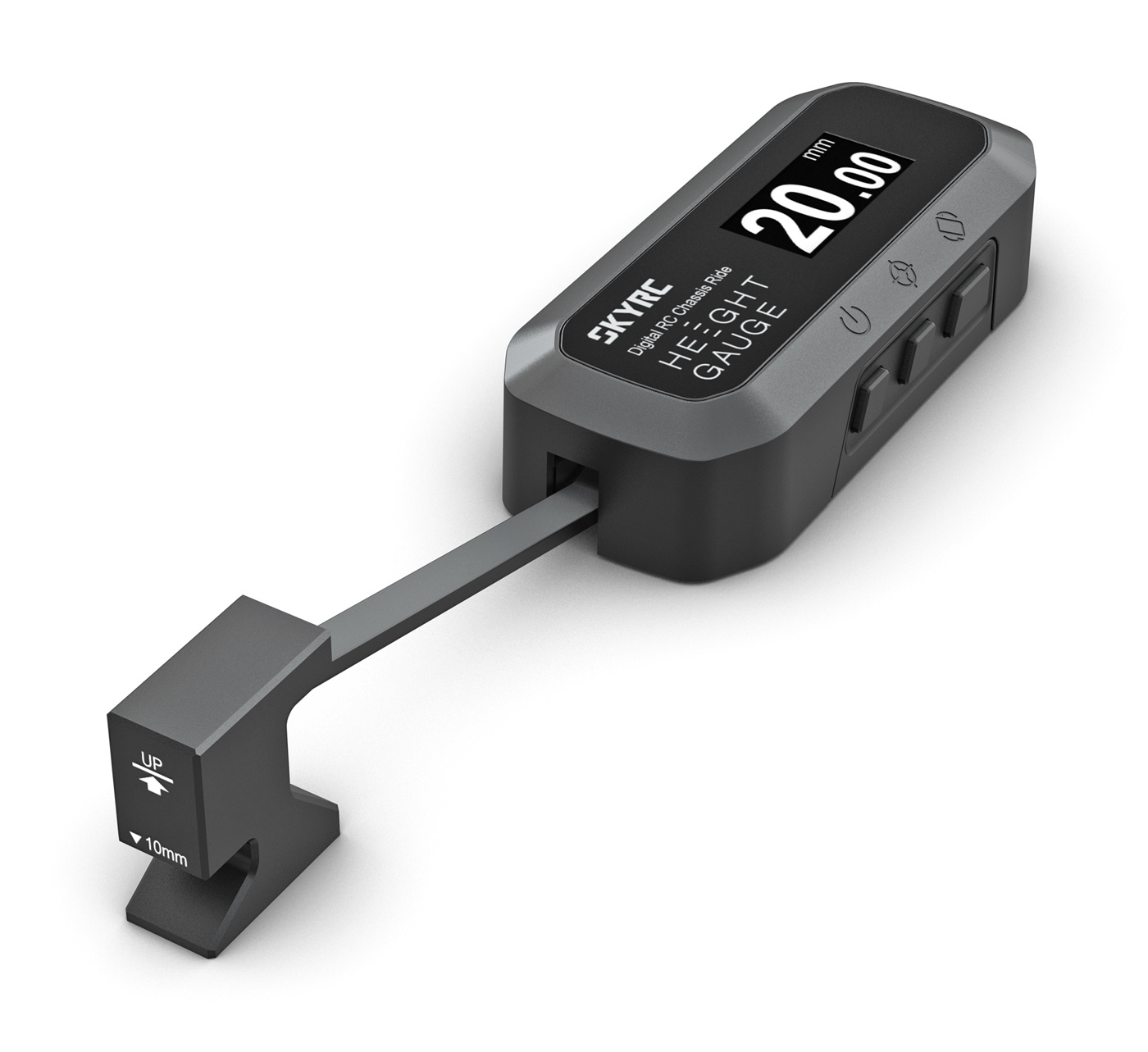

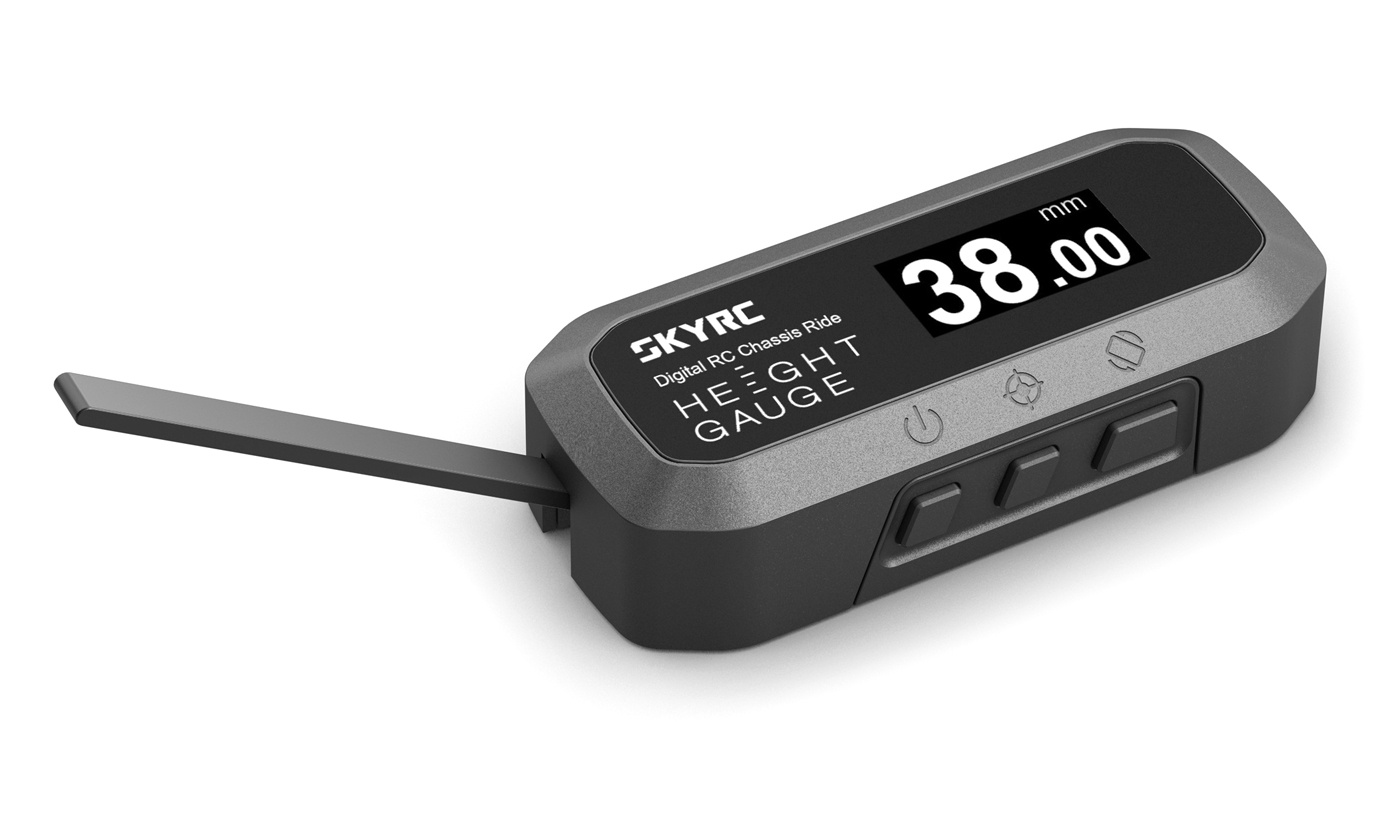

Produkt Info:
Set the Height. Set the Pace.Turn “guessing” into numbers. Fast reading. Repeatable setup. Every millimeter matters so every adjustment actually makes sense.
- Accuracy: ±0.3mm (2–20mm); ±0.5mm (>20mm)
- Range: 2–38mm
- Clear digital readout
- Unit switching and 180° display rotation
- Compatible with 1/24, 1/14, 1/12, 1/10 & 1/8 RC models
Every part of a millimeter, Measured.
Powered by an onboard MCU and a proprietary measurement algorithm, the gauge delivers 0.1mm precision across a 2–38mm measuring range. Fine adjustments are processed into stable, reliable data—covering common ride height setups across a wide range of RC applications.
Protected by Design
A dedicated storage case keeps the measuring blade protected and calibration accessories neatly organized. Custom slots secure both the gauge and calibration block, preventing damage or loss and keeping everything protected and ready for the next setup.
Specs:
- Size: 127.3x33x18mm
- Weight: about 40g
- Power input: 1x AAA battery
- Range: 2.00-38.0mm
- Display Units: mm/inch
- Auto Power-Off Time: 300 seconds
- Operating temperature: -5°C-60°C
- Working humidity: ≤85%RH, non-condensing
- Storage temperature: 0°C–35°C
- Storage humidity: ≤65% RH, non-condensing
