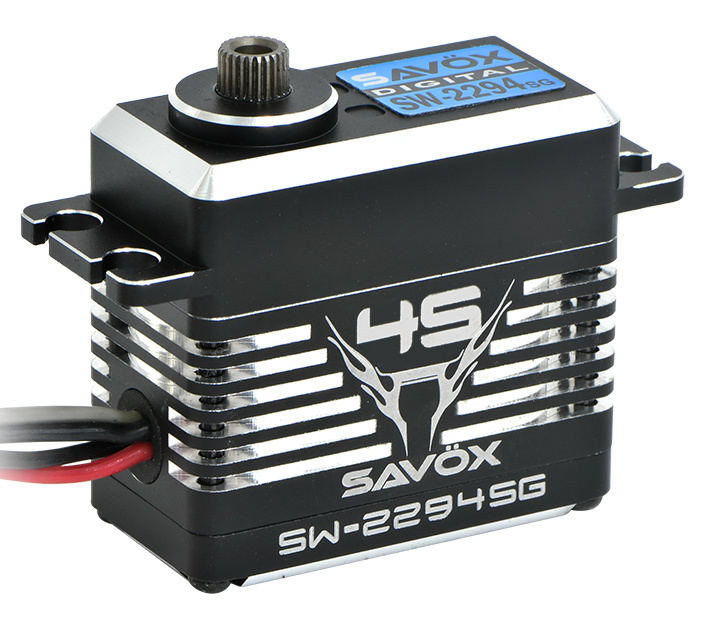

SAVÖX SAV-SW2294SG - SW-2294SG Crawler Servo 75Kg 4S LiPo Powered Alu Brushless Steelgears WP
Blue LineBuilt for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you can’t predict the conditions - this is the servo to trust.
Features:
- Patent Lightweight Brushless: Latest brushless motor delivers power with high efficiency and reduced weight.
- IP67 Waterproof: Confident performance through water, mud, and tough terrain.

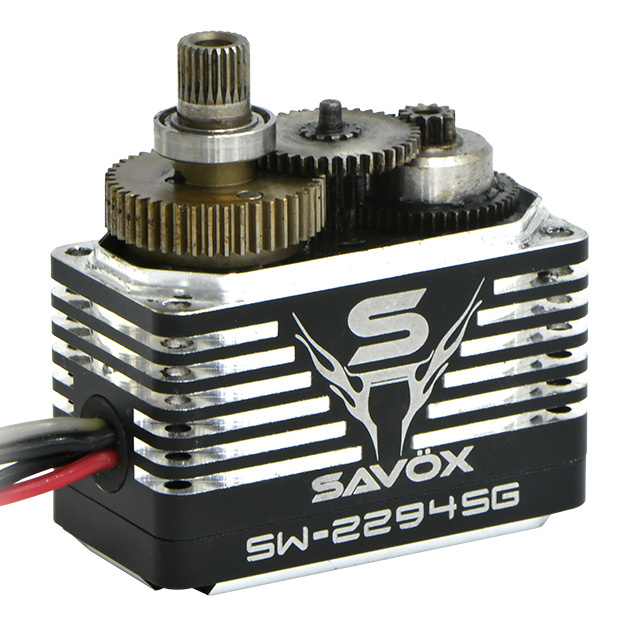

- Steel Gears: Specialized steel gear train ensures long-term durability under extreme torque.
- Direct Power (16.8V): Runs directly from your 4S LiPo battery — no BEC required.
Inside the SW-2294SG+
In this official preview, the Team Savox crew introduces the SW-2294SG+ — a 4S direct power servo designed to deliver extreme torque and speed. Learn about its technical specs, direct power input, and upcoming release as it undergoes final testing with our professional drivers.
Direct Drive 4S Power
Runs directly from 4S LiPo batteries (16.8V) — no BEC, full voltage, full control. With no BEC restrictions, the SW-2294SG+ takes full battery voltage directly, delivering instant torque and speed even under high stress.
- No BEC bottlenecks
- Maximum consistency under heavy loads
- Uncompromised power delivery
Ultra Durable Build
Steel gears, aluminum case, and IP67 waterproof protection for maximum reliability.
Extreme Torque
Delivers 75 kg-cm of torque to handle heavy crawlers and demanding off-road tasks.
Built for Off-Road
Optimized for rock crawlers, trail trucks, and large-scale off-road applications.
Specs:
- Line: BLUE LINE
- Application: CAR / BOAT
- Servo Size: Standard
- Operating Voltage: 16.8V (4s LiPo)
- Speed @16.8V: 0.11s/60°
- Torque @16.8V: 75kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Patented Lightweight Brushless
- Case Type: Aluminium
- Protection: Waterproof (IP67)

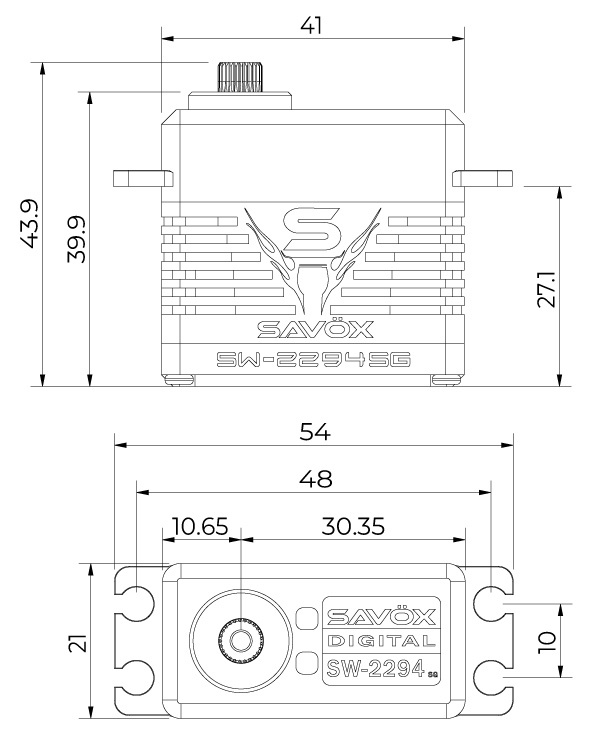

- Dimensions: L41xW21xH39.9mm
- Weight: 90g
- Gear Type: Specialized Steel
- Compatibility: Sanwa SUR & SSR, Futaba UR & SR
- PCB Board: 32-bit
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Clockwise (when 1000→2000μsec)
- Max Travel: ~180° (when 600→2400μsec)
- Operating Travel: 100° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 3x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 450±5mm
- Connector: JR
- Stall Current @16.8V: 5200mA
- Operating Current @16.8V: 100mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
