Product Info:
The Savox SC-0251MGP is a high torque, metal-geared, digital servo which is suitable for many applications.Features:
- Soft Start
- Sanwa SSR compatible
- Metal gear train ensures durability under harsh situations
- Slightly taller case design
- Ideal for aircraft and some car applications
SC-0251MG+ – The Updated Classic
Andy introduces the Plus version of the long-running SC-0251MG — now upgraded for 7.4V high voltage use.
This quick clip covers what’s new and why it’s still a reliable go-to servo.
Hobby Line
Simple, reliable, and budget-friendly - the Savöx Hobby Line is made for enthusiasts who want trusted Team Savox performance without overcomplicating their build. Whether you're upgrading a ready-to-run vehicle or assembling your first kit, these servos offer solid function at an accessible price.
Equipped with features like metal gears and smooth control response, Hobby Line servos are ideal for casual drivers, beginners, and weekend bashers. It's all about getting you driving with confidence – no stress, no fuss.
Specs:
- Line: HOBBY LINE
- Application: Cars
- Servo Size: Standard
- Operating Voltage: 6.0V-7.4V
- Speed @ 6.0V: 0.17s/60°
- Torque @ 6.0V: 20kg/cm
- Speed @ 7.4V: 0.15s/60°
- Torque @ 7.4V: 25kg/cm
- Amplifier Type: Digital Controller
- Motor Type: DC/Brushed
- Case Type: Composite
- Protection: Dust Resistant

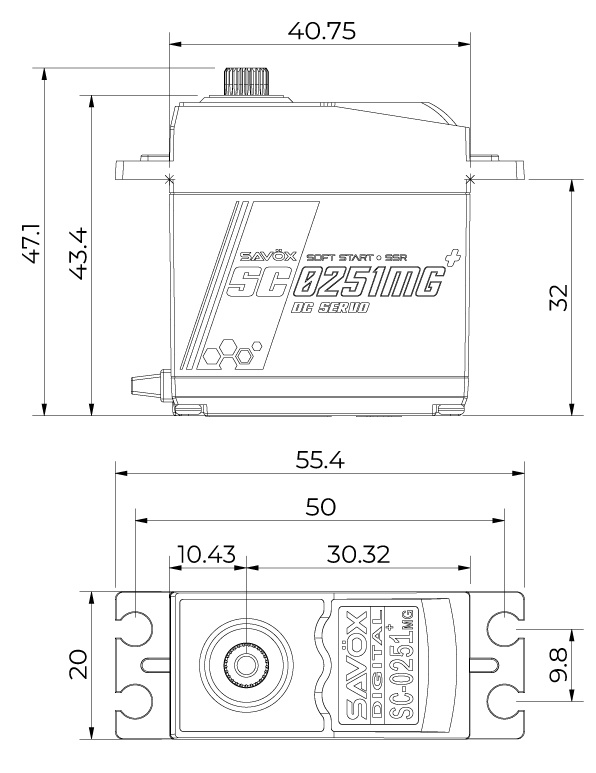

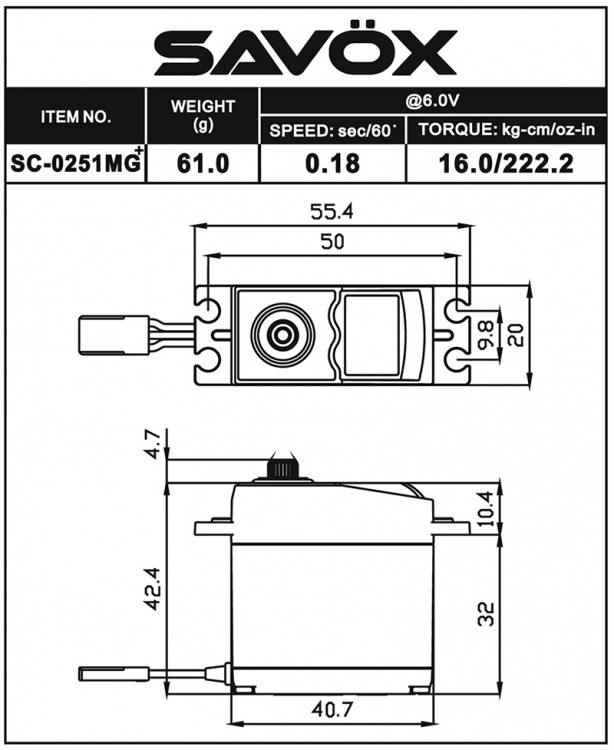

- Dimensions (LxWxH): 40.75x20x43.4mm
- Weight: 61g
- Gear Type: Heavy-Duty Metal
- Compability: Sanwa SSR
- PCB Board: 8-bit
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1500→2000 μsec)
- Max Travel: ~164° (when 800→2200 μsec)
- Operating Travel: 120° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 300 ±5mm
- Connector: JR
- Stall Current @ 6.0V: 4800mA
- Operating Current @ 6.0V: 120mA
- Stall Current @ 7.4V: 5900mA
- Operating Current @ 7.4V: 150mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse width modification
- Operating Temperature: -10°C to 50°C
