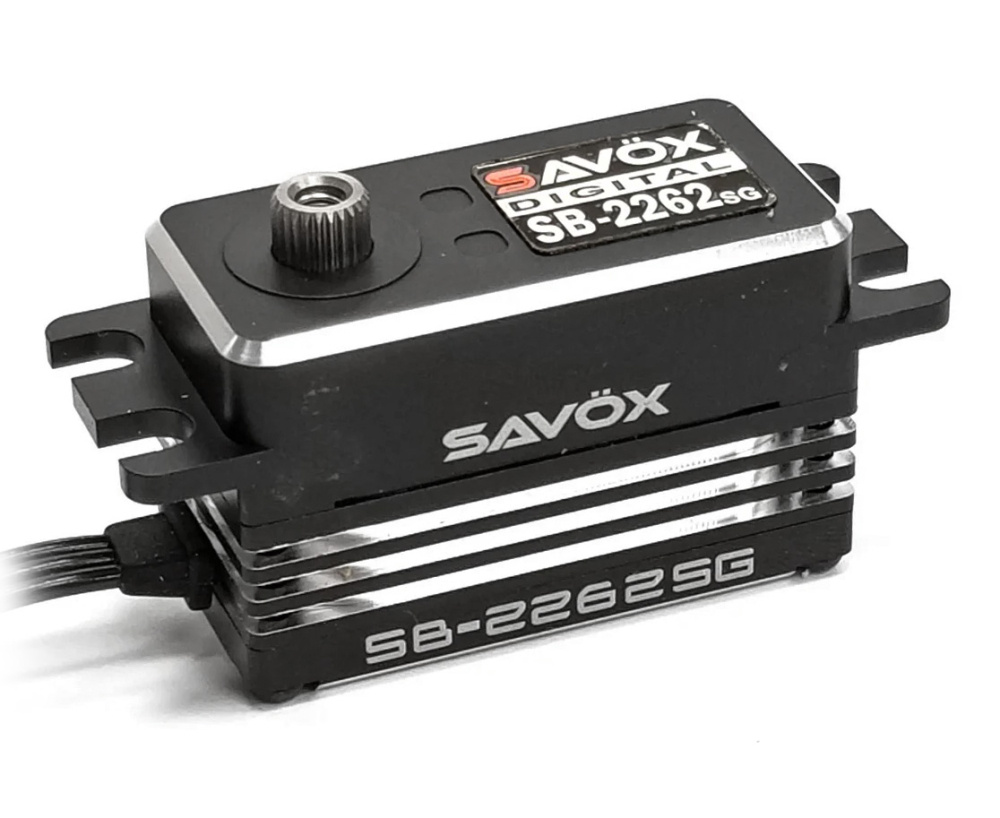

SAVÖX SB2262SG - Monster Torque Low Profile Steel Gear Servo 0.08s/25kg @ 7.4V
The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.Features:
- Full Aluminum Case
- 2 Precision Ball Bearings
- Metal Gears
Technical Details:
- Line: MONSTER LINE
- Application: CAR, BOAT, AIRPLANE
- Servo Size: Low Profile
- Operating Voltage: 6.0V-8.4V
- Speed @ 6.0V: 0.1 s/60°
- Torque @ 6.0V: 18.0 kg/cm
- Speed @ 7.4V: 0.08 s/60°
- Torque @ 7.4V: 25.0 kg/cm
- Speed @ 8.4V: 0.065 s/60°
- Torque @ 8.4V: 32.0 kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Patented Brushless
- Case Type: Aluminum
- Protection: Water Resistant

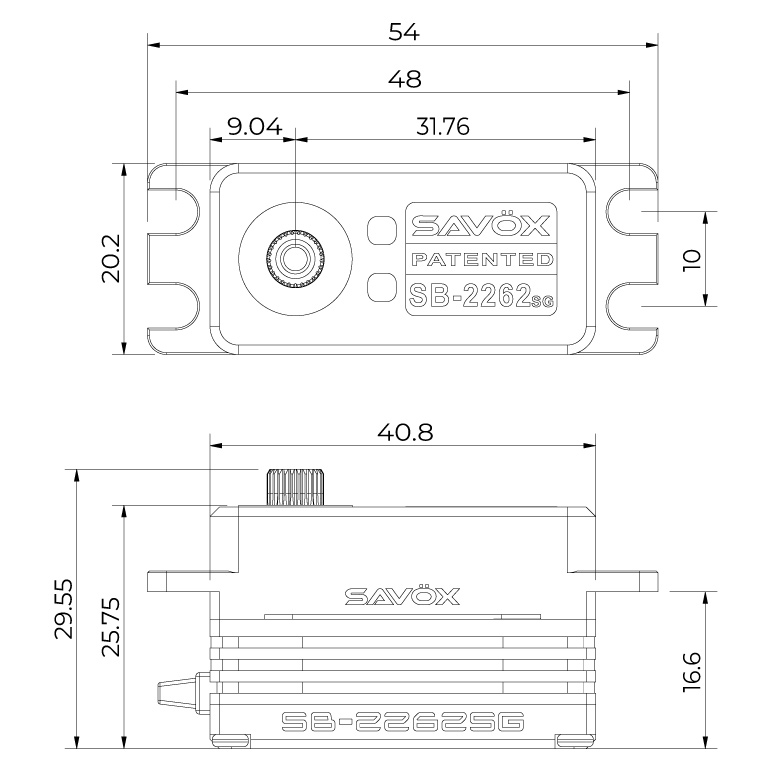

- Dimensions (LxWxH): 40.8 x 20.2 x 25.4 mm
- Weight: 62g

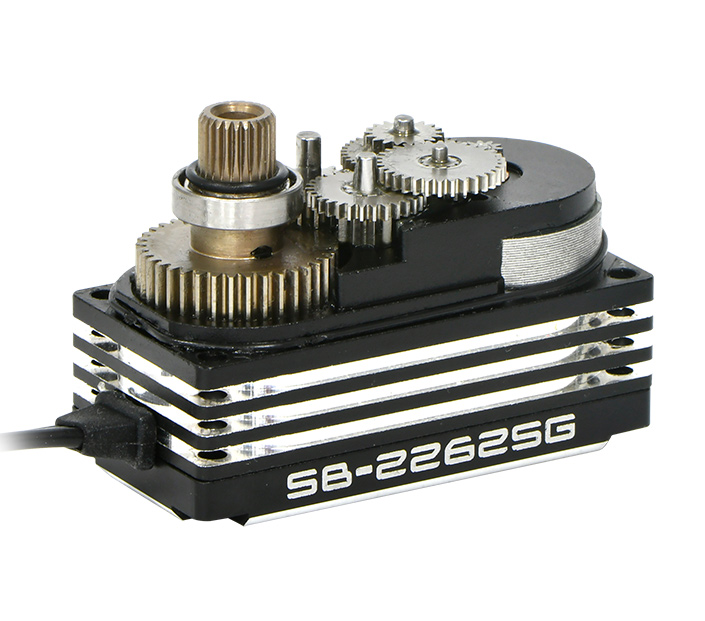

- Gear Type: Specialized Steel
- Compatibility: Sanwa SSR
- PCB Board: 12bit 4096, ADC, Softstart, Lock protection
- Horn Gear Spline: 25T(Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000 μsec)
- Max Travel: ~130° (when 900→2100 μsec)
- Operating Travel: 90° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22 AWG
- Cable Length: 300 ±5 mm
- Connector: JR
- Stall Current @ 6.0V: 4600 mA
- Operating Current @ 6.0V: 200 mA
- Stall Current @ 7.4V: 5600 mA
- Operating Current @ 7.4V: 220 mA
- Stall Current @ 8.4V: 6300 mA
- Operating Current @ 8.4V: 250 mA
- Idle Current: 5 mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360 Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
