Produkt Info:

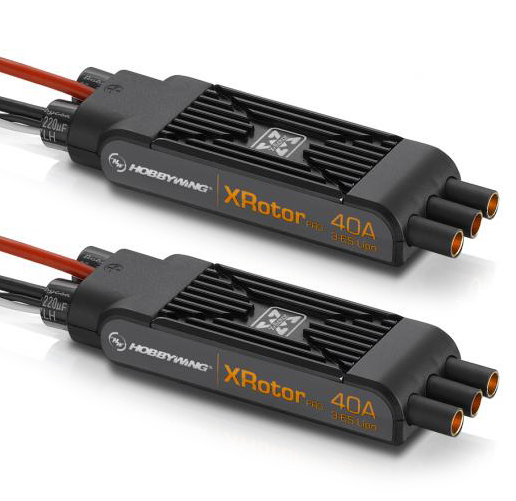

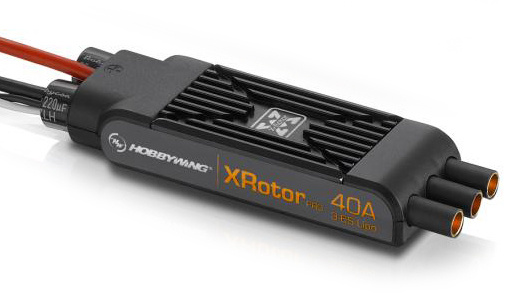

HW30902041 - XRotor Pro 40A ESC 3-6S 3.5mm Connectors (w/o wires) Multirotor (2)Newly Designed Shape
A brand new structural design that is enclosed within an exquisite solid plastic case that provides the all-round security and protection for the ESC. The newly designed ESC can be easily placed into a carbon-fiber tube with the I. D. of 23mm.
Auto Timing Adjustment & Preset Parameters for Highly Intelligent Operation
Auto timing adjustment and preset parameters applicable to most applications extremely simplify operation and optimize user experience.
Special Core Program for Rapid Throttle Response
The multi-rotor has made the demand over ESC response become even harsher than usual. Our newly special core program for rapid throttle response rate means a more stable hover and swift movement during flight. With the XRotor 3D and Pro series ESC’s new rapid response rate, the ESC can handle difficult and new challenges at ease.
Open Cooling Fin
A high-performance aluminum folded fin heat sink is combined with the specially designed heat-conductive slotted structure that brings excellent heat-dissipating effect. This is an Extremely Simplified Operational Procedure.
Driving Efficiency Optimization (DEO) Technology for Better Performance
Driving Efficiency Optimization (DEO) Technology is adopted for a higher driving efficiency.
Specs:
- Cont./Peak Current: 40A/60A
- LiPo Cells: 3-6S
- BEC Output: No
- Input Wires: 16AWG-500mm
- Output Wires: No
- Input Connector: No
- Output Connectors: 3.5mm Gold Connectors (Female) mounted directly on the main board
- Size: 73.5x21.8x11mm
- Weight: 45g
- Application: 550 Class Multirotors
- Throttle Range Calibration: Supported
- Stick Programming: Supported
- DEO: Supported
- OneShot Mode: Not Supported
- Timing: Supported
- Light Color: Not Supported
- Motor Rotation: Not Supported
