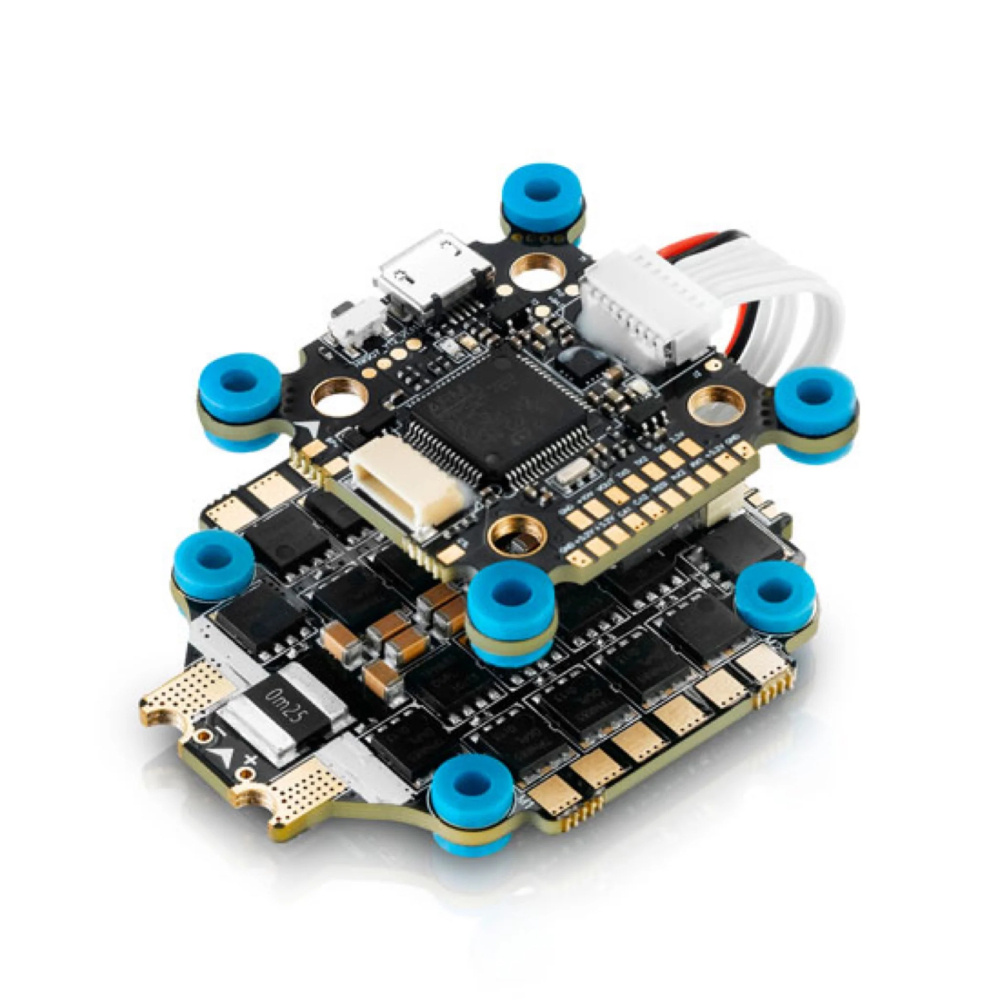

Hobbywing 38040306 - Xrotor FPV Micro Power System 65A ESC (4in1) F7 FC Combo
Features
4-in-1 ESC, 65A continuous per channel (4 channels total)
Burst current up to 80A per channel
Input voltage: 3S–6S LiPo
BLHeli_32 firmware, supports DShot (up to DShot1200)
Integrated voltage and current sensing
Dual BEC outputs: 5V & 12V for powering peripherals (receiver, VTX, LEDs, etc.)
F7 Flight Controller with STM32F722 MCU
Built-in OSD and blackbox logging
Supports multiple protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot, Proshot
DJI digital FPV system plug-and-play support
Beacon / buzzer output for locating the drone
Standard mounting: 30.5 × 30.5 mm holes (ESC), flexible mounting options for FC (30.5×30.5 / 20×20 mm)
Specifications
Input Voltage: 3S – 6S LiPo
Continuous Current: 65A × 4
Burst Current: 80A × 4
ESC Size (L×W×H): 52 × 42 × 6.6 mm
ESC Mounting Pattern: 30.5 × 30.5 mm
ESC Weight: ~15 g
Flight Controller Size: 32 × 32 mm
Flight Controller Weight: ~3.3 g
Firmware: BLHeli_32 (ESC) / Betaflight compatible (FC)
Processor (FC): STM32 F722
BEC Outputs: 5V & 12V (dual)
