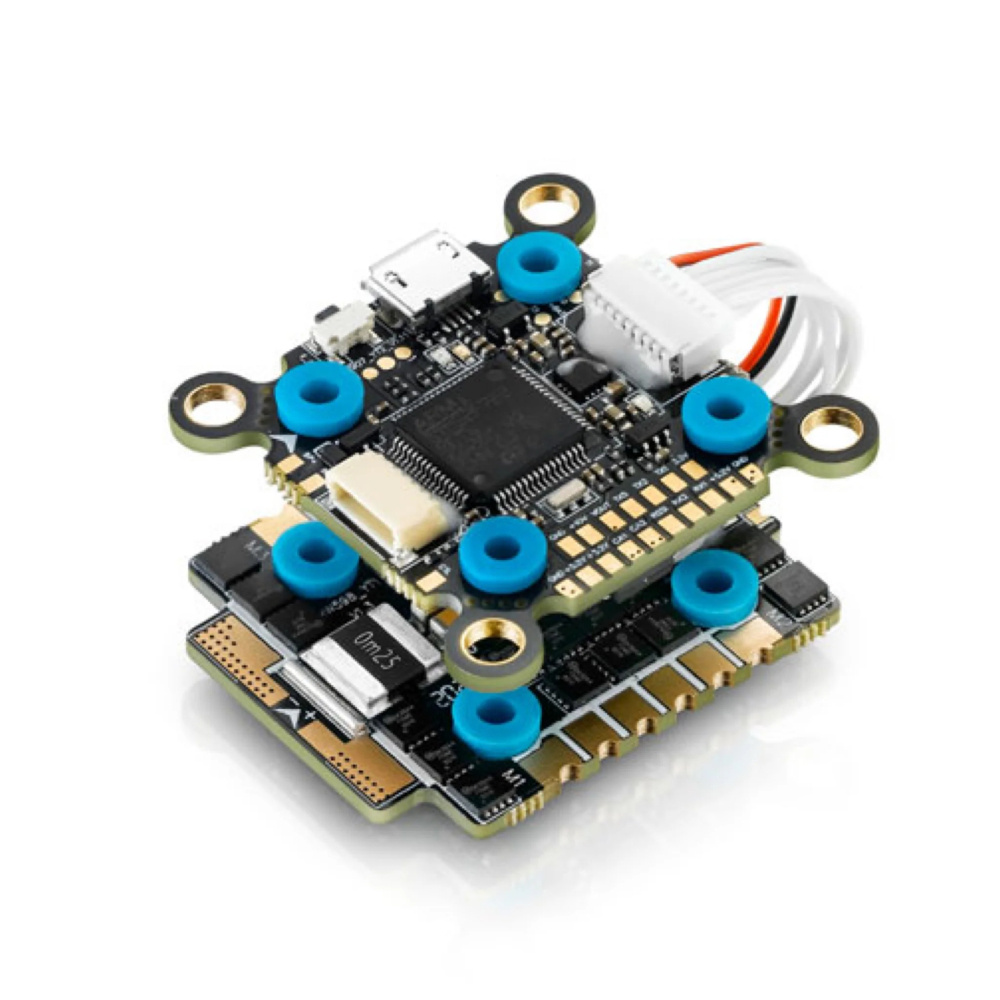

Hobbywing Xrotor FPV Micro Power System 45A ESC (4in1) F7 FC Combo

Hobbywing 38040305 - Xrotor FPV Micro Power System 45A ESC (4in1) F7 FC Combo

• 4-in-1 ESC (45A continuous per channel, burst higher)

• Supports 3S–6S LiPo batteries

• BLHeli_32 firmware with DShot (up to DShot1200)

• F7 Flight Controller with integrated OSD and voltage monitoring

• Standard 20×20 mm mounting pattern

• Integrated current and voltage sensing

• Built-in protections: over-temperature, over-current, and motor-stall protection

• Lightweight design (approx. 12 g for ESC module)



• Input Voltage: 3–6S LiPo

• Continuous Current: 4×45A

• Burst Current: higher (per BLHeli_32 specs)

• Firmware: BLHeli_32 (ESC) / Betaflight compatible (FC)

• Processor: STM32 F7 (Flight Controller)

• ESC Dimensions: approx. 40 × 33 × 5 mm

• Mounting Hole Pattern: 20 × 20 mm

• Weight (ESC only): ~12 g
