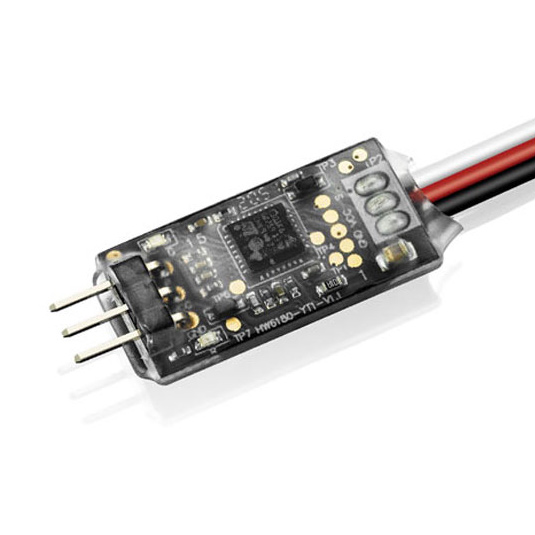

Hobbywing 30850503 - Telemetry Adapter Platinum V4-V5 - Futaba, Jeti, FrSky
This adapter is compatible with Hobbywing's Platinum V4, V4.1, and V5 series ESCs, as well as XERUN and EZRUN series ESCs that support telemetry feedback. By connecting this adapter between the ESC and a telemetry-capable receiver (such as those from Futaba, FrSky, or JETI), you can enable real-time transmission of ESC status data to your compatible transmitter, allowing for on-screen display of information like current, voltage and RPM.Specifications:
- Product Name: Telemetry Adapter
- Product Number: 30850503
- Working Voltage: 5-9V
- Size: 25x13x6mm
- Weight: 3.5g
Support Telemetry Adapter Air ESC list:
- Platinum 25A V4（No Current data）
- Platinum 60A V4（No Current data）
- Platinum 80A V4
- Platinum 120A V4
- Platinum HV 130A V4
- Platinum HV 130A V4 OPTO
- Platinum HV 200A V4.1 SBEC
- Platinum HV 200A V4.1 OPTO
- Platinum 150A V5
- Platinum HV 260A V5
Support Telemetry Adapter Car ESC list:
- XERUN XR8 PRO G3
- XERUN XR8 PULS G2S
- XERUN XR8 PRO G2
- XERUN XR10 PRO G3/G3X
- XERUN XR10 PRO DR
- XERUN XR10 PRO WP
- XERUN XR10 Stock Spec G2
- XERUN XR10 Justock G3S
- XERUN XR10 PRO G2S
- XERUN XD10 PRO
- XERUN XR14
- EZRUN MAX4 HV
- EZRUN MAX5 HV PLUS G2
- EZRUN MAX5 HV G2
- EZRUN MAX8 G2
- EZRUN MAX10 G2
Note:For information regarding compatible transmitter models and firmware versions that support this adapter, please consult the official support channels of Futaba, JETI, or FrSky.
