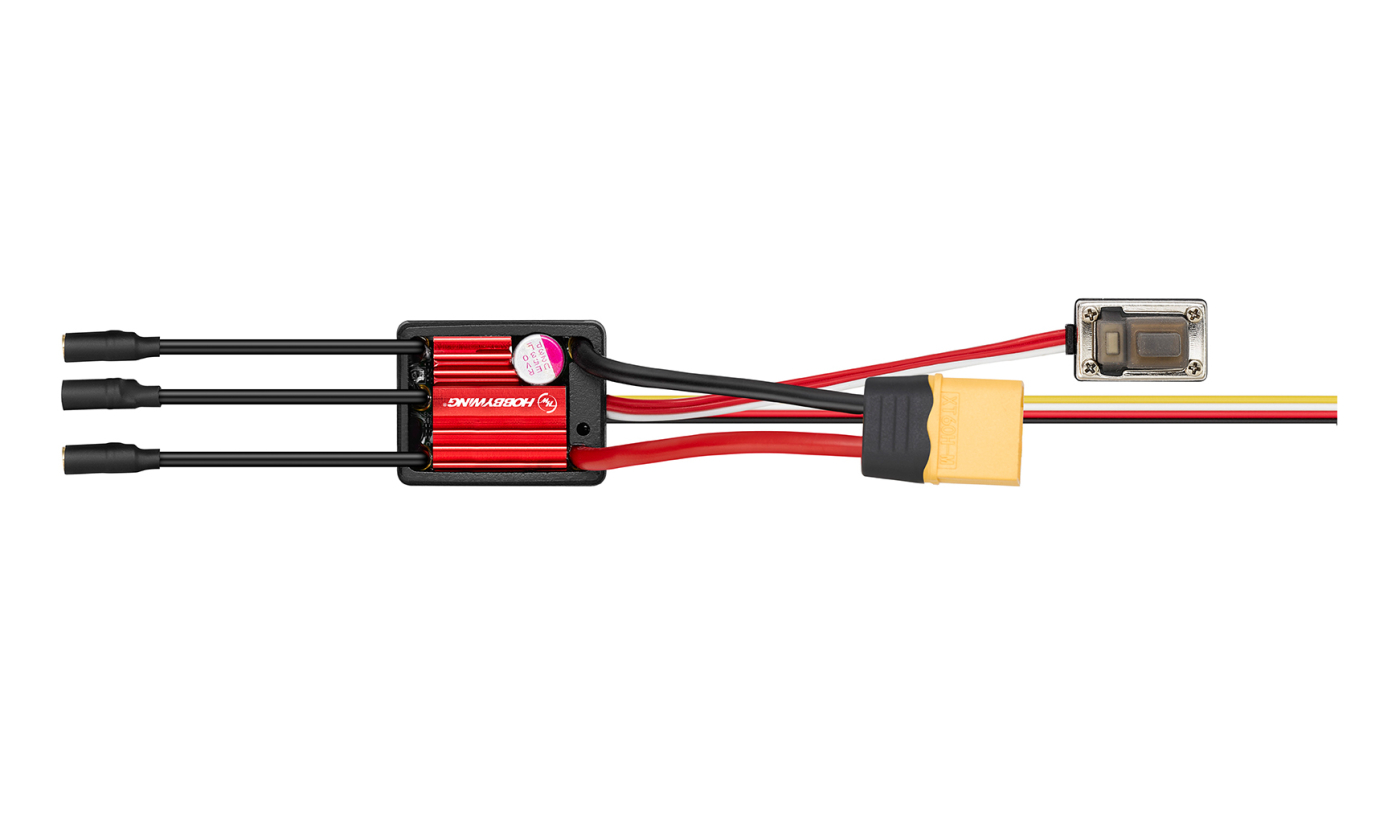

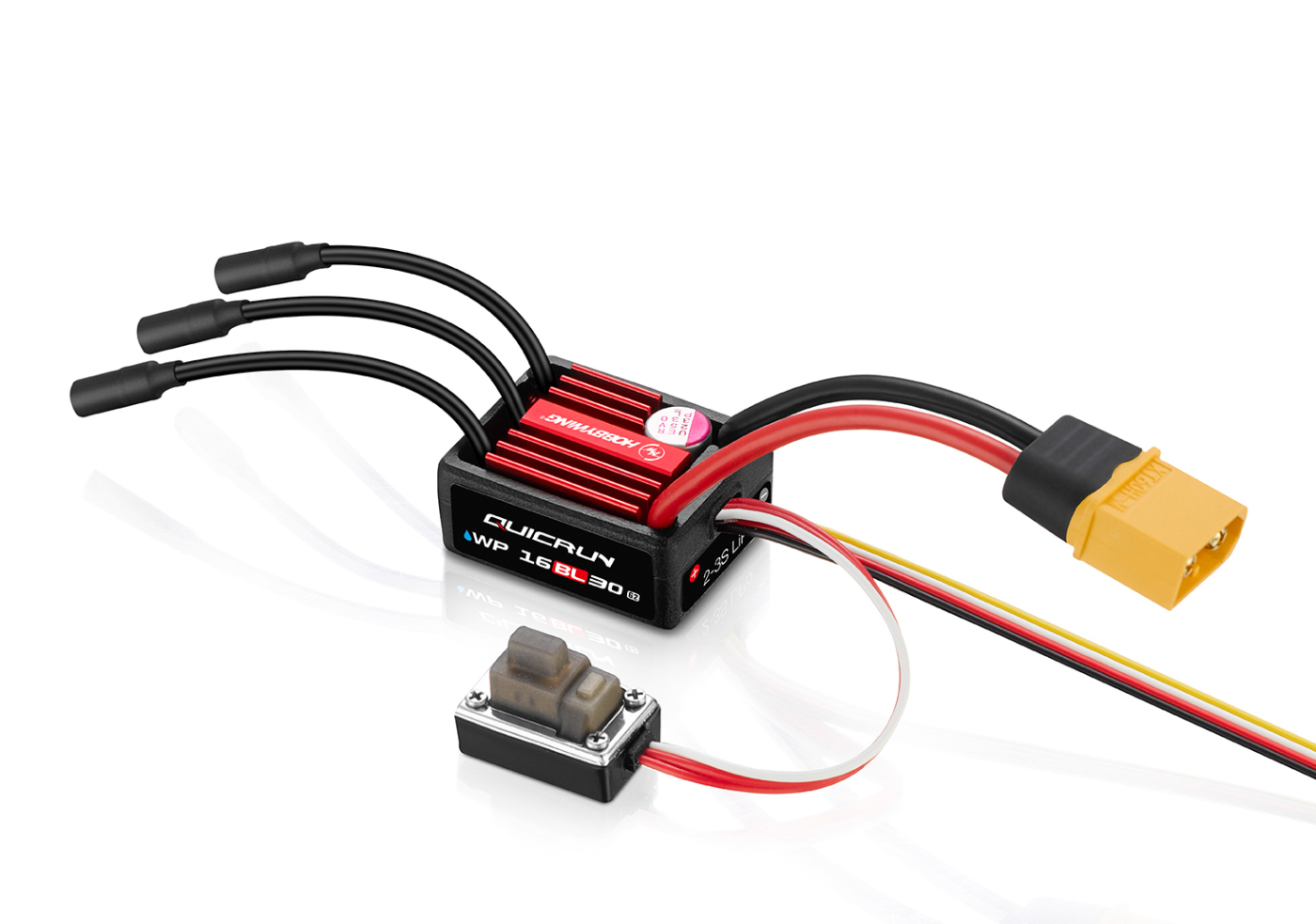

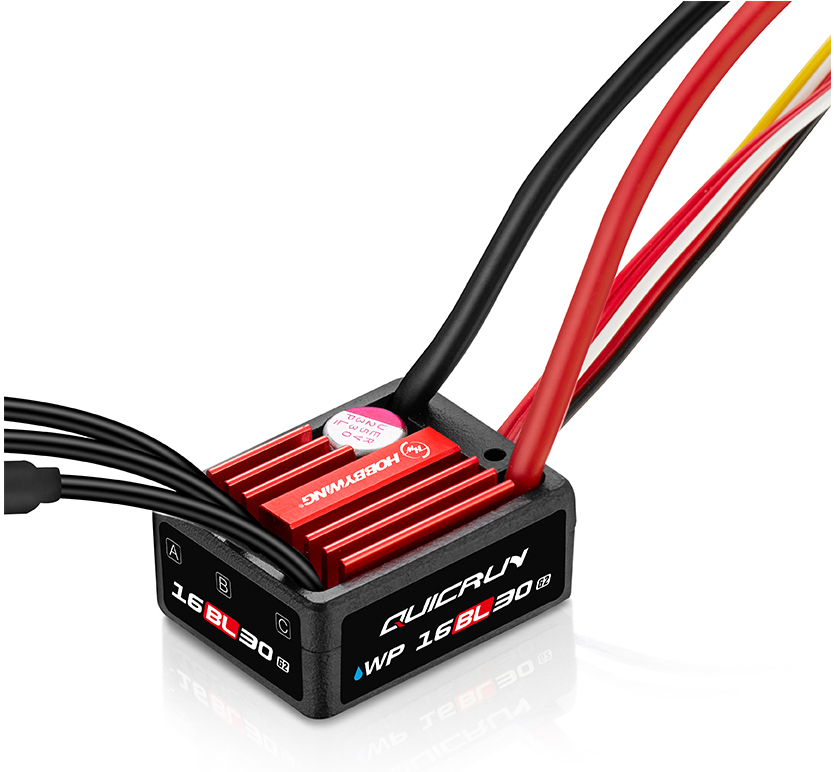

Hobbywing 30110001 - QuicRun WP 16BL30 G2

The QuicRun WP 16BL30 G2 is HOBBYWING’s latest compact brushless ESC, ideal for 1/16 and 1/18 scale vehicles.

• With intelligent freewheeling for lower heat and better efficiency, it delivers smooth, stable performance.
• Smaller size for easier installation (8.3% shorter, 7.1% narrower, 16.7% lower)
• Upgraded BEC: 2A continuous, 4A peak, switchable 6V/7.4V – perfect for high-torque servos
• IP67 waterproof – ready for rain, mud, and dust
• Easy programming via LCD/LED box or SET button
• Great value for beginners, with plug-and-play simplicity
• Optimized for QuicRun 2030 G2 & 2435 G3 motorsA smart, durable ESC built for reliability and performance.

Type

• Scale: 1/16th、1/18th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: Waterproof

Specifications

• Cont./Peak Current: 30A/100A
• Input Voltage: 2-3S
• BEC Output: 6V/7.4V,2A

Wires & Connectors

• Input Wires: Black-16AWG-75mm*1,Red-16AWG-75mm*1
• Output Wires: Black-16AWG-60mm*3
• Input Connectors: Black-16AWG-60mm*3
• Output Connectors: 3.5MM Gold (female)

ESC Programming via

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD G2 Program Box: Supported
• LCD PRO: Supported
• OTA Programmer: Not Supported
• Program Port: Shared with Throttle Wire

Data Recording

• Extreme value: Not Supported
• Real-time Data: Not Supported
• Historical data (Graph): Not Supported

Firmware

• Firmware Upgrade: Not supported

Size & Weight

• Size: 33.4x26.8x15.1mm
• Weight: 38.5g( Included wires & connectors)

Applications

• Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
• Vehicles: 1/16th、1/18th On-Road & Off-Road & Short Course Truck& Monster Truck
• Applicable Motor: QUICRUN 2435 G2
