Produkt Info:

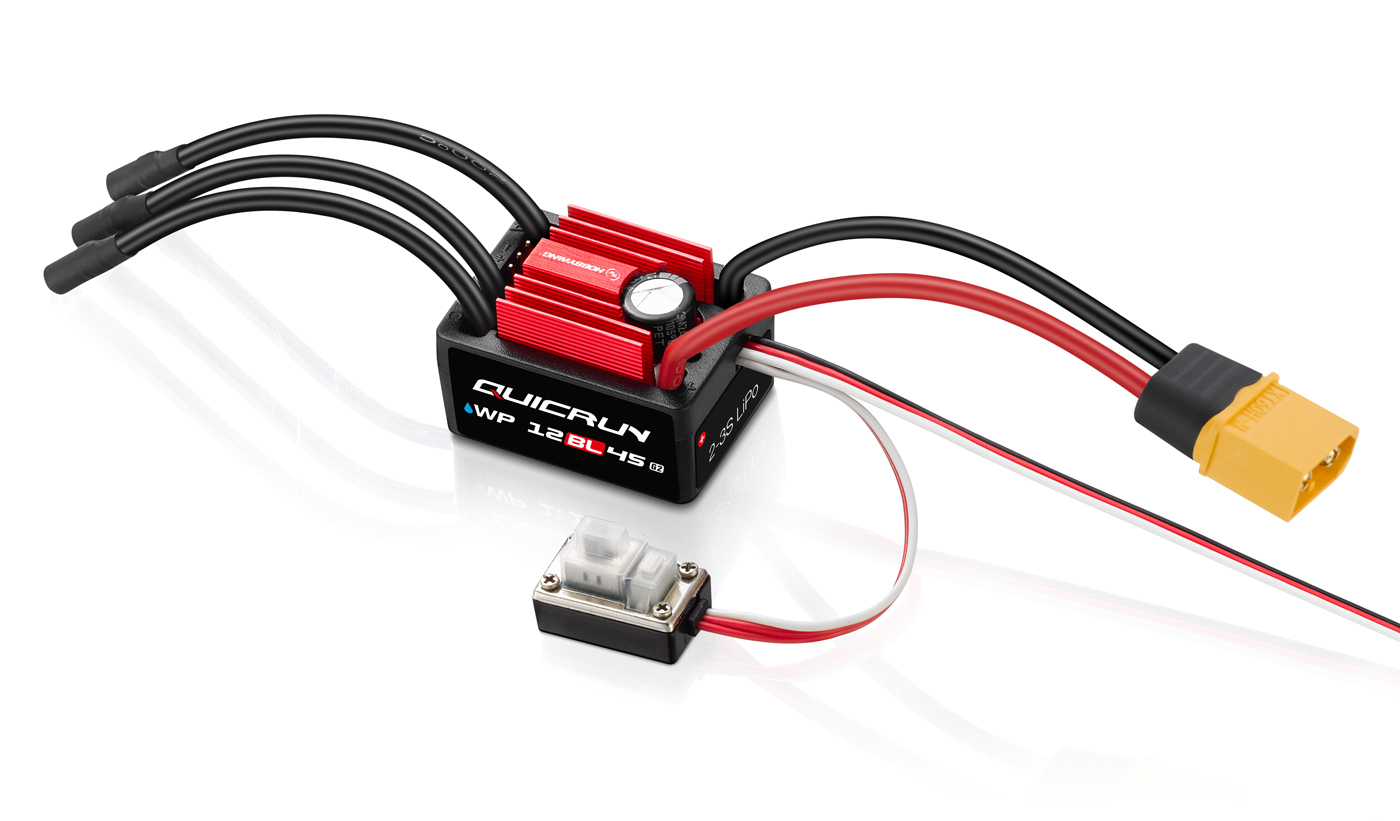

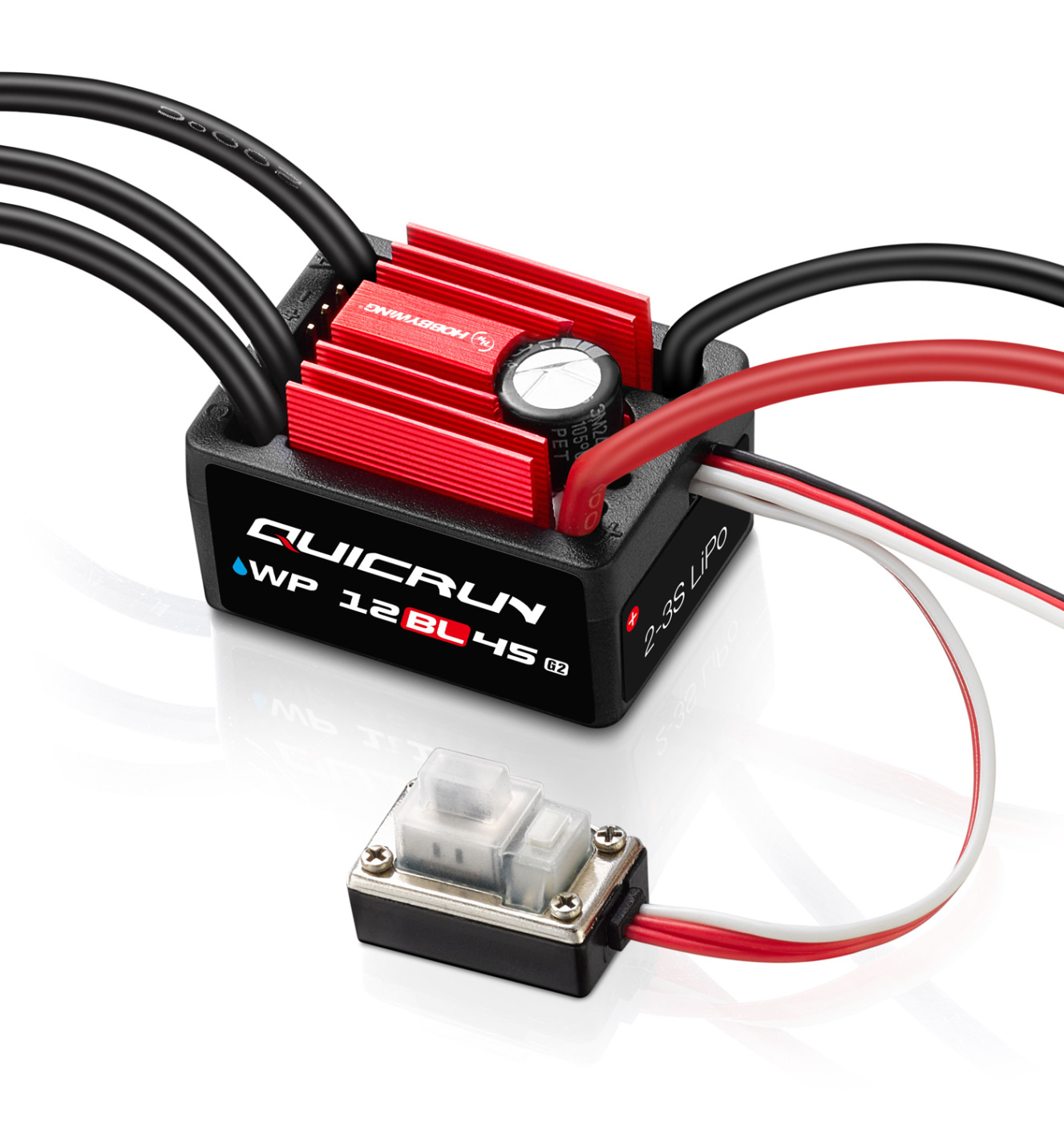

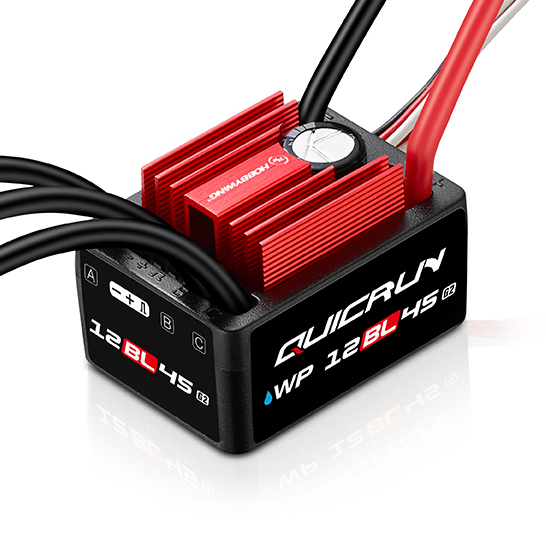

Hobbywing QuicRun WP 12BL45 G2Advanced Intelligent Cooling for Sustained and Stable Performance
The ESC adopts innovative intelligent freewheeling technology, significantly enhancing drive efficiency, reducing operating temperatures, and ensuring stable performance even under prolonged high-load operation.
- Built-in High-Power BEC
- The BEC provides a continuous current of 4A
- Maximum output current of 7A
- Supporting selectable voltages of 6V/7.4V
IP67 High-Level Protection
The ESC features an IP67 protection rating, delivering excellent waterproof and dustproof performance. It ensures reliable operation in various weather conditions and harsh environments, allowing for worry-free driving.
Note: The IP67 protection rating described above applies under normal usage conditions, offering splash resistance, water resistance, and dust resistance, and has been tested under controlled laboratory conditions. These protective functions are not permanent and may degrade over time due to daily wear and aging. Do not submerge the product in water for extended periods, as this may result in damage.
Multiple Parameter Adjustment Options
Supports three parameter adjustment methods: LCD Program Box Pro, LED Program Box, and SET button, allowing users to conveniently choose their preferred programming method.
Excellent Value for Money, Ideal Choice for Beginners
Specifically designed for entry-level users, inheriting HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required for effortless use.
Perfectly Compatible with QuicRun 2840/2850 G2 Motors
When paired with QuicRun 2840/2850 SL G2 motors, the ESC delivers smoother power output and superior control performance, providing a more exhilarating driving experience.
Specs:
- 1/12-1/16 scale, Brushless, Waterproof ESC
- Cont./Peak Current: 45/200A
- Input Voltage: 2-3S
- BEC Output: 6V/7.4V/4A
- Input Wires: 14AWG
- Output Wires: 14AWG
- Input Connectors: XT60
- Output Connectors: 3.5mm Gold (female)
- Fan Type: Framed
- Fan Size: 20x20x8mm
- Fan Voltage Range: 6-7.4V
- Fan Powered by: BEC
- Firmware Upgrade: Not supported
- Size: 39.2x29.2x25.6mm
- Weight: 57g
- Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
- Vehicles: 1/12、1/14, 1/16 On-Road & Off-Road
- Motors: QUICRUN 2840/2850 G2
ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD G2 Program Box (STOPPED): Supported
- LCD PRO: Supported
- OTA Programmer: Not Supported
- WiFi Module (STOPPED): Not Supported
- Program Port: Independent program port
