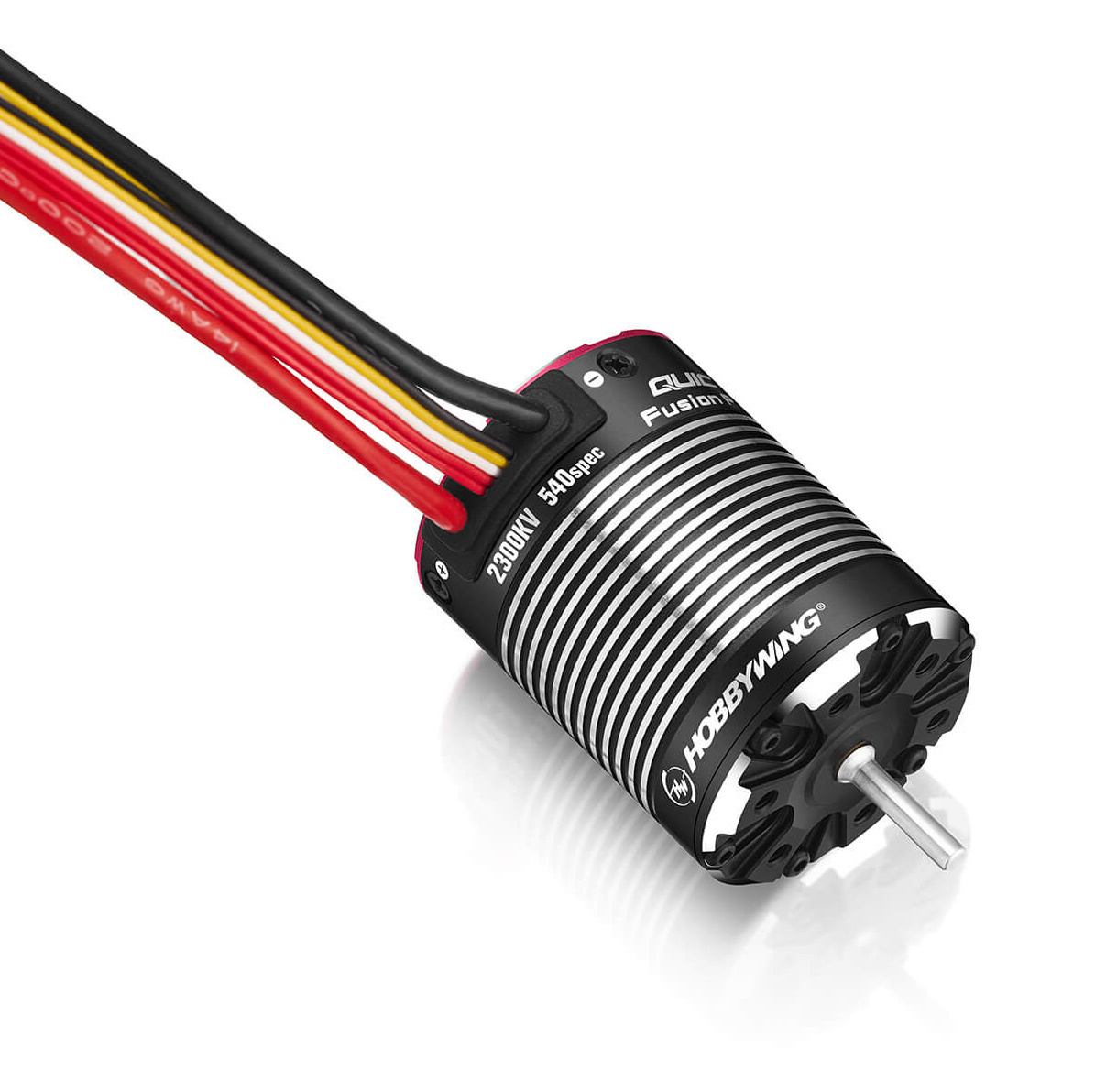

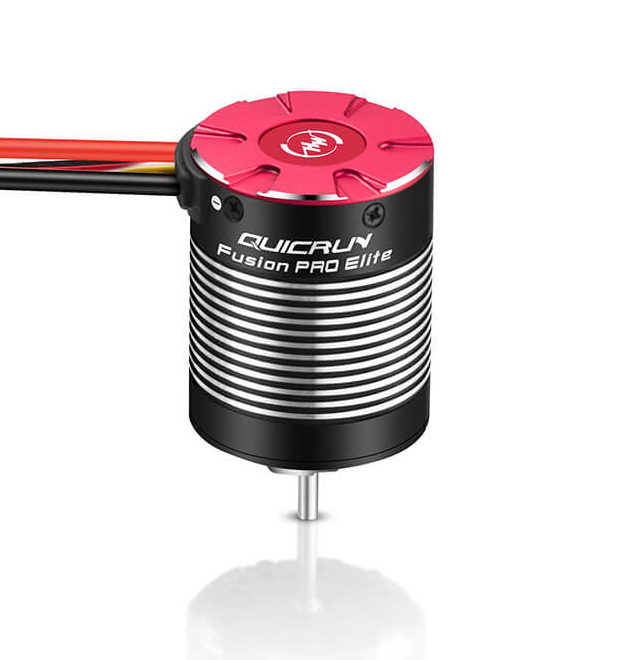

Hobbywing QuicRun Fusion Pro Elite – Integrated Power System for 1/10 Scale Crawlers
Overview
The QuicRun Fusion Pro Elite is a compact, high-performance 2-in-1 brushless power system that integrates the ESC and motor in one unit. Specifically designed for 1/10 scale crawlers, it features advanced FOC (Field Oriented Control) technology to deliver strong torque at low speeds, smooth throttle control, and quiet operation. The ultra-short design (only 48.5 mm long) allows clean and easy installation in most crawler chassis.
Key Features
Integrated ESC + motor design for a simple, clean installation.
FOC control ensures ultra-smooth throttle response, high low-end torque and excellent efficiency.
IP67 waterproof and dustproof design for reliable performance in rain, snow, mud or sand.
Intelligent torque and closed-loop speed control automatically adjust output during climbs and descents.
Real-time parameter tuning via AUX channel from your transmitter.
Supports multiple operation modes including constant speed, forward/reverse, and hybrid settings.
Programmable through SET button, LED Program Box or LCD Program Box.
Fourteen adjustable parameters including running mode, LiPo cell count, cutoff voltage, thermal protection, motor rotation, BEC voltage, drag brake strength, and punch control.
Technical Specifications
Continuous current: 50 A
Peak current: 150 A
Input voltage: 2–4 S LiPo
Built-in BEC output: selectable 6 V / 7.4 V / 8.4 V
Waterproof rating: IP67
Length: 48.5 mm
Outer diameter: ≈ 37 mm
Shaft diameter: ≈ 3.175 mm
Weight: ≈ 178.5 g
Application: 1/10 scale crawler vehicles
