Product Info:

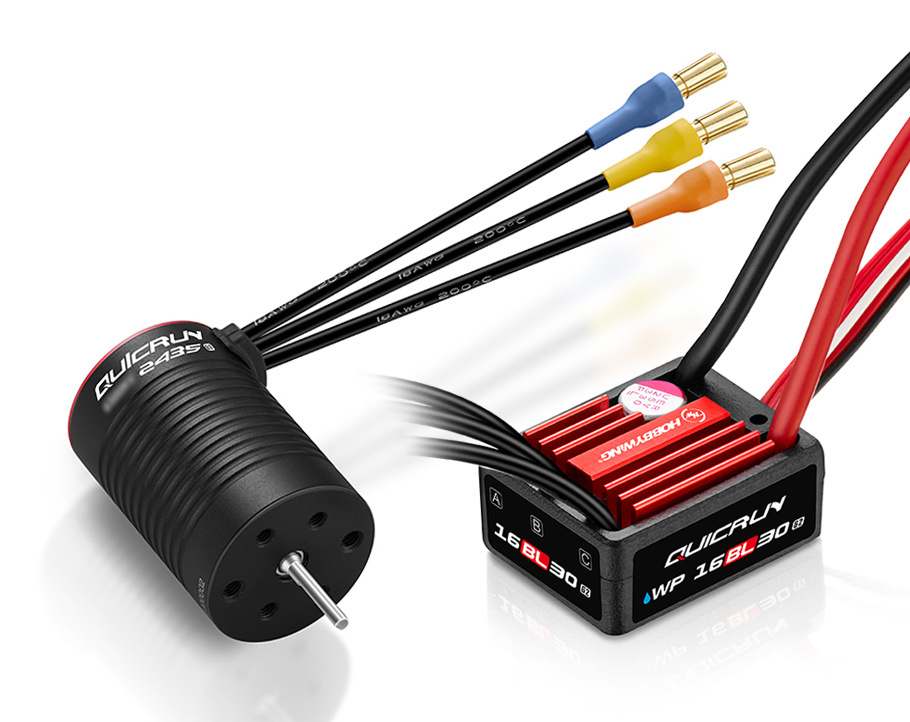

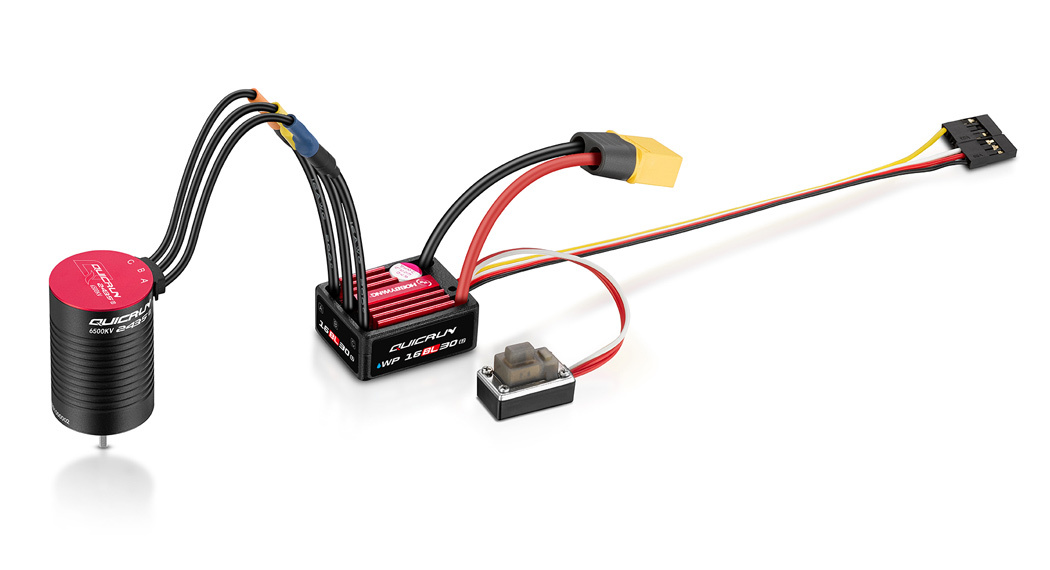

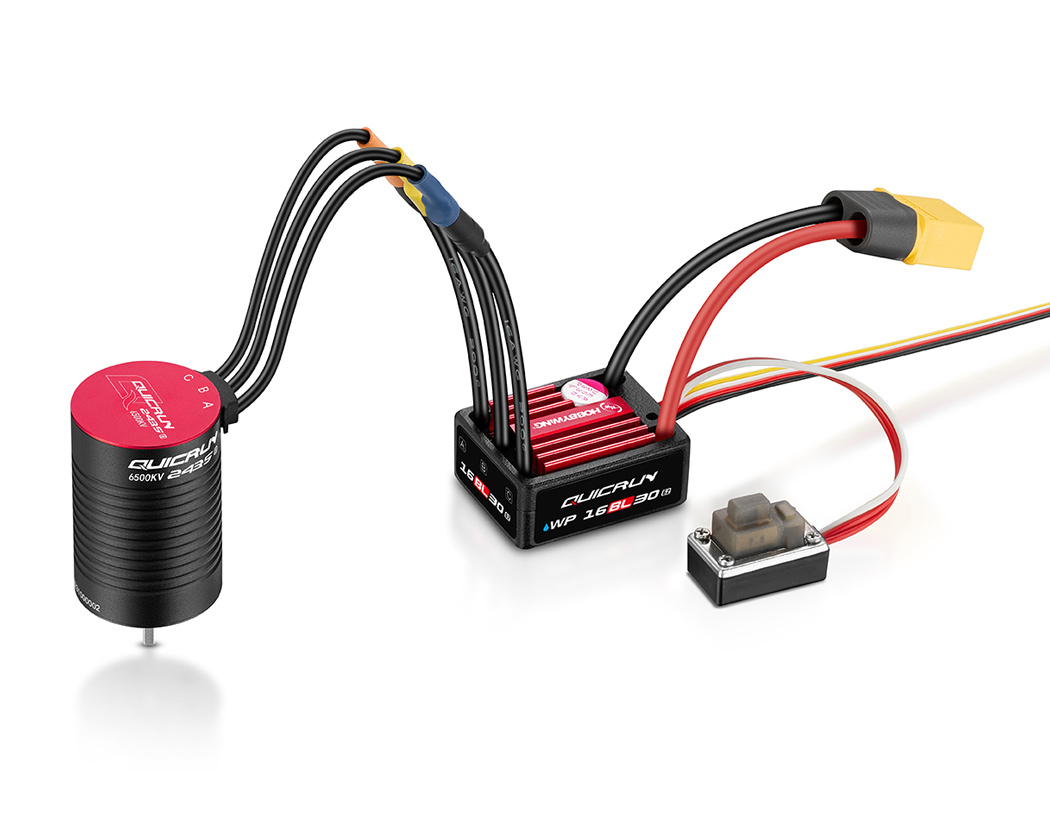

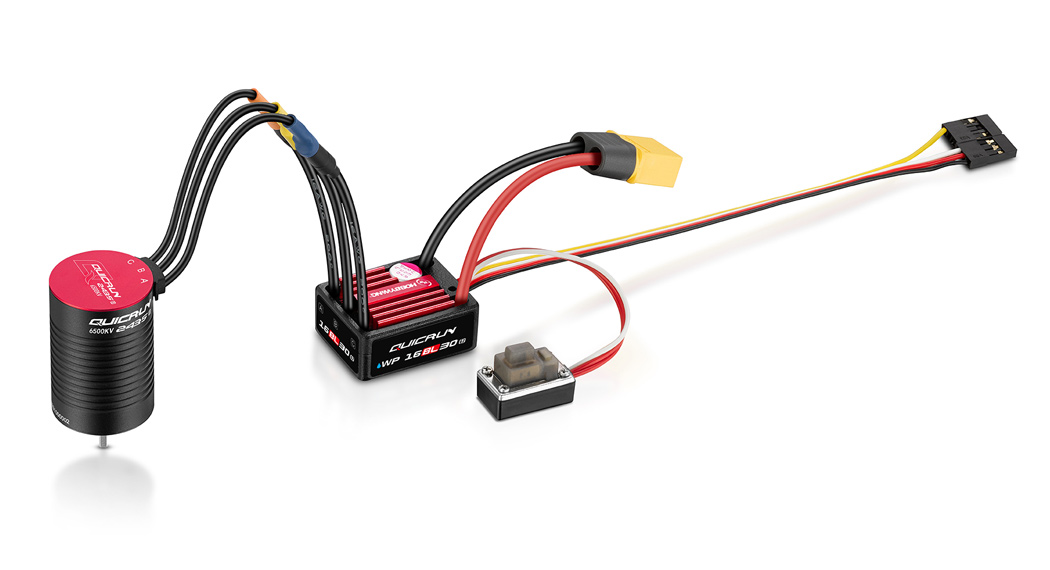

What's in the box:
- 1pcs QuicRun 2435SL 4500kV G3 Motor
- 1pcs QuicRun WP 16BL30 G2 ESC
ESC Specs:
- Scale: 1/16 & 1/18
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Waterproof
- Cont./Peak Current: 30A/100A
- Input Voltage: 2-3S
- BEC Output: 6V/7.4V - 2A
- Input Wires: 16AWG-75mm
- Output Wires: 16AWG-60mm
- Input Connectors: XT60
- Output Connectors: 3.5MM Gold (female)
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD G2 Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Not Supported
- Program Port: Shared with Throttle Wire
- Extreme value: Not Supported
- Real-time Data: Not Supported
- Historical data (Graph): Not Supported
- Firmware Upgrade: Not supported
- Size: 33.4x26.8x15.1mm
- Weight: 38.5g ( Included wires & connectors)
- Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
- Vehicles: 1/16th、1/18th On-Road & Off-Road & Short Course Truck & Monster Truck
- Applicable Motor: QUICRUN 2435 G2
Motor Specs:
- Type: 1/18-1/16, Brushless, Sensorless Motor
- Poles: 4
- KV Rating: 4500
- LiPo Cells: 2-3S
- No-load Current: 2.1A
- O.D.: 24mm
- Length: 36mm
- Shaft Diameter: 2mm
- Connectors: 3.5mm (male)
- Weight: 61.2g
- Front Bearing: OD8xID3xT4mm
- Rear Bearing: OD8xID3xT4mm
- Applications: 1/16-1/18 On-road & Off-road
