Produkt Info:

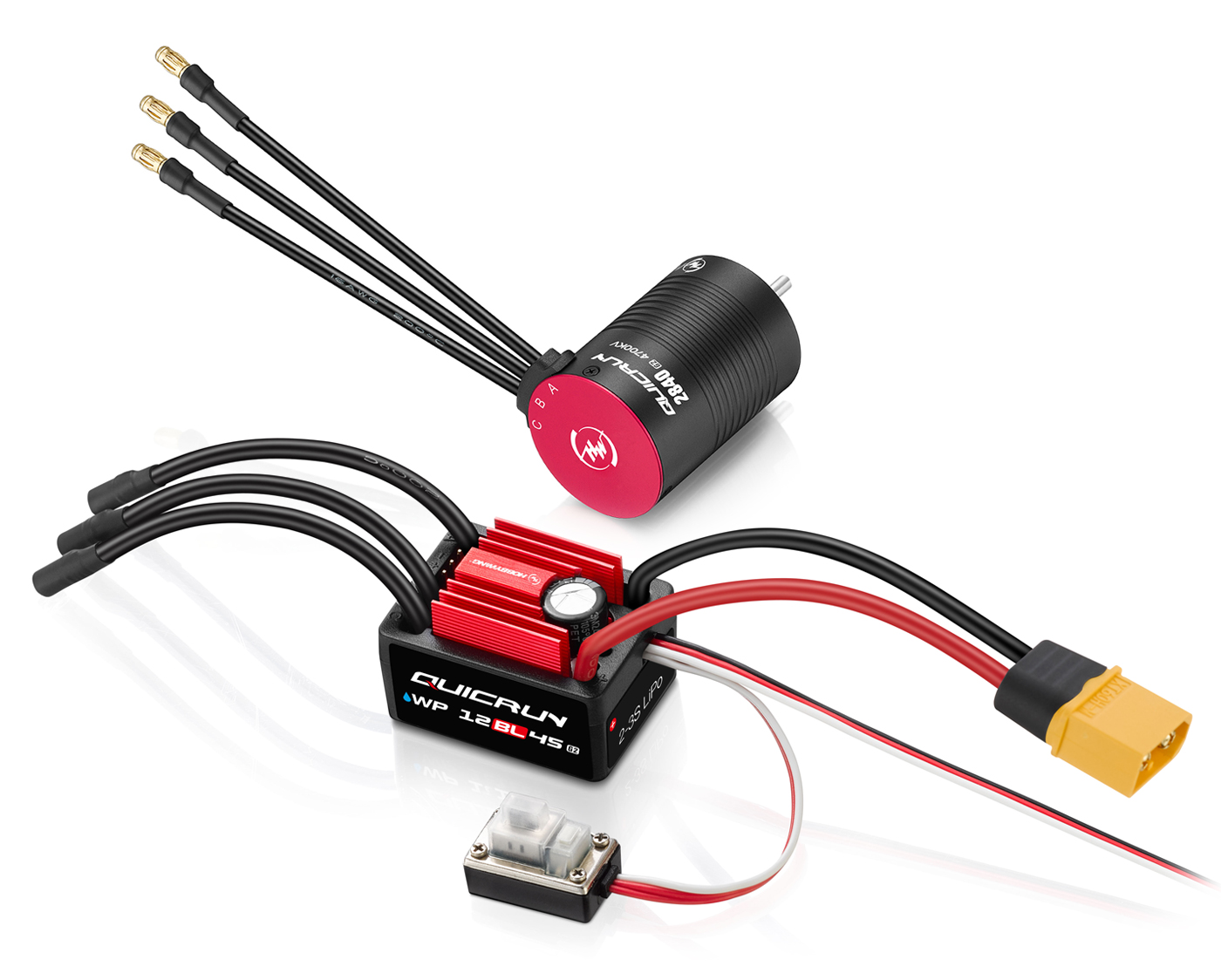

Hobbywing - QuicRun WP 12BL45 G2 ESC & 2040SL 4700KV G2 - 2S Combo
Advanced Intelligent Cooling for Sustained and Stable Performance
The ESC adopts innovative intelligent freewheeling technology, significantly enhancing drive efficiency, reducing operating temperatures, and ensuring stable performance even under prolonged high-load operation.
Built-in High-Power BEC
- The BEC provides a continuous current of 4A
- Maximum output current of 7A
- Supporting selectable voltages of 6V/7.4V
IP67 High-Level Protection
The ESC features an IP67 protection rating, delivering excellent waterproof and dustproof performance. It ensures reliable operation in various weather conditions and harsh environments, allowing for worry-free driving.
Note: The IP67 protection rating described above applies under normal usage conditions, offering splash resistance, water resistance, and dust resistance, and has been tested under controlled laboratory conditions. These protective functions are not permanent and may degrade over time due to daily wear and aging. Do not submerge the product in water for extended periods, as this may result in damage.
Excellent Value for Money, Ideal Choice for Beginners
Specifically designed for entry-level users, inheriting HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required for effortless use.
Wide Compatibility
The power system is suitable for both 1/14 & 1/16 scale hobby vehicles.
ESC Specs:
- Name: QuicRun WP 1245 G2
- Type: Brushless, sensorless, waterproof
- Cont./Peak Current: 45A/200A
- Input Voltage: 2-3S LiPo (2S with this motor combo)
- BEC Output: 6V/7.4V, 4A
- Input Wires: 14AWG-110mm
- Output Wires: 14AWG-85mm
- Input Connectors: XT60
- Output Connectors: 3.5MM Gold (female)
- Fan Type: Framed
- Fan Size: 20x20x8mm
- Fan Voltage Range: 6-7.4V
- Fan Powered by: Powered by BEC
- Size: 39.2x29.2x25.6mm
- Weight: 57g (Including wires & connectors)
- Firmware Upgrade: Not Supported
- Vehicles: 1/14 & 1/16 On-Road & Off-Road
ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD G2 Program Box (STOPPED): Supported
- LCD PRO: Supported
- OTA Programmer: Not Supported
- WiFi Module (STOPPED): Not Supported
- Program Port: Independent program port
Motor Specs:
- Name: QuicRun 2840SL 4700KV G2
- Scale: 1/16-1/14
- Type: Brushless, Sensorless
- Poles: 4
- KV Rating: 4700
- LiPo Cells: 2S
- No-load Current: 3.1A
- O.D.: 28mm
- Length: 40.5mm
- Shaft Diameter: 3.17
- Weight: 89g
- Front Bearing: D9xD4xT4mm
- Rear Bearing: D9.525xD3.175xT3.967mm
- Vehicles: 1/14 (Light-load) & 1/16 (Heavy-load)
