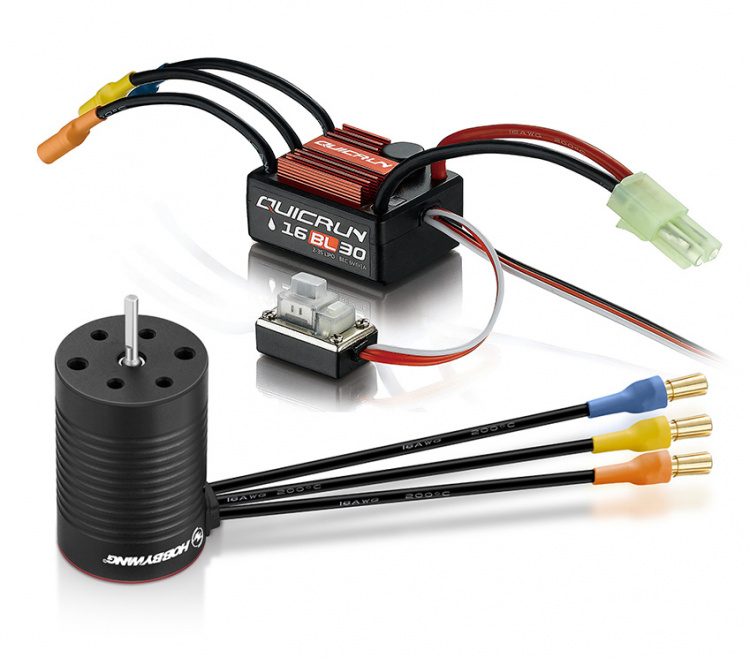

Hobbywing QuicRun WP 16BL30 SL 1/16-1/18 ESC & 2435SL 6500KV G3 Combo - 2S LiPo
Easy OperationThis ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.
Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-16BL30 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP- 16BL30 to not only provide high power output but also overload protection of the ESC circuit.
Single-button Programming & Factory Reset
The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.
Wide Application
This ESC is applicable to all-weather sport of 1/18th, 1/16th scale touring cars, buggies, trucks, and monster trucks.
ESC Specs:
- Type: 1/16, 1/18, Brushless, Sensorless, WP
- Cont./Peak Current: 30A/180A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC: Linear Mode: 6V/1A
- Input Wires: 16AWG-75mm
- Output Wires: 16AWG-75mm
- Input Connectors: Small-sized TAMIYA Connector (Mini Tamiya)
- Output Connecotors: 3.5 Gold Connector (Female)
Programming:
- SET Button on ESC: Supported
- LED Program Box; Supported
- LCD Program Box: Not Supported
- WiFi Module: Not Supported
- OTA Programmer: Not Supported
- Program Port: Program/Throttle Wire
- Firmware Upgrade: Not Supported
- Size: 36x28x18mm
- Weight: 38g
- Motors: Sensorless Brushless
- Vehicles: 1/16 & 1/18 - Touring Cars/Buggies/Trucks/Monster Trucks
For 2S Lipo or 6 cells NiMH:
- On-road: 2435-size or smaller motor with the KV<8000
- Off-road / Buggy / Monster: 2435-size or smaller motor with the KV<5000
- On-road: 2435-size or smaller motor with the KV<5500
- Off-road / Buggy / Monster: 2435-size or smaller motor with the KV<3500
QuickRun 2435SL G3 6500KV Brushless Sensorless 1/18-1/16 Motor:
Stronger power - Upgraded to 4-pole rotor
The G3 motor adopts a four-pole rotor design with stronger torque and stronger explosive power.
Better performance
Compared with the same specification of products under the same load conditions, the maximum output power is 60% higher, the maximum efficiency is 5% higher, and the temperature is reduced by approximately 30 degrees.
Upgraded materials, durable
0.2mm thick silicon steel, high-strength explosion-proof rotor, 200°C high-temperature-resistant enameled wire, and first-line brand high-precision and high-quality bearings make the motor durable.
Excellent protection
The output of the motor is sealed with a silicone rubber on the housing. It is dust-proof for off-road vehicles/trucks. Users will now enjoy bashing without having to worry in harsh operating environments such as outdoor sand, stones, and dust.
Note: It is recommended to block the unused mounting holes of the motor front cover with screws.
Motor Specs:
- Type: 1/18-1/16, Brushless, Sensorless Motor
- Poles: 4
- KV Rating: 6500
- LiPo Cells: 2S
- No-load Current: 3.4A
- O.D.: 24mm
- Length: 36mm
- Shaft Diameter: 2mm
- Connectors: 3.5mm (male)
- Weight: 61.2g
- Front Bearing: OD8xID3xT4mm
- Rear Bearing: OD8xID3xT4mm
- Applications: 1/16-1/18 On-road & Off-road
