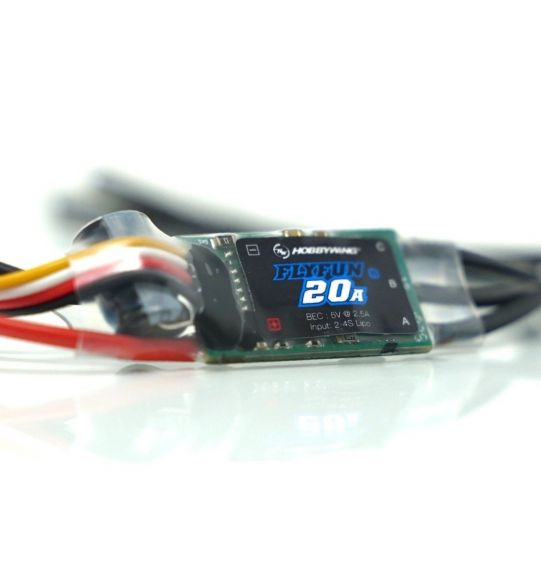

Hobbywing FlyFun V5 20A 2-4S ESC

DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:

Rapider and smoother throttle response, better stability and flexibility during flight.
Higher driving efficiency, longer flight time.
Lower ESC temperature, more reliable operation.

Soft Start-ups & Reverse Brake
New soft start-up modes are applicable to regular propeller aircraft and EDF aircraft with different sizes. With Reverse Brake mode enabled when landing can effectively shorten the sliding distance of the aircraft to simulate the landing of a real aircraft (within a super short distance, the FLYFUN 130A/160A-HV-OPTO-V5 doesn’t have this function). Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode while in proportional brake mode, the brake force will be automatically allotted on the basis of the position of radio throttle stick.

Multiple Protections
Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.

New Design & Great performance
New design brings exquisite look and good heat-dissipating performance. Imported components, the high-performance 32-bit microprocessor, and the PCB (printed circuit board) with extremely low impedance adopted by the ESC guarantee great current endurance, excellent performance and high reliability. The ESC is available in high-voltage/regular version with different Amps.

Multiple Programmable Parameters
Multiple programmable parameters for setups of different fixed-wing aircraft are adjustable via transmitter or Hobbywing LED program box.

Specifications:

Type: Brushless ESC
High Voltage/Regular: Regular
Continuous/Peak Current: 20A/30A
Input: 2-4S LiPo
BEC: Switch Mode: 5.2V / 2.5A/4A
Input Wires: 18AWG 140mm
Motor Wires: 16AWG 110mm
Input Connectors: No
Motor Connectors: yes, 2mm gold bullet female
Size: 25x15x5 mm
Weight: 13g
Firmware Updates: Not Supported

ESC Programming via:

Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Wire Harness
