Futaba GYA450 - 1-Axis Gyro till Sidoroder eller Höjdroder

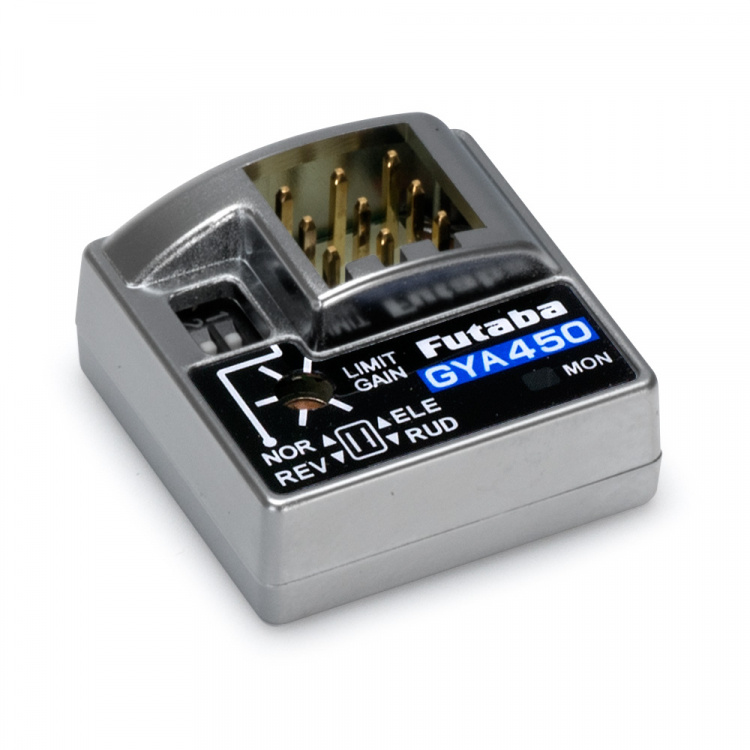

The GYA450 Aircraft Gyro is a compact and lightweight unit that is designed to control the elevators (pitch axis) or rudder (yaw axis). Features include simple set-up and S.BUS/S.BUS2 connectivity.Dedicated aircraft setting
- Stabilizes flight, even with hard to control scale models
Compatible with elevator or rudder control
- Controls 2 elevators or 2 rudders with S.BUS/S.BUS2 connection
- GYA450 can be used with elevator or rudder controls
Compatible with Alevon or V-tail wing mixing
- Two axis control is available using two GYA450 or GYA451 when using a combined connection (S.BUS only)
Remote gain function
- The remote gain function allows the sensitivity of the gyro to be adjusted from the transmitter and the mode switching function allows AVCS/NORMAL gyro mode switching. Also, the gain can be adjusted using the trimmer on the GYA450.

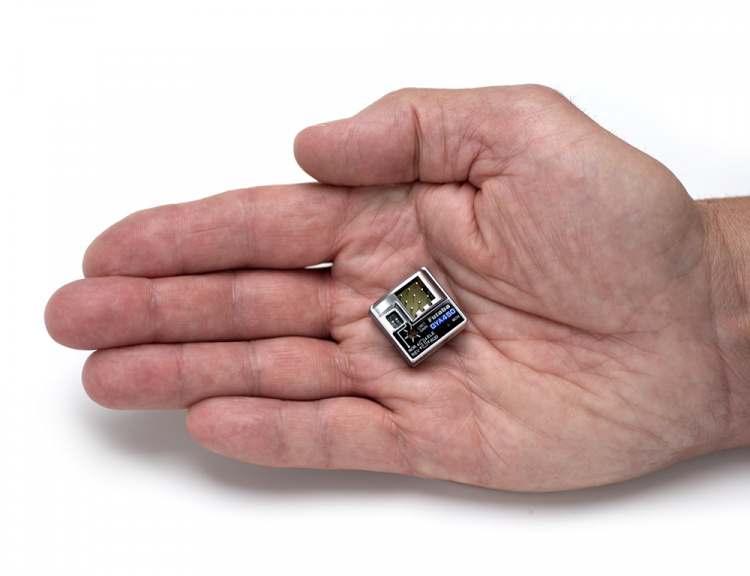

Easy to mount, compact size and lightweight
- High-density mounting technology makes the GYA450 compact and lightweight
Easy setup
- Basic settings let you be flight-ready in an instant
Supports S.BUS and S.BUS2 connection
- Only one wire connection to the receiver can operate the GYA450
Excellent vibration resistance
- GYA450 can be used on models powered with large combustion engines

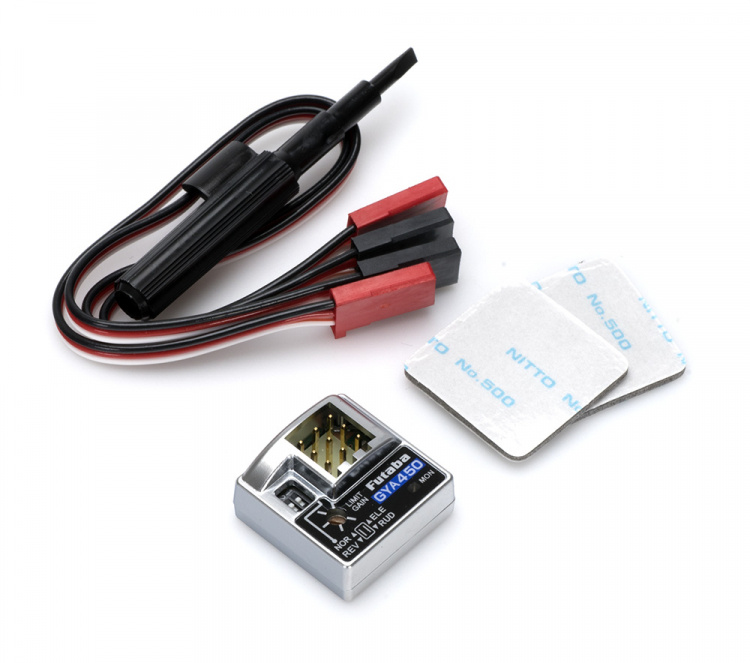

Included:
- GYA450 gyro
- Mini Screwdriver
- 2x Sensor mounting double sided tape
- Extension leads
Specs:
- S.BUS/S.BUS2
- Operating voltage: 4-8.4V
- Current Drain: 30mA
- Size: 20.5 x 20.5 x 7.8/11.1 mm
- Weight: 3.7g
- Operating Temp: -10 – +45°C
- Gyro sensor: MEMS vibrating structure gyro
