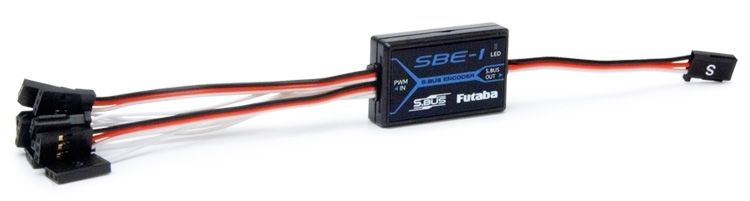

Futaba SBE-1 - PWM to S.Bus Decoder Converter Adapter

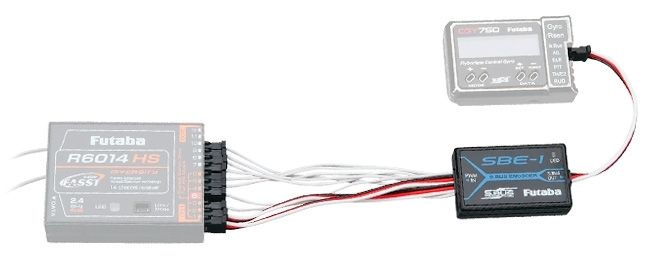

The SBE-1 is a converter that is used when using a CGY750 gyro or other exclusive S-BUS receiver device with a receiver for conventional system use. The signals (PWM) of a conventional system of up to 10ch can be converted to S.BUS system signals.Specs:
- PWM INPUT: Max 10 Channels
- INPUT PULSE WIDTH: 805 ~ 2,235 μS
- INPUT FRAME RATE: 3 ~ 27.3 mS
- OUTPUT SIGNAL: S.Bus
- S.BUS DATA RATE: 100 kbps
- OUTPUT FRAME RATE: Approximately 7 mS
- OPERATING VOLTAGE RANGE (RATED): 4.8 ~ 7.4 V
- DIMENSIONS (EXCLUDING CABLE): 23.5 x 33.5 x 9.5 mm
- WEIGHT (INCLUDING CABLE): 15 g
- OPERATING TEMPERATURE RANGE: -10 ~ 45° C
- STORAGE TEMPERATURE RANGE: -20 ~ 60° C
