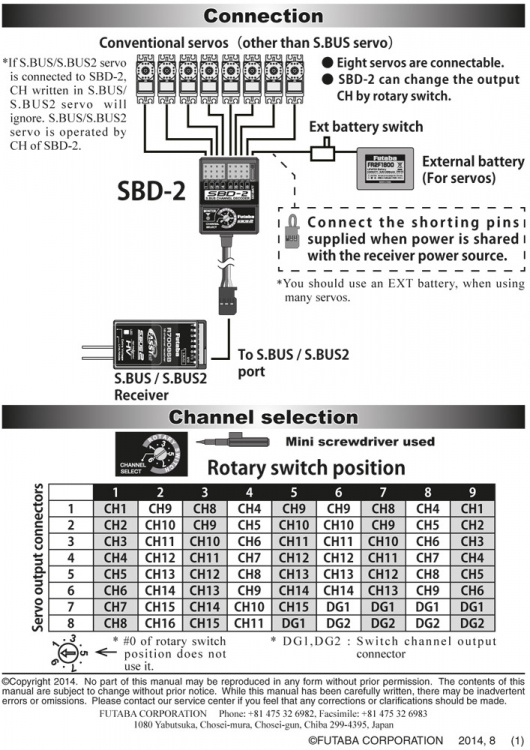

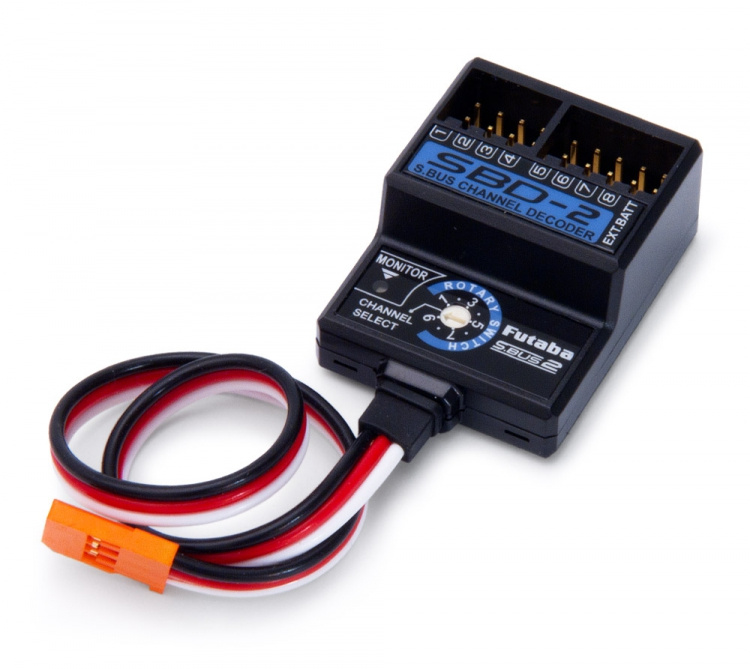

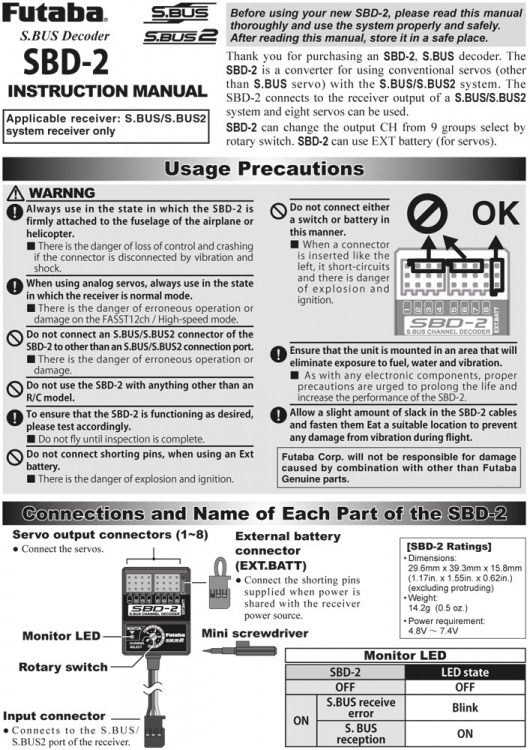

The SBD-2 is a converter for using conventional servos (other than S.BUS servo) with the S.BUS/S.BUS2 system. The SBD-2 connects to the receiver output of a S.BUS/S.BUS2 system and eight servos can be used. SBD-2 can change the output CH from 9 groups select by rotary switch. SBD-2 can use EXT battery (for servos).

• Applicable receiver: S.BUS/S.BUS2 system receiver only

Dimensions:

• 29.6 x 39.3 x 15.8 mm
• Weight: 14.2 g
• Power requirement: 4.8V ～ 7.4V
