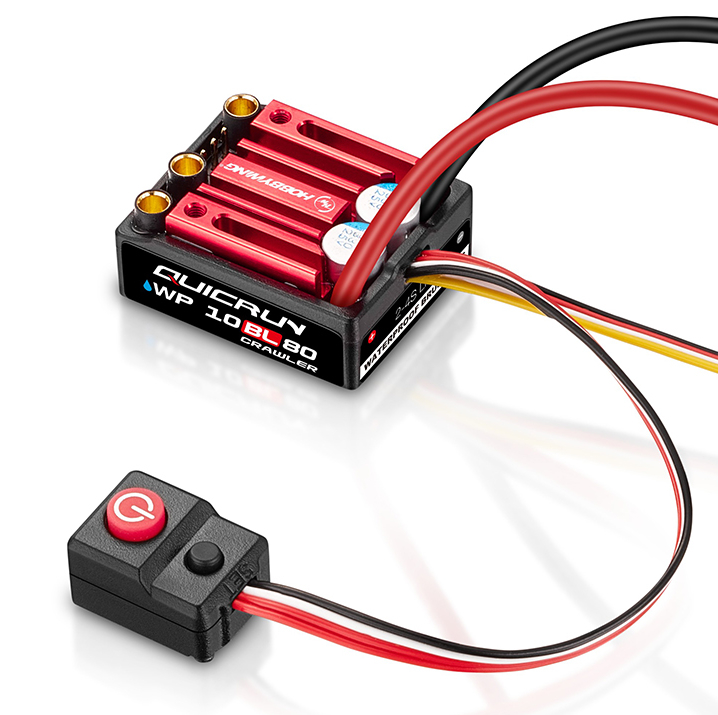

Hobbywing QuicRun WP 10BL80 Crawler - ESC for 1/10 Scale Crawlers
Overview
The QuicRun WP 10BL80 Crawler is a high-performance, compact and waterproof electronic speed controller (ESC) specially engineered for 1/10 scale crawler vehicles. Ideal for demanding off-road environments, it delivers robust current output, configuration flexibility and reliable performance in harsh conditions.
Key Features
- 80 A continuous current / up to ~240 A peak current (2-4 S LiPo)
- Fully waterproof and dust-proof with IP67 rating
- Supports both brushless and brushed motors
- Built-in high-voltage BEC selectable at 6V / 7.4V / 8.4V, up to 11 A output
- Real-time drag-brake adjustment via AUX channel from transmitter
- Compact size (36 × 30 × 15.5 mm) and ready-wired XT60 connector for easy installation
- Mounting holes for optional cooling fan to maintain under ~60 °C under load
- Program via LED or LCD Program Box or SET button: adjust braking strength, motor rotation, drag-brake, etc
Specs
- Application: 1/10 scale crawler vehicles (brushed or brushless motors)
- Continuous Current: 80 A
- Peak Current: Approx. 240 A
- Input Voltage: 2–4S LiPo
- Built-in BEC Output: 6 V / 7.4 V / 8.4 V selectable, up to 11 A
- Size: 36 × 30 × 15.5 mm
- Weight: Approx. 47.8 g (including cables)
- Output Connector: Pre-wired 3.5 mm female gold plugs
- Input Connector: XT60
- Protection / Robustness: IP67 waterproof & dustproof; optional fan mount
- Motor Compatibility: Sensorless / sensored brushless & brushed 540/555 size
- Programming Methods: LED Program Box, LCD Program Box, SET button
