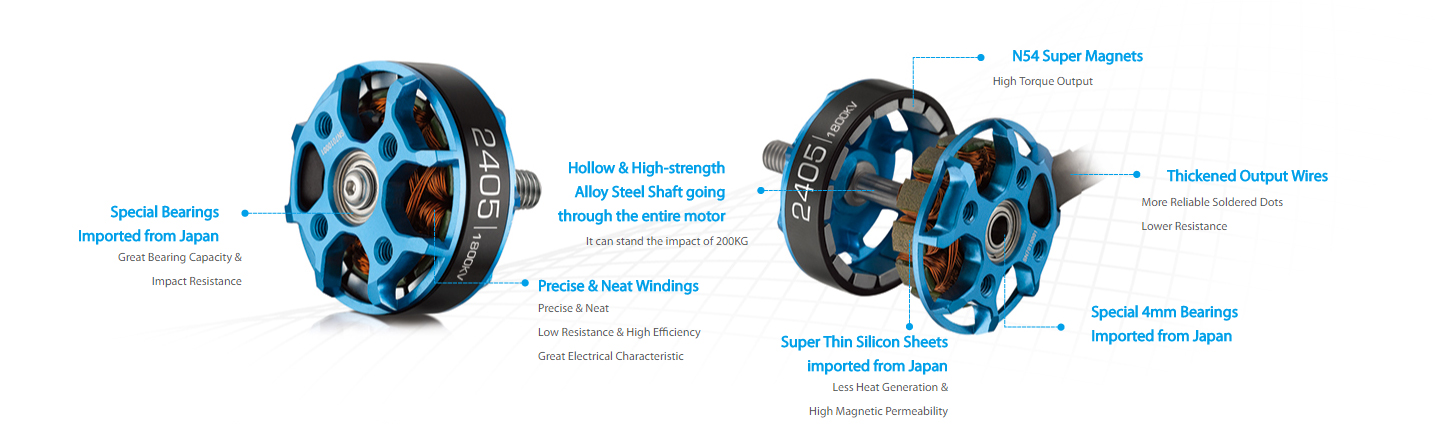

Excellent Product Design
- Super thin disc-type structure with a low center of gravity guarantees better control feel.
- Concave anti-skid teeth together with the lock-up screw at the bottom effectively prevent rotor
from moving or loosing and strengthens reliability of the motor.
- One-piece eight-bladed centrifugal fan greatly reduces the operating temperature of the motor.
- Super light weight, only 33.4g.
Super Impact Resistance
High-strength CNC-machined aluminum alloy frame which features the strengthened cross beam structure combined with the high-precision hollow alloy steel shaft going through the entire motor guarantee the super impact resistance of the motor.
Top Quality Components
- Special 240℃ heat-resistant windings (after vacuum dip coating treatment) can stand high, surge current.
- N54 super magnets guarantee high torque output.
- Super thin (0.2mm) silicon sheets imported from Japan guarantee low (power) loss, less heat generation but high magnetic permeability.
- Dedicated 4mm bearings (the thickness is enlarged by 33% comparing to the regular 3mm bearings on the market) imported from Japan guarantee great load-bearing capacity and impact-resistance.
The maximum thrust of 1.58KG (*XRotor 2405 2850KV motors+5040 three-bladed propellers, 3S LiPo) combined with the thrust to weight ratio of up to 47.3:1 provide aggressive power for FAV drone(s).
- KV Rating: 2850KV
- LiPo Cells: 4S
- No-Load Current(A/10V): 1.8A
- Motor Resistance: 0.031Ω
- Max Continuous Current / Power: 25A/420W
- Stator Diameter/Thickness: 24mm/5mm
- Slot/Plot Count: 12/14
- Motor/Shaft Diameter: 30.8mm/5mm
- Motor Length (w/o, w/ Shaft): 15.9mm/29.4mm
- Weight: 35.5g
- 5045 Three-bladed Propeller | 5040 Two-bladed Propeller
- Xrotor Micro 30A BLHeli-S Dshot600 or above
